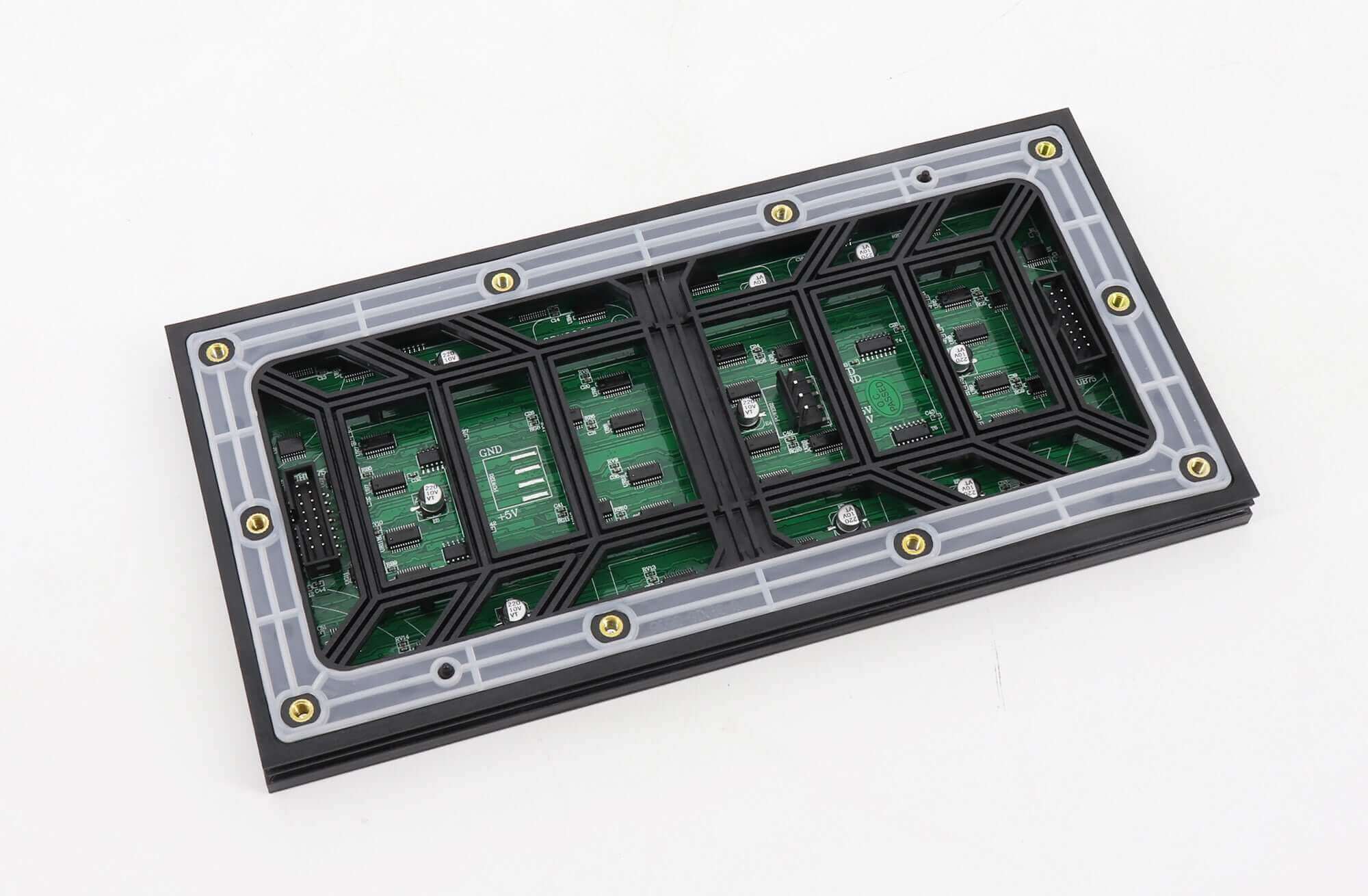

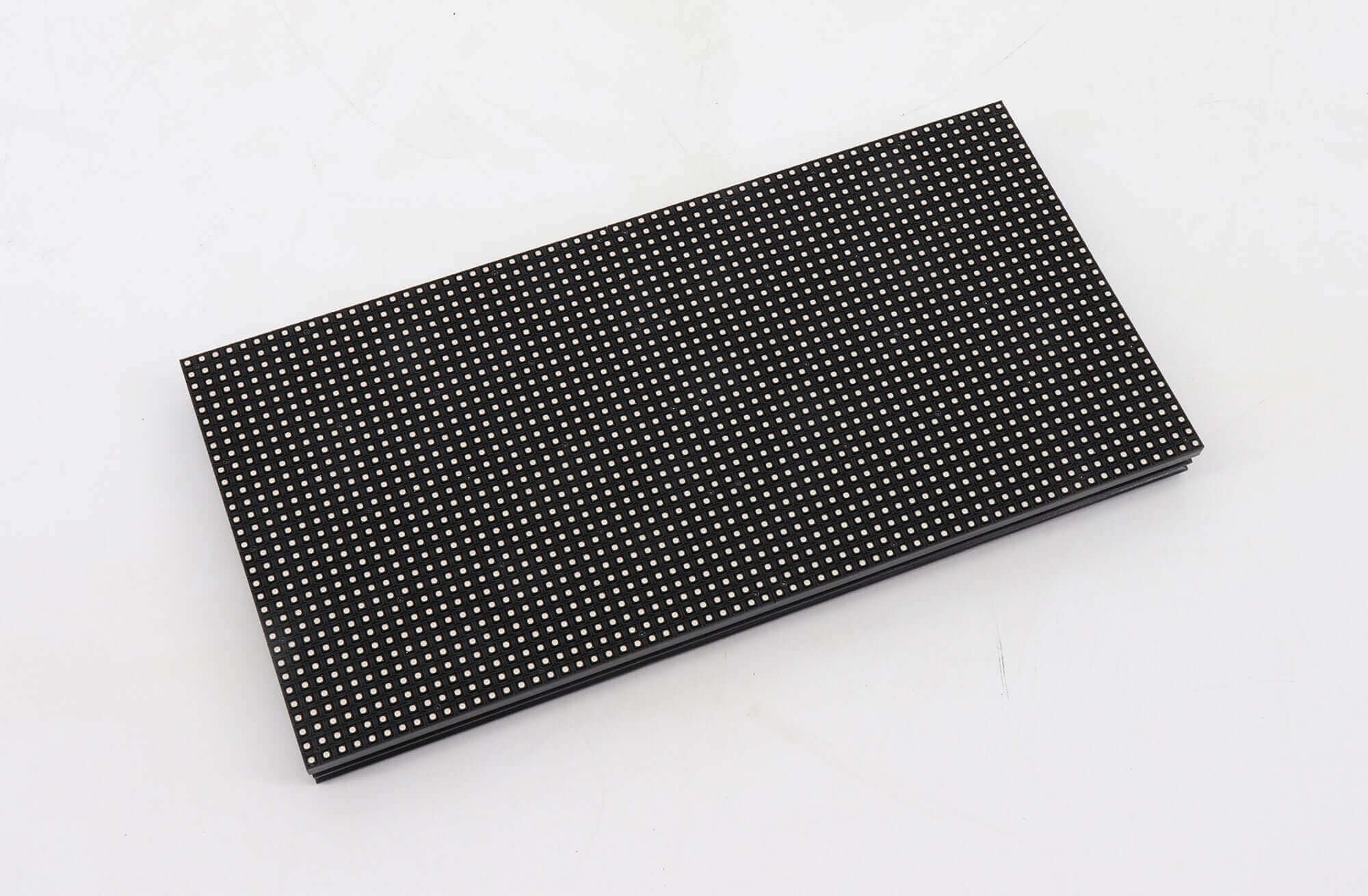

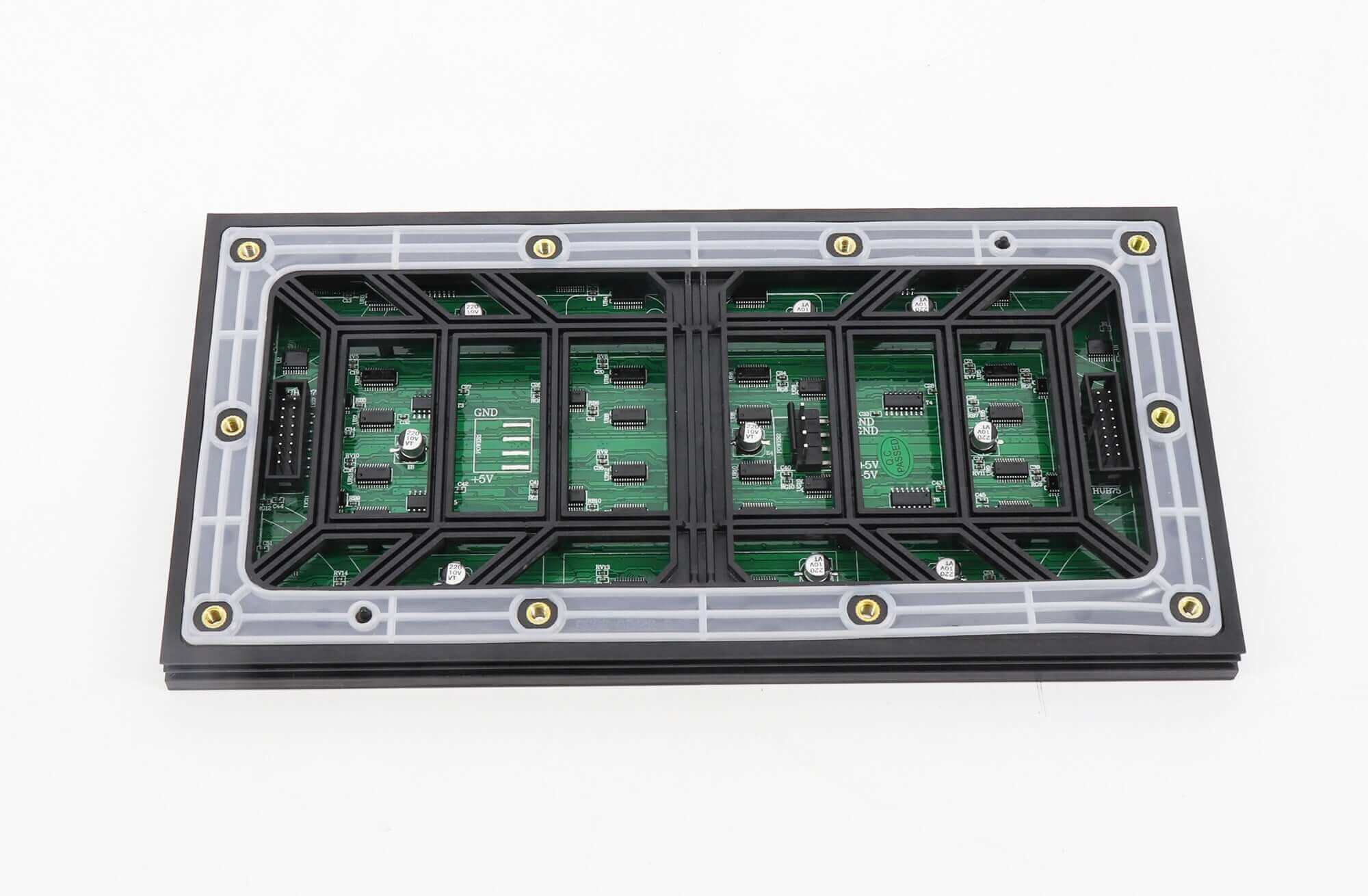

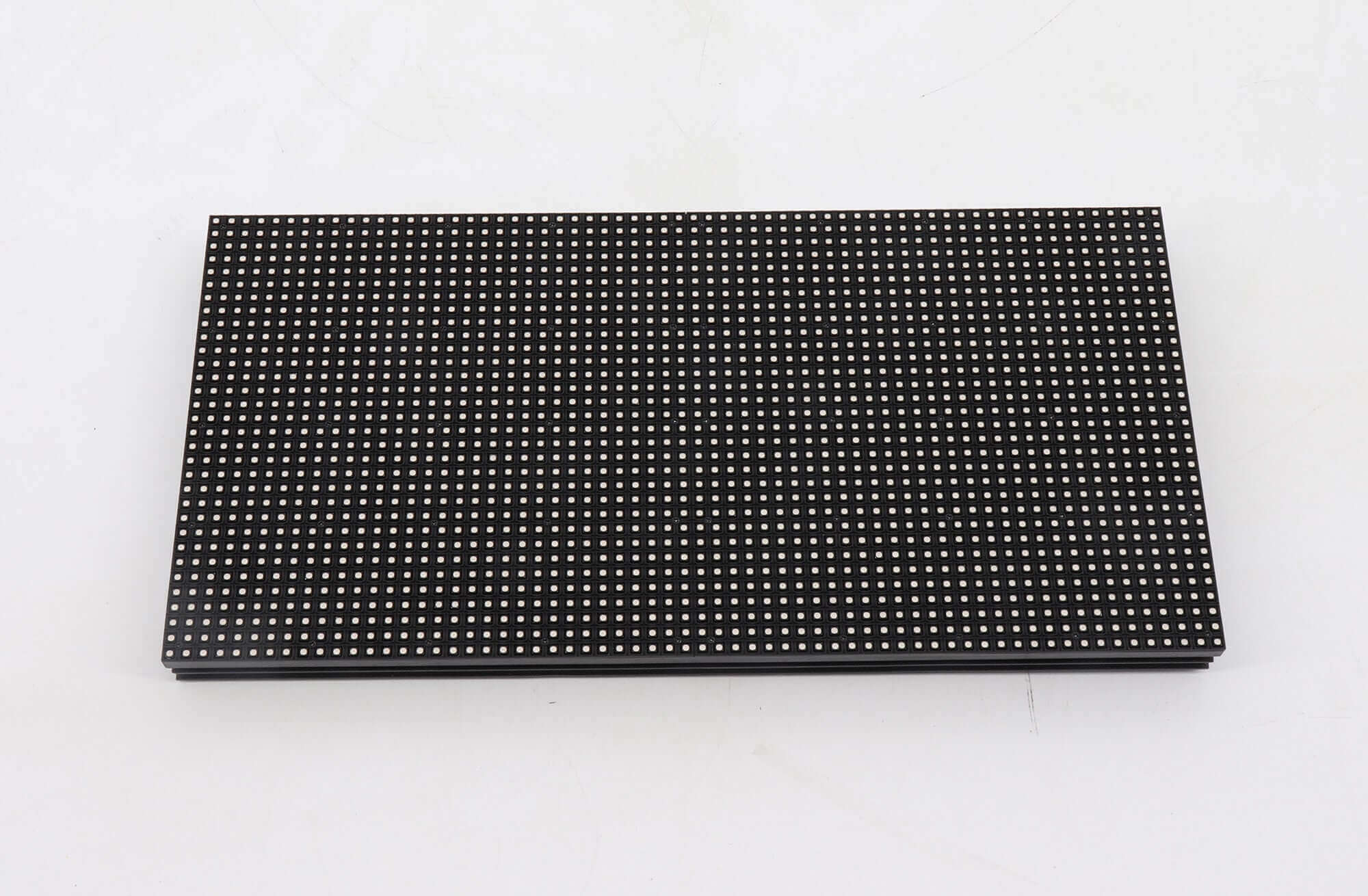

P4 Outdoor HD LED Display Screen Module 256x128mm

Eager-LED
P4-O8S-SMD2525-64×32
In stock
$32.90
Notice before order 1) Parts included: LED module, signal cable between modules, power cable between module and power supply. 2) Buy modules of same batch: to avoid brightness and color...

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.






P4 Outdoor HD LED Display Screen Module 256x128mm





P4 Outdoor HD LED Display Screen Module Features:



1) Small pixel pitch 4mm for outdoor SMD LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.

2) 4mm is one of the pixel pitches of usual outdoor LED screens. Therefore, it is a very good solution for Rental LED Screen for both outdoor and indoor use.

3)  Kinglight LED, high brightness, good brightness&color conformity, high reliability.

4) Reasonable PCB design with good heat radiation and achieve long life span.



P4 Outdoor HD LED Display Screen Module Parameters:



LED Lamp Specification

Color

Package

Intensity

Viewing angle

Wavelength

Testing condition

Red

SMD2525

450-600mcd

120°/120°

620-625nm

25℃,20mA

Green

 SMD2525

1000-1400mcd

120°/120°

516-530nm

25℃,20mA

Blue

 SMD2525

200-400mcd

120°/120°

465-475nm

25℃,20mA

Module Parameter

Pixel Pitch

4mm

Pixel configuration

SMD2525

Density

62,500 pixels/(real pixel)

Module Resolution

64pixel(L) * 32pixel(H)

Module Dimension

256mm(L) * 128mm(H) * 18mm(D)

Driving Mode

Constant current, 1/8 duty

Module Mask

Pure black mask---high contrast screen

Electricity Parameter

Optical Ratings

Brightness

≥6,000 cd/

Viewing Angle

120°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥4m

Gray Grade

16,384 levels for each color

Display Color

4.39 Trillion Colors

Brightness Adjustment

100 grades by software or automatically by sensor

Max. Power Consumption

30W

Control System

Correction Scale Level

12bits

Frame Frequency

≥60Hz

Screen Refresh Frequency

≥1,920Hz

Gamma Correction

-5.0~5.0

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000—9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20~+60 ºC

Stored Temperature

-30+70 ºC

Working Humidity

10%~90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Working Time

≥72 hours

Protection Grade

IP65

Out of Control Pixel Rate

≤0.01%



Download Specification:

P4 Outdoor HD LED Display Screen Module specification
