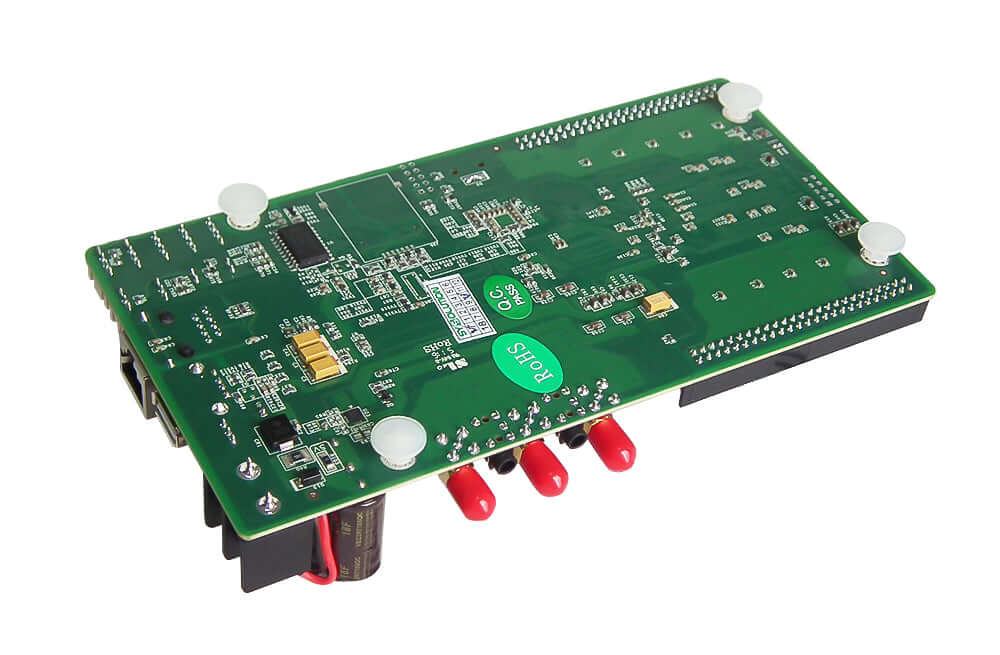

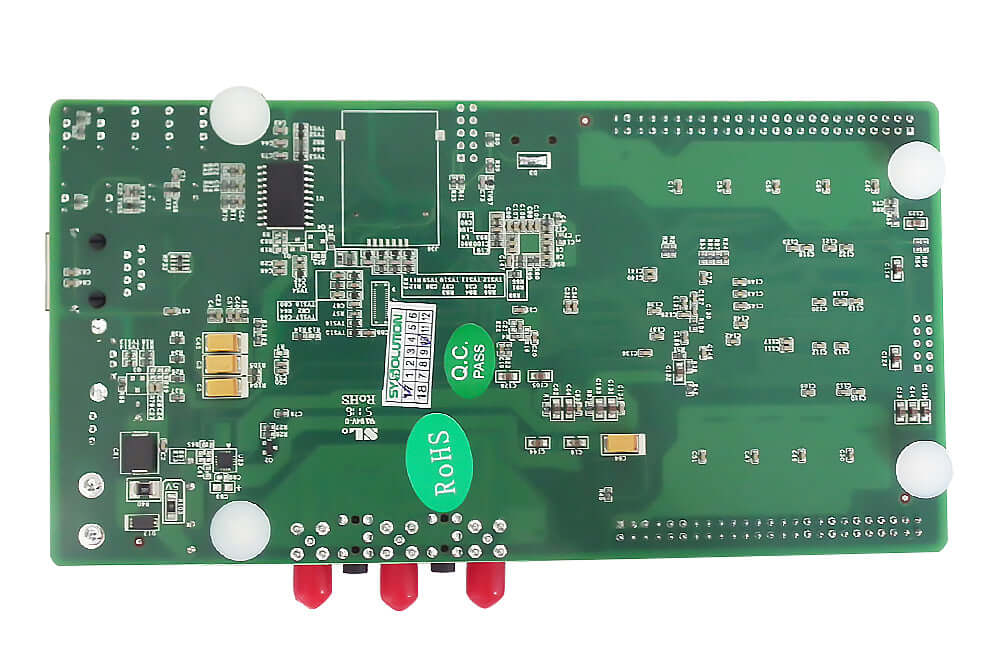

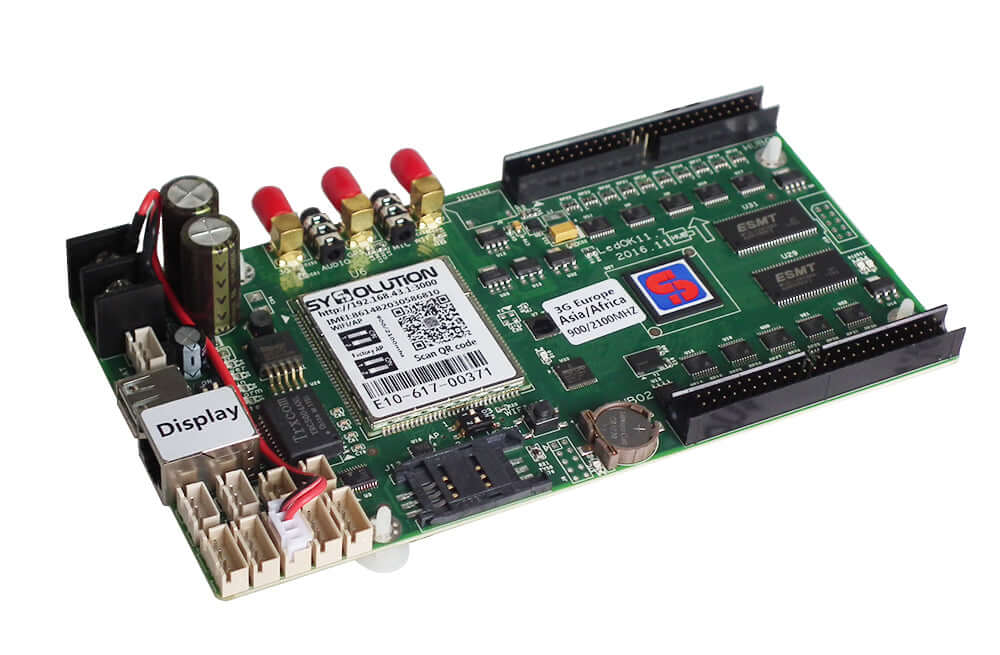

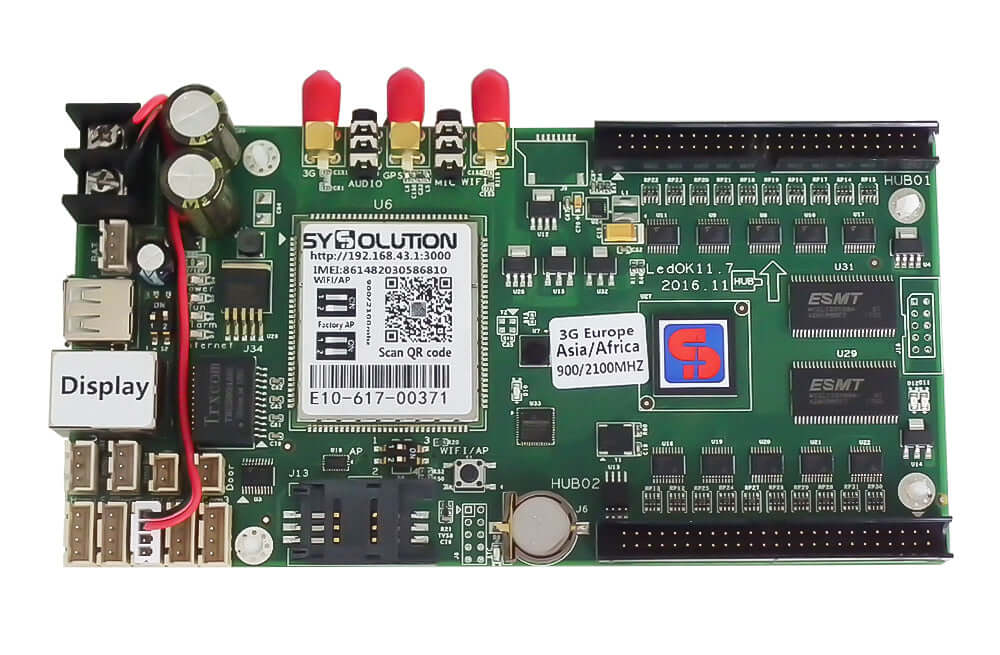

Sysolution E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card

In stock
Sysolution E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Features: 1. Andorid OS 4.4, 2. Using AIPS cloud platform to realize publish programs, check status, power switch and get...

Sysolution E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Features:

1. Andorid OS 4.4,

2. Using AIPS cloud platform to realize publish programs, check status, power switch

and get display log remotely,

3. Support synchronizing led programs for multiple led screens,

4. Support various media types including video, image, text, weather, clock, countdown,

realtime message and html code,

5. Support timely notes and program task in schedule,

6. Support led module driver IC bands including MBI, SUM, ICN and MY,

7. Support cascading, sending and receiving cards keep the exactly same effects,

8. Support full color static and 32scan types, support half, one_third and quarter ways to

install led screens freely,

9. Match with powerful customized development kit with openable protocols,

10. Support working normally within 6 seconds with super capacitor to protect electric circuit.

Sysolution E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Parameters configuration:

1. 3G frequency: support four frequencies GSM/GPRS/EDGE, working frequencies: GSM

850, EGSM900, DCS1800 and PCS1900.

3G dual frequencies UTMS/HSPA+, working frequencies: WCDMA BAND 1/8

(900MHz/2100Mhz), multimode EDGE/GSM/rel.8 HSPA+modem.

2. GPRS/EDGE HSPA+ data features

HSPA data downlink transmission maximum 21Mbps

HSPA data uplink transmission maximum 5.76M bps, EDGE data transmission maximum

236.8kbps, GPRS data transmission maximum 85.6kbps,

3. Wi-Fi/WAPI

Support SoftAP function, support 802.11b/g/n

Encryption: WFA, WPA/WPA2 Qos: WFA WMM, WMM PS radio frequency performance:

11b power rate 15dBm, EVM≤35%; 11g power rate 13dBm, EVM≤25dB; 11n power rate

13dBm, EVM≤28dB;


GPS working frequency: 1575.42MHZ GPS carrier-to-noise ratio (CNO for short):


GPS dB: acquisition dB-148 dBm(cold), -156dBm (hot), tracking sensitivity:-162dBm,

GPS start up time: hot start<5s, warm start<15s, cold start<50s.

5. MP4 video format MPEG-4/ H.263, H.264, support storage TF card: Mircro-SD

maximum 32GB, support hot swap, MP3 audio format

Sysolution E10 Andriod Integrate 3G/GPS/WIFI Wireless Module Control Card Specifiation:


Intelligent led controller




After cascade:540*960(Full Color);

Without cascade:320*256








Support and allow other devices

to access

Display type

Full color

Flash onboard

4GB EMMC and 4G storage,

expand to 32G by TF

Gray level


Led module scan types

Support random scan types

within 32 scans







Readback display content


Display in schedule


Video formats

support video format 3GP and MP4,

please choose Divx, Xvid,AVC/H.264

encoding for MP4,

Animation formats

Support GIF,SWF etc.

Image formats

Support bmp,jpg,gif,wmf,ico etc.

Text formats

Support txt,rtf

Text mode

Single line, static and multi-line etc.


Types of analog clocks and

digital clock


Timing and countdown



AIPS platform

Working temperature

-30℃ ~ +70℃

Stock temperature

-40℃ ~ +90℃
