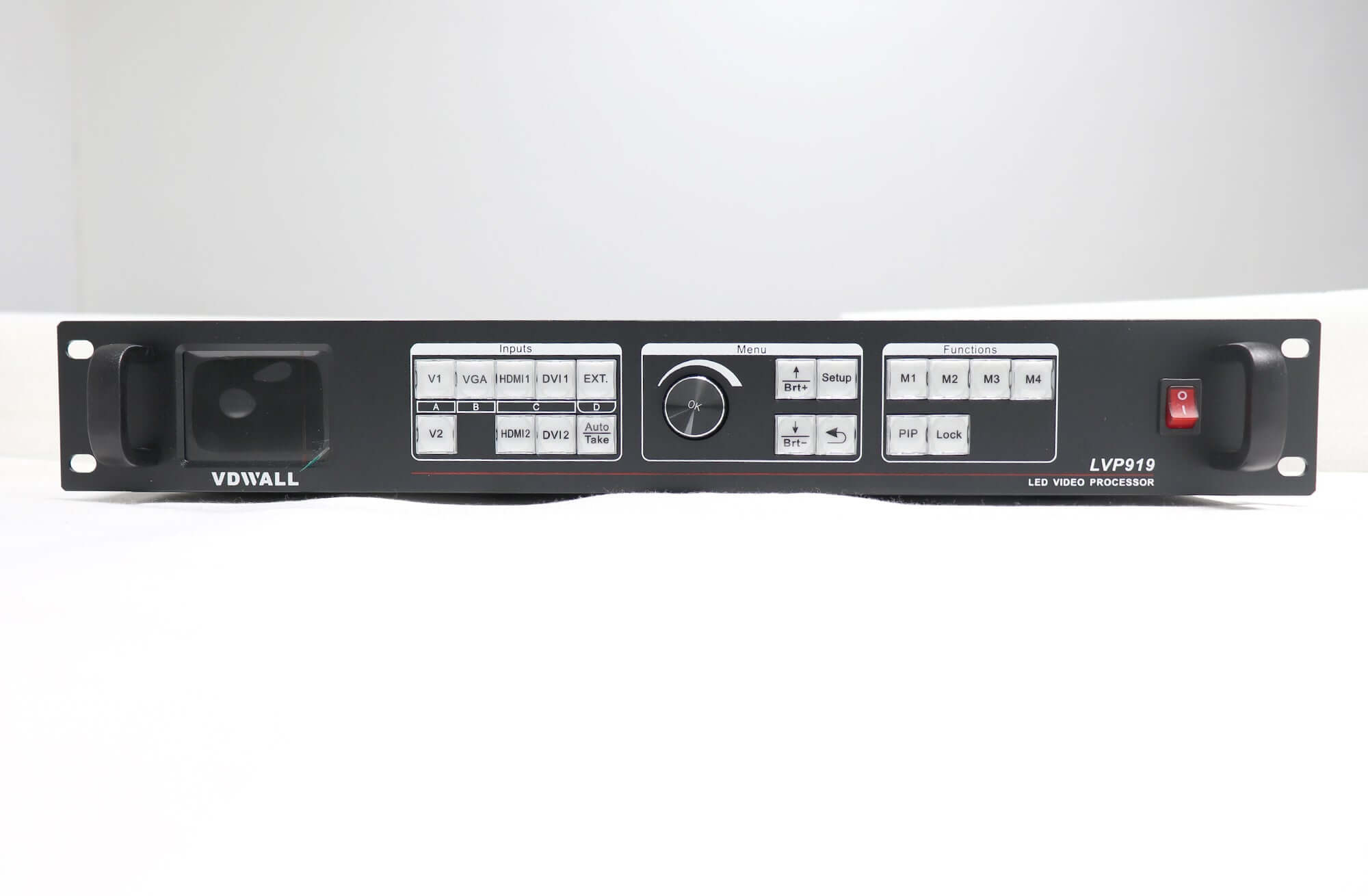

VDWALL LVP919 HD LED Video Wall Processor

VDWall
VDWALL-LVP919
Out of stock
$700.00 $694.00
Features of VDWALL LVP919 HD LED Video Wall Processor: 1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing, Faroudja® TureLife™Video Image Enhancement 2. 8*input, 4 *output, dual image display...

Features of VDWALL LVP919 HD LED Video Wall Processor:

1.Faroudja® Real Color®Picture Processing, Faroudja® DCDI Cinema Processing, Faroudja® TureLife™Video Image Enhancement

2. 8*input, 4 *output, dual image display

3. 4*DVI output, Single output has the resolution up to 1920 x 1200_60Hz

4. Zoom in synchronously mosaic, single unit maximum mosaic level up to 7680 pixels or vertical 4800 pixels, or 3840x2400 pixels

5. Multiple analog and digital mixed signals input:2xCVBS、1xVGA、2xHDMI、2xDVI、1xExt

6. Seamless Switching, Fade In Fade Out Switching

7. PIP(Picture In Picture), Any PIP display; AIAO(Any In Any Out), any input crop and any output

8. Multiple output resolutions can be set, flexibly adapting to the size of the LED screen

9. Can preset multiple user-defined display modes, one button switching between modes

10. Control modes: panel button, software by RS232/USB/LAN, flexible and convenient

11. Add 4 channels of HDMI audio (only when DVI, HDMI interface is connected to HDMI signal) and 1 channel of SDI audio, up to 8 channels of audio synchronously switching

12. 24/7 Application, stable and reliable



Parameter of VDWALL LVP919 HD LED Video Wall Processor:

InputsOutputsOthers

Number / type 2×CVBS
1×VGARGBHV
2×DVIVESA / CEA-861
2×HDMIVESA / CEA-861
1×SDIHD-SDI / 3G-SDI(optional)
Video system  PAL / NTSC
Composite Video
Amplitude Impedance
1Vp_p/ 75Ω
VGA format  PCVESA standard)  ≤1920×1200_60Hz
VGA Amplitude
Impedance
R
GB = 0.7 Vp_p/ 75Ω
DVI format PCVESA standard)  ≤1920×1200_60Hz
HDMI1.3CEA-861)  ≤1080p_60Hz
HDMI format PCVESA standard)  ≤1920×1200_60Hz
HDMI1.3CEA-861)  ≤1080p_60Hz
SDI format SMPTE259M-C
SMPTE 292M
SMPTE 274M / 296M
SMPTE 424M / 425M
480i_60Hz
576i_50Hz
720p1080i1080p
Input connectors CVBSVGA P4
VGA
15pin D_Sub ( female )
DVI
24+1 DVI_D
HDMI
HDMI A type
SDI
BNC / 75Ω
Audio input type number  Analog stereox3+HDMI embedded audio
Audio amplitude
impedance
2.0Vp-p/10KΩ
Number / type  4 x DVI
DVI format 1024 x 768_60Hz
1280 x 1024_60Hz
1440 x 1440_60Hz
1920 x 1080_50Hz
1920 x 1080_60Hz
1920 x 1200_60Hz
Output connectors  DVI OUT24+1 DVI_D
Audio output type
number
Analog stereox1
Audio output load
impedance
70mW/32Ω or 105mW/16Ω
Control  RS232 / USB / LAN
Input voltage  100-240VAC 50 / 60Hz
Power consumption  ≤35W
Environment
Temperature
0-45
Environment Humidity  15-85%
Product Size  482.6Lx274Wx66.6Hmm
Package Size  535Lx400Wx145Hmm
Weight  G.W6.2Kg, N.W.4.2Kg



VDWALL LVP919 HD LED Video Wall Processor Connection Diagram:

VDWALL LVP919 HD LED Video Wall Porcessor



VDWALL LVP919 HD LED Video Wall Processor Product Dimension:

VDWALL LVP919 HD LED Video Wall Porcessor

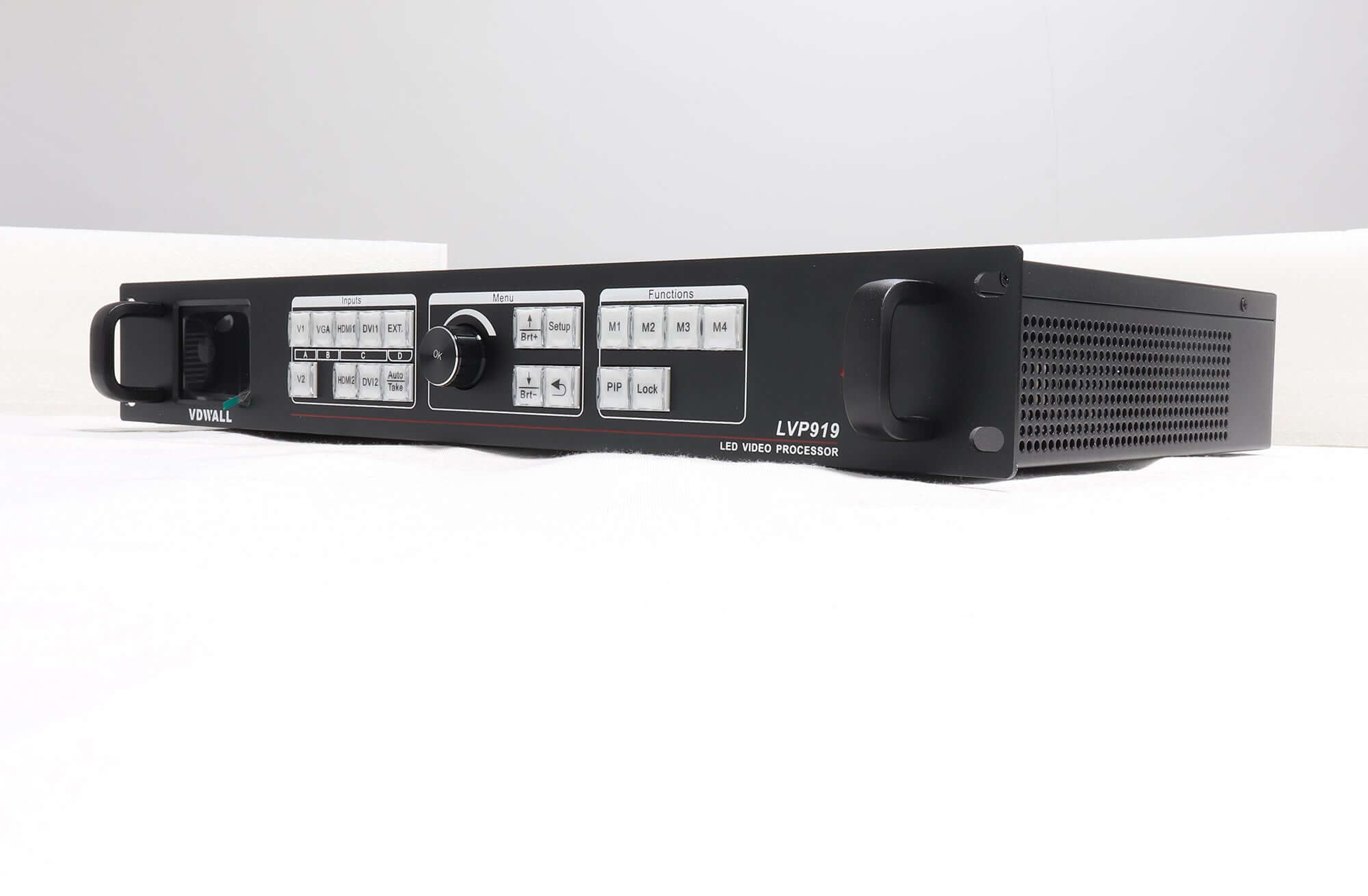

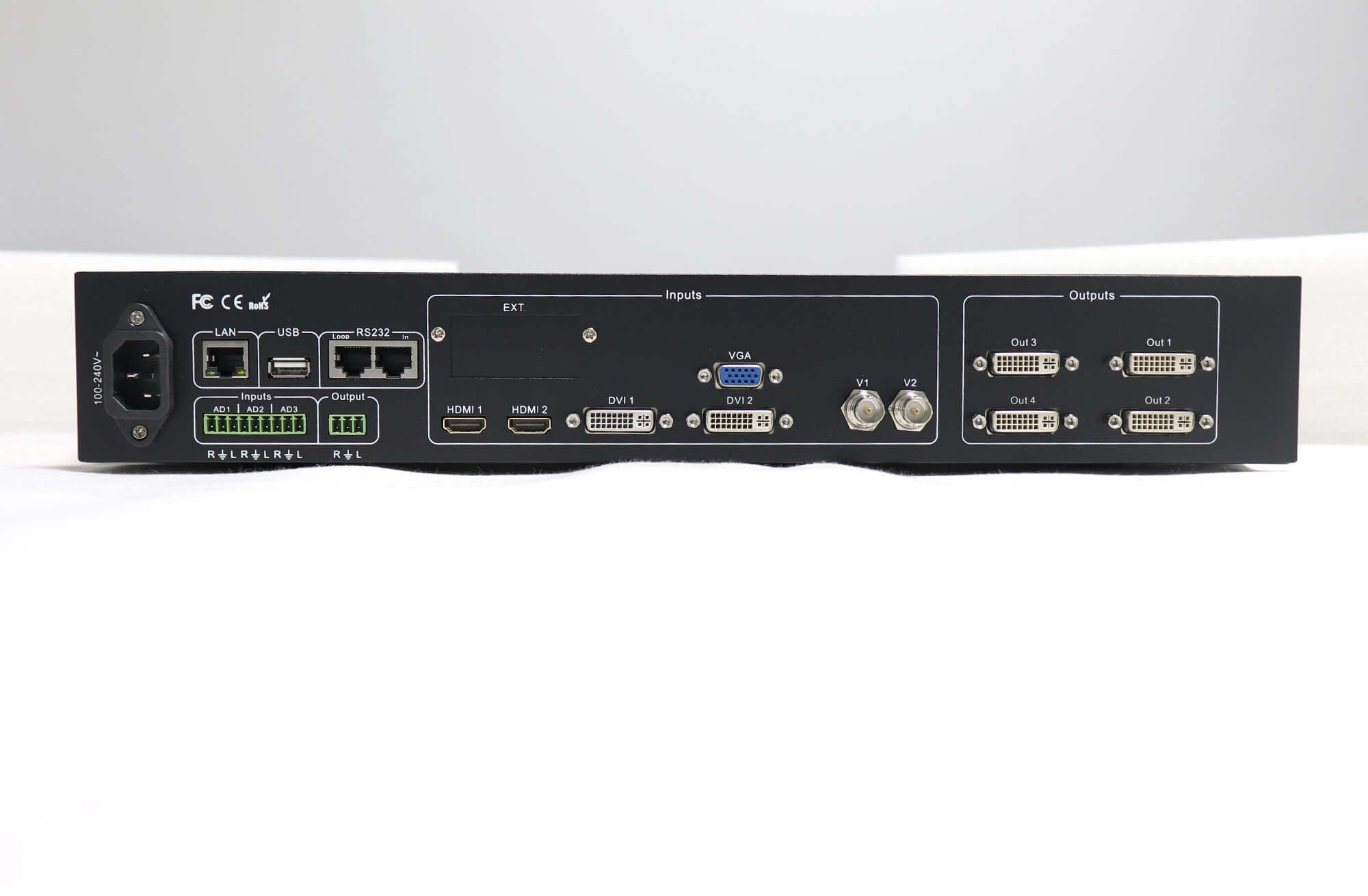

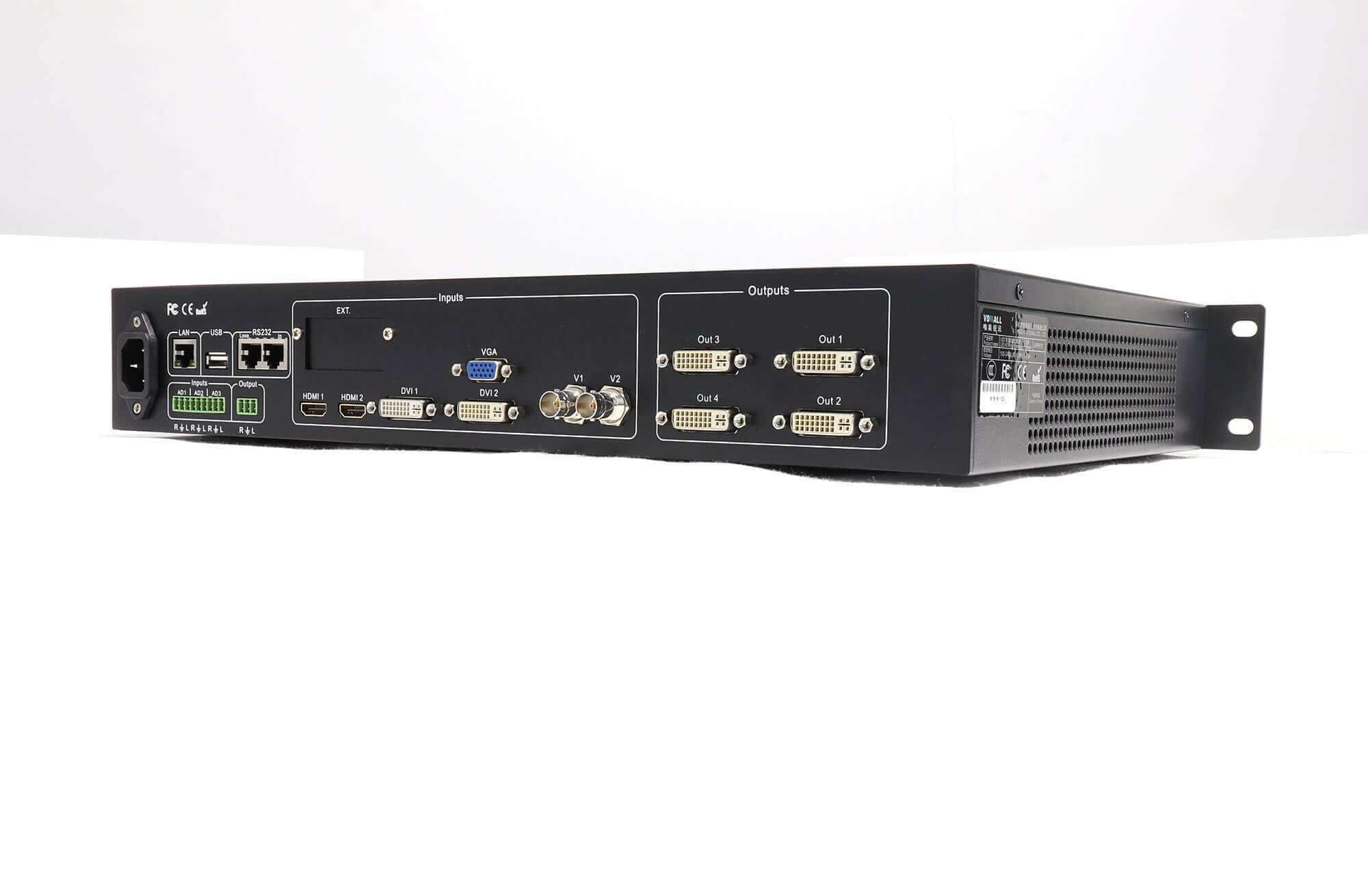

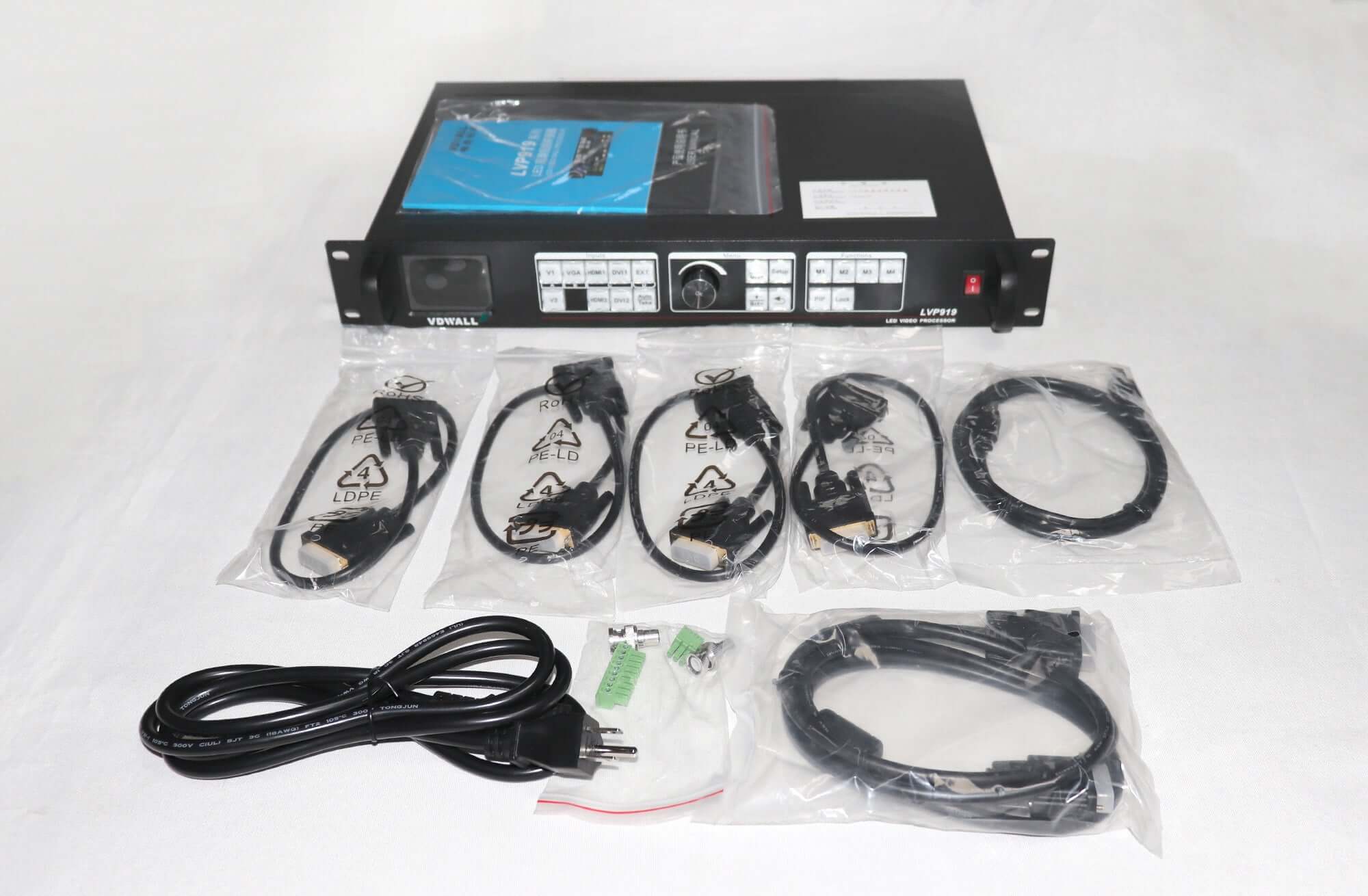

More Pictures of VDWALL LVP919 HD LED Video Wall Processor

VDWALL LVP919 HD LED Video Wall Processor

VDWALL LVP919 HD LED Video Wall Processor

VDWALL LVP919 HD LED Video Wall Processor

VDWALL LVP919 HD LED Video Wall Processor

VDWALL LVP919 HD LED Video Wall Processor



Download Specification of VDWALL LVP919 HD LED Video Wall Processor:
