Magnimage LED-550D LED Screen Video Processor
$ 559.00
Magnimage LED-550D video processor for LED screen scaling, source switching and dual-picture display. SDI input and loop require the corresponding expansion configuration.
10000 in stock
LED-550D scaling and source switching
The Magnimage LED-550D is a video processor for matching source images to an LED screen. It supports customized DVI input settings, output resolution adjustment and dual-picture display for presentations, stage screens and exhibition systems.
Image control and setup
The listed functions include 16 switching effects, fade transitions, hot backup, full or partial image display, image freezing, text overlay and brightness adjustment. Test patterns, templates and multi-unit cascading help prepare the display layout.
Input specifications
| Ports | No. | Resolution Specification |
| AV | 2 | PAL NTSC SECAM |
| VGA | 2 | VESA |
| DVI | 1 | VESA(1080i) |
| HDMI | 1 | HDMI 1.3 |
| SDI* | 1 | 3G SDI |
* SDI is optional: The LED-550D is the standard series model; Magnimage identifies the SDI input/loop expansion version as LED-550DS. Confirm the supplied module before ordering for an SDI source.
Outputs and supported timings
| Ports | No. | Resolution Specification |
| DVI loop | 1 | Same as DVI input |
| SDI loop* | 1 | 3G SDI |
| VGA | 1 | 1024×768/60Hz/75Hz/85Hz/100Hz/120Hz 1280×1024/60Hz 1440×900/60Hz 1680×1050/60Hz 1600×1200/60Hz 1600×1200/60Hz-Reduced 1920×1080/60Hz/50Hz 2560×816/60Hz 1920×1200/60Hz 2048×640/60Hz 2560×816/60Hz 2304×1152/60Hz 2048×1152/60Hz 1024×1280/60Hz 1536×1536/60Hz Customized output resolution: Horizontal Max Resolution 3840pixel ; Min 640 Vertical Resolution: Max 1920; Min 480 |
| DVI | 2 |
The maximum custom width and height are separate limits. They do not establish a simultaneous 3840 × 1920 output. Match the complete timing, including refresh rate, to the screen map and downstream sending equipment.
Installation specifications
| Power supply | 100～240 AC 50/60Hz |
| Power consumption | 25W |
| Operation temperature | 0～45℃ |
| Product dimension(LWH) | 483.0×288.0×54.5mm |
| Packing dimension(LWH) | 555.0×395.0×125.0mm |
| N.W. | 2.6kg |
| G.W. | 4.1kg |
Document differences: The original listing above specifies 25 W and a chassis length of 483.0 mm. Current manufacturer documentation lists 20 W, and the parameter page lists 484.0 mm while the series brochure lists 483.0 mm. Confirm the supplied revision and nameplate before planning installation clearance or power requirements.
Product images and downloads
Magnimage LED 550D Video Processor Specification

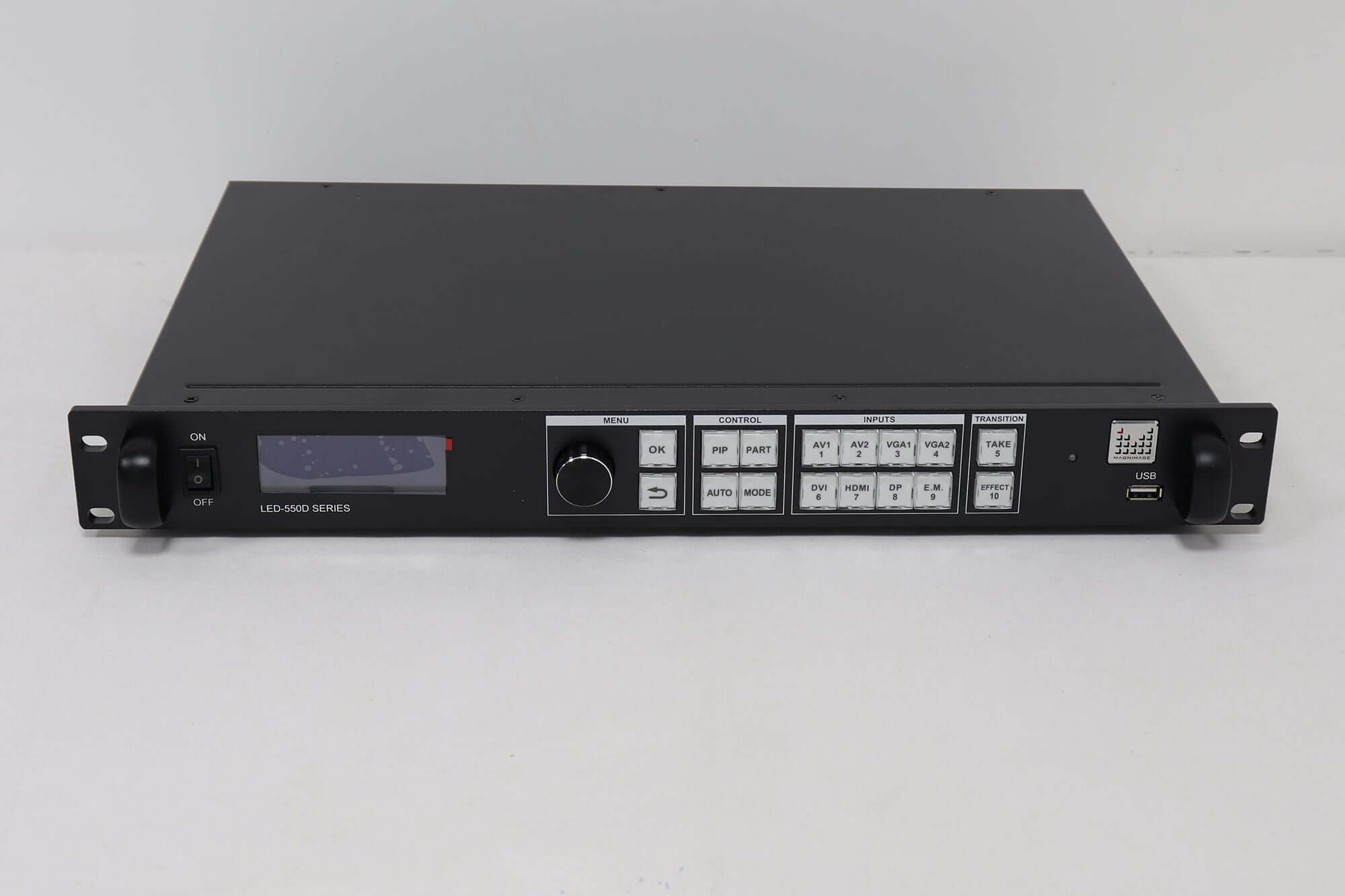

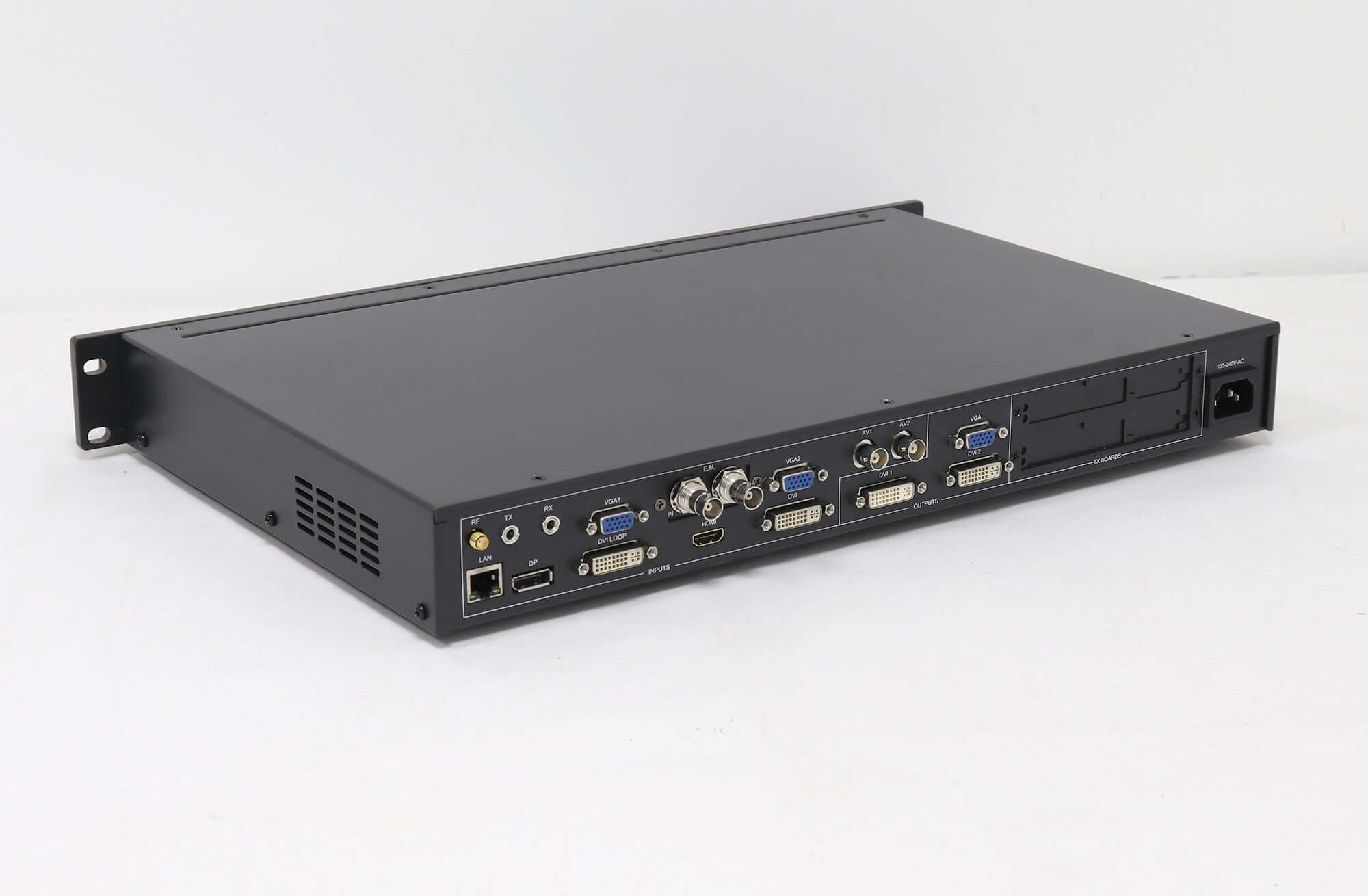

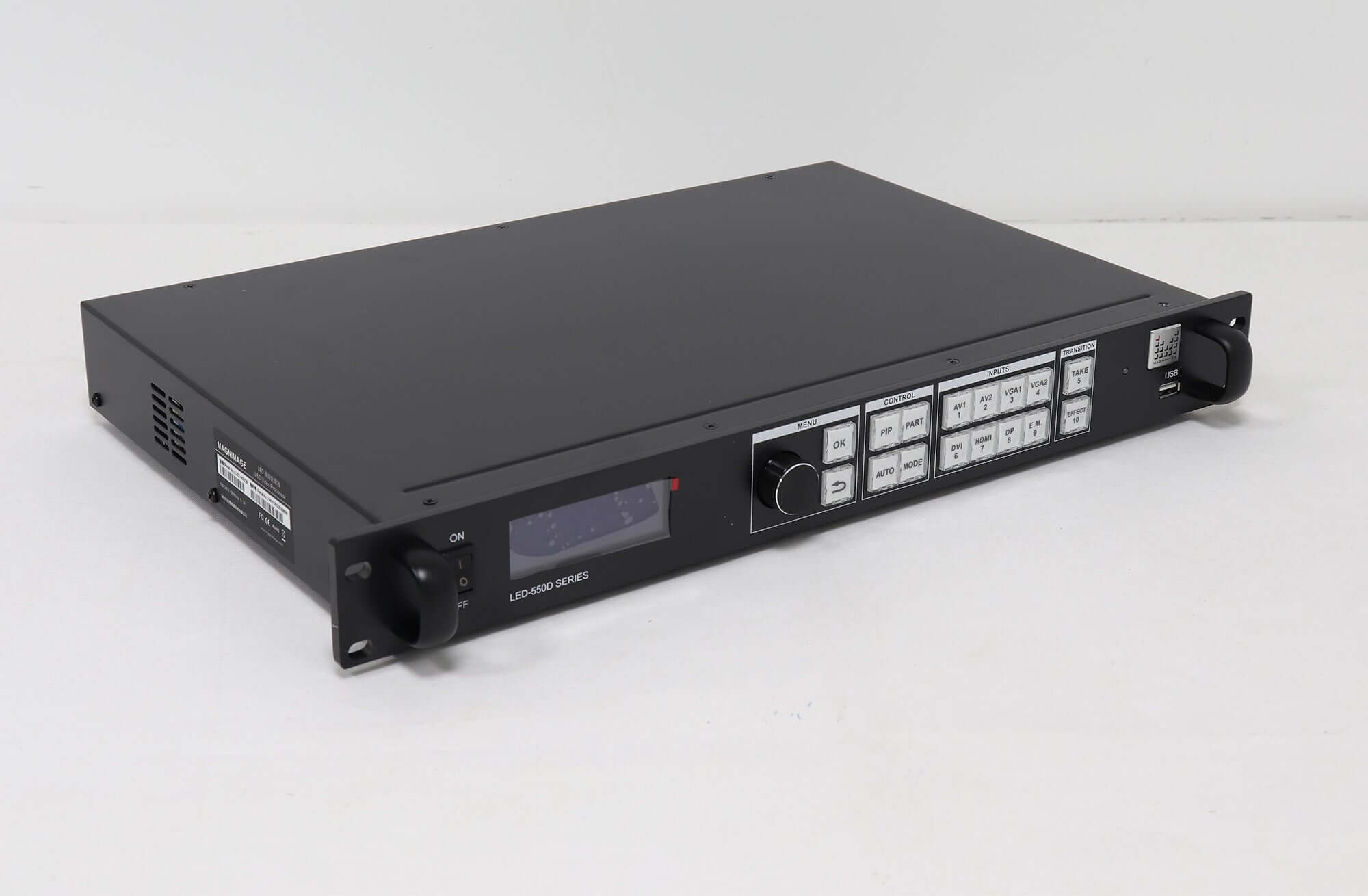

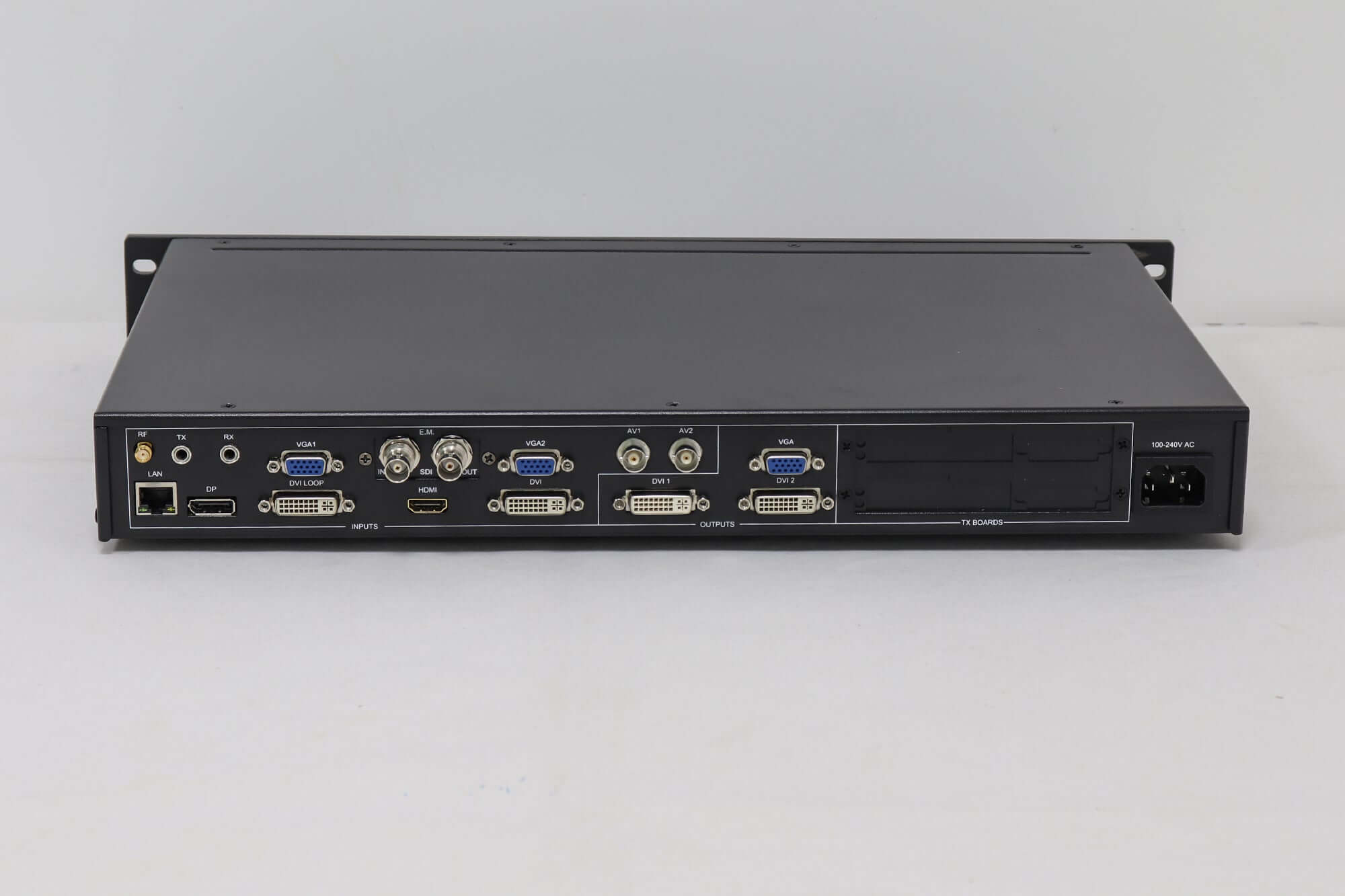

Original product photographs include 550D-series and 550DS-labelled views. They do not confirm that the SDI expansion module is included with the base model.
Frequently asked questions
1. Does the base LED-550D have an SDI input?
SDI is an expansion option. The manufacturer identifies the SDI input and loop configuration as LED-550DS.
2. Can the LED-550D display two pictures?
Yes. The listed functions include dual-picture display, with image adjustment and switching controls.
3. Can I set a custom output resolution?
Yes. Check the exact resolution and refresh rate against the output specification. Separate width and height limits should not be combined into an assumed maximum timing.
4. What should I provide when replacing an existing processor?
Provide the screen pixel dimensions, input connector and timing, downstream sending equipment, current output settings and any expansion-module requirements.
