Colorlight C7 LED Media Player | HDMI & Cloud Control
Original price was: $ 655.50.$ 580.90Current price is: $ 580.90.
Colorlight C7 LED media player for stored content and live HDMI input, with HDMI loop output and up to 2.3 million pixels. V1.0 lists 1080p decoding and 8 GB storage, 5 GB usable. LAN/Wi-Fi management is supported; 4G and GPS are optional.
10000 in stock
Colorlight C7 player for scheduled and live LED content
The Colorlight C7 LED media player supports stored-program playback and live HDMI input for advertising and exhibition displays. It provides HDMI loop output, network program updates and screen management through compatible Colorlight software.
The linked V1.0 specification lists a 2.3-million-pixel screen load and up to 1080p video decoding. Those are different limits: the screen canvas and the source-video resolution must be planned separately. Built-in storage is 8 GB, with 5 GB available for user content.
C7 specifications and interfaces
Reference: V1.0, August 19, 2017. Confirm the supplied revision, optional modules and current software/service compatibility.
Basic Parameters | |
Core Chips | 1.6GHz dual-core CPU; 600Mhz quad-core GPU; 1GB DDR3 1080P HD hardware decoding |
Loading Capacity | Maximum loading capacity: 2.3 million pixels; Maximum width: 4096 pixels, maximum height: 2560 pixels |
Receiving Card Supported | All Colorlight’s receiving cards |
Interfaces | |
Audio Output | 1/8″ (3.5mm)TRS |
USB Ports | USB2.0*2, support external U disc storage (32G in maximum) or communication equipment |
HDMI Output | HDMI loop output |
HDMI Input | HDMI signal input |
Gigabit Ethernet | Output signal to receiving cards |
100MLAN | Access network |
WiFi | 2.4G/5G dual-band; support AP mode and station mode |
4G (Option) | Access internet |
GPS (Option) | Precise positioning, precise timing, synchronization of multiple screens |
Physical Parameters | |
Dimension | 1U standard box |
Working Voltage | AC 100~240V |
Rated Power | 20W |
Weight | 2kg |
Working Temperature | -25℃~80℃ |
Environmental Humidity | 0-95% without condensation |
File Format | |
Program Split | Support flexible program windows split, support flexible windows overlapping, support multiple programs play |
Video Formats | Common formats such as AVI, WMV, MPG, RM/RMVB, MOV, DAT, VOB, MP4, FLV and etc.; support multiple videos play at the same time |
Audio Formats | MPEG-1 Layer III，AAC etc. |
Image Formats | bmp, jpg, png, etc. |
Text Formats | txt, rtf, word, ppt, excel etc. |
Text Display | Single line text, static text, multiple line text, etc. |
Screen Split | 4 video windows, multiple picture/text windows, scrolling text, Logo, date/time/week. Flexible screen split can be achieved and different contents display in different area |
OSD Supported | Support video/picture/text mixture or overlap with fully transparent, opaque, translucent effects |
RTC | Support real time clock |
Terminal Management & Control | |
Communication | LAN/WiFi/4G |
Program Update | Update program through USB or network |
Management Devices | Smart terminals like PC, Android, iOS and etc. |
Wireless Control | Real-time brightness adjustment |
Timing Play | Play according to scheduled programs |
Software | LEDVISION 5.0 or higher vision |

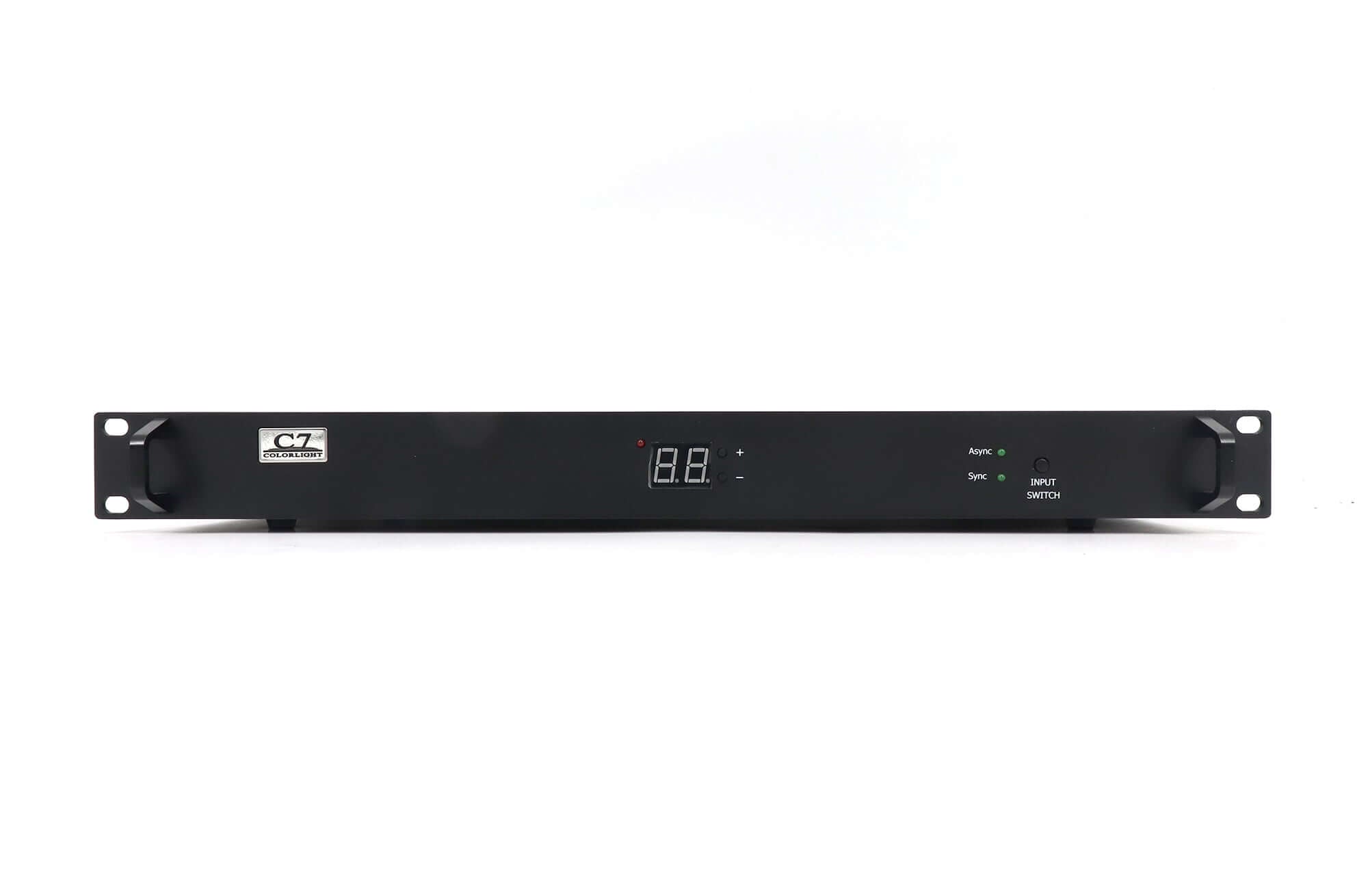

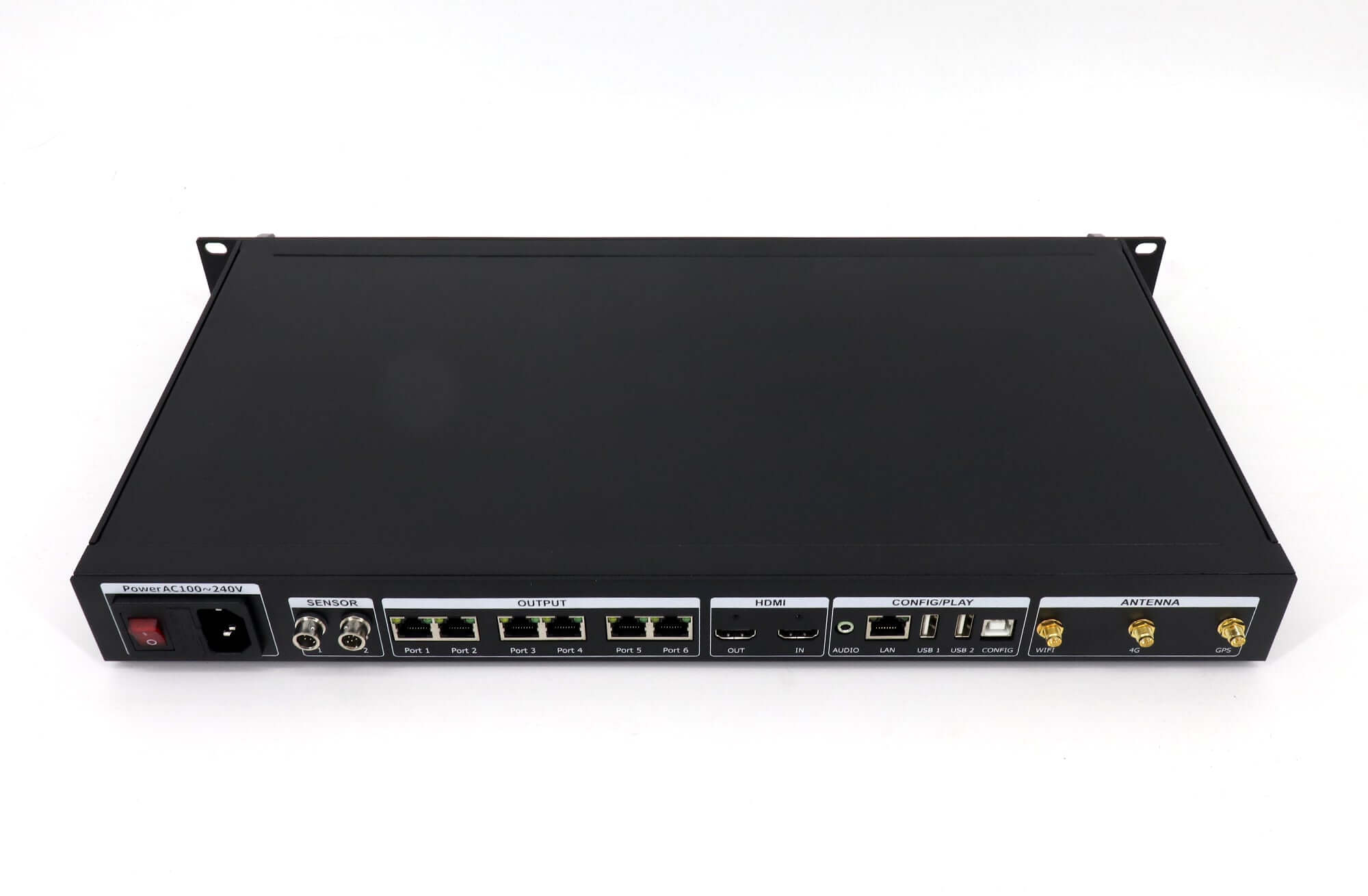

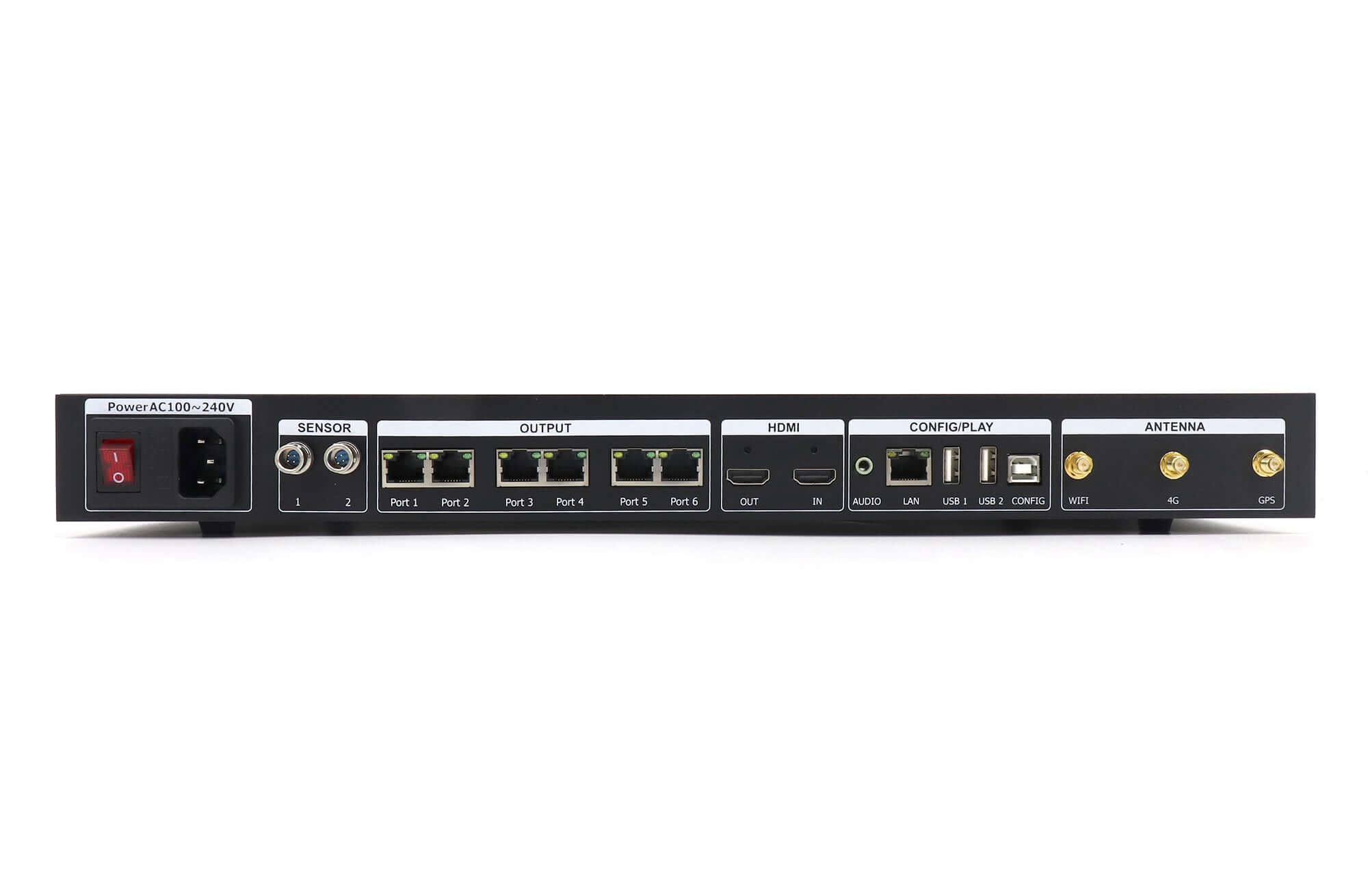

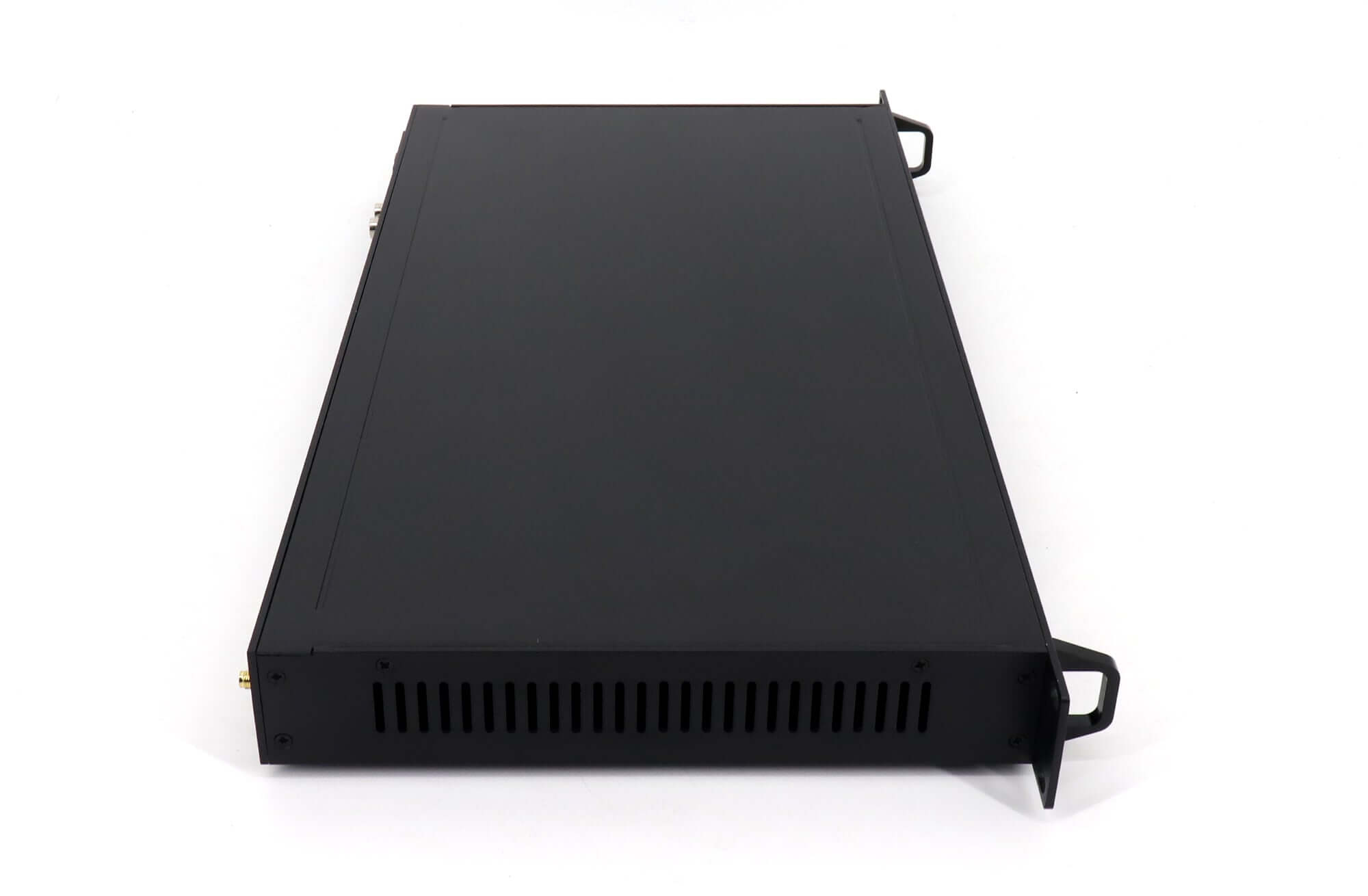

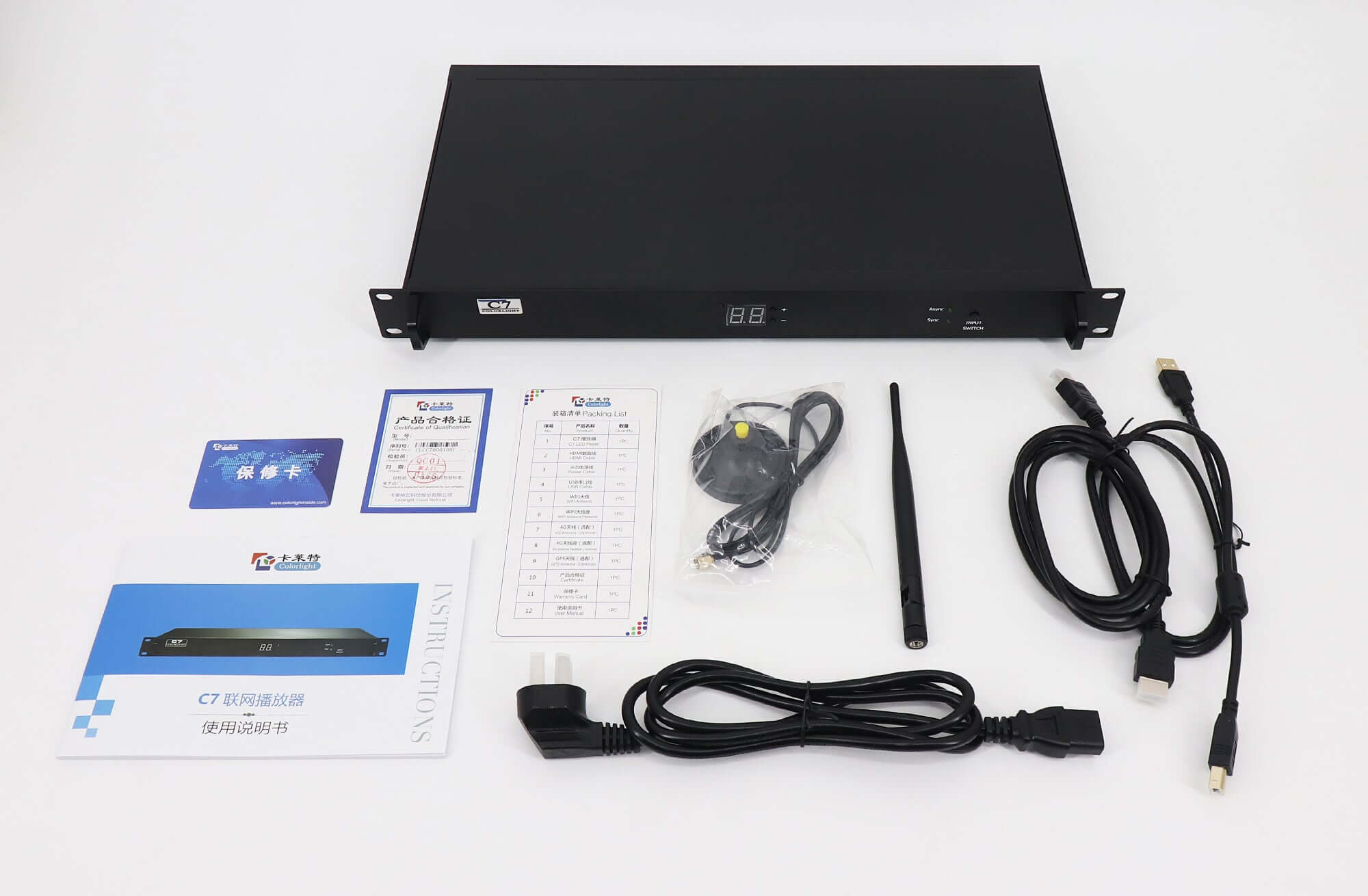

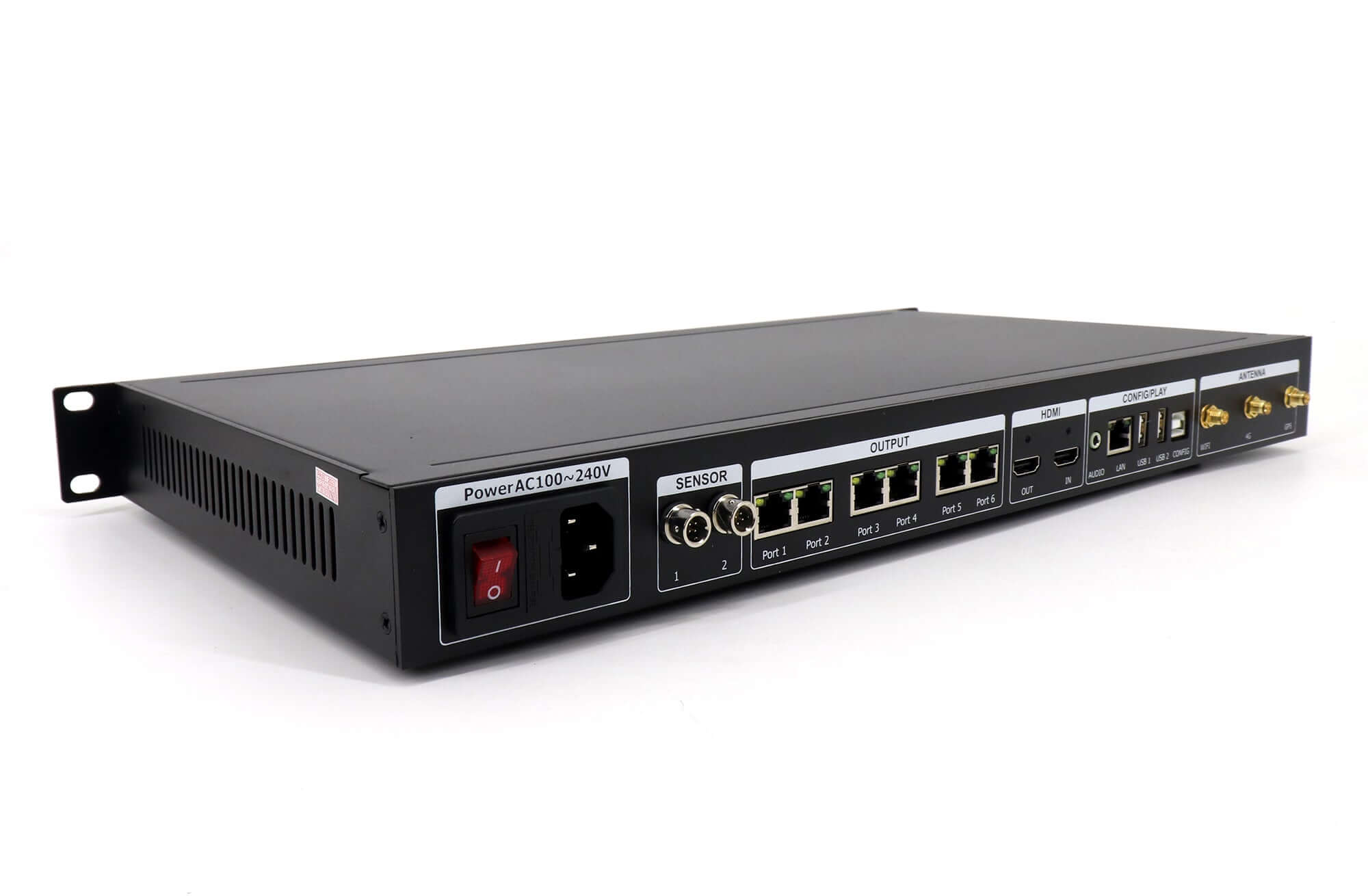

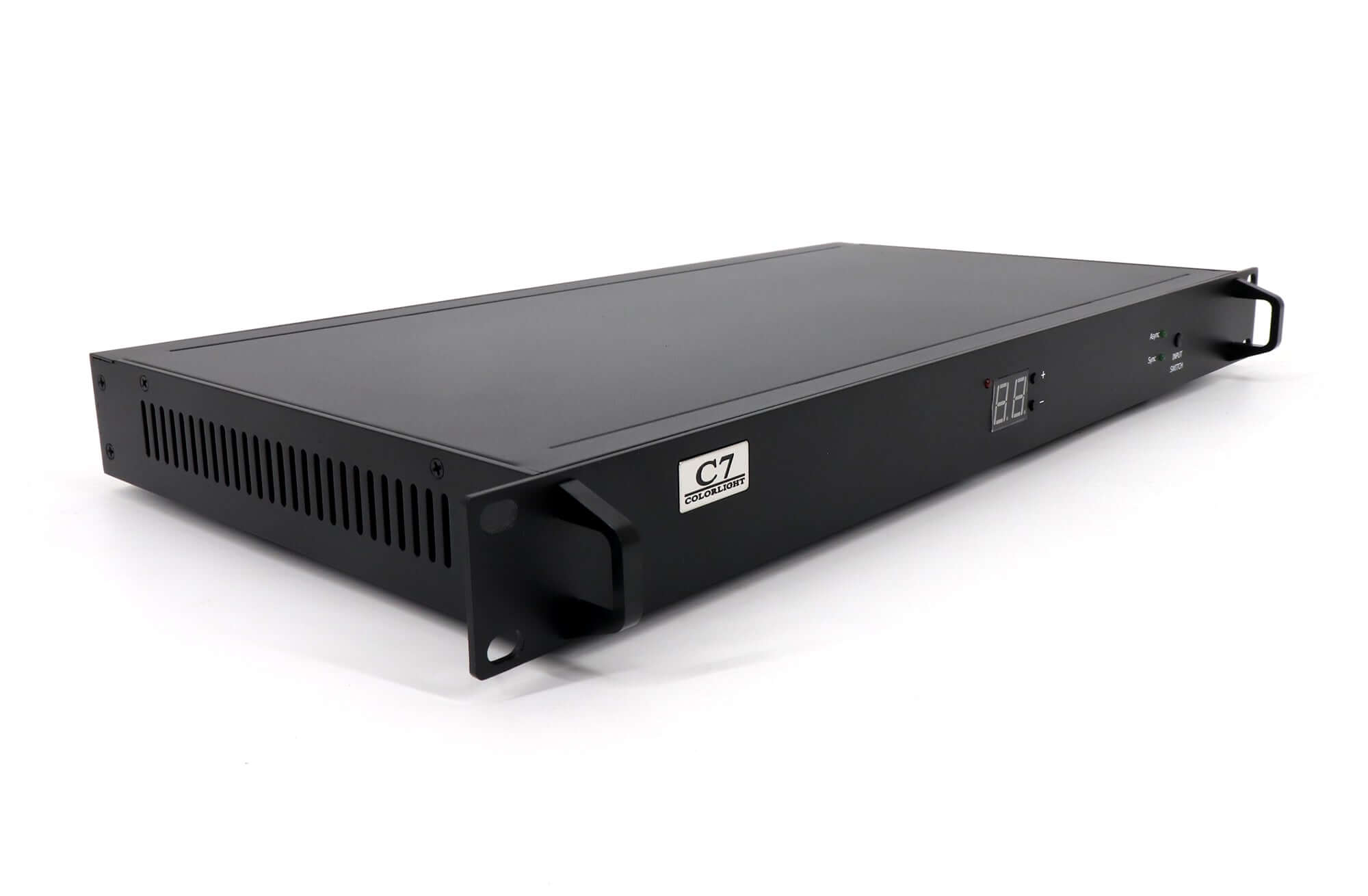

Hardware connections and product photos
Specification and user manual downloads
Click here to download Colorlight C7 Media LED Player Box Specification
Click here to download Colorlight C7 Media LED Player Box User Manual
Frequently asked questions
Can the Colorlight C7 switch between live HDMI and stored playback?
Yes. The V1.0 hardware description includes a switch between synchronous and asynchronous display, HDMI input and HDMI loop output. Stored programs can be published through USB or the network.
What screen resolution can C7 control?
The maximum listed load is 2.3 million pixels, with separate maximum width and height limits of 4096 and 2560 pixels. The two dimension limits do not mean a full 4096 × 2560 canvas is supported. Video hardware decoding is specified up to 1080p.
How much storage is available for programs?
The specification lists 8 GB built-in storage with 5 GB available to users. The USB 2.0 interfaces support external USB storage up to 32 GB.
Are 4G and GPS included in every C7 player?
No. The interface table marks 4G and GPS as options. Confirm the supplied modules and any required service for remote connectivity or GPS-based timing.
How can I manage C7 content and screen brightness?
The specification describes LAN and dual-band Wi-Fi, AP and station modes, and program editing with LEDVISION 5.0 or later. It also supports scheduled and sensor-based brightness adjustment. Confirm the compatible software, sensor and cloud-service setup for the installed unit.
| Weight | 5 kg |
|---|
