NovaStar VX1000 Pro All-in-One LED Video Controller
NovaStar VX1000 Pro all-in-one LED video controller: 10 Gigabit Ethernet outputs, up to 6.5 million pixels, HDMI 2.0 input up to 4096 × 2160 at 60 Hz, and flexible layer layouts.
Check your screen load, sources and receiving-card compatibility. Contact sales for configuration-specific pricing.
The NovaStar VX1000 Pro is an all-in-one LED video controller that combines video processing and sending functions. It provides 10 Gigabit Ethernet outputs with up to 6.5 million pixels of LED loading capacity and accepts HDMI 2.0 input up to 4096 × 2160 at 60 Hz. It is designed for rental screens, stage systems and fine-pitch installations.
Planning a screen? Check the output pixel load, input connections, layer layout and receiving-card requirements below, then request a VX1000 Pro price quotation.
VX1000 Pro specifications at a glance
| LED output capacity | Up to 6.5 million pixels; 10 Gigabit Ethernet outputs |
|---|---|
| Maximum screen dimensions | Width: 10,240 pixels; height: 8,192 pixels. These are separate limits; the screen must also remain within total loading capacity. |
| HDMI inputs | 1 × HDMI 2.0 with loop output; 2 × HDMI 1.3 |
| Maximum HDMI 2.0 input | 4096 × 2160 at 60 Hz |
| Other sources | 3G-SDI with loop output, optical input through OPT 1, USB playback |
| Layer resources | 6 × 2K layers; one 4K × 2K layer uses four 2K layer resources |
| Working modes | Video controller, fiber converter and ByPass |
| Control options | Front panel, NovaLCT, Unico and VICP app |
Features and configuration notes
- Image processing: output scaling, layer positioning, color adjustment, and pixel-level brightness and chroma calibration.
- Show operation: save and recall presets, manage EDID, and play supported media from a USB drive.
- Backup: input, device and Ethernet backup options, with saved settings retained after a power interruption.
- Check feature conditions: free topology requires specific receiving cards. ByPass disables video processing. Low-latency and 3D operation have configuration limits; confirm the intended setup before ordering.
Check your LED screen configuration
- Calculate the physical screen resolution. Multiply width by height in pixels. For example, a 3840 × 1080 screen has 4,147,200 pixels, below the nominal 6.5-million-pixel total.
- Check each Ethernet connection. A screen below the total limit still needs a suitable port allocation, cabinet layout, receiving cards, bit depth and frame rate. Maximum width and height are independent limits, not a supported 10,240 × 8,192 canvas.
- Match the source and layers. Identify the HDMI or SDI connection, input resolution and layer layout. Confirm feature restrictions and required accessories before ordering.
NovaStar VX1000 Pro price and quotation
Send the following details so the quotation can be matched to your project:
- Screen width and height in pixels, cabinet layout and receiving-card model.
- Source connection, resolution, frame rate and required layer layout.
- Whether you need optical transmission, backup or 3D operation.
- Quantity, delivery destination and required accessories.
Confirm the exact model as VX1000 Pro when comparing quotations. Ask for the included accessories, availability and delivery estimate in writing. The optical modules are not factory-installed; specify them if required.
Request a VX1000 Pro quotation

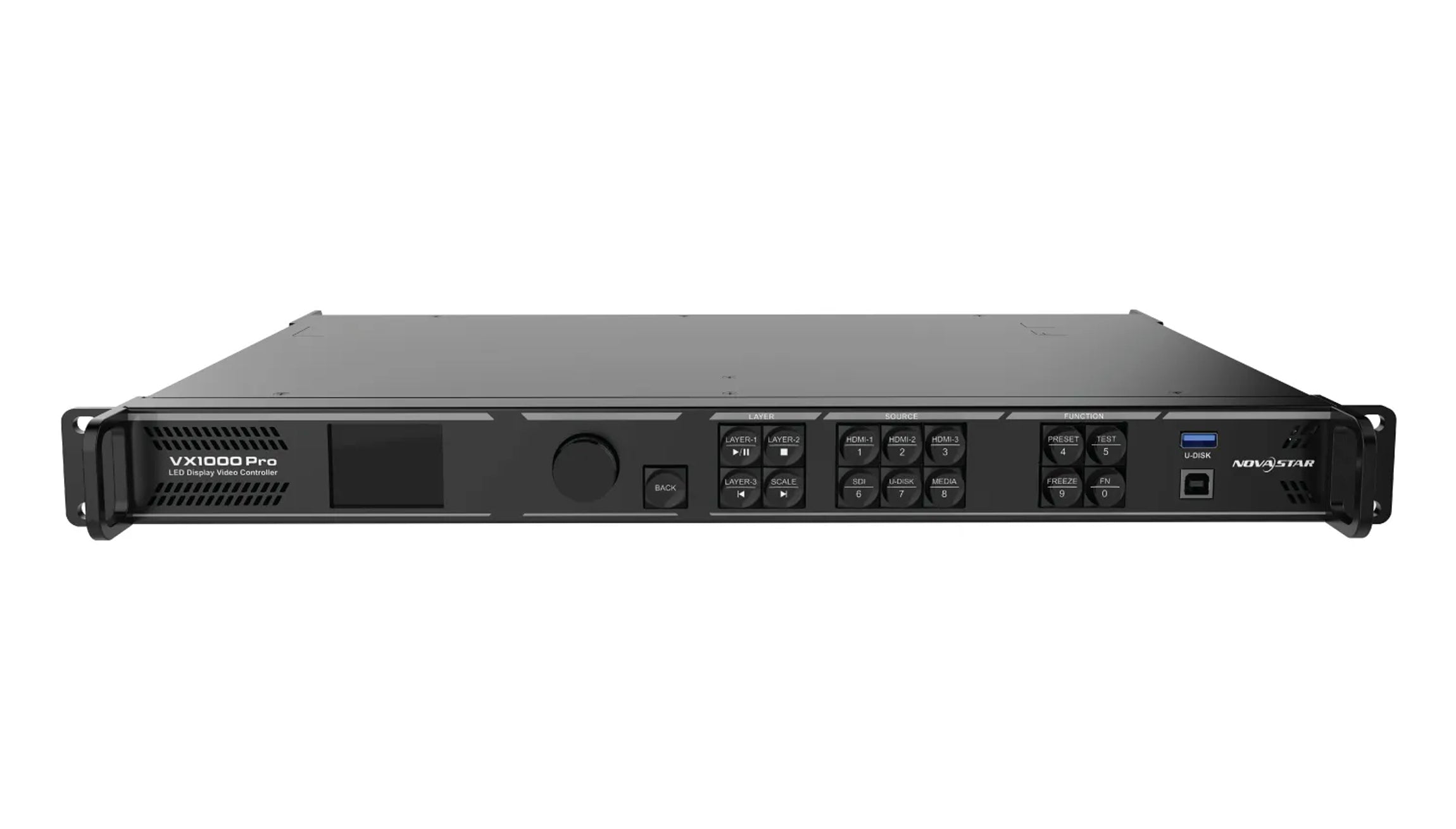

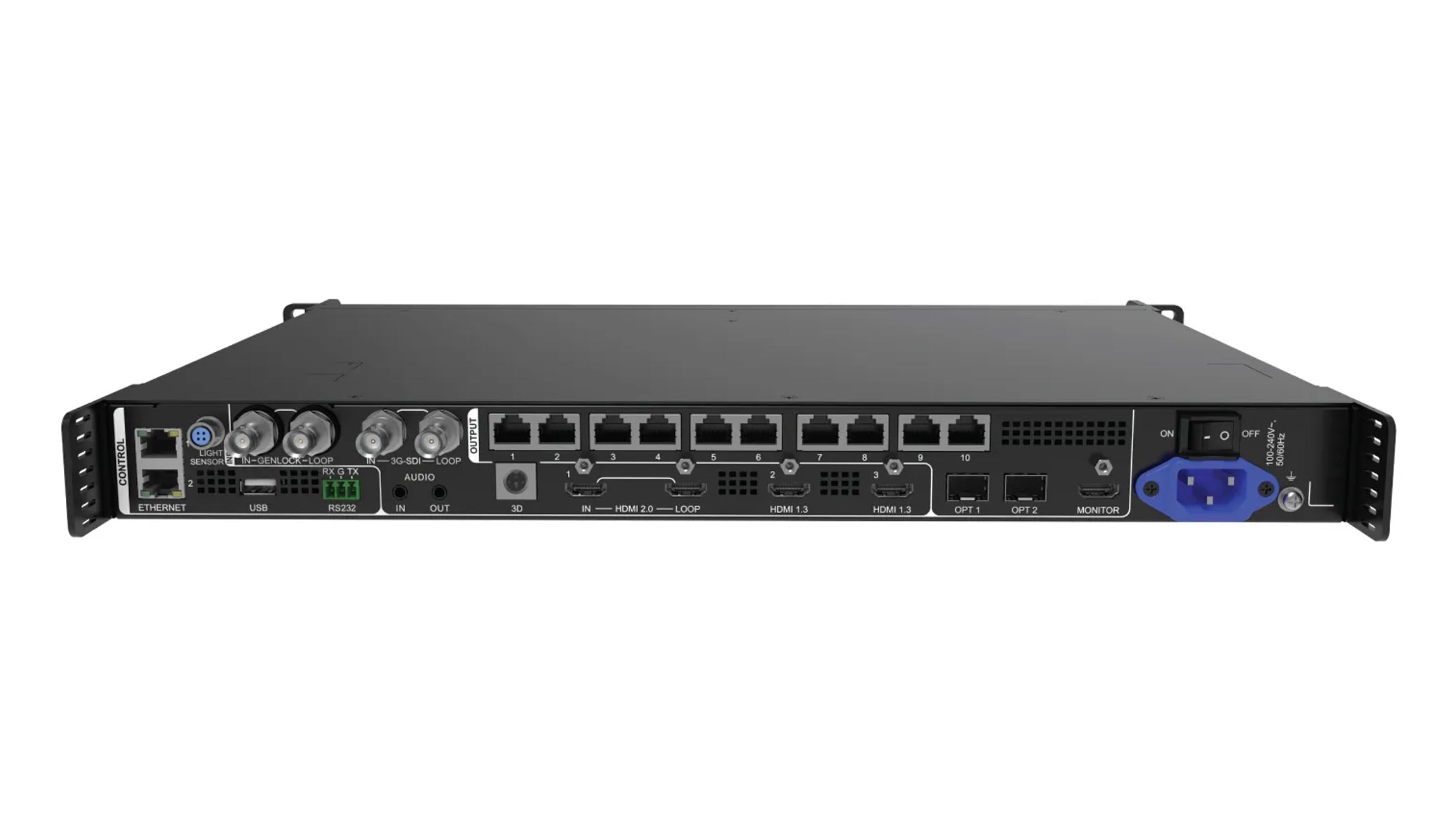

Product view and specification download
Download the VX1000 Pro specification (PDF)
Explore our LED video controllers and LED receiving cards. Confirm compatibility for your particular screen before selecting components.
VX1000 Pro frequently asked questions
Does the VX1000 Pro support a full 4K LED screen?
It accepts HDMI 2.0 input up to 4096 × 2160 at 60 Hz, but its LED output capacity is up to 6.5 million pixels. A 3840 × 2160 screen contains 8,294,400 pixels and exceeds that total. Input resolution and LED screen loading capacity are different specifications.
Is the VX1000 Pro the same as the VX1000?
No. They are different NovaStar models. Both have 10 Ethernet outputs and a nominal 6.5-million-pixel capacity, but the Pro supports HDMI 2.0 input and six 2K layer resources. Confirm the Pro model, connector panel and specification when ordering; do not select firmware by the VX1000 name alone.
How many layers can the controller display?
The VX1000 Pro supports six 2K layers, or one 4K layer plus two 2K layers. A 4K layer consumes four 2K layer resources. Check source resolutions and the required layout before configuring the show.
What is the NovaStar VX1000 Pro price?
Request a project quotation from EagerLED. Send the quantity, shipping destination, receiving-card model and required optical modules or other accessories so the quoted configuration is clear. Confirm availability, freight and delivery time with sales before placing an order.
Which receiving cards should I use?
Check the exact receiving-card model, firmware and cabinet wiring with the supplier. Standard screen control and features such as free topology or 3D can have different requirements; a matching brand alone does not establish full feature compatibility.
Technical reference: NovaStar VX Pro Series specifications and the VX1000 Pro specification PDF available above. Confirm firmware-dependent features for your receiving cards and screen configuration.
| Weight | 10.5 kg |
|---|
