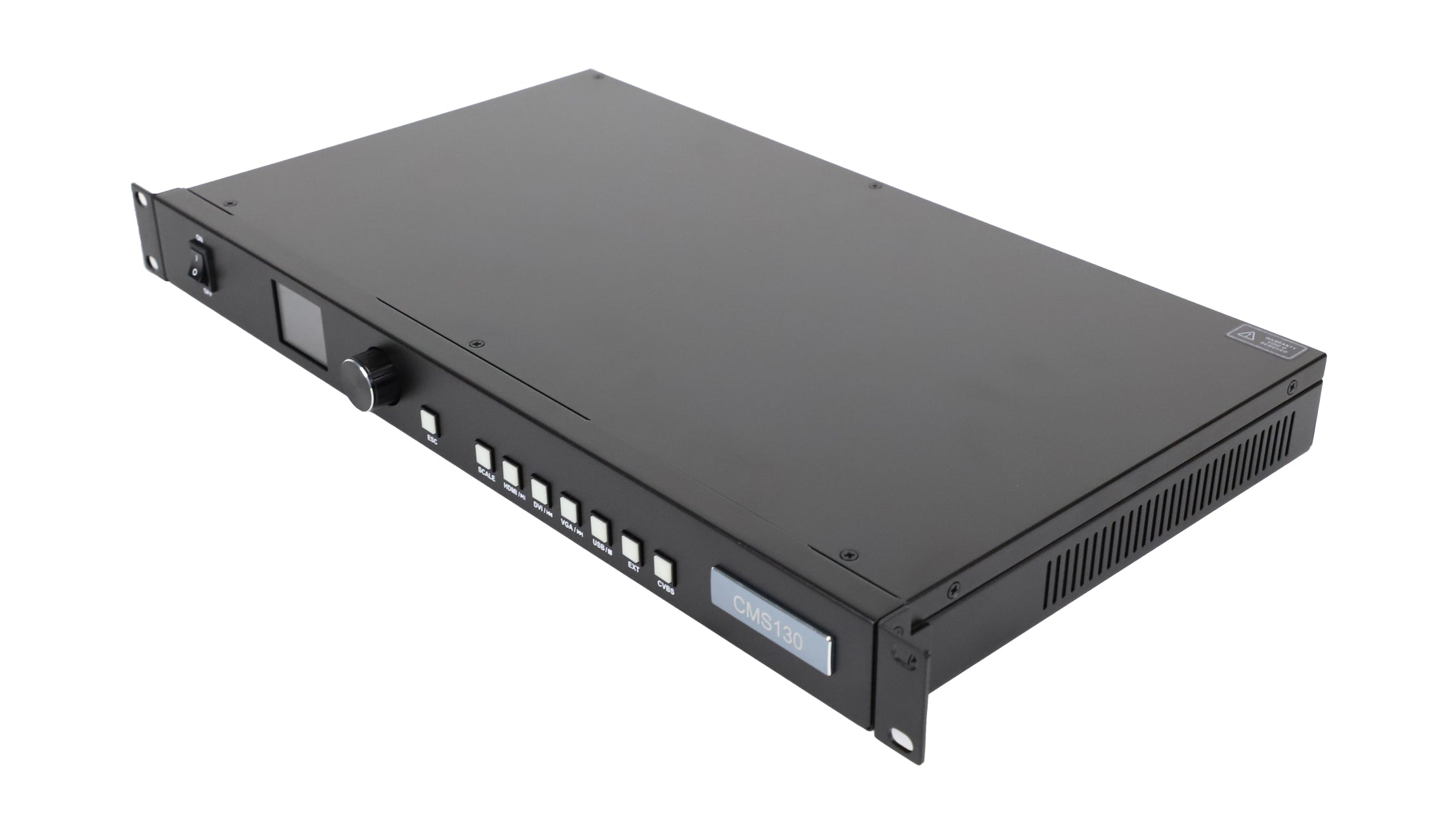

NovaStar CMS130 video processor and LED controller
The NovaStar CMS130 is an all-in-one video processor and LED screen controller. It provides two Ethernet outputs with a total loading capacity of up to 1.3 million pixels. HDMI, DVI, VGA and CVBS connections let you plan a system around different source types, with scaling, cropping and preset recall available for the screen layout.
For AV integrators selecting a controller, check the input signal, output pixel canvas and receiving cards together. The specifications below describe the published CMS130 configuration; confirm the supplied hardware revision before ordering.
NovaStar CMS130 specifications and interfaces
| LED loading capacity | Up to 1.3 million pixels across two Ethernet outputs |
|---|---|
| HDMI input | 1 × HDMI 1.3; up to 1920 × 1080 at 60 Hz |
| DVI input | 1 × DVI-D; up to 1920 × 1080 at 60 Hz |
| Other input connections | 1 × VGA, 1 × CVBS and 1 × USB Type-A |
| Image adjustment | Scaling, input cropping, and layer size and position adjustment |
| Presets | Up to six user-defined presets |
| Audio and control | Independent audio input/output; USB Type-B for PC control and an RS232 central-control connection |
Can the CMS130 drive a Full HD LED screen?
No. A 1920 × 1080 LED canvas contains 2,073,600 pixels, exceeding the CMS130’s total capacity of 1.3 million pixels. Input resolution and LED loading capacity describe different parts of the system. Accepting a 1920 × 1080 source does not mean the controller can drive an LED screen with that many pixels: the complete output canvas must remain within its loading capacity. Provide the actual LED pixel width and height, cabinet mapping and receiving-card model for a configuration check.
For an existing installation, record the current controller model, receiving cards and configuration files. Similar connector types do not establish that two devices can be exchanged without changes. Confirm the intended source format and scaling behavior for the supplied hardware revision.
NovaStar CMS130 connection overview

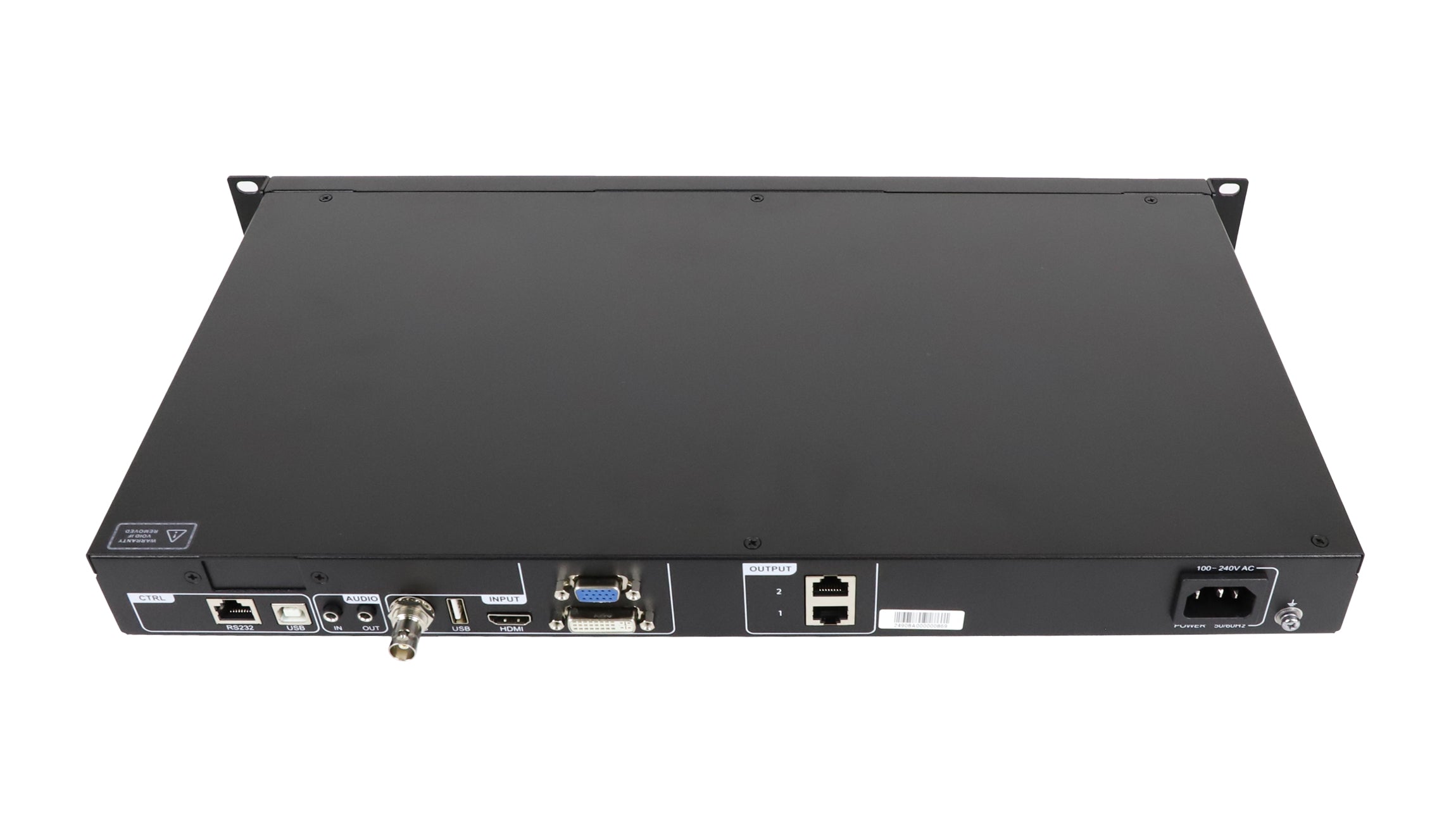

The diagram identifies the connection types. Final cabling, receiving-card compatibility and screen mapping should be checked for the actual installation.
USB playback and source setup
The USB Type-A port accepts a USB drive for local media playback. The published specification lists video files up to 1080p at 30 fps and support for NTFS, FAT32 and FAT16; exFAT is not supported. A file extension alone does not confirm codec compatibility, so test representative media before installation.
HDMI and USB playback have different limits: the HDMI input accepts up to 1920 × 1080 at 60 Hz, while USB video playback is specified at up to 1080p at 30 fps. Neither input figure increases the 1.3-million-pixel LED output capacity.
CMS130 specification download and software check
Use the CMS130 specification PDF to review connector functions and published limits. This document is a specification sheet. For an operating manual, firmware or configuration software, ask EagerLED to confirm the correct file and version for your unit before making changes.
CMS130 buying and setup questions
Can the CMS130 save different screen layouts?
Yes. The NovaStar CMS130 supports up to six user-defined presets. Confirm each layout, source and scaling setting during commissioning before relying on preset recall at an event.
What does the USB Type-B connection do?
The specification assigns USB Type-B to a control PC for program updating or debugging. It is separate from the USB Type-A media-drive port. Confirm the required software and revision before connecting or updating the device.
Is the RS232 connection an LED output?
No. The connection labeled ETHERNET (RS232) is for a central control device. The two dedicated Ethernet outputs connect to LED receiving cards; identify the ports before cabling the system.
Can I replace another controller without reconfiguring the screen?
Do not assume a direct swap. Send the existing controller and receiving-card models, cabinet layout and configuration files for review. Confirm compatibility and the screen mapping before replacing hardware.
Is the CMS130 PDF an operating manual or a software download?
The linked PDF is a manufacturer specification sheet covering interfaces and operating limits. For an operating manual, firmware or configuration software, request the file that matches your unit and hardware revision.
Get the correct CMS130 configuration
- Send the screen resolution and cabinet arrangement.
- List each video source, connector and required input format.
- Identify the receiving-card models and any existing configuration.
- Confirm the supplied revision, accessory list, quantity and destination.
Ask EagerLED for the current CMS130 specification and configuration check. You can also compare LED video controllers and LED receiving cards for your project.

Download the CMS130 all-in-one controller specification. Confirm the document revision against the supplied hardware.
