Colorlight S2 LED Sending Box with DVI Input and 2 Outputs
$ 146.00
Colorlight S2 enclosed LED sending box with DVI input, two Gigabit Ethernet outputs and a 1.31-million-pixel capacity. Includes audio transmission, USB configuration and cascading, with AC 100–240 V power input.
9998 in stock

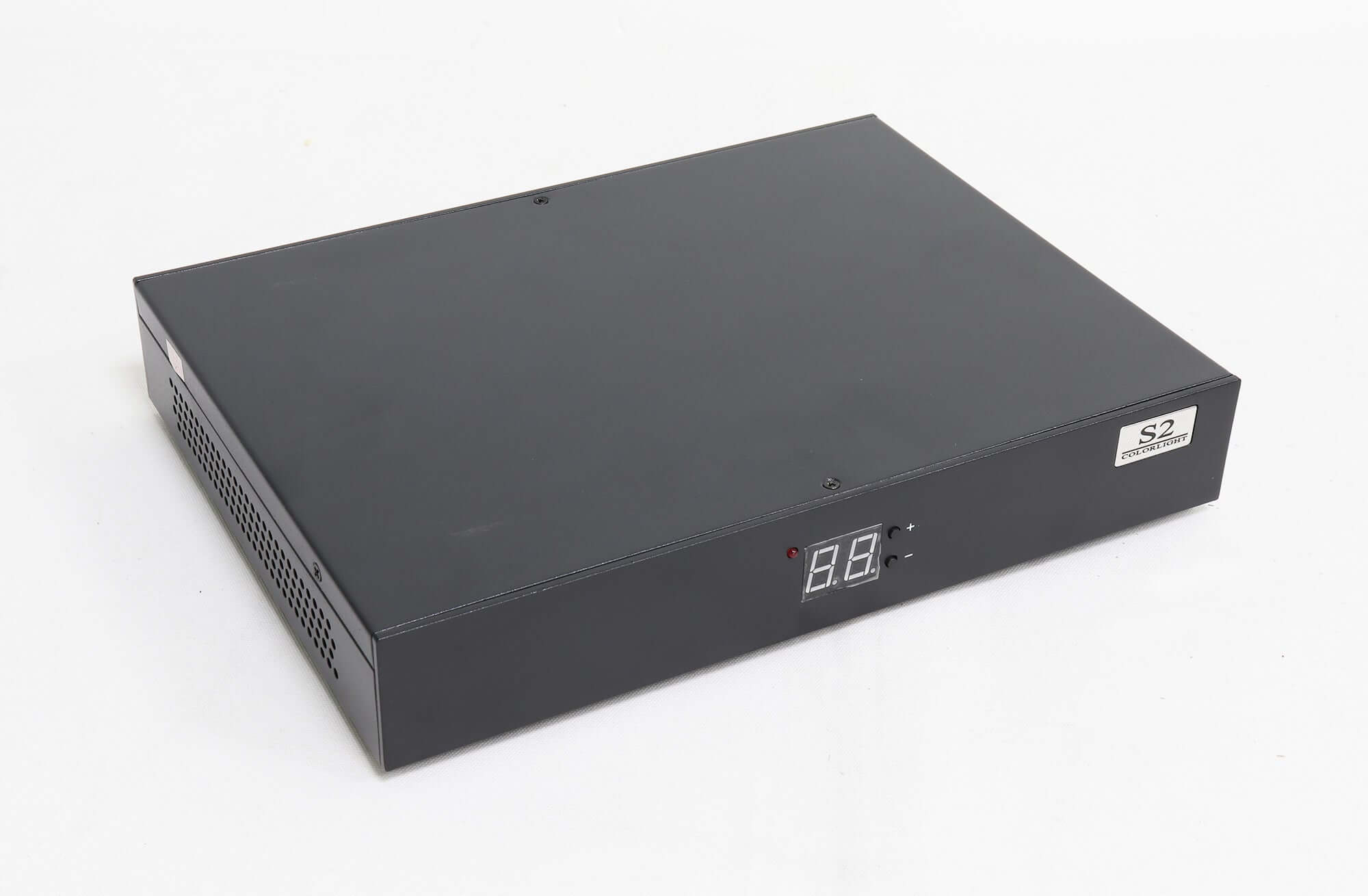

Colorlight S2 synchronous LED sending box
The Colorlight S2 sending box receives a DVI video signal and transmits LED display data through two Gigabit Ethernet outputs. It supports up to 1.31 million pixels and input resolutions up to 1920×1200 pixels. This product is the enclosed AC-powered sending box.
S2 sending-box specifications
| Parameter | Specification |
|---|---|
| Video input | DVI |
| Maximum input resolution | 1920×1200 pixels |
| Frame rate | Standard 60 Hz, with automatic adjustment |
| LED outputs | 2 × Gigabit Ethernet, RJ45 |
| Total loading capacity | 1.31 million pixels |
| Per-port control area | 1280×512 pixels or equivalent area |
| Two-port control area | 1280×1024 pixels or equivalent area |
| Maximum screen width / height | 2,560 pixels in either dimension, within total loading capacity |
| Audio | Input with synchronous transmission over Ethernet cable |
| USB interfaces | Type-B for PC configuration; Type-A for cascading |
| Dimensions (as listed) | 275 × 198 × 44 mm |
| Input voltage | AC 100–240 V |
| Power consumption | 15 W |
| Weight | 2.1 kg |
| Screen adjustment | Brightness and chromaticity; front-panel brightness/test controls |
| Diagnostics | DVI interface detection and Ethernet communication error detection |

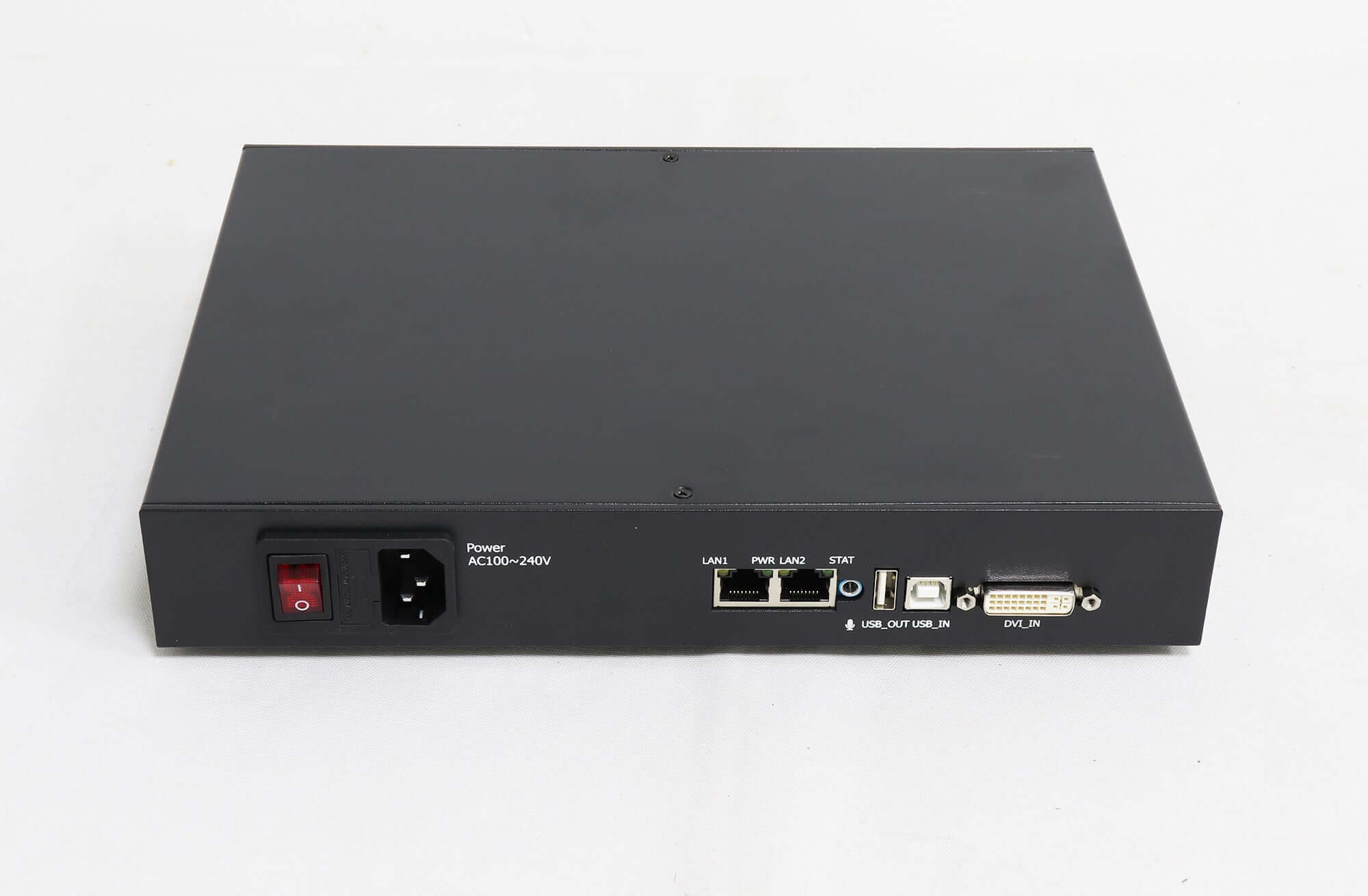

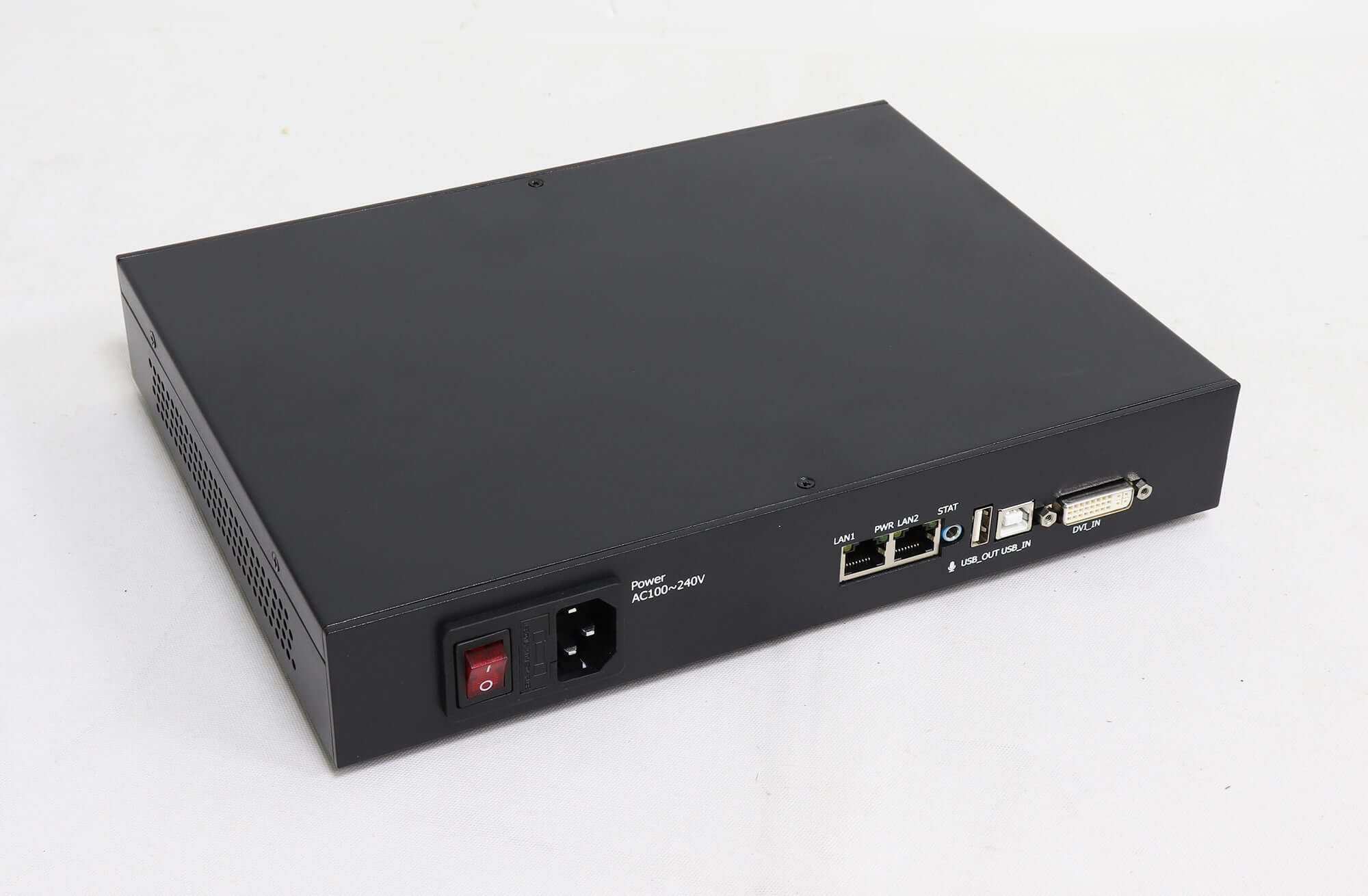

Connections and cable planning
Connect the DVI input to the video source and use USB for screen configuration. The control areas of the two Ethernet outputs can be set separately. USB cascading supports multiple sending devices, and the specification also lists multiple-screen control and background playback in extended mode.
The 2016 V1.0 document lists CAT5 runs up to 140 m and CAT6 runs up to 170 m. Confirm the proposed cable, hardware revision and installation before relying on those distances. Optical transmission requires suitable external transceivers; the document provides no specific optical module or finite fiber-link distance for this sending box.
Frequently asked questions
Is this Colorlight S2 a sending box or a bare sending card?
This listing is for the enclosed S2 sending box. Its linked specification lists AC 100–240 V input, dimensions of 275×198×44 mm and a weight of 2.1 kg.
What video source can connect to the S2 sending box?
The documented video input is DVI, with a maximum input resolution of 1920×1200 pixels and a standard frame rate of 60Hz with automatic adjustment.
How many pixels can the S2 sending box control?
The total loading capacity is 1.31 million pixels. Each Ethernet port is listed for 1280×512 pixels or an equivalent area; maximum screen width or height is 2,560 pixels within the total limit.
Does the S2 sending box have built-in fiber outputs?
The listed output connectors are two Gigabit RJ45 ports. The specification mentions external optical transceivers as peripherals; confirm the transceiver and fiber-link requirements separately.
Are the S2 USB ports for video-file playback?
USB Type-B connects a PC for configuration and USB Type-A supports cascading. The specification does not describe standalone USB-drive video playback.
Download Specification and User Manual:
Click here to download ColorLight S2 LED Panel Sending Box Specification
Click here to download ColorLight S2 LED Panel Sending Box-User Manual
