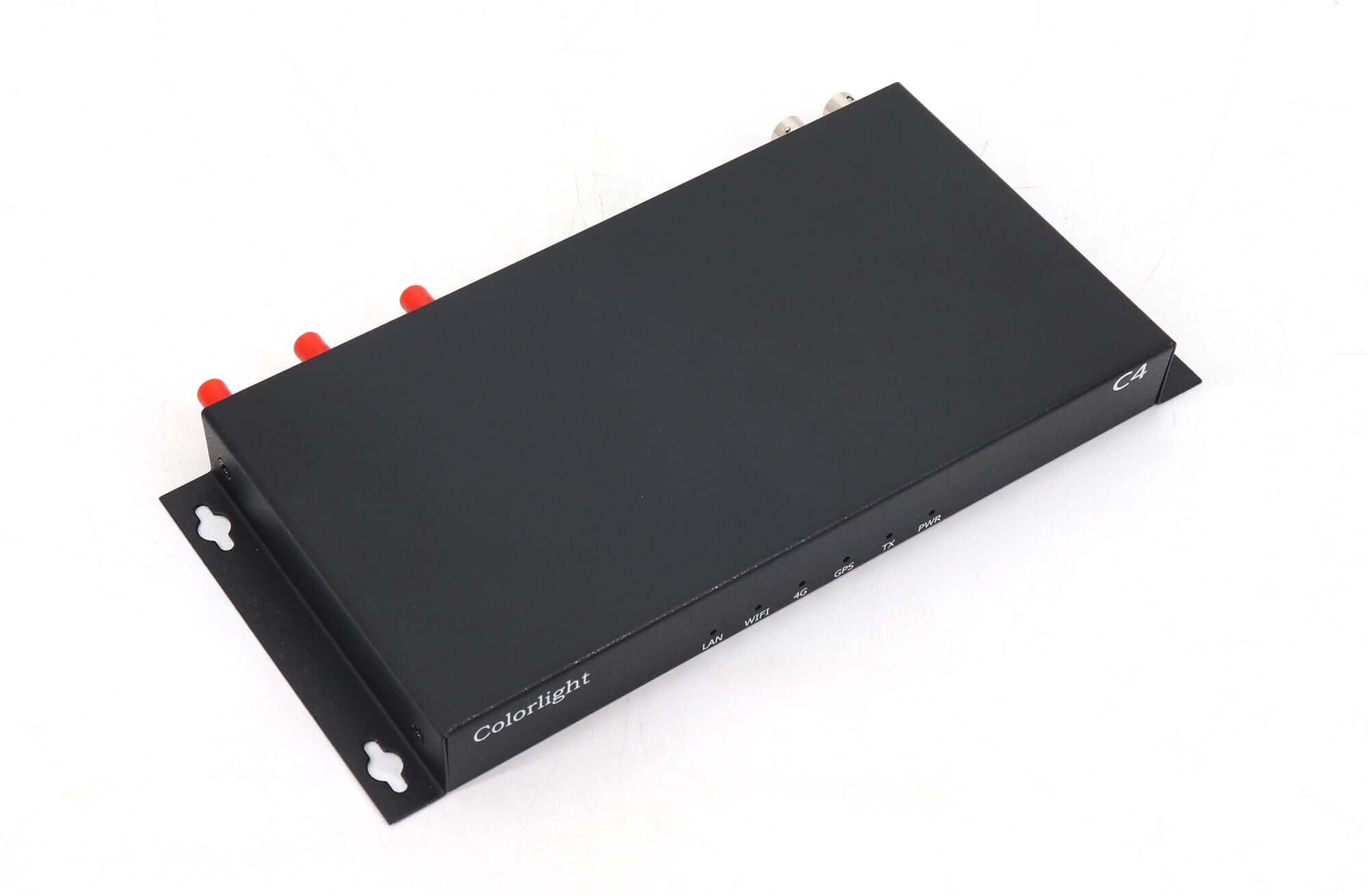

Colorlight C4 cloud-connected LED playback
The Colorlight C4 LED media player stores and plays content for advertising and exhibition displays. It supports USB and network program updates, Wi-Fi access-point operation and remote management through a compatible Colorlight cloud setup.
The linked V1.0 specification lists a 650,000-pixel load, 1080p video decoding and 8 GB storage with 5 GB available for user programs. The previous feature summary stated 655,360 pixels; the parameters below use the PDF value. Maximum width and height are separate constraints, not a combined full-size canvas.
C4 specifications and interfaces
Reference: V1.0, May 18, 2017. Confirm hardware revision, optional modules and current software/service compatibility.
Basic Parameters | |
| Core Chips | 1.6GHz quad-core CPU; 600Mhz quad-core GPU; 1GB DDR3 1080P HD hardware decoding |
| Loading Capacity | Maximum loading capacity: 650000 pixels; Maximum width: 4096 pixels, maximum height: 1536 pixels |
| Receiving Card Supported | All Colorlight’s receiving cards |

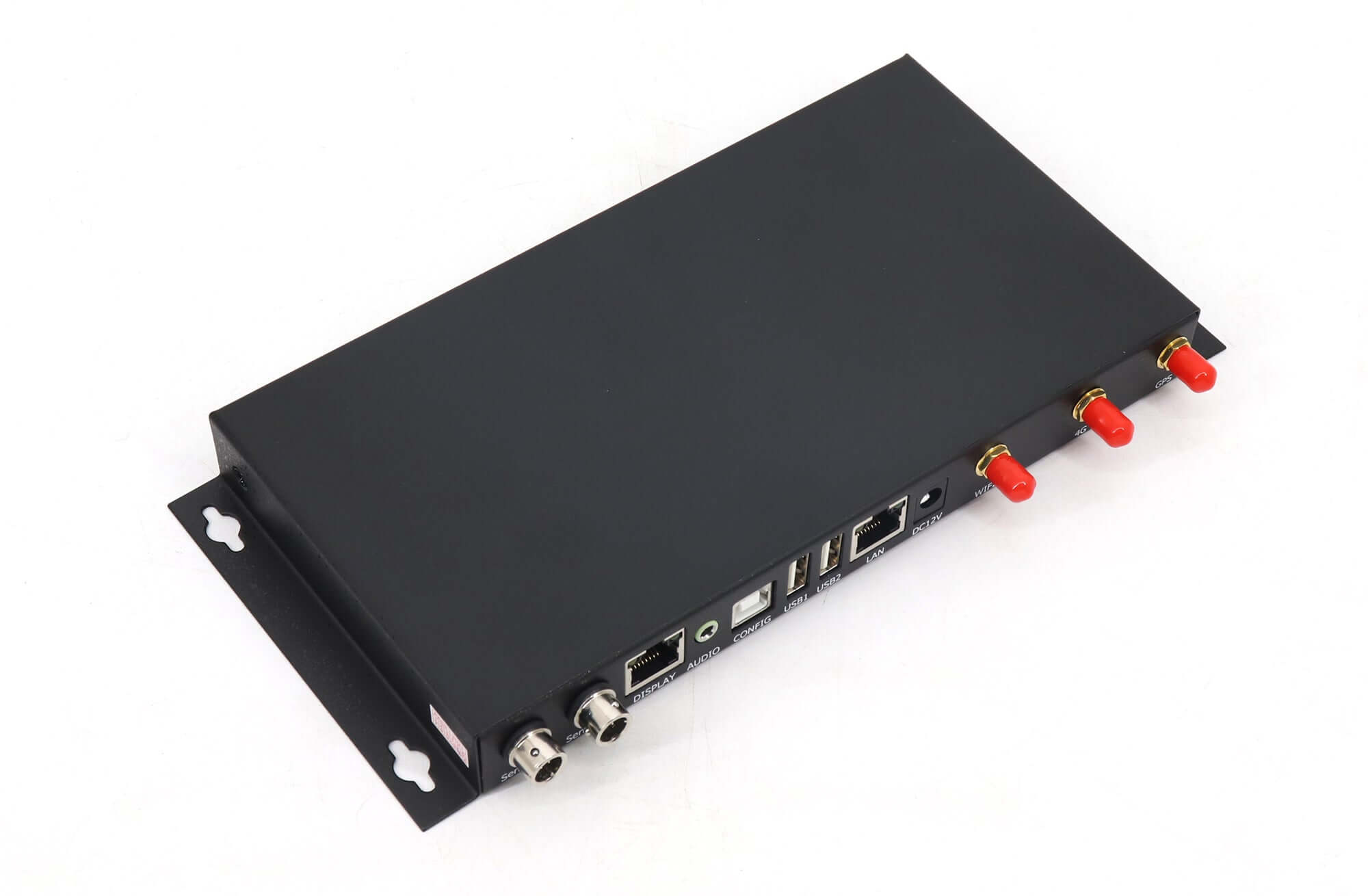

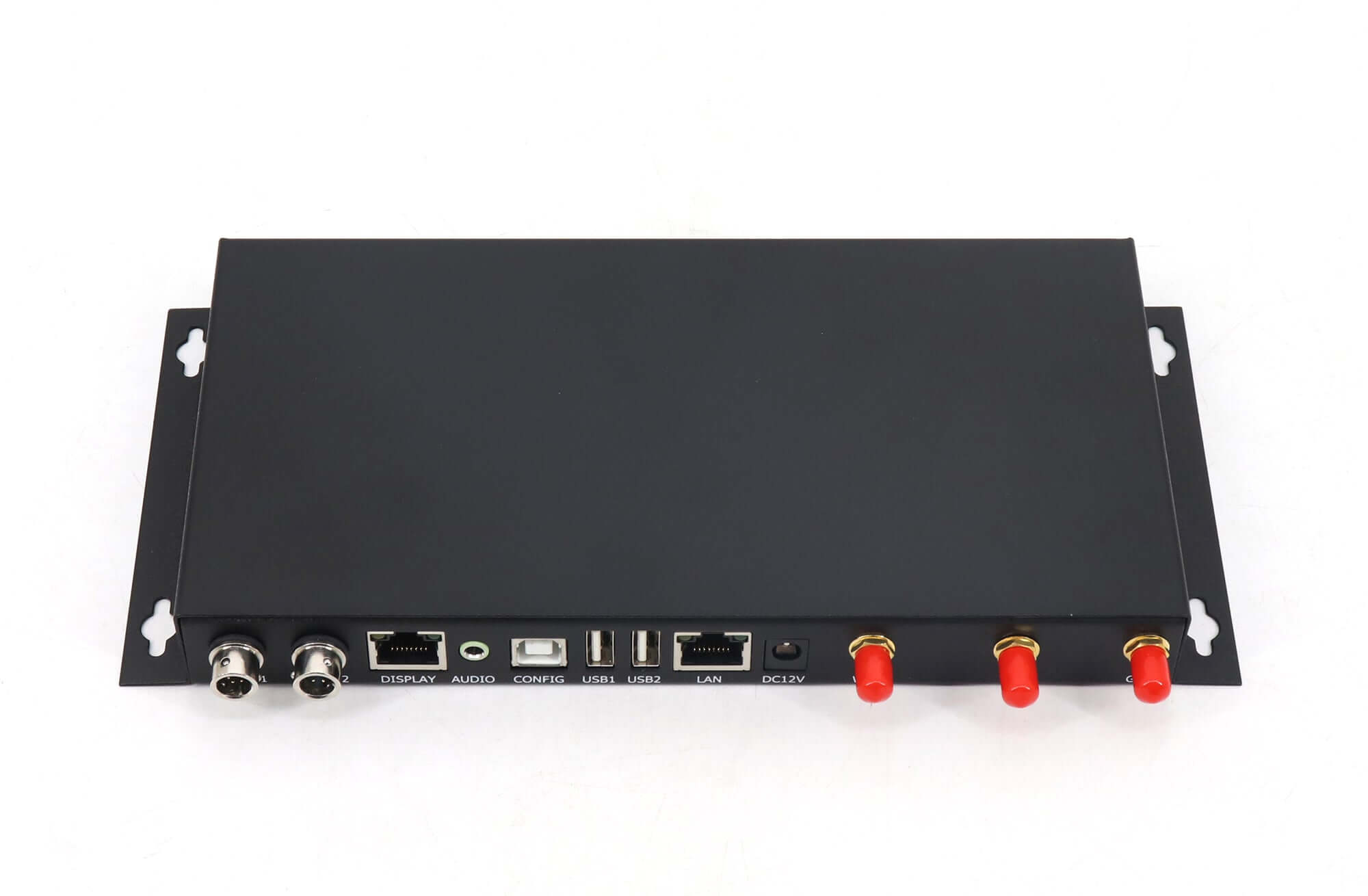

Interfaces | |
| Audio Output | 1/8″ (3.5mm)TRS |
| USB Ports | USB2.0*2, support external storage (U disc) or communication equipment |
| Gigabit Ethernet | Output signal to receiving cards |
| 100M LAN | Access network |
| WiFi | 2.4G/5G dual-band; support AP mode and station mode |
| 4G (Option) | Access internet |
| GPS (Option) | Precise positioning, precise timing, synchronization of multiple screens |
Physical Parameters | |
| Dimension | 205.4*107.5*23mm |
| Working Voltage | DC 12V |
| Rated Power | 10W |
| Weight | 0.5kg |
| Working Temperature | -25℃~80℃ |
| Environmental Humidity | 0-95% without condensation |
File Format | |
| Program Split | Support flexible program windows split, support flexible windows overlapping, support multiple programs play |
| Video Formats | Common formats such as AVI, WMV, MPG, RM/RMVB, MOV, DAT, VOB, MP4, FLV and etc.; support multiple videos play at the same time |
| Audio Formats | MPEG-1 Layer III,AAC etc. |
| Image Formats | bmp, jpg, png, etc. |
| Text Formats | txt, rtf, word, ppt, excel etc. |
| Text Display | Single line text, static text, multiple line text, etc. |
| Screen Split | 4 video windows, multiple picture/text windows, scrolling text, Logo, date/time/week. Flexible screen split can be achieved and different contents display in different area |
| OSD Supported | Support video/picture/text mixture or overlap with fully transparent, opaque, translucent effects |
| RTC | Support real time clock |
Terminal Management & Control | |
| Communication | LAN/WiFi/4G |
| Program Update | Update program through USB or network |
| Management Devices | Smart terminals like PC, Android, iOS and etc. |
| Automatic Brightness Adjustment | Timing automatic adjustment; Environmental automatic adjustment |
| Timing Play | Play according to scheduled programs |
| Software | LEDVISION 5.0 or higher vision |


Terms&Conditions of Colorlight C4 Cloud Server LED Player:
Delivery time: within 8 working days upon receiving payment..
Payment method: Paypal and credit card are preferred.
Packaging strong cardboard carton.
Warranty: two years.
Shipping method: DHL express is the default method. Others like EMS, UPS, FedEX and TNT will be adopted only when DHL is not available or not suitable at the destination; If you would like to ship the goods by sea or by air, please contact us for details
Remark : Full technical support will be provided only when you order both LED modules(LED display) and controller system from our company.
Specification download
Click here to download Colorlight C4 Cloud Server LED Player Specification
Frequently asked questions
Is the Colorlight C4 a cloud service or a physical player?
C4 is a physical LED media player. The specification describes connecting it to the Colorlight cloud service for remote content and device management. Confirm account, network and service compatibility for your installation.
What is the C4 loading capacity?
The linked V1.0 specification lists 650,000 pixels, with maximum width 4096 and maximum height 1536 pixels as separate limits. The earlier feature text stated 655,360; this page follows the PDF’s 650,000-pixel figure.
Can I update content without a wired internet connection?
The specification supports USB program updates and Wi-Fi AP/station modes as well as LAN. Cloud management needs internet access; local USB and AP workflows should be configured for the intended software and device.
Are cellular connectivity and GPS standard?
4G and GPS are marked as optional in the interface table. Confirm the supplied modules and any required network service before planning remote operation or GPS timing.
How much program storage and what power supply does C4 use?
V1.0 lists 8 GB storage with 5 GB available to users, DC 12 V input and 10 W rated power. The dimensions are 205.4 × 107.5 × 23 mm and weight is 0.5 kg.
