Colorlight X2 LED Controller with SDI, HDMI and DVI Inputs
$ 203.00
Colorlight X2 LED controller with SDI, HDMI, DVI, VGA and CVBS inputs. Two Gigabit Ethernet outputs support up to 1.3 million pixels, with USB configuration, source switching and image scaling.
Colorlight X2 LED display controller

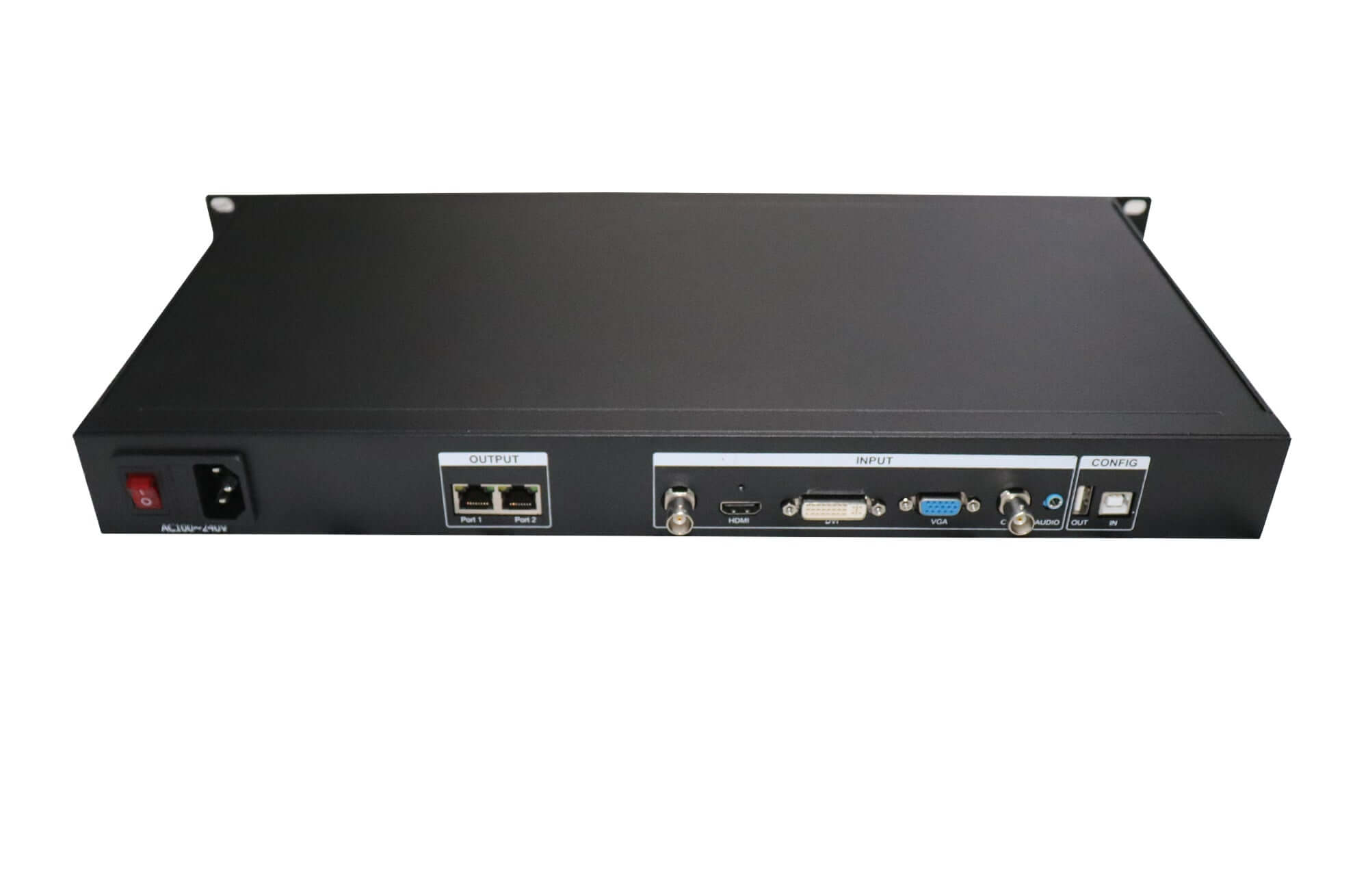

The Colorlight X2 accepts SDI, HDMI, DVI, VGA and CVBS sources and sends video to an LED screen through two Gigabit Ethernet outputs. Its loading capacity is 1.3 million pixels. HDMI, DVI and VGA inputs support up to 1920×1200 at 60Hz, providing connections for both digital and analog equipment.
Screen control and configuration

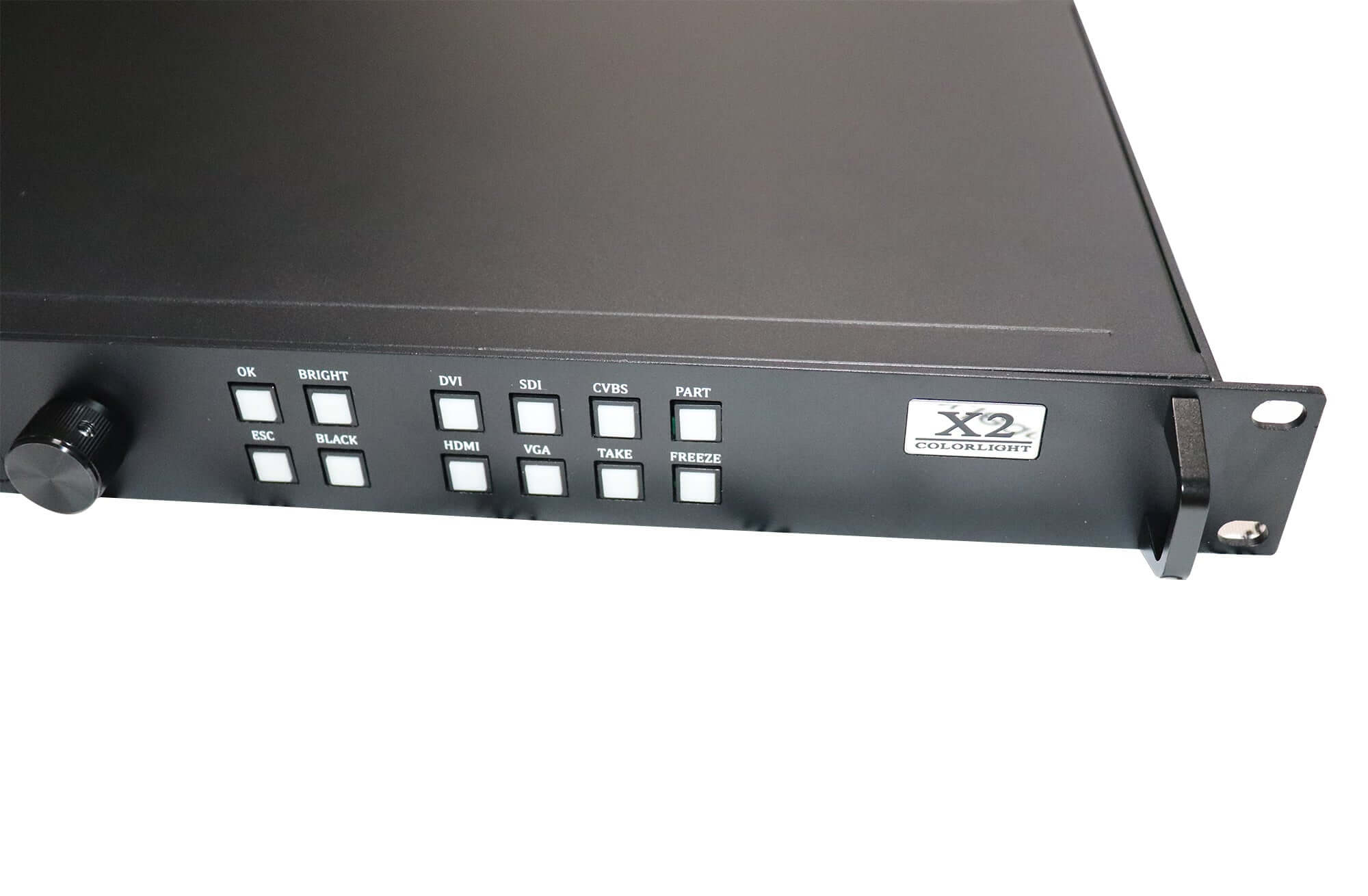

Select the source from the front panel, scale or crop the picture, adjust brightness, blank the output or freeze the screen. The LCD and knob provide access to operating settings. USB IN connects to a PC for configuration, while USB OUT connects to another controller for cascading.
The X2 also supports brightness and chromaticity adjustment, improved grayscale at low brightness and HDCP 1.4. Its audio input sends audio to a multifunction card. Check the receiving-card configuration and required accessories when replacing a controller in an existing installation.
X2 specifications
| Parameter | Specification |
|---|---|
| Loading capacity | 1.3 million pixels |
| LED outputs | 2 × Gigabit Ethernet, RJ45 |
| Maximum screen width / height | 2,560 pixels in either dimension, within total loading capacity |
| Video inputs | 1 each: SDI, HDMI, DVI, VGA and CVBS |
| HDMI / DVI / VGA input | Up to 1920×1200@60Hz |
| SDI input | 1080p |
| CVBS input | PAL / NTSC |
| HDCP | HDCP 1.4 |
| Audio | Input for transmission to a multifunction card |
| USB interfaces | USB IN for PC configuration; USB OUT for cascading |
| Front panel | 1.8-inch LCD, knob and function/source keys |
| Enclosure | 1U standard box |
| Input voltage | AC 100–240 V |
| Rated power consumption | 20 W |
| Operating temperature | −25°C to +80°C |
| Weight | 2 kg |
The maximum width and height are separate limits. A screen must also stay within the 1.3-million-pixel total capacity.
Frequently asked questions
How many Ethernet output ports does the Colorlight X2 have?
The X2 V1.2 specification lists two Gigabit Ethernet outputs, labelled Port 1 and Port 2, with a total loading capacity of 1.3 million pixels.
Does the X2 accept SDI video?
Yes. It has one SDI input listed for 1080p. HDMI, DVI and VGA support up to 1920×1200 at 60Hz, while CVBS accepts PAL/NTSC.
Can the X2 play files directly from USB storage?
The specification describes the USB ports as PC configuration and controller-cascading connections. It does not document USB storage playback.
Can I adjust the image size and switch sources on the X2?
Yes. The X2 supports input switching and image scaling, and the front-panel PART key provides screen clipping.
Does the X2 provide audio for an LED display system?
It has an audio input that transmits the signal to a multifunction card. Confirm that the required card and audio equipment are included in the system.
Download Specification
Colorlight X2 professional LED HD Display Controller Box Specification
