Colorlight X2s LED Video Controller with 2 Ethernet Ports
$ 96.00
Colorlight X2s LED video controller with two Gigabit Ethernet outputs, a 1.31-million-pixel capacity, one HDMI and two DVI inputs. Supports video scaling, cropping, USB configuration and controller cascading.
9998 in stock
Colorlight X2s LED video controller
The Colorlight X2s is a two-port LED display controller for screens within a 1.31-million-pixel loading capacity. It accepts one HDMI and two DVI video sources at resolutions up to 1920×1200 at 60Hz. Scaling, cropping and screen offset help match the input picture to the LED screen.
Control and installation

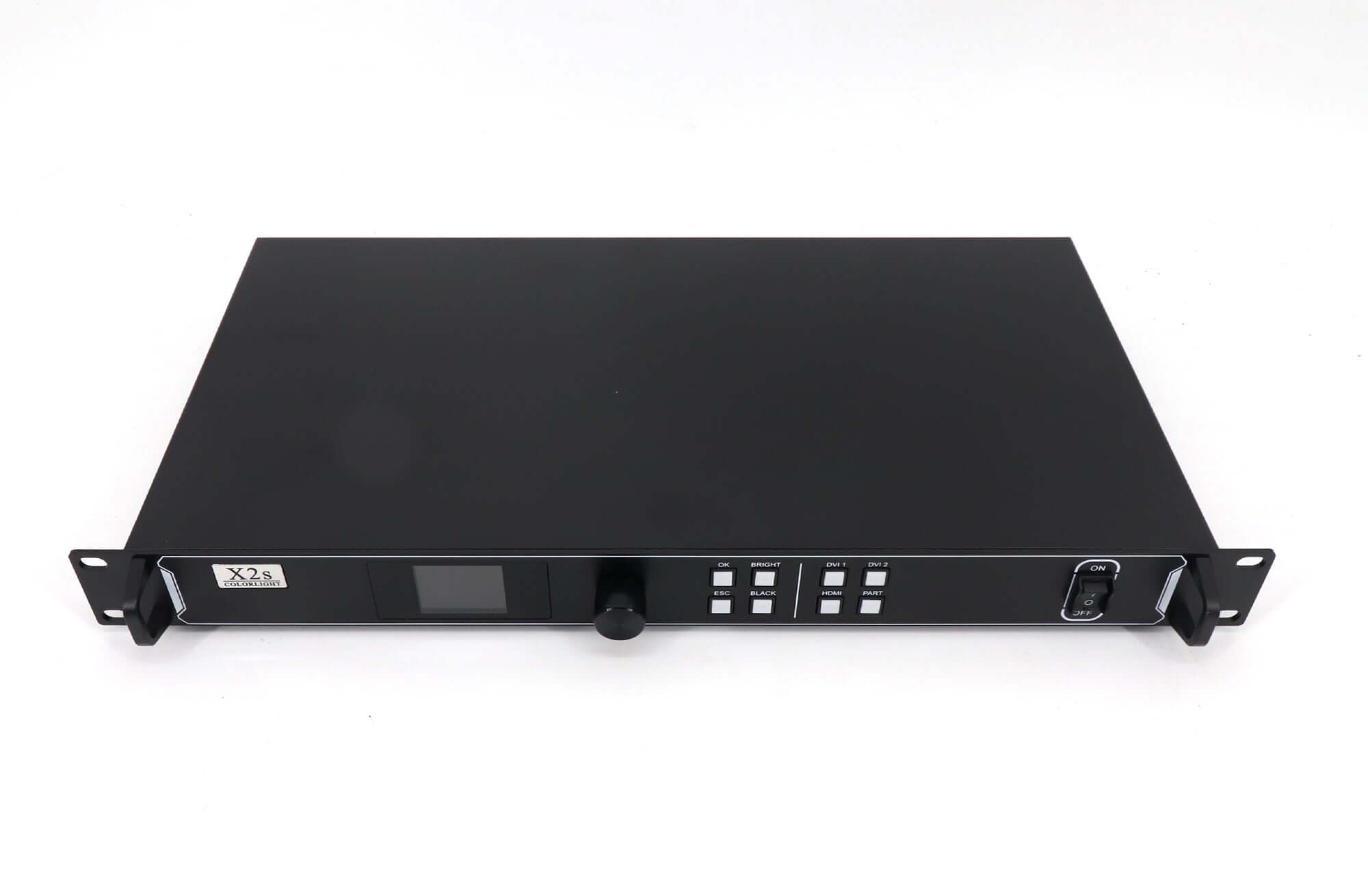

The front panel includes an LCD, adjustment knob and keys for source selection, brightness, blanking and cropping. USB IN connects to a PC for parameter configuration, while USB OUT supports cascading between controllers. The specification allows up to 64 cascaded devices and describes single-device or dual-device redundant backup.
Brightness and color-temperature adjustment are supported, together with improved grayscale at low brightness. Audio output requires an optional multifunction card.
X2s specifications
| Parameter | Specification |
|---|---|
| Loading capacity | Up to 1.31 million pixels |

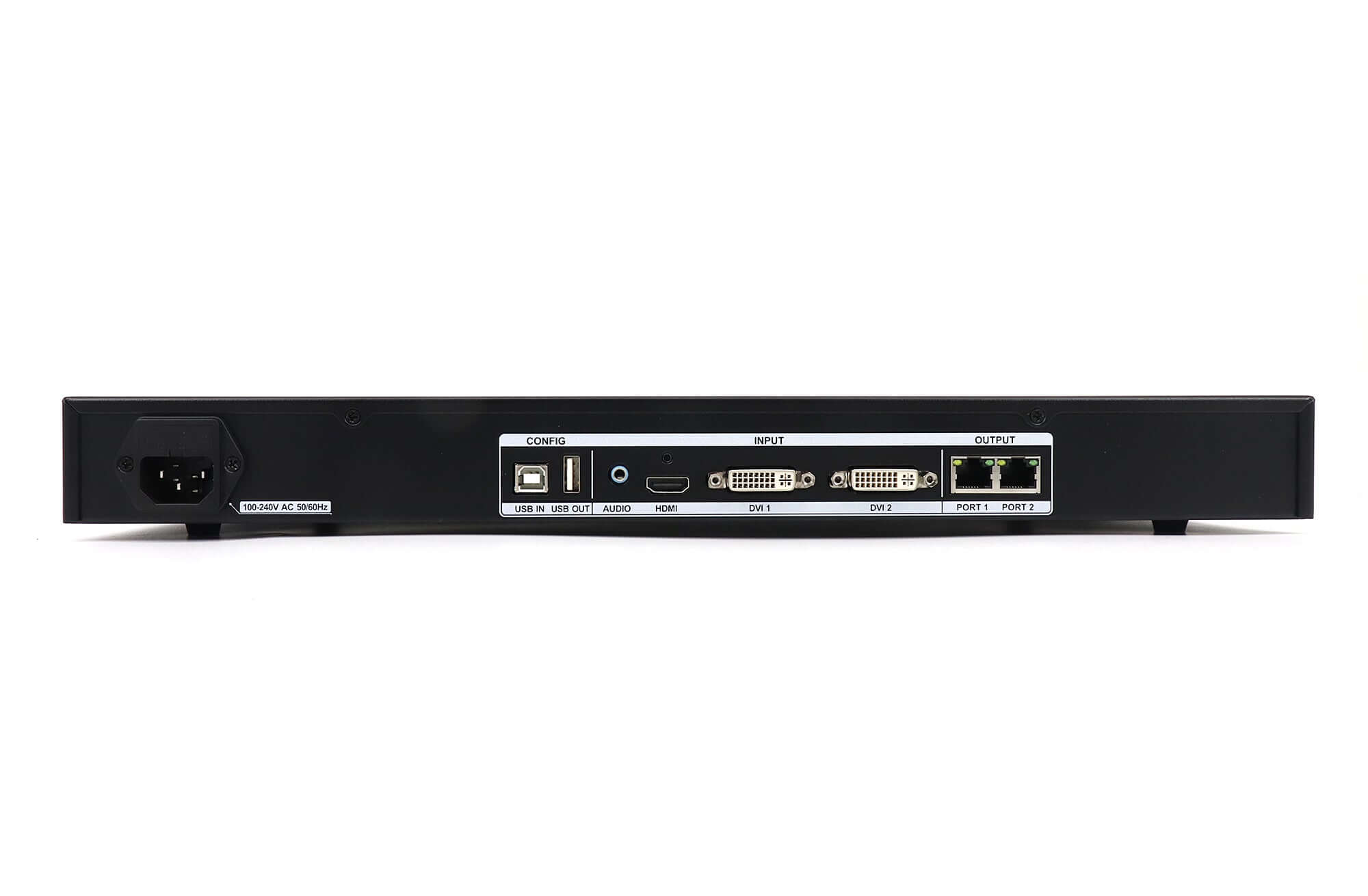

| Outputs | 2 × Gigabit Ethernet, RJ45 |
| Maximum screen width / height | 4,096 / 2,560 pixels, within total loading capacity |
| Inputs | 1 × HDMI 1.4; 2 × DVI |
| Maximum input resolution | 1920×1200@60Hz |
| Input depth | 8-bit |
| Source processing | Switching, scaling, cropping and screen offset |
| USB control | PC configuration and cascading; up to 64 devices |
| Audio | Audio input; optional multifunction card required for audio output |
| Input voltage | AC 100–240 V, 50/60 Hz |
| Power consumption | 10 W |
| Dimensions (W × H × D) | 482.6 × 44.0 × 262 mm; 1U |
| Net weight | 2 kg |
| Operating temperature | −20°C to +60°C |
| Operating humidity | 0–80% RH, non-condensing |
Use the screen pixel count and cabinet-to-port mapping to confirm suitability. The width and height limits are not a combined 4096×2560 loading capacity.
Frequently asked questions
How many Ethernet outputs does the Colorlight X2s have?
The X2s has two Gigabit Ethernet outputs and a maximum loading capacity of 1.31 million pixels.
Can the X2s accept HDMI and DVI video sources?
Yes. It provides one HDMI 1.4 input and two DVI inputs, with a documented maximum input resolution of 1920×1200 at 60Hz.
Does the X2s play videos directly from a USB drive?
The documented USB functions are PC configuration and controller cascading. USB-drive video playback is not specified.
Can multiple X2s controllers be cascaded?
Yes. The linked specification states that up to 64 devices can be cascaded through the USB control connection. Screen configuration and video-source distribution still need to be planned for the installation.
Does the X2s support audio?
It has an audio input. Audio output requires a compatible multifunction card, which the specification lists as optional.
