NovaStar A5s Plus-N Mini LED Receiving Card
$ 11.50
NovaStar A5s Plus-N receiving card listing with 512 × 384-pixel loading and high-density connections. Confirm the hardware revision: the retained specification PDF names A5s Plus without the “-N” suffix.
9898 in stock

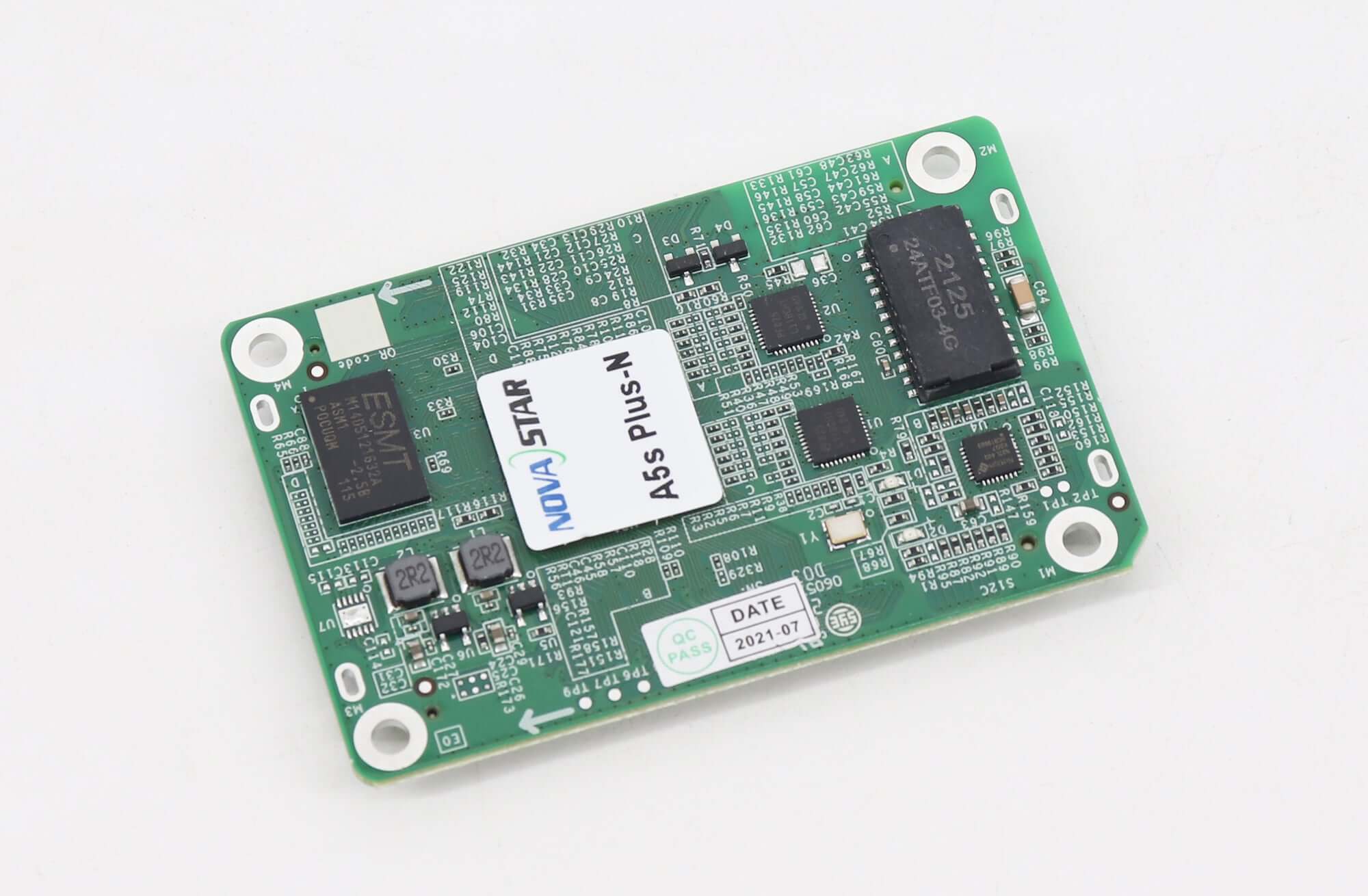

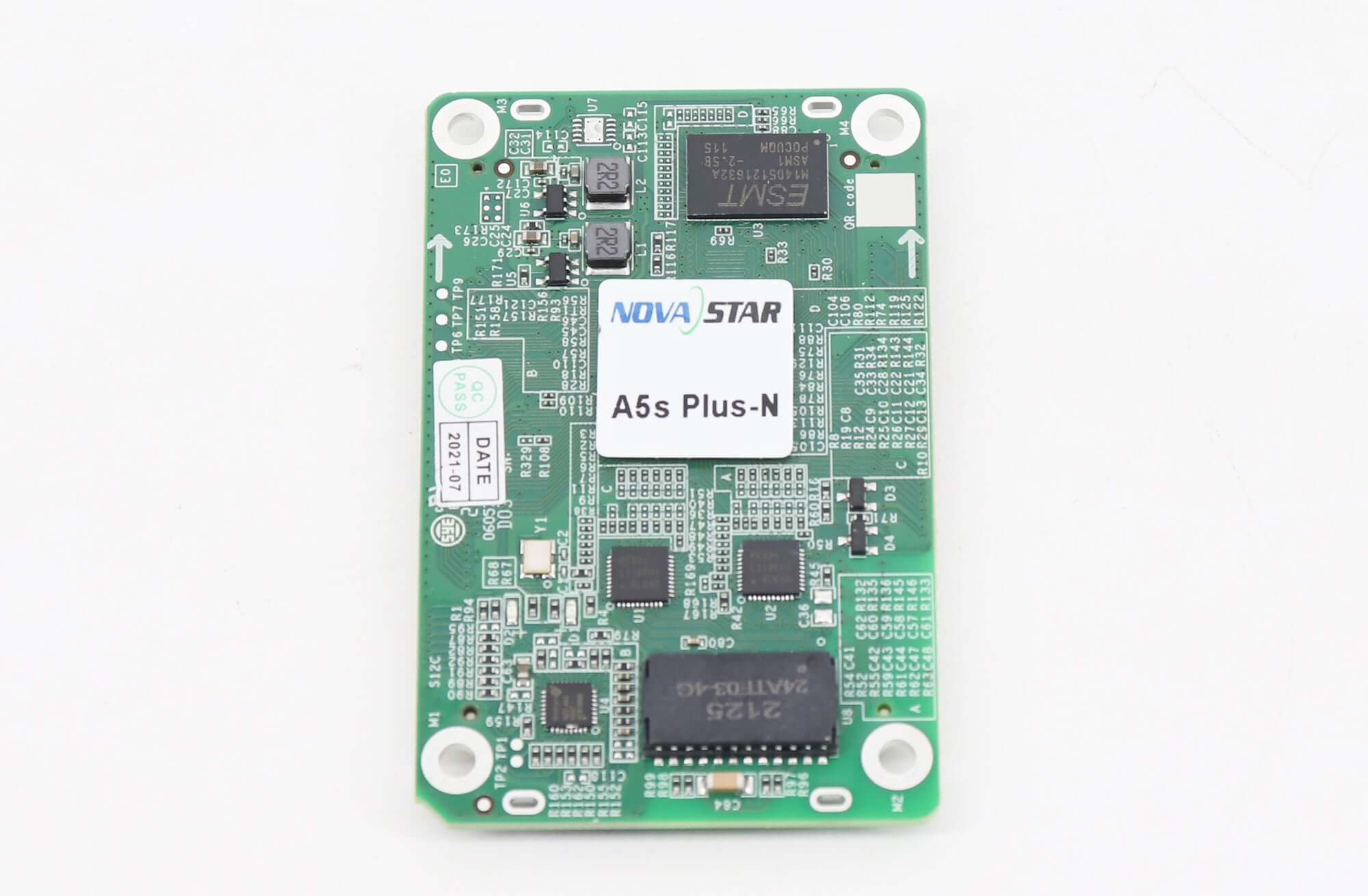

NovaStar A5s Plus-N mini receiving card
This A5s Plus-N listing describes a compact LED receiving card with high-density connectors, color management and pixel-level calibration. Its listed maximum loading capacity is 512 × 384 pixels with NovaLCT V5.3.1 or later.
Document identification: The original PDF linked below is titled A5s Plus V1.1.1, without the “-N” suffix. Confirm the exact card label and hardware revision, and request the matching document before ordering or updating firmware. The table retains the original listing’s specifications.
Listed specifications and conditions
| Product model | A5s Plus-N |
|---|---|
| Listed maximum loading | 512 × 384 pixels; NovaLCT V5.3.1 or later |
| Data outputs | Up to 32 parallel RGB groups or 64 serial groups, expandable to 128 serial groups |

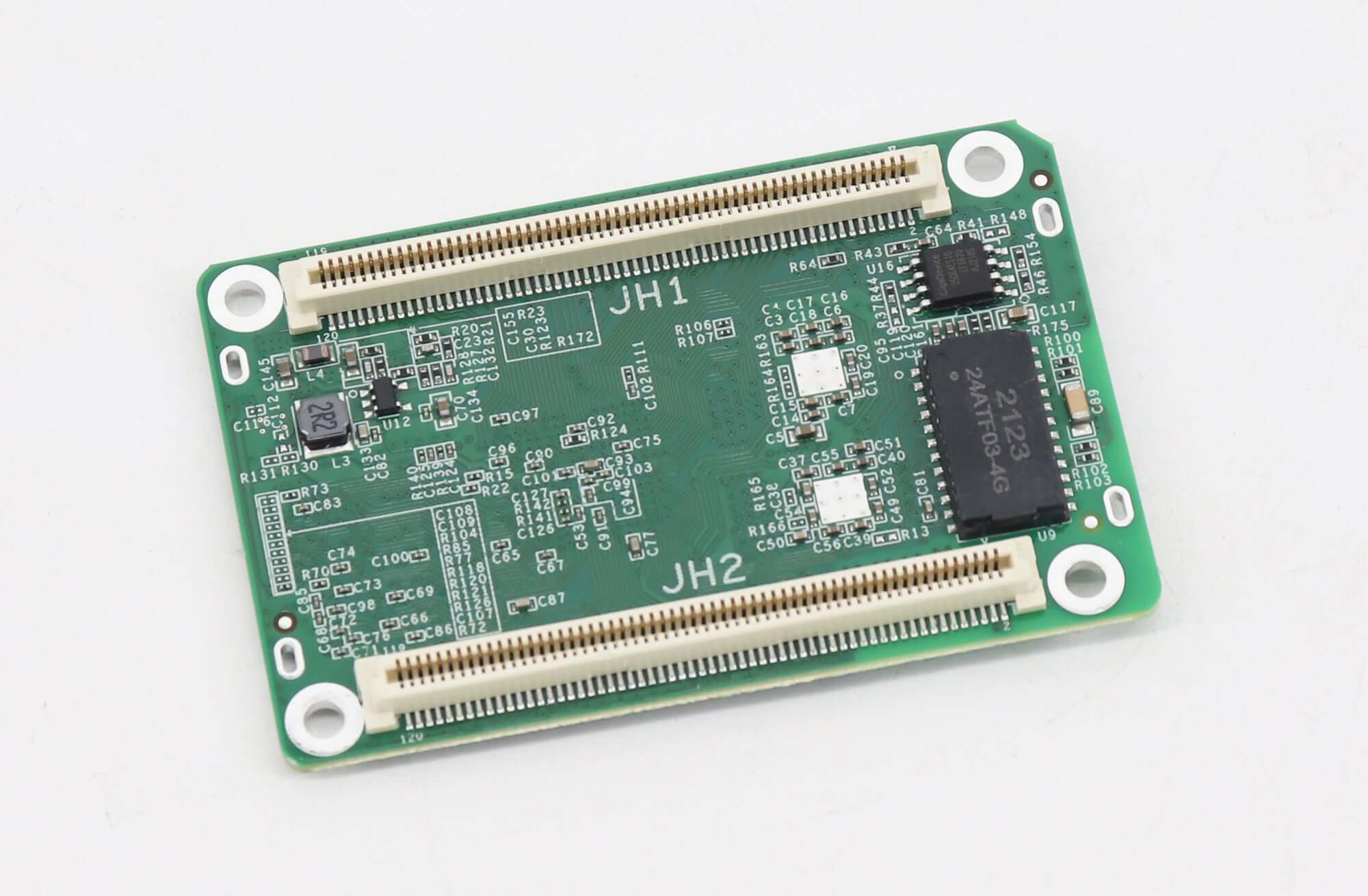

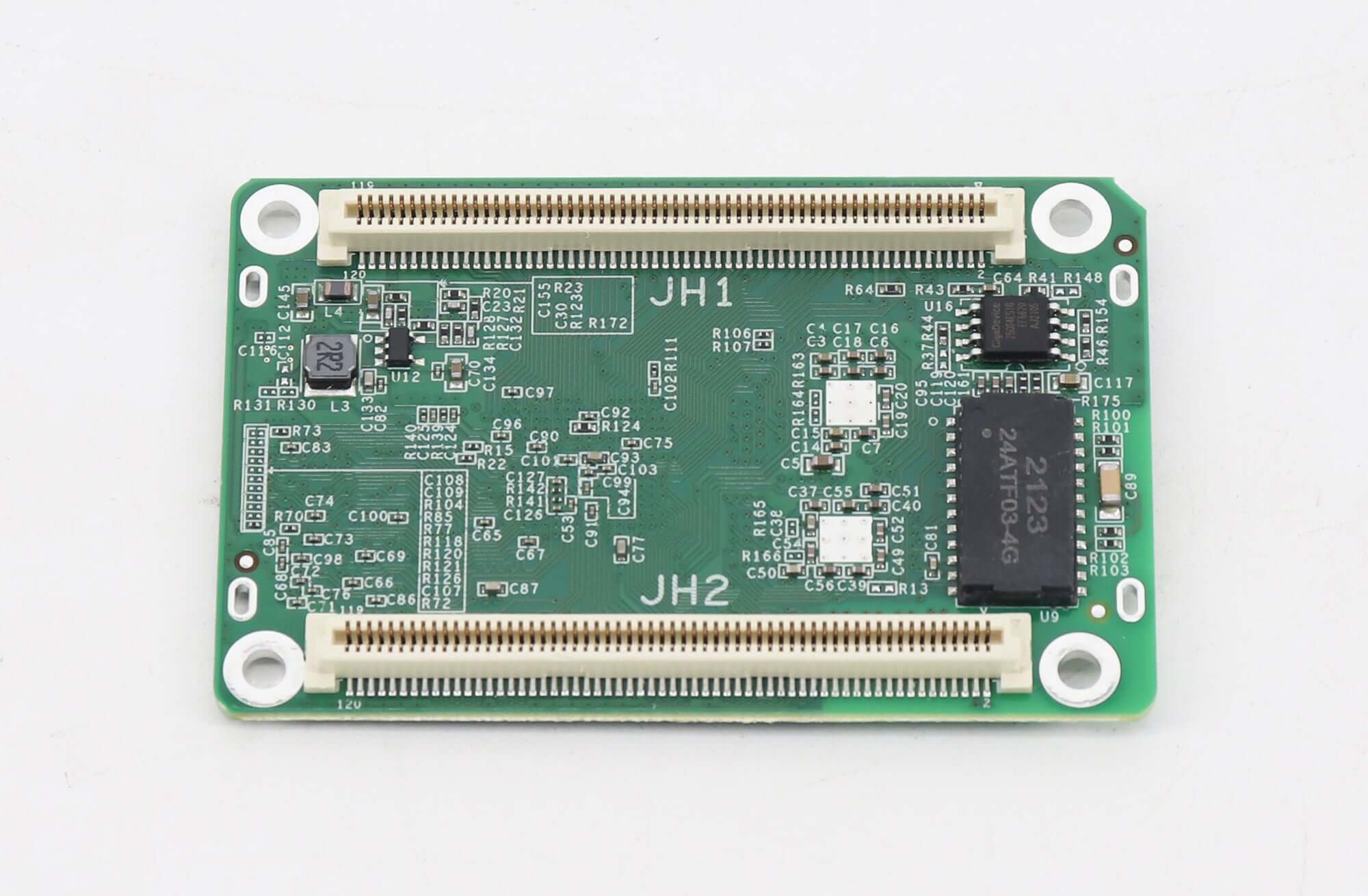

| Connections | High-density connectors; reserved pins for custom functions |
| Color / grayscale | Color-gamut switching; 18Bit+ with listed 4-times grayscale improvement |
| Calibration | Pixel-level brightness and chroma calibration with NovaLCT and NovaCLB |
| Dark/bright line adjustment | NovaLCT V5.2.0 or later allows adjustment without using or changing the video source |
| Listed low-latency condition | 1 frame at the receiving-card end, only with module driver ICs having built-in RAM |
| 3D | Requires an independent controller supporting 3D |
| Separate RGB Gamma | NovaLCT V5.2.0 or later and a supporting independent controller |
| Image rotation | 0°, 90°, 180°, 270° |
| EMC design | EMC Class B compliant hardware |
Match the card to the display
The connector design is intended to limit the effects of dust and vibration. Match the HUB-board pinout, module driver, cabinet pixel dimensions and existing configuration. The low-latency figure refers to the receiving-card end under the stated driver condition; it is not an end-to-end system latency claim.
Frequently asked questions
Does the download specifically identify A5s Plus-N?
No. The retained document is titled A5s Plus V1.1.1. Confirm whether it applies to the supplied “-N” hardware before using its configuration or firmware guidance.
What loading capacity is listed for this card?
The listing states 512 × 384 pixels with NovaLCT V5.3.1 or later. Confirm the exact revision and cabinet mapping.
Does the one-frame latency apply to every LED module?
No. The original description limits it to the receiving-card end when modules use driver ICs with built-in RAM. Confirm support on the supplied revision.
What should I check when replacing an A5s Plus or A5s Plus-N?
Verify the complete model suffix, hardware revision, connector pinout and cabinet configuration. Similar names do not establish interchangeability.
How can I confirm price and the correct version?
Use the product’s displayed price for the listed item and confirm the card label, revision, required quantity and matching specification before ordering.
Product images
Existing specification download
Download the existing A5s Plus specification V1.1.1 (PDF). Confirm applicability to the A5s Plus-N hardware being supplied.
