CZCL A-200AF-5 5V 40A 200W LED Cabinet Power Supply
$ 6.80
CZCL A-200AF-5 LED cabinet power supply with 5V 40A output and 200W maximum power. Input: 200–240VAC, 47–63Hz. Review the parameter table and original specification PDF before replacement.
9986 in stock
CZCL A-200AF-5 200W power supply for LED cabinets
The CZCL A-200AF-5 is listed with 5V DC, 40A output and 200W maximum power. This page brings together its electrical parameters, original product image and specification download for replacement and cabinet-integration checks. The input specified here is 200–240VAC at 47–63Hz.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-200AF-5 |
| DC output | 5V, 40A |
| Maximum output power | 200W |
| AC input / frequency | 200–240VAC / 47–63Hz |
| Power factor | 0.50 at 230VAC |
| Protection | Undervoltage, overload and short circuit |
| Working temperature | −30 to +60°C |
| Storage conditions | −40 to +100°C; 20%–95% RH |
| Insulation voltage | I/P–O/P: 3.0kVAC; I/P–FG: 1.5kVAC; O/P–FG: 0.5kVAC, 1 minute |
| Leakage current | 0.30mA at 230VAC |
| Dimensions as listed | 190 × 84 × 30; unit not stated in original table |
| Safety standards listed | GB4943, UL60950-1, EN60950-1 |
| EMC standards listed | GB9254, EN55022 |
| Timing entry in original table | “Protecting Time: 50ms, 20ms over load” — meaning requires confirmation |
| Cooling entry in original table | “Dissipate heat: cold” — method not clearly specified |
| Testing | 100% full-load high-temperature ageing |
| Warranty | 2 years |
Before selecting a replacement, compare the full model number, input rating and terminals with the existing unit. The source table omits the dimension unit, describes cooling only as “cold,” and labels 50ms/20ms as “Protecting Time.” These unclear entries are retained above without assigning a new meaning. Dust/moisture resistance wording in the original description is not an IP or waterproof rating.

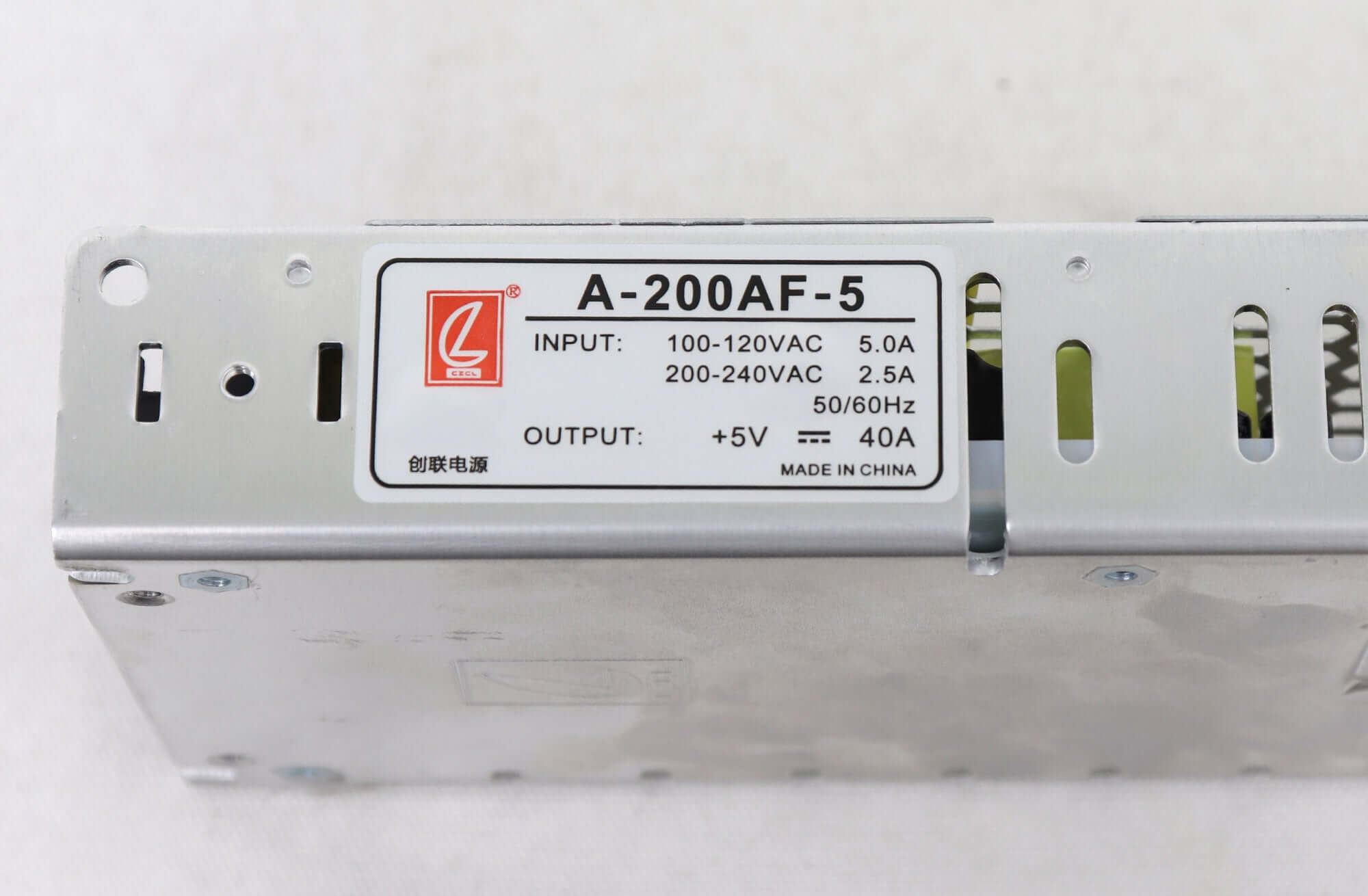

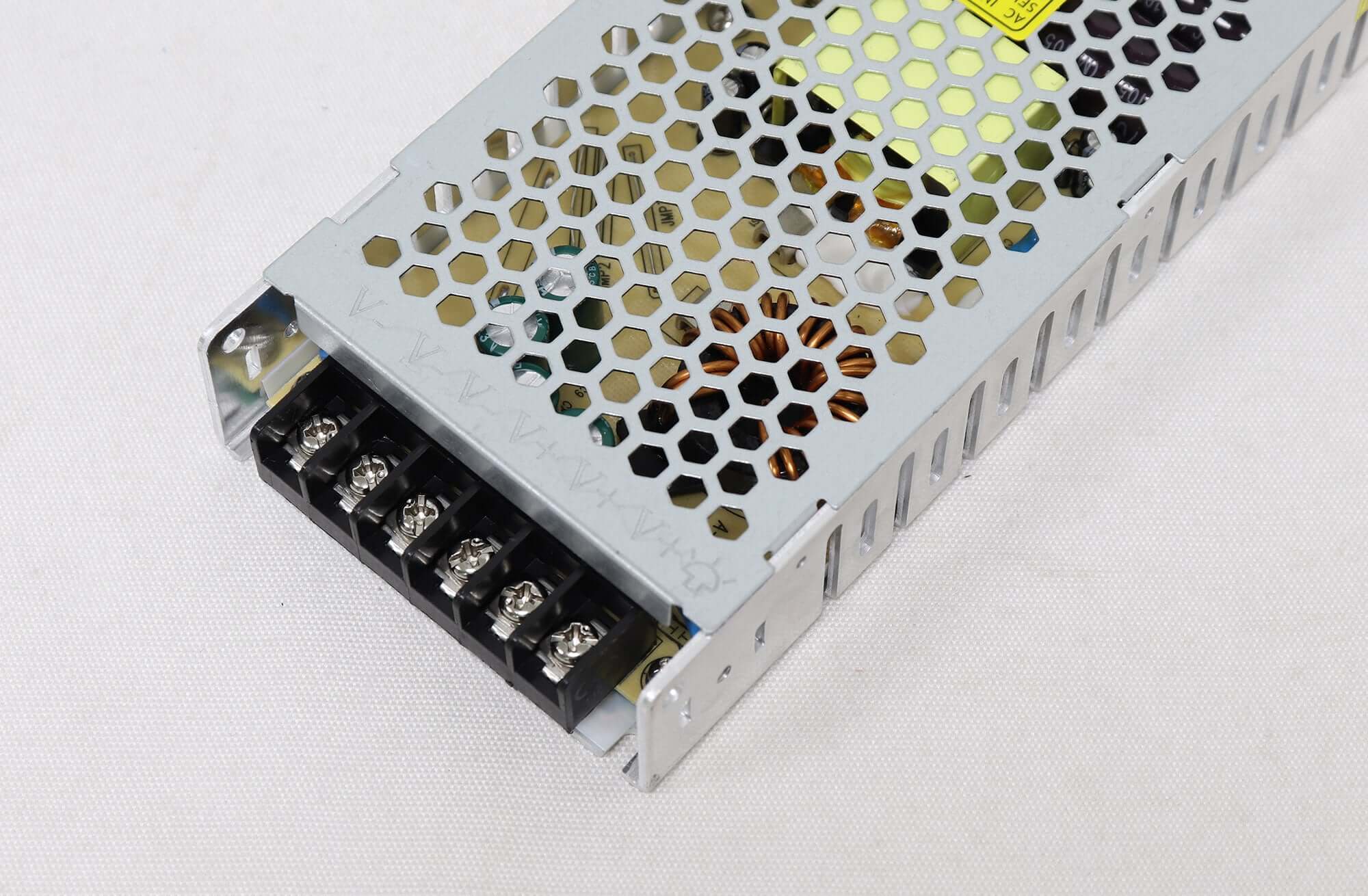

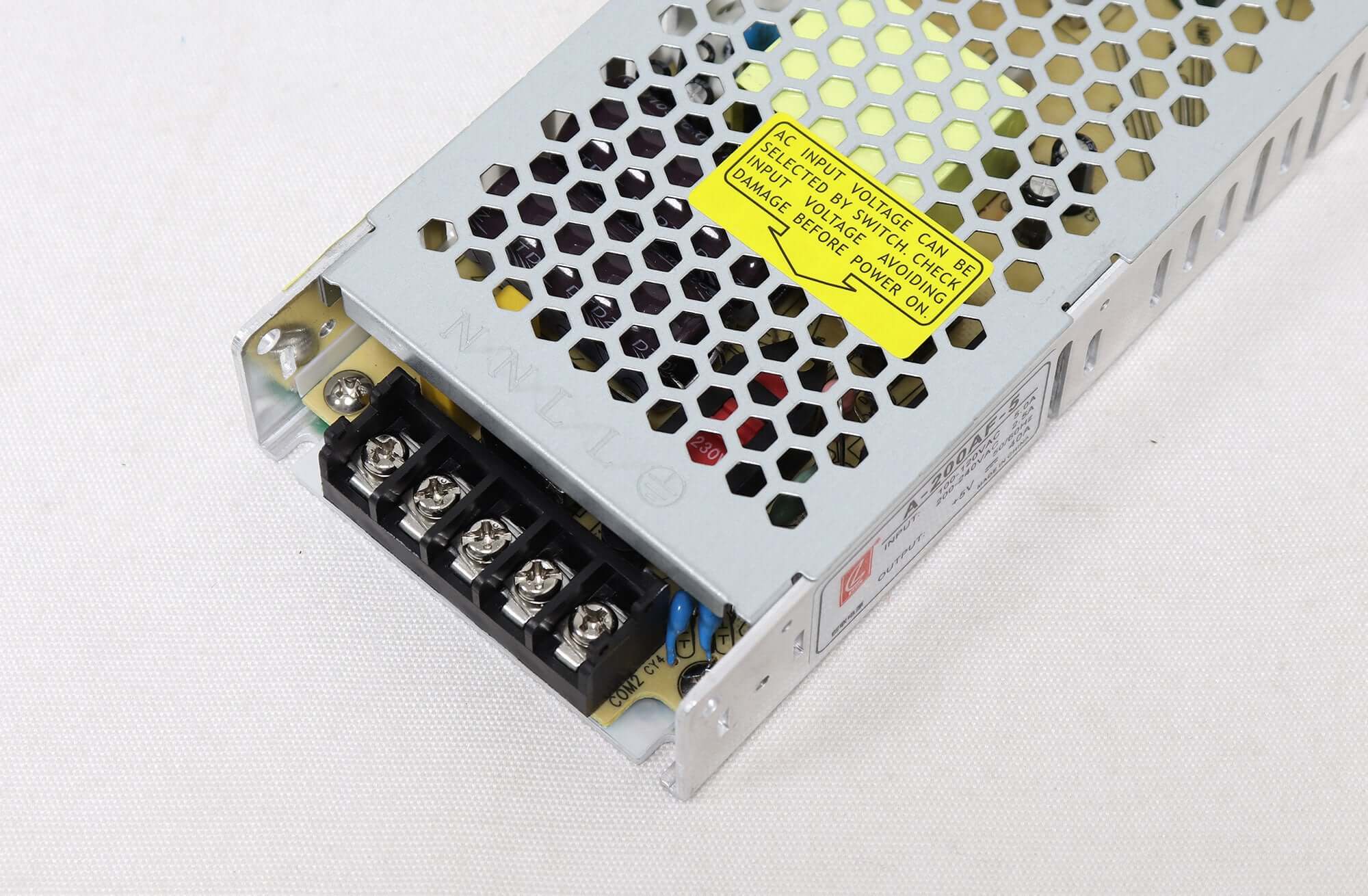

Product images
Specification download
CZCL A-200AF-5 LED Power Supply Specification
Frequently asked questions
Which DC load is this model specified for?
The stated output is 5V DC at 40A, with a maximum output power of 200W. Match the module voltage and total load to the actual unit rating.
What input frequency does the A-200AF-5 accept?
The original table lists 47–63Hz with a 200–240VAC input range.
What are the power factor and leakage current?
The stated power factor is 0.50 at 230VAC, and leakage current is 0.30mA at 230VAC. Keep those test conditions with the values when comparing supplies.
Which details should I verify before replacing an existing supply?
Check the exact model, input/output ratings, dimensions, mounting holes and terminal layout. Confirm the unclear cooling and timing entries against the specification before installation.
Where is the A-200AF-5 datasheet?
The original specification PDF is linked above. Use it alongside the unit label to verify the required installation details.
| Weight | 0.6 kg |
|---|
