CZCL A-200AF-5XZ 5V 40A LED Power Supply
$ 8.80
CZCL A-200AF-5XZ LED power supply with 5V 40A output shown on the label, switch-selectable AC input and natural convection cooling. Includes short-circuit and overload protection.
9787 in stock
CZCL A-200AF-5XZ 5V 40A LED power supply
The CZCL A-200AF-5XZ is a naturally cooled LED power supply. Its original product label shows a 5V DC, 40A output and switch-selectable 100–120VAC / 200–240VAC input. Use the complete A-200AF-5XZ model designation when checking a replacement.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-200AF-5XZ |
| DC output on product label | 5V, 40A |
| AC input | 100–120VAC / 200–240VAC; selected by switch |
| Input frequency on label | 50/60Hz |
| Switching frequency | 100kHz, fixed |
| Cooling | Natural air convection |
| Protection | Short circuit and overload |
| Testing | 100% full-load ageing test |
| Warranty | 2 years |
The 100kHz switching frequency is separate from the AC input frequency. Before connection, verify the input selector setting against the local supply and the unit label. The original PDF filename uses A-200AF-5_ZH; confirm that the document applies to the XZ version before using its details.

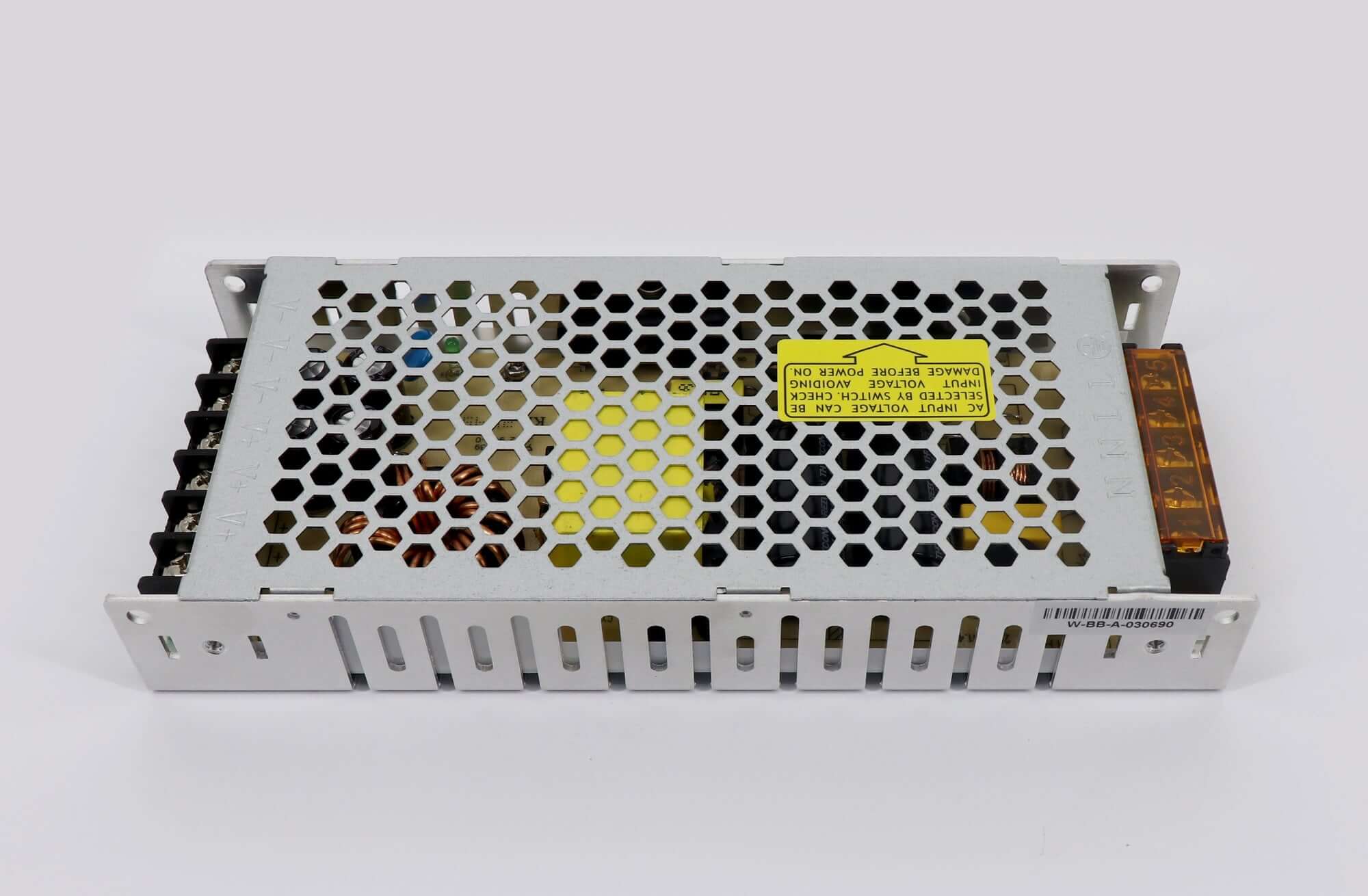

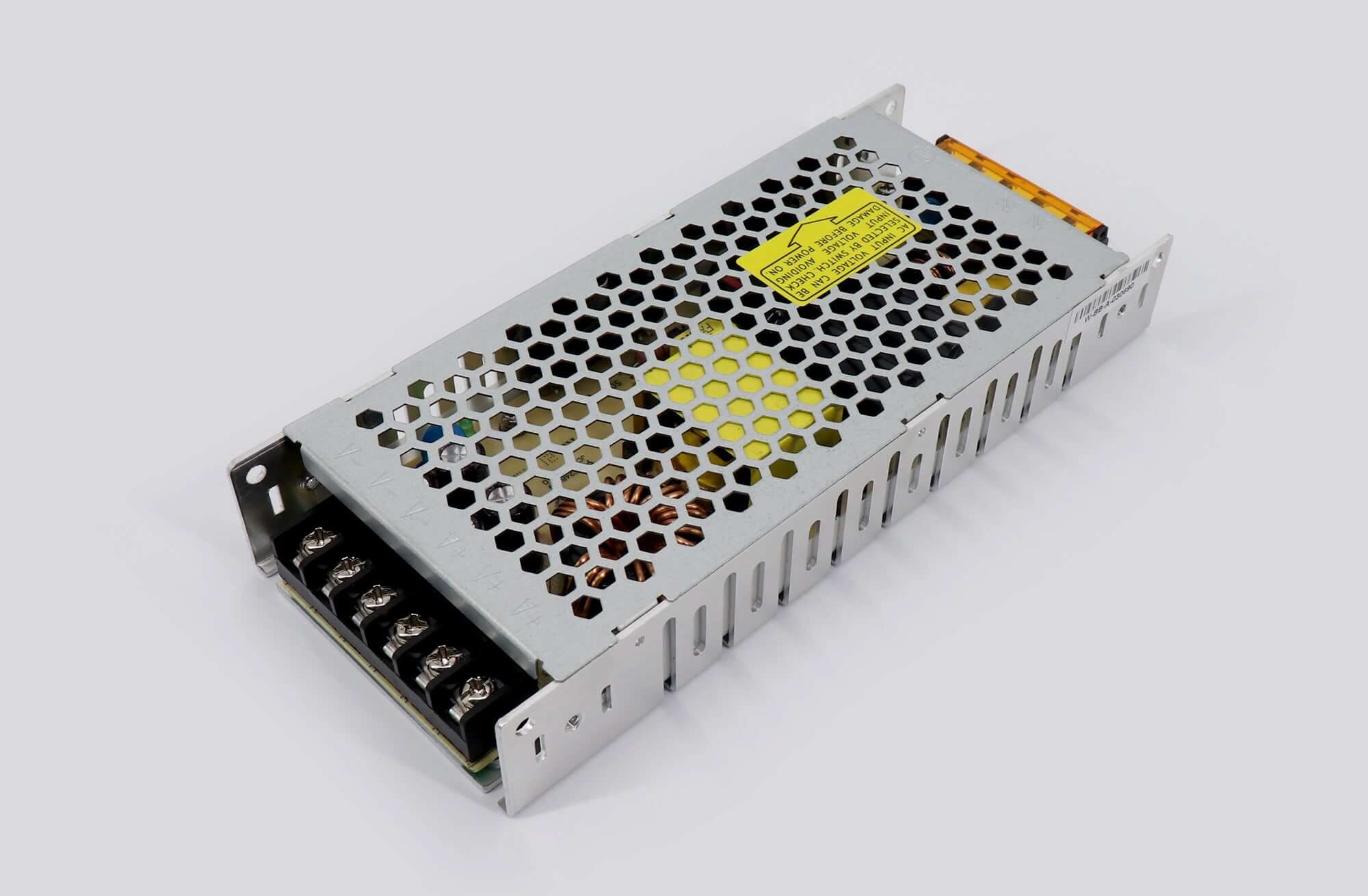

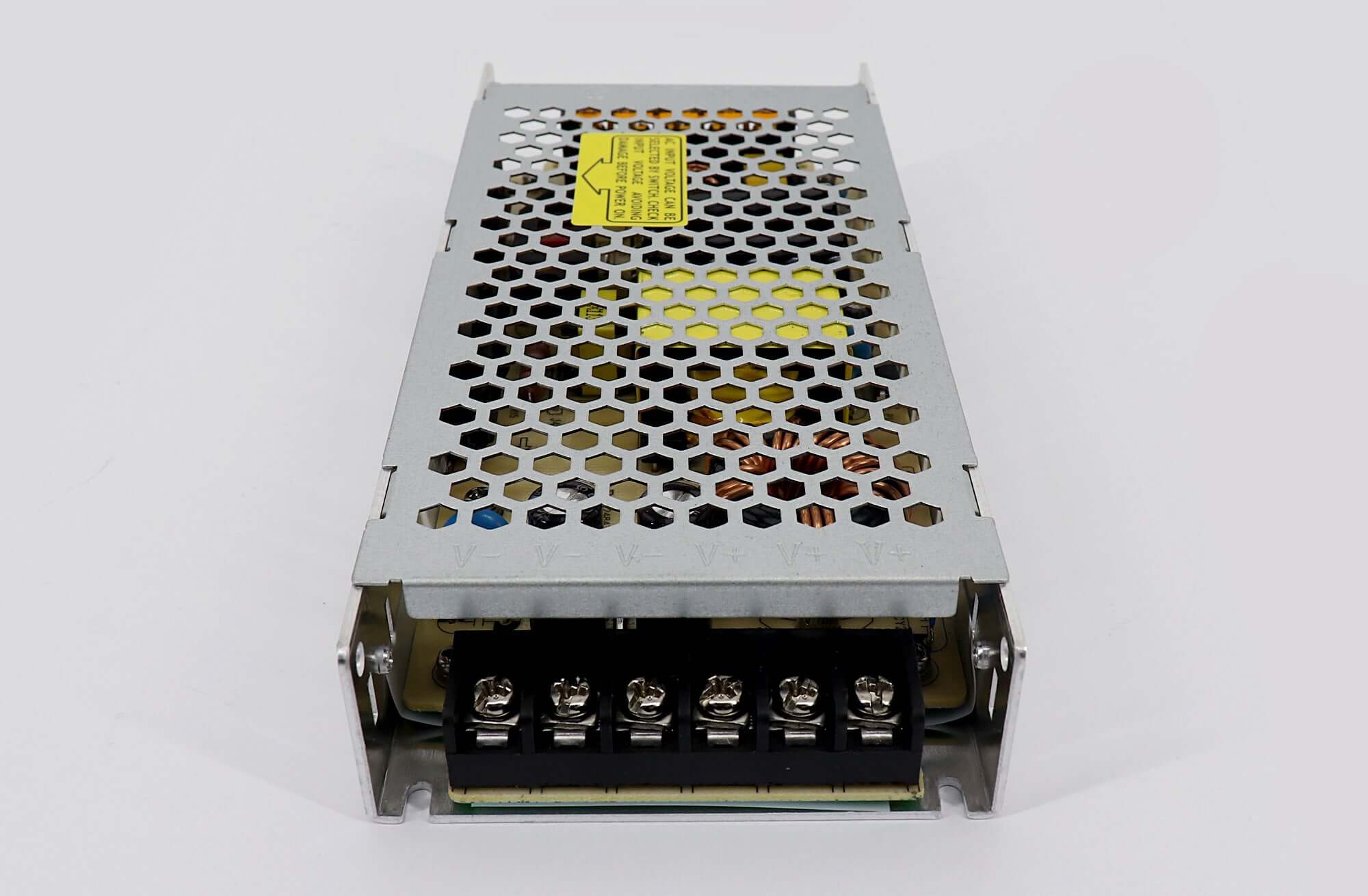

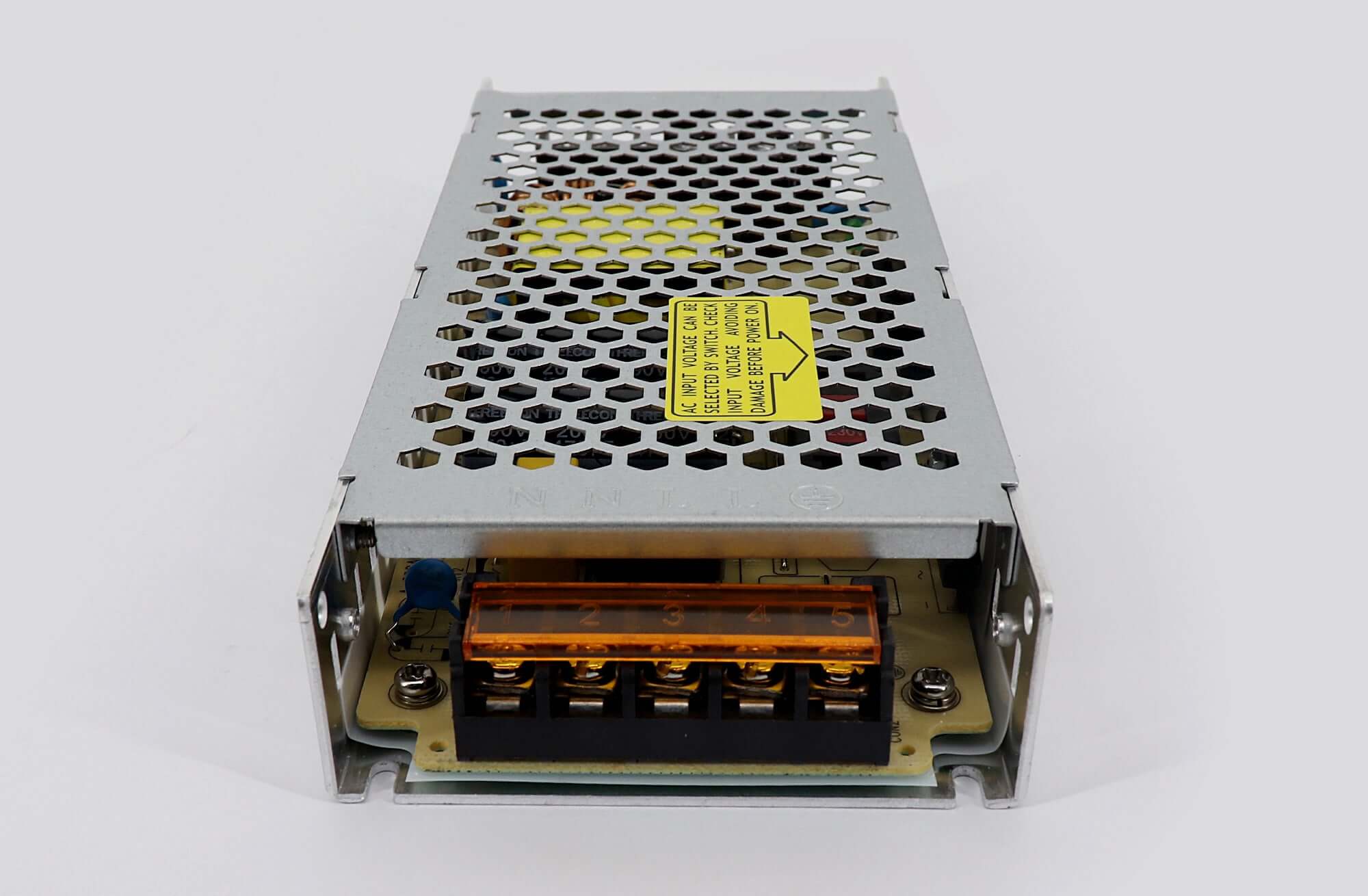

Product images
Specification download
CZCL A-200AF-5XZ LED Power Supply with Input 100V~120V 200V~240V Specification
Frequently asked questions
What output does the A-200AF-5XZ provide?

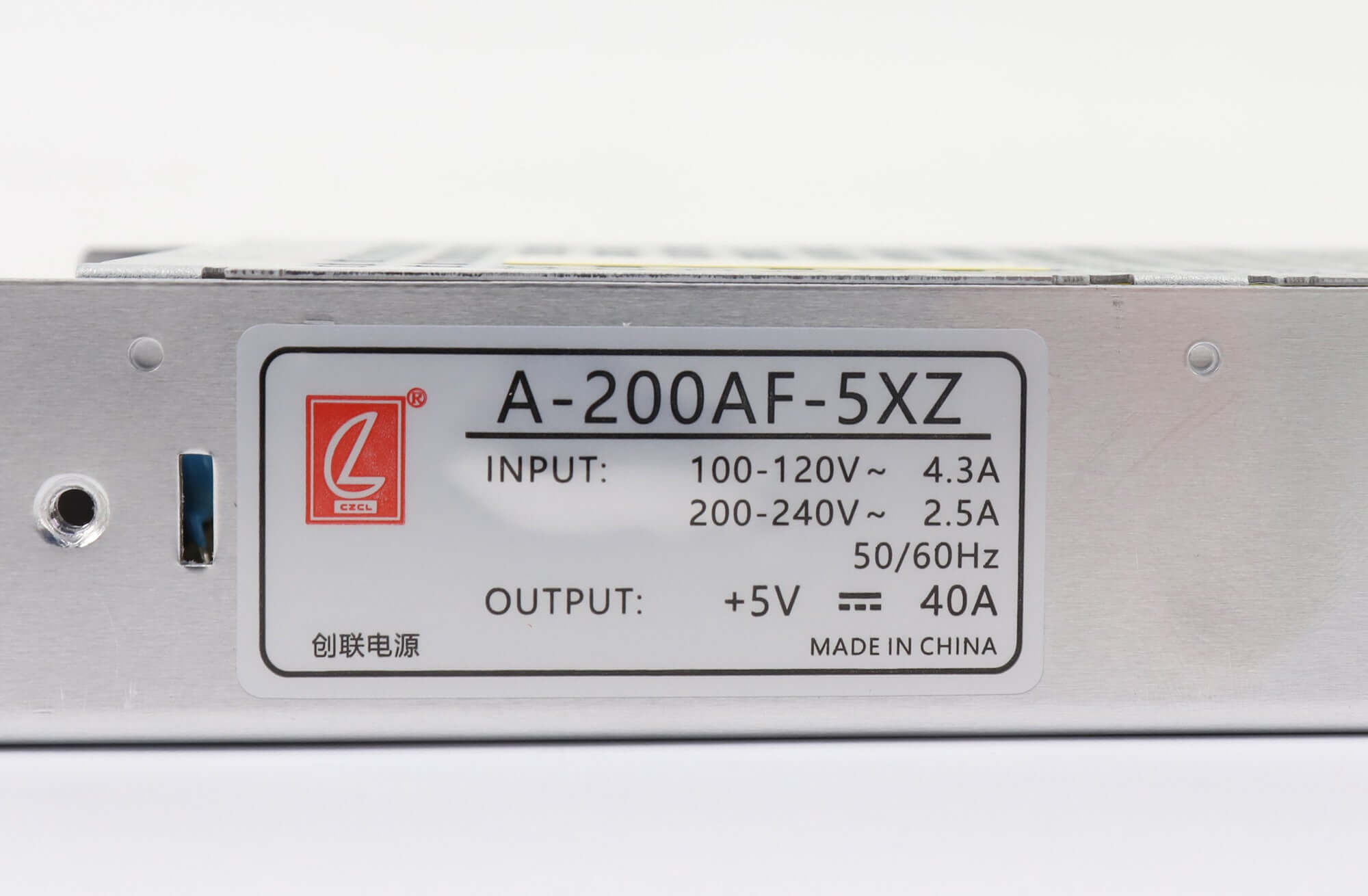

The original product photograph shows 5V DC and 40A on the label. Match these ratings to the connected LED modules.
Does it support 100–120V and 200–240V AC?

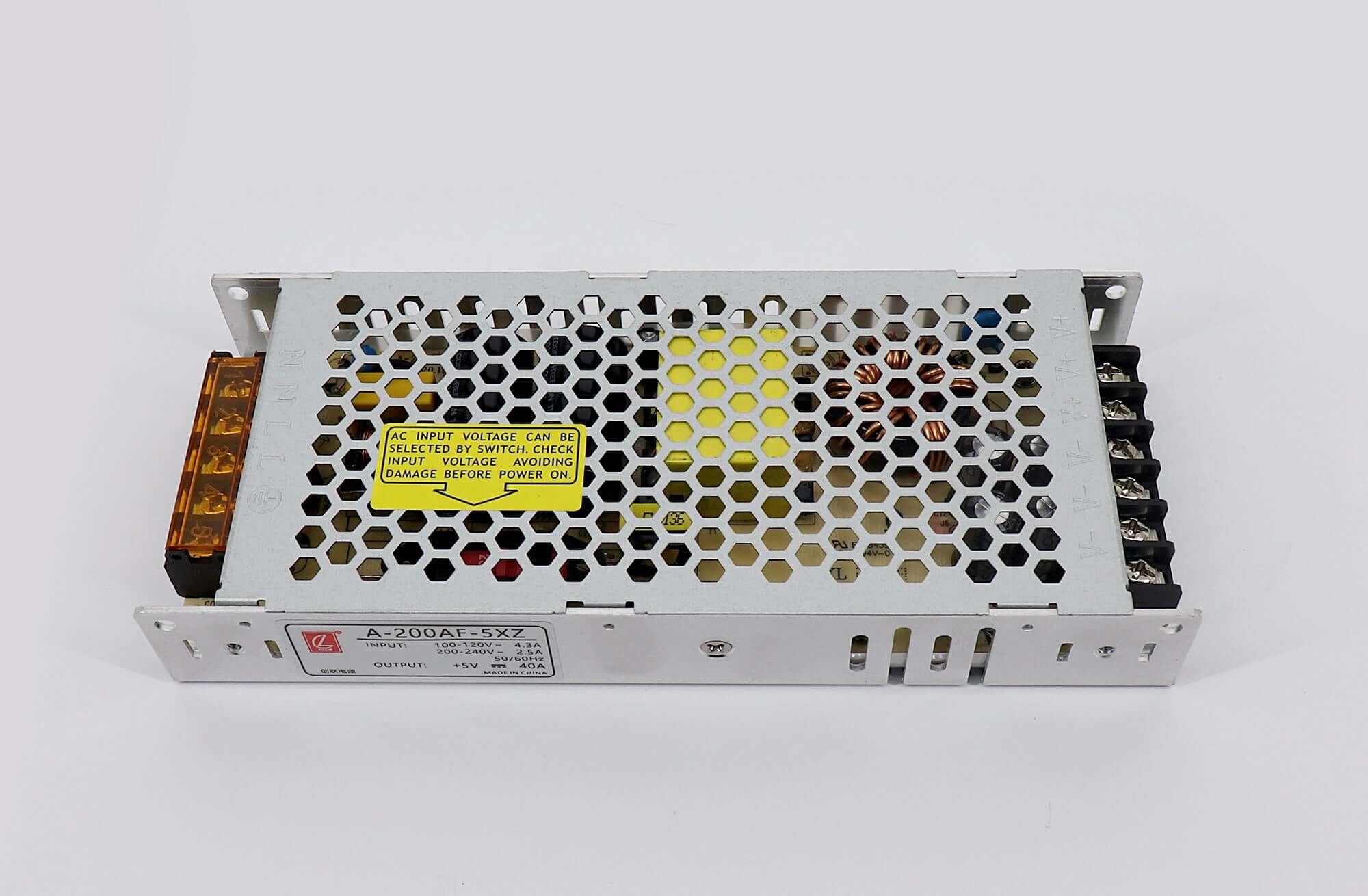

Both ranges are listed and the product photo states that input voltage is selected by switch. Check the switch before applying power.
Does this power supply contain a cooling fan?
The original feature list specifies natural air convection cooling. Keep its ventilation openings unobstructed.
What does the 100kHz specification mean?
It is the fixed switching frequency stated in the product description. The photographed AC input label separately shows 50/60Hz.
Is A-200AF-5XZ interchangeable with A-200AF-5?
The model suffix differs. Compare input selection, output rating, dimensions and terminals before replacing one with the other; the listings do not establish universal interchangeability.
| Weight | 0.6 kg |
|---|
