CZCL A-200AF-5 5V 40A Low-Profile LED Power Supply
$ 8.80
CZCL A-200AF-5 low-profile LED power supply, rated 5V 40A with 200W maximum output. This listing specifies 200–240VAC input and undervoltage, overload and short-circuit protection.
10000 in stock
CZCL A-200AF-5 low-profile LED power supply
This CZCL A-200AF-5 listing specifies 5V DC, 40A and a maximum output power of 200W. Its slim housing is intended for compact die-cast rental LED cabinets. Use the stated 200–240VAC input range and the parameter table below when checking a replacement unit.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-200AF-5 |
| DC output | 5V, 40A |
| Maximum output power | 200W |
| AC input / frequency | 200–240VAC / 47–63Hz |
| Power factor | 0.50 at 230VAC |
| Protection | Undervoltage, overload and short circuit |
| Working temperature | −30 to +60°C |
| Storage conditions | −40 to +100°C; 20%–95% RH |
| Insulation voltage | I/P–O/P: 3.0kVAC; I/P–FG: 1.5kVAC; O/P–FG: 0.5kVAC, 1 minute |
| Leakage current | 0.30mA at 230VAC |
| Dimensions as listed | 190 × 84 × 30; unit not stated in original table |
| Safety standards listed | GB4943, UL60950-1, EN60950-1 |
| EMC standards listed | GB9254, EN55022 |
| Timing entry in original table | “Protecting Time: 50ms, 20ms over load” — meaning requires confirmation |
| Cooling entry in original table | “Dissipate heat: cold” — method not clearly specified |
| Testing | 100% full-load high-temperature ageing |
| Warranty | 2 years |
Some entries in the original parameter table are unclear: the dimensions omit a unit, the cooling method is described only as “cold,” and the 50ms/20ms timing entry has no clear definition. Confirm these details before installation. The original dust, moisture and static-resistance claims do not establish an IP rating or outdoor suitability.

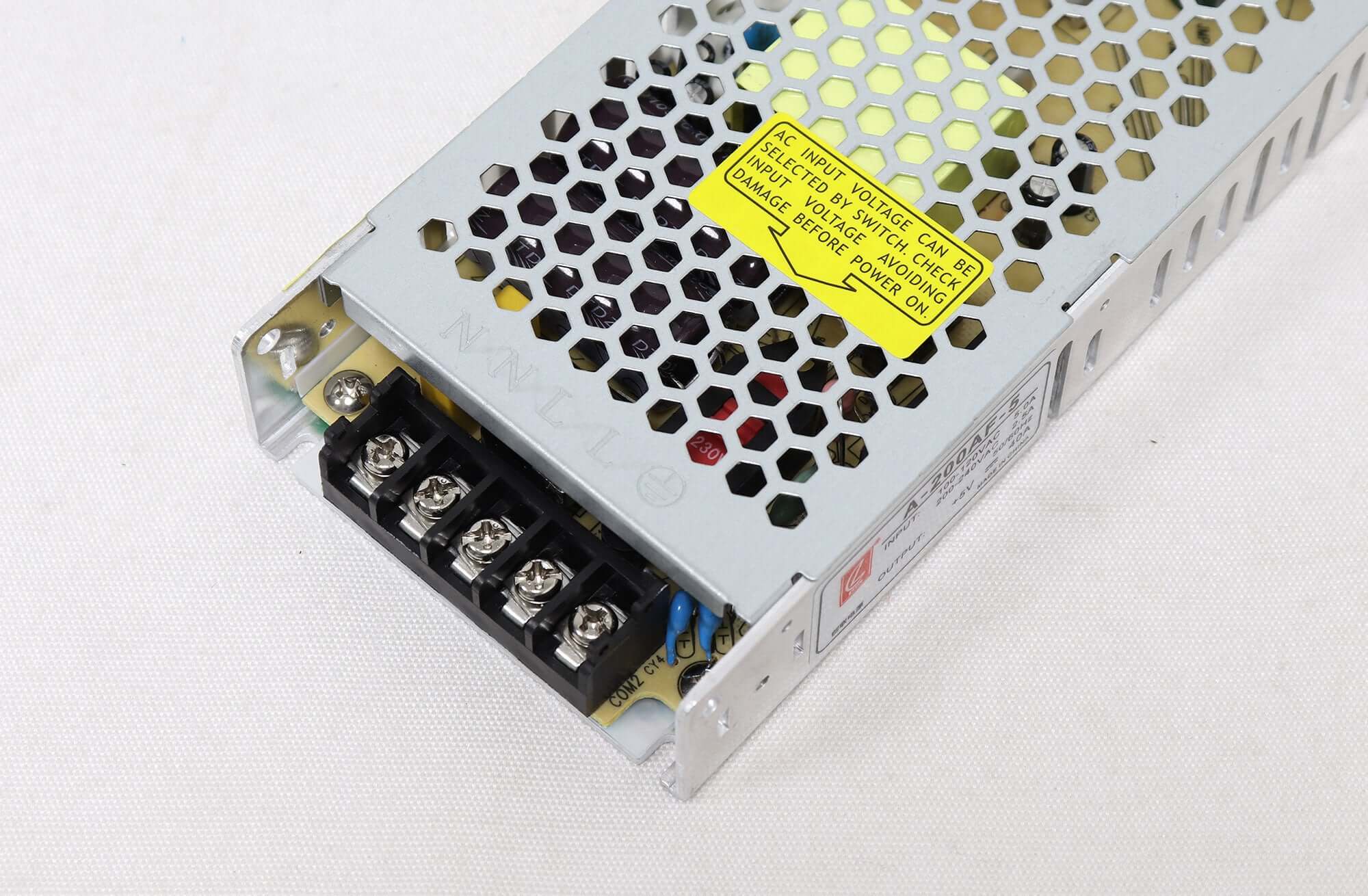

Product images
Frequently asked questions
What are the A-200AF-5 output ratings?
This listing specifies 5V DC, 40A and 200W maximum output power.
Can this version run from 110V AC?
The input range on this page is 200–240VAC at 47–63Hz. The listing does not establish support for 110V AC.
Is it suitable for a compact rental LED cabinet?
The original description identifies compact die-cast rental LED cabinets as an application. Verify dimensions, mounting and wiring space against the actual unit before fitting it.
Is the A-200AF-5 waterproof?
No waterproof or IP rating is specified here. The original moisture-resistance wording should not be treated as proof of suitability for exposed outdoor use.
What protection functions are listed?
The original parameter table lists undervoltage, overload and short-circuit protection.
| Weight | 0.6 kg |
|---|
