CZCL A-300-5 LED Screen Power Supply with Fan Cooling
$ 32.50
CZCL A-300-5 LED screen power supply with switch-selected AC input, a built-in EMI filter and DC fan. Size: 227 × 115 × 50mm. Includes overload, short-circuit, overvoltage and overtemperature protection.
10000 in stock
CZCL A-300-5 LED screen power supply
The CZCL A-300-5 is a fan-cooled power supply for LED screens, with a built-in EMI filter and protection against overload, short circuit, overvoltage and overtemperature. The input range is selected by a switch. Use the dimensions and load-versus-temperature conditions below when checking cabinet fit.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-300-5 |
| Case / dimensions | 813 / 227 × 115 × 50mm |
| AC input voltage | 88–132VAC / 176–264VAC, selected by switch |
| Input frequency | 47–63Hz |
| Cold-start inrush current | 60A at 230VAC |
| DC adjustment range | ±10% of rated output voltage |
| Line regulation at full load | ≤0.5% |
| Overload protection | 110%–150%; foldback current limiting, automatic recovery |
| Rise / hold-up time | 50ms / 20ms at full load, typical |
| Withstand voltage | I/P–O/P and I/P–FG: 1.5kVAC; O/P–FG: 0.5kVAC; 1 minute |
| Working temperature and load | −10 to +40°C at 100% load; +60°C at 60% load |
| Storage conditions | −20 to +85°C; 20%–95% RH, non-condensing |
| Cooling | Built-in DC fan |
| Protection functions | Overload, short circuit, overvoltage, overtemperature |
| Approvals stated in original listing | CE, CCC |
| Safety design references | GB4943, UL60950-1, EN60950-1 |
| EMC design references | GB9254, EN55022 Class A |
| Warranty | 2 years |
The standards above are reproduced as design references from the original product information. Obtain the applicable documents if your project requires certification evidence. Confirm the exact output voltage and current on the unit label; those ratings are not specified in the original text.

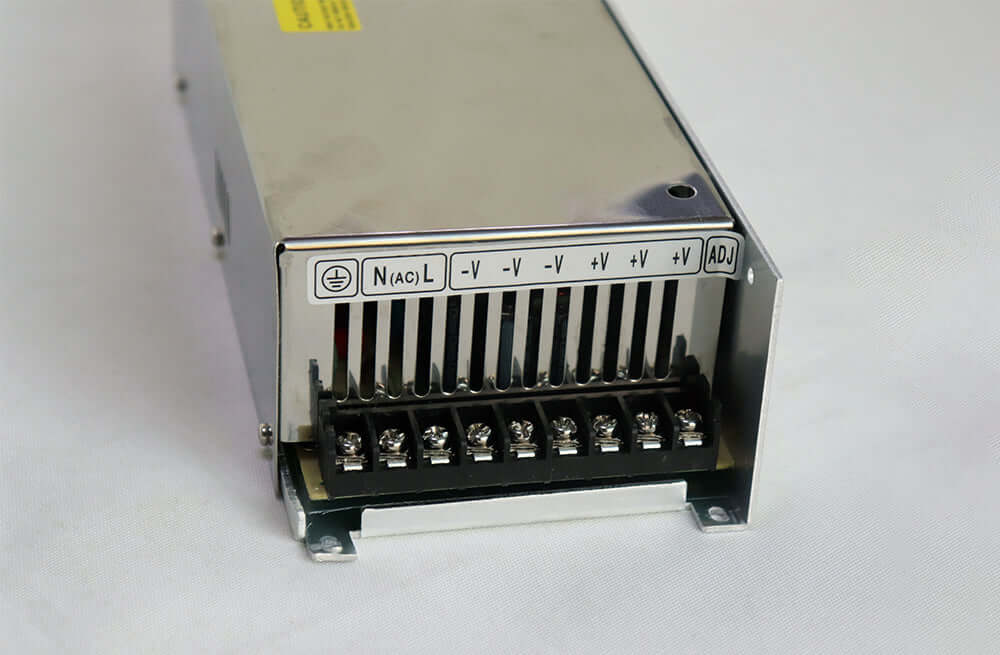

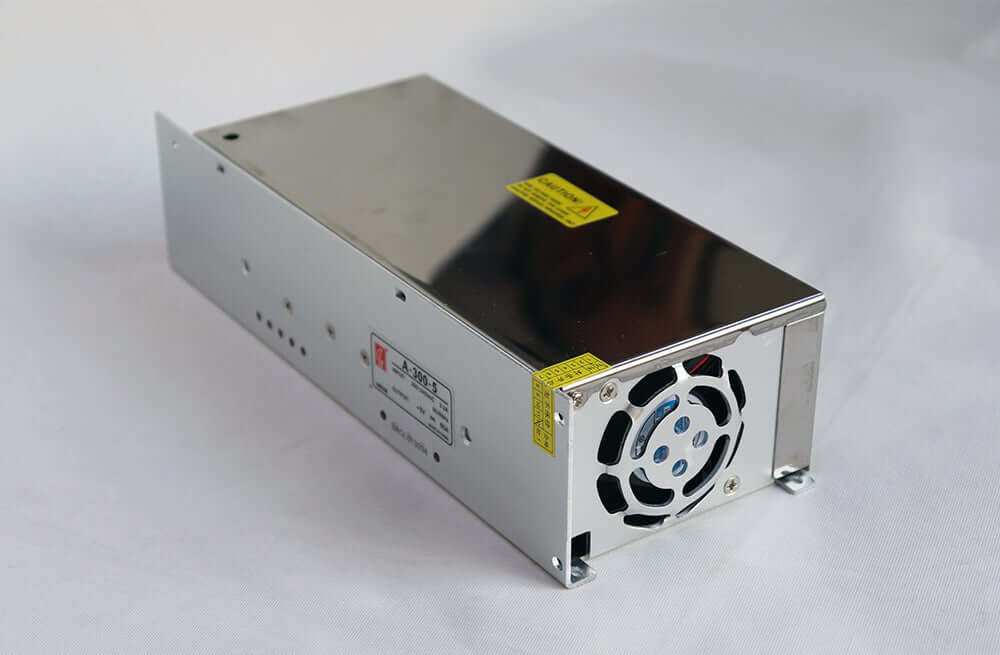

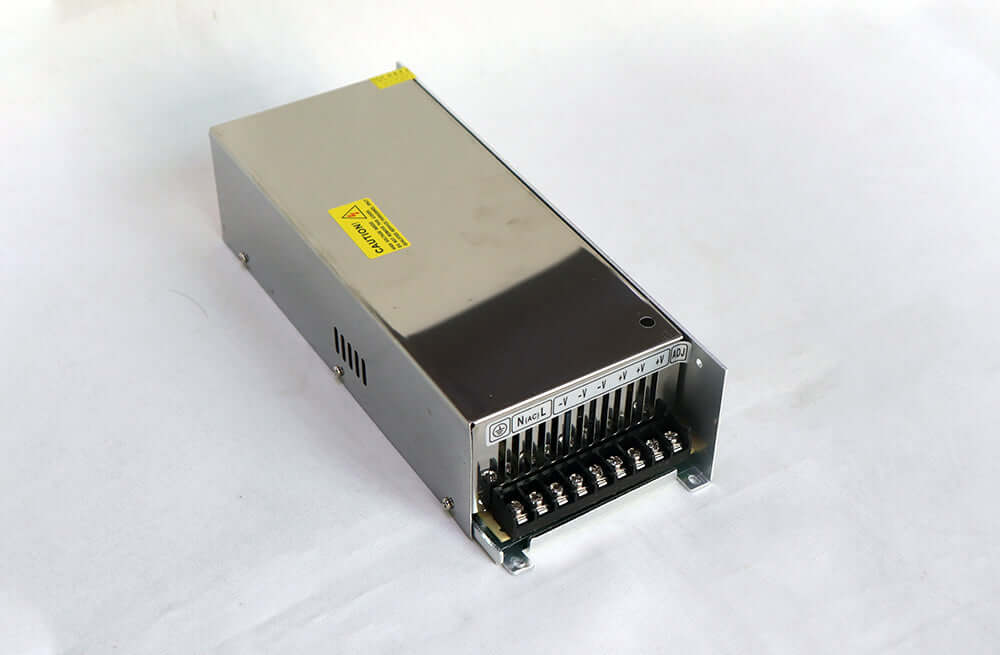

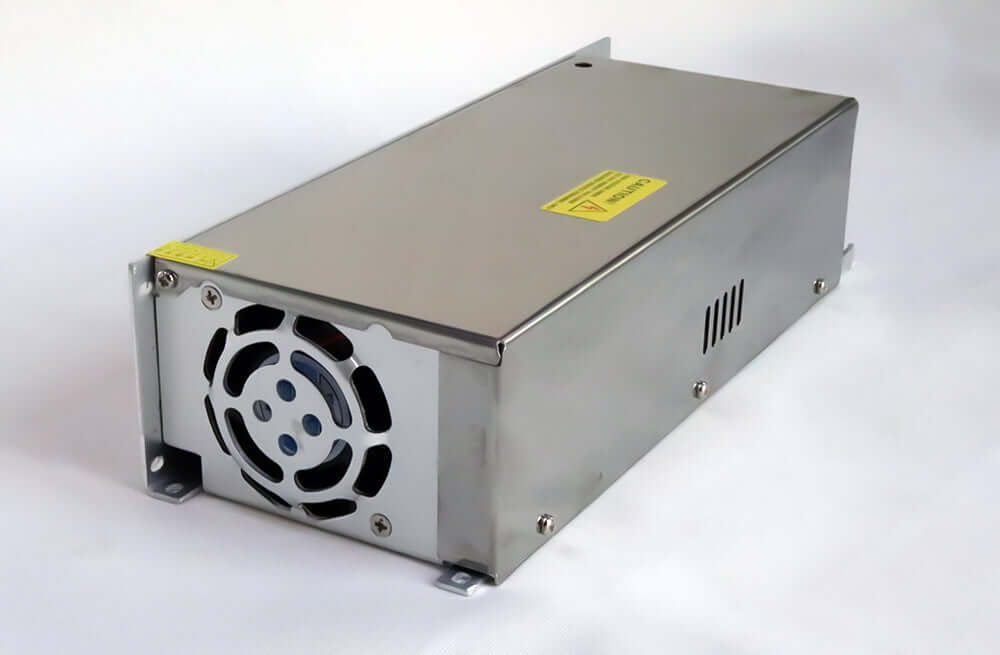

Product images
Frequently asked questions
What is the A-300-5 AC input range?
It is listed as 88–132VAC or 176–264VAC, selected by switch, with an input frequency of 47–63Hz.
What is the cold-start inrush current?
The listed cold-start inrush current is 60A at 230VAC. This is an input startup value, not the continuous DC output current.
Can it operate at full load at 60°C?
The listed conditions are −10 to +40°C at 100% load and +60°C at 60% load. The source does not specify 100% load operation at 60°C.
What size cabinet space does it need?
The case dimensions are 227 × 115 × 50mm. Check mounting positions and leave room for wiring and fan airflow.
Which approvals are stated for this CZCL power supply?
The original listing states CE and CCC. Request the relevant approval documents for your project; the separately listed safety and EMC standards are design references.
| Weight | 1.5 kg |
|---|
Be the first to review “CZCL A-300-5 LED Screen Power Supply with Fan Cooling”
You must be logged in to post a review.
Will I be charged with customs and taxes?
The prices displayed on our site are tax-free (in US Dollars), which means you may be required to pay import duties and taxes once you receive your order. Import taxes, duties, and related customs fees will be determined by your local customs office when your order arrives at its final destination.
Please note that these additional charges and taxes are your responsibility, and we do not take any responsibility for them. We are not liable for paying or reimbursing any customs duties, taxes, or related fees. For more details on these charges, please contact your local customs office.
Shipping
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations..
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound..
Returns Policy
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.)..
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the "Complete Orders" link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item..

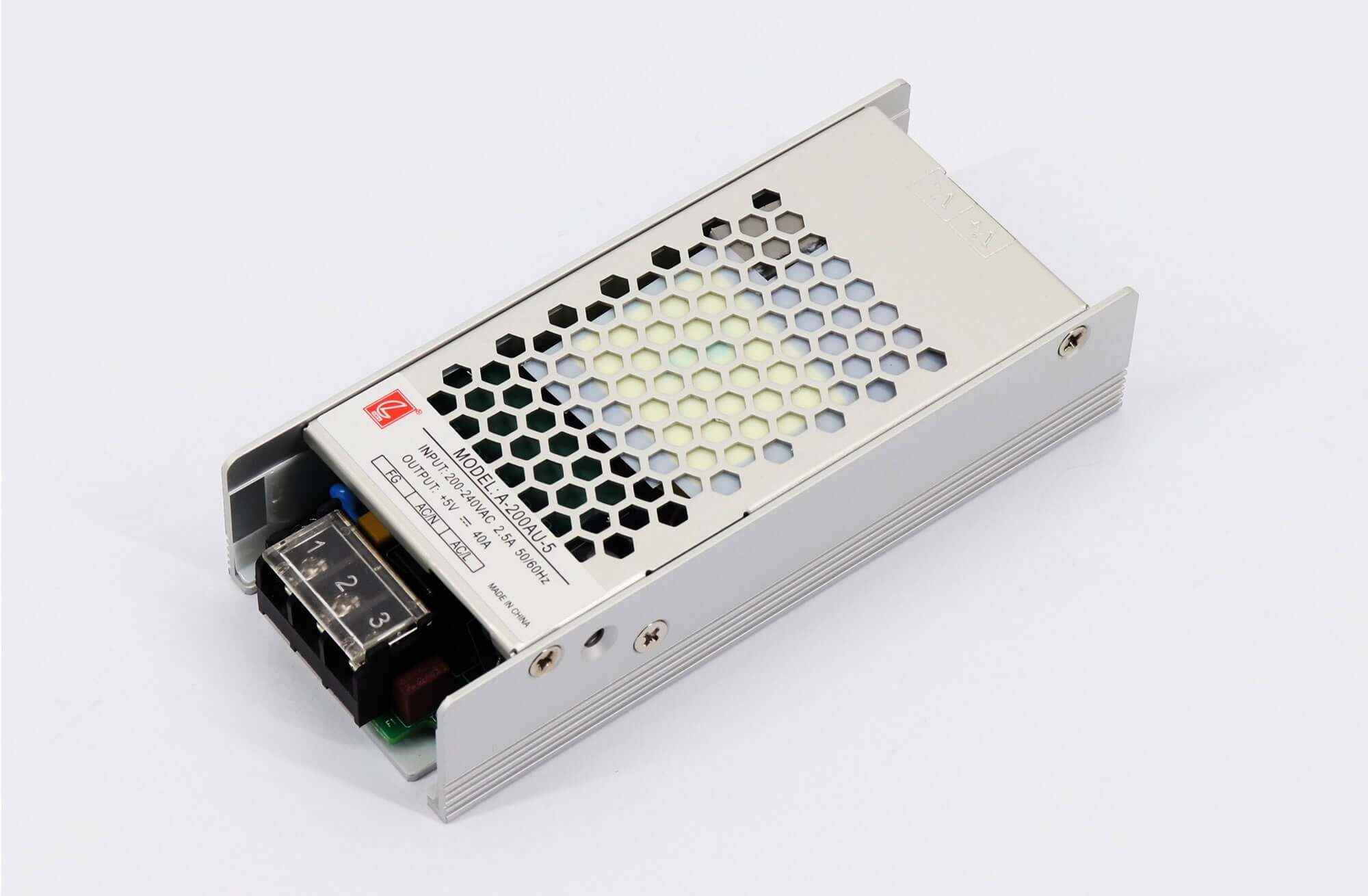

Related products
