CZCL A-200AU-5 Slim Fanless LED Screen Power Supply
$ 13.00
CZCL A-200AU-5 fanless LED power supply from the 200W series, with 180–264VAC input and a 29mm-high case. Listed for HD, transparent and glass LED display applications.
9999 in stock
CZCL A-200AU-5 slim fanless LED power supply
The CZCL A-200AU-5 is part of a 200W fanless LED display power supply series with a 29mm-high housing. Its listed applications include HD LED displays, transparent LED displays and glass LED displays. Check the selected output version and temperature derating requirements when matching it to a cabinet.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCL A-200AU-5 |
| Series rating | 200W |
| AC input | 180–264VAC |
| Output versions in series | 2.8V, 3.3V, 3.8V, 4.2V, 4.5V, 5V |
| Housing height | 29mm |
| Cooling | Fanless air cooling |
| Working temperature | −30 to +60°C; refer to output derating curve |
| Protection | Short circuit and overload |
| Testing | 100% ageing test |
| Warranty | 2 years |
The original output values describe series versions, not a confirmed adjustment range for a single unit. Verify the unit output and current rating from its label and specification. The temperature range must be used with the output derating curve.

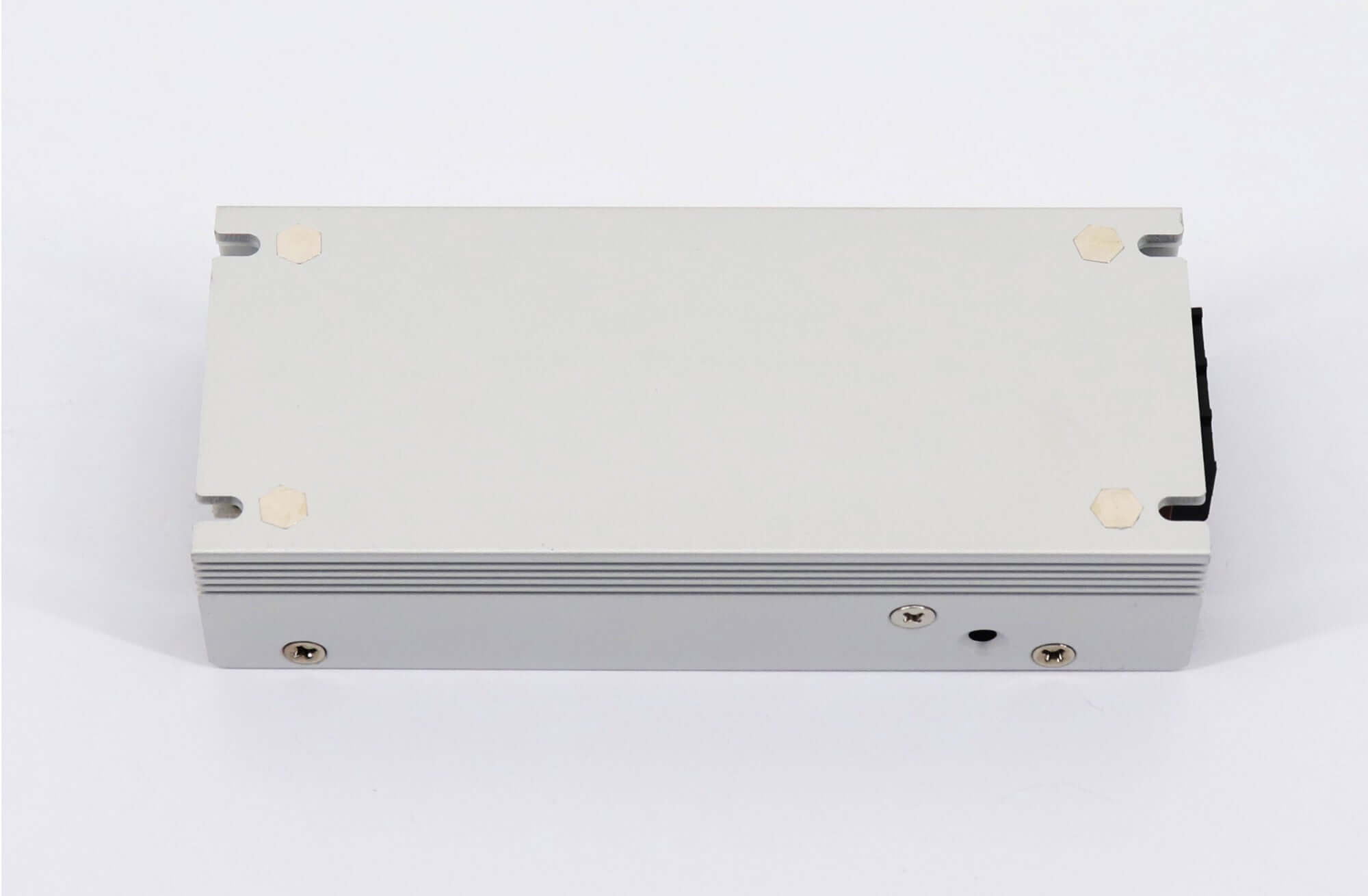

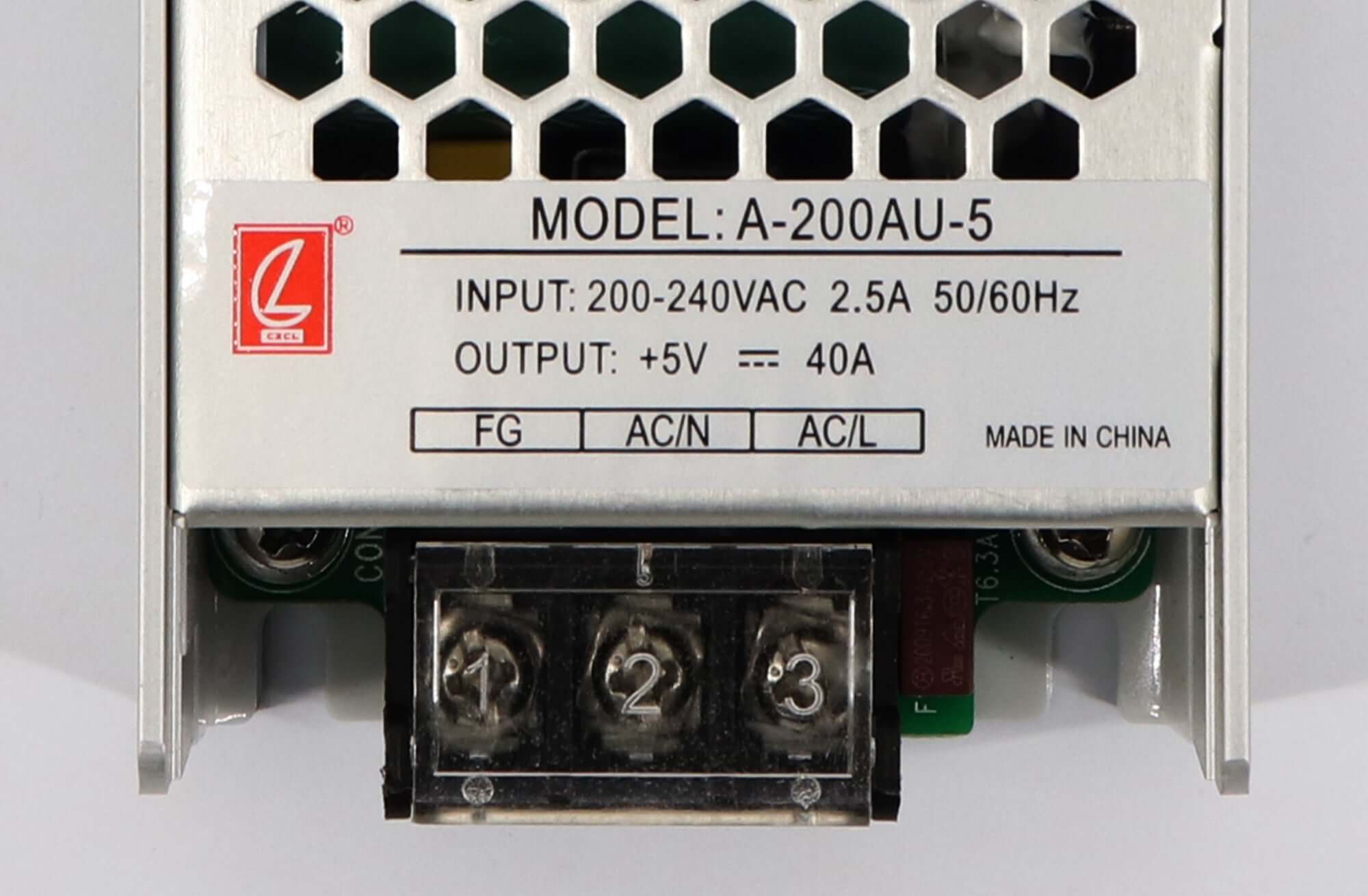

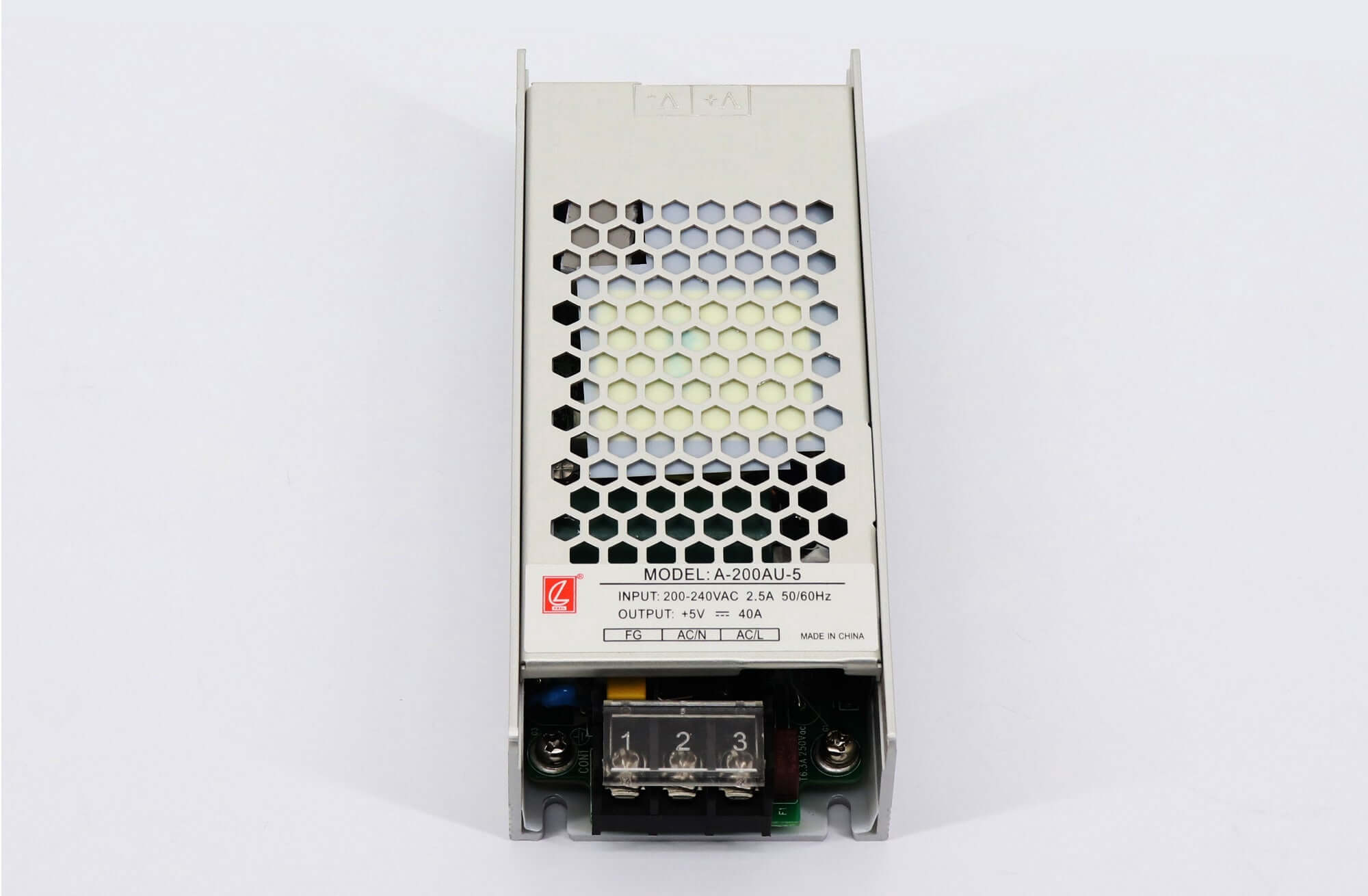

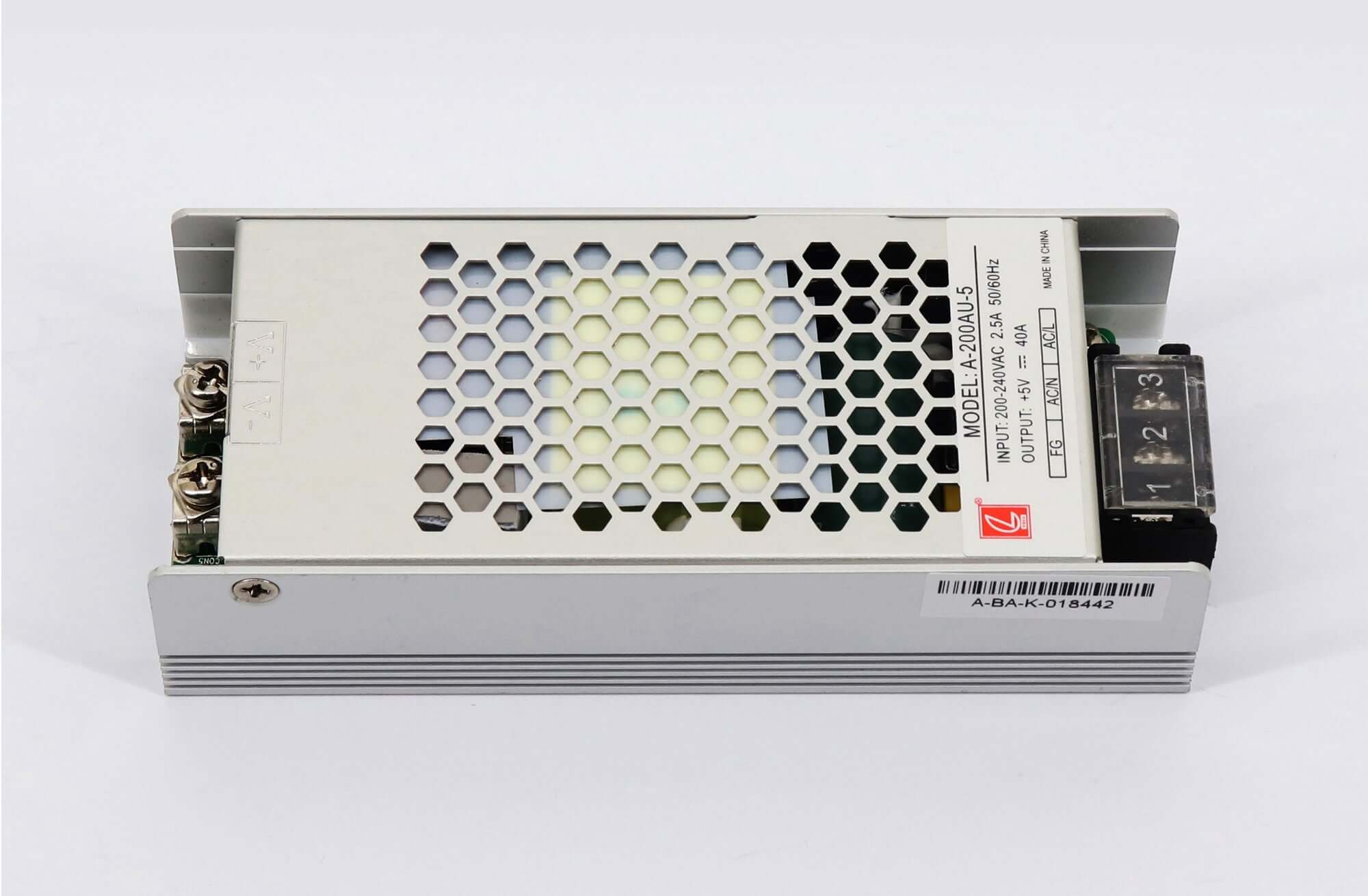

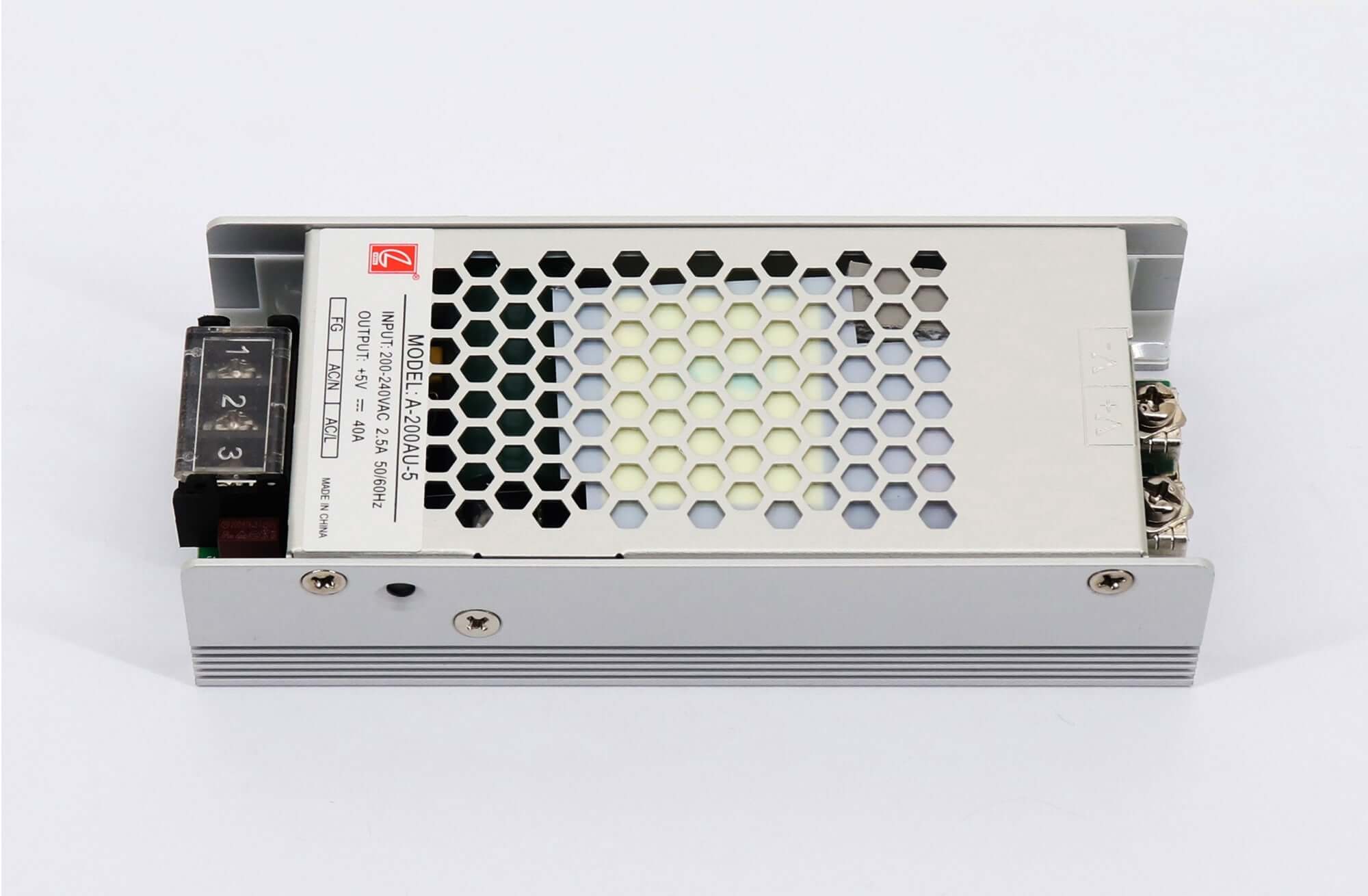

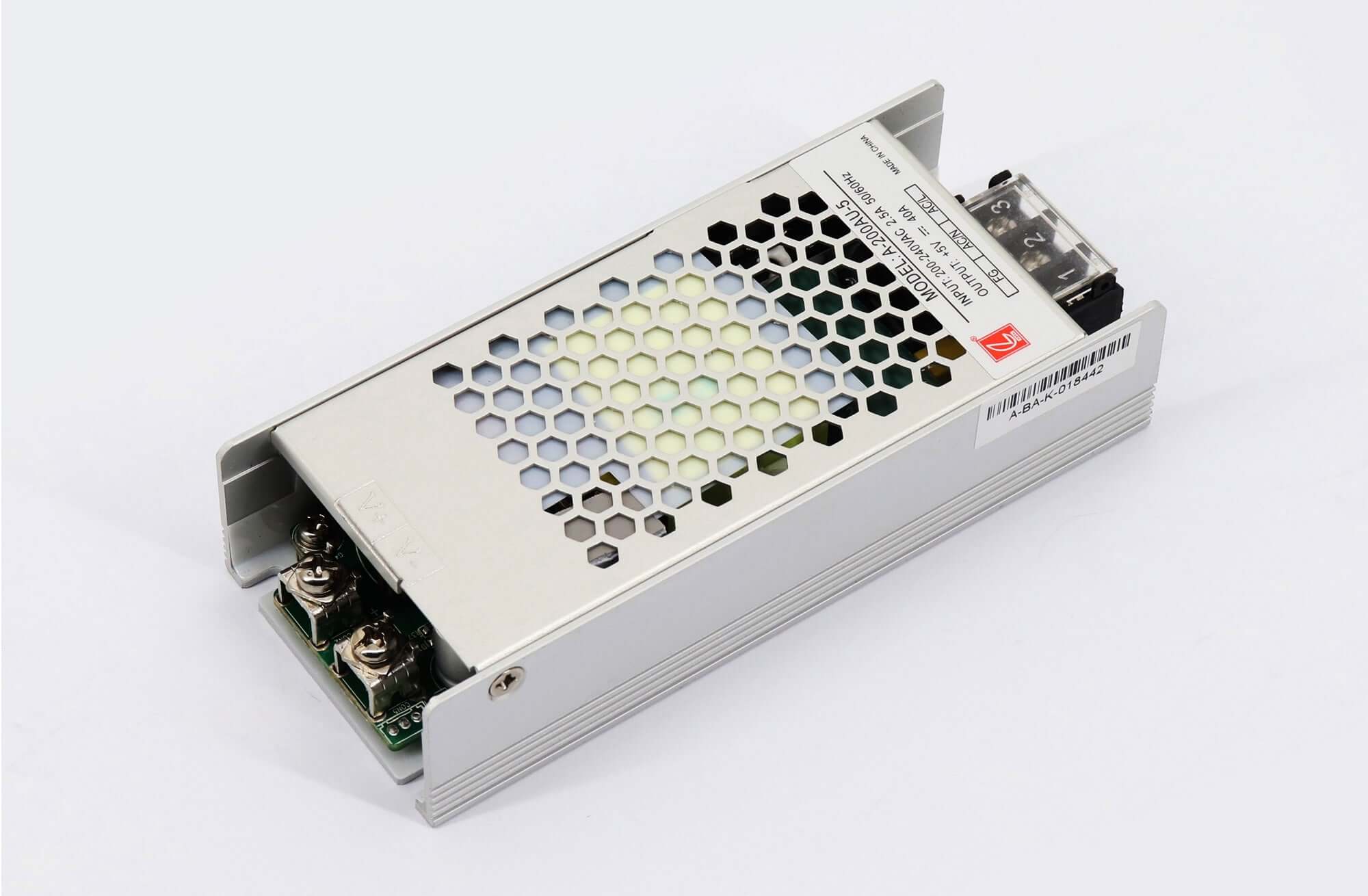

Product images
Specification download
CZCL A-200AU-5 LED Screen Power Supply Specification
Frequently asked questions
How thin is the A-200AU-5?
The A-200AU series housing is listed at 29mm high. Check the full dimensions and mounting layout before fitting it in the cabinet.
Does it need a cooling fan?
The product uses a fanless air-cooled design. Maintain the ventilation and installation conditions specified for the unit.
What displays is this series intended for?
The original application list includes HD LED displays, transparent LED displays and glass LED displays. Electrical and mechanical compatibility still need to be checked for the selected display.
Can the power supply run at full output across −30 to +60°C?
The source explicitly directs users to the output derating curve. The temperature range alone does not confirm full rated output throughout that range.
Will it work with 110V AC?
The specified input is 180–264VAC, so 110V AC is outside the listed range.
| Weight | 0.3 kg |
|---|
