CZCHENGLIAN CLA-200-5 5V 40A LED screen power supply
The CZCHENGLIAN CLA-200-5 is a 5V DC, 40A power supply listed for full-color LED screens, with 200W maximum output. It uses switchable AC input ranges and natural air convection cooling. The original electrical, environmental and packing values are organized below for selection and comparison.
Technical parameters
| Parameter | Specification |
|---|---|
| Model | CZCHENGLIAN CLA-200-5 |
| Input voltage | 90–132VAC / 190–264VAC, switchable |
| Input frequency as listed | 50/60; unit omitted in original text |
| AC current as listed | ≤1.8A at 100VAC, full load |
| DC output / rated current | 5V / 40A |
| Maximum power | 200W |
| Ripple and noise | ≤150mVp-p |
| Typical efficiency | ≥77% at Vin = 220VAC |
| Voltage tolerance | ±2% |
| Power-on delay | <2s |
| Overcurrent protection | 50–60A |
| Short-circuit protection | Lockout; recovery after restart |
| Safety / EMC references | EN60950-1, EN55022 |
| Hi-pot: input to output | 3.0kVAC / 10mA / 60s |
| Hi-pot: input to frame ground | 1.5kVAC / 10mA / 60s |
| Hi-pot: output to frame ground | 500VDC / 10mA / 1 minute |
| Isolation resistance as listed | 100MΩ Max / 500VDC / 3s |
| Leakage current | <0.75mA at 240VAC |
| Working temperature | −10 to +50°C |
| Cooling | Air convection |
| Working humidity | 5%–90% RH |
| Storage temperature | −20 to +85°C |
| Dimensions (L × W × H) | 199 × 110 × 50mm |
| Carton dimensions | 43 × 29.5 × 26.5cm |
| Packing | 20 pieces / 15kg per carton / 0.04CBM |
| MTBF entry | 50K hours; MIL-HDBK-217F; remaining test-condition text incomplete |
Verification notes: the original AC-current entry, insulation-resistance “Max” wording and incomplete MTBF conditions need confirmation from the current specification. These source values have not been recalculated or silently corrected. Do not use the incomplete MTBF entry as a service-life guarantee.

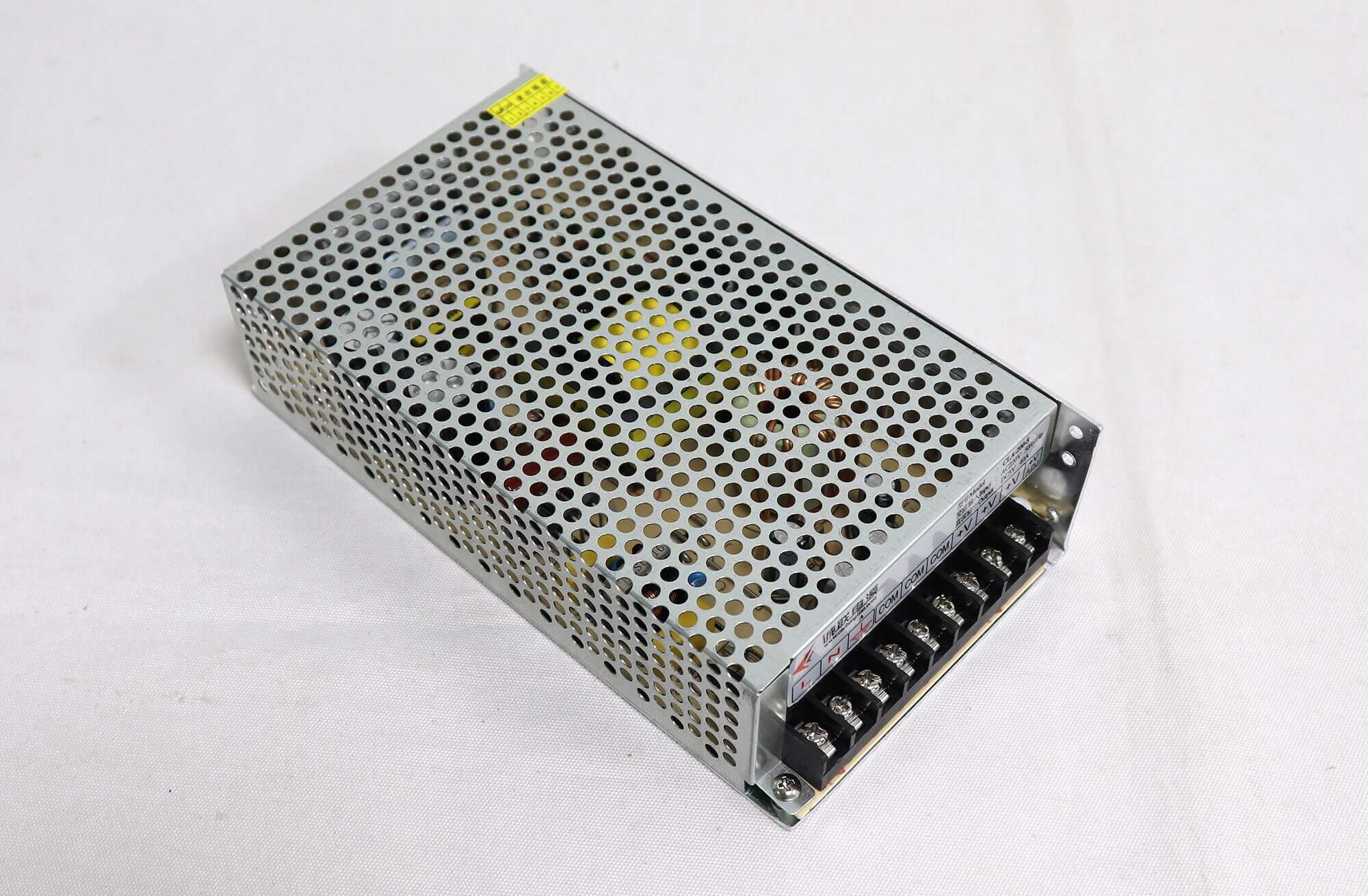

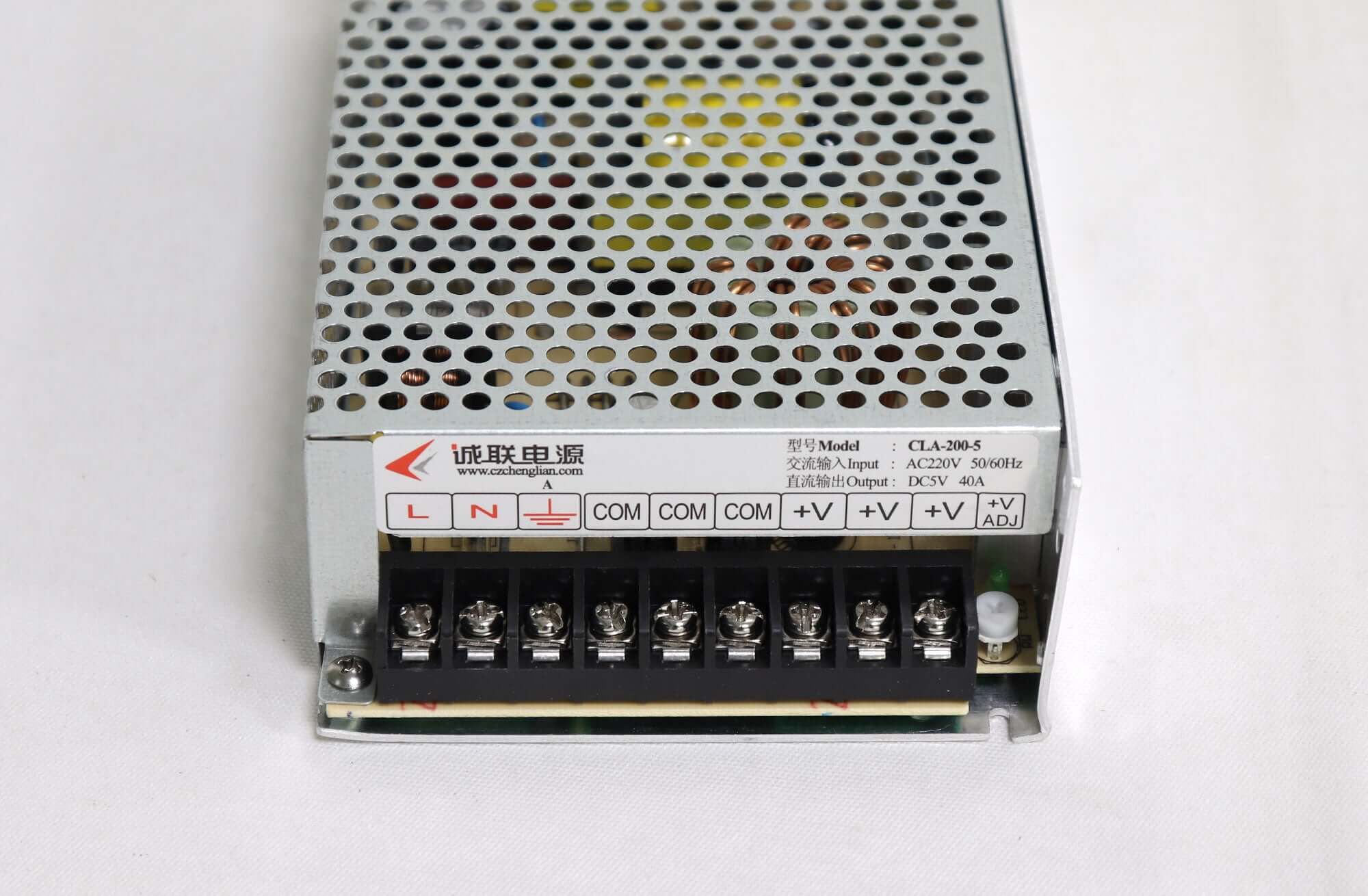

Product images


Frequently asked questions
What are the CLA-200-5 output ratings?
The product lists 5V DC, 40A rated current and 200W maximum output power.
What AC voltage ranges are listed?
The input is specified as switchable 90–132VAC and 190–264VAC. Confirm the selected range against the unit label before applying power.
What happens during a short circuit?
The original information describes short-circuit protection as lockout, with recovery after restart. Resolve the fault before restarting.
What is the size and cooling method?
The stated dimensions are 199 × 110 × 50mm, with air convection cooling. Keep the ventilation path clear.
Which specification details need confirmation?
Confirm the AC-current entry, the “Max” wording for isolation resistance and the incomplete MTBF test conditions. The original figures are retained in the table for reference.
