Colorlight X6 LED Video Controller – 6 Ports, 3.9MP
Original price was: $ 517.00.$ 425.00Current price is: $ 425.00.
Colorlight X6 integrates LED sending and video processing with six Gigabit Ethernet outputs and up to 3.9 million-pixel loading. HDMI, DVI and SDI inputs support a configurable three-picture display.
10000 in stock
Colorlight X6 LED video controller
Colorlight X6 is a six-output LED controller with integrated source switching, scaling and three-picture processing. Its documented loading capacity is 3.9 million pixels. HDMI, two DVI inputs and SDI connect presentation and camera sources to a compatible LED display system.
Plan a three-picture LED layout
The positions and sizes of three pictures can be adjusted on the LED canvas. Brightness, chromaticity, contrast, tone and saturation controls help match the displayed image to the installation. Input resolution is supported up to 1920 × 1200 at 60 Hz; the larger output canvas dimensions do not imply native 4K input.

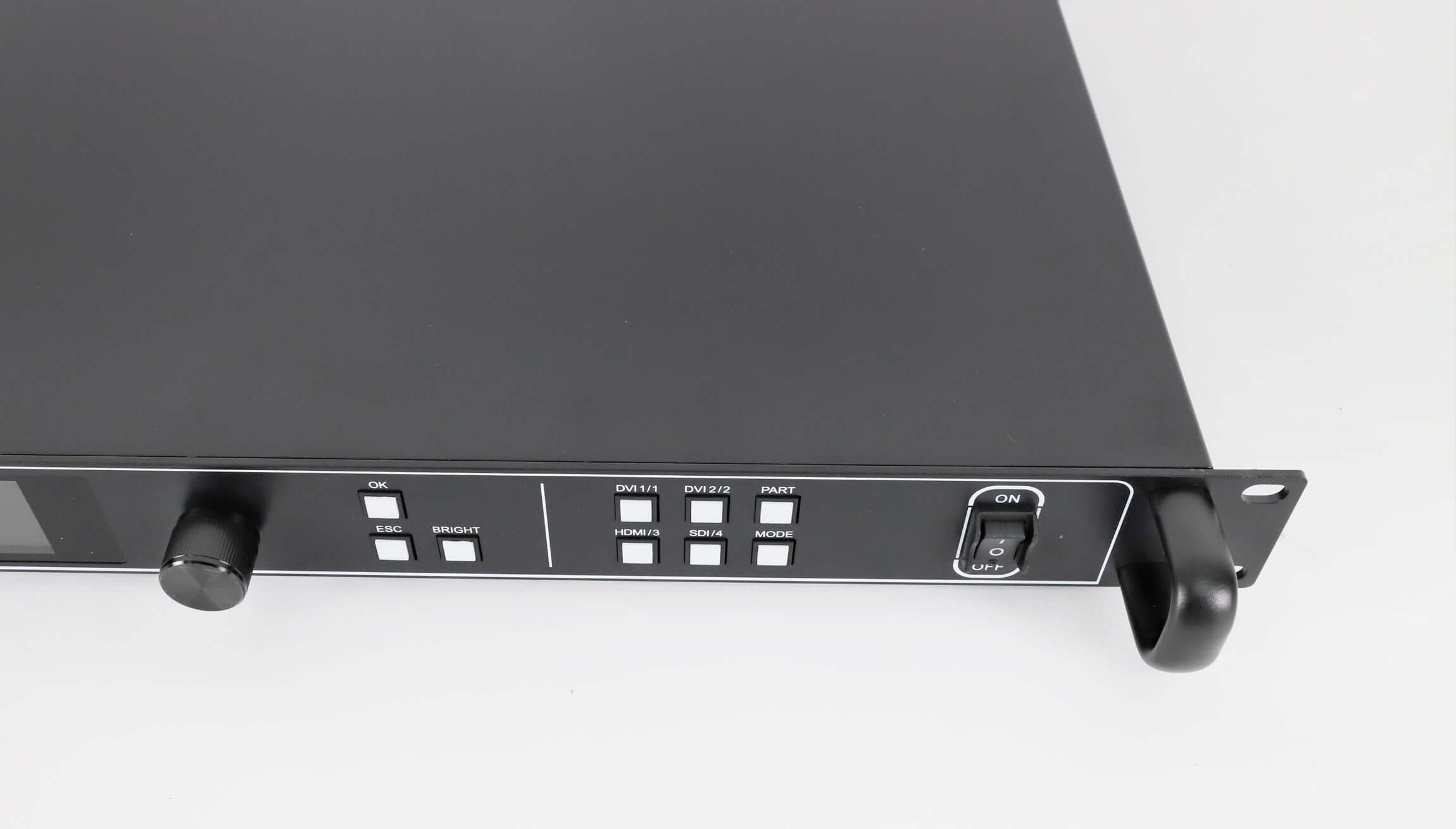

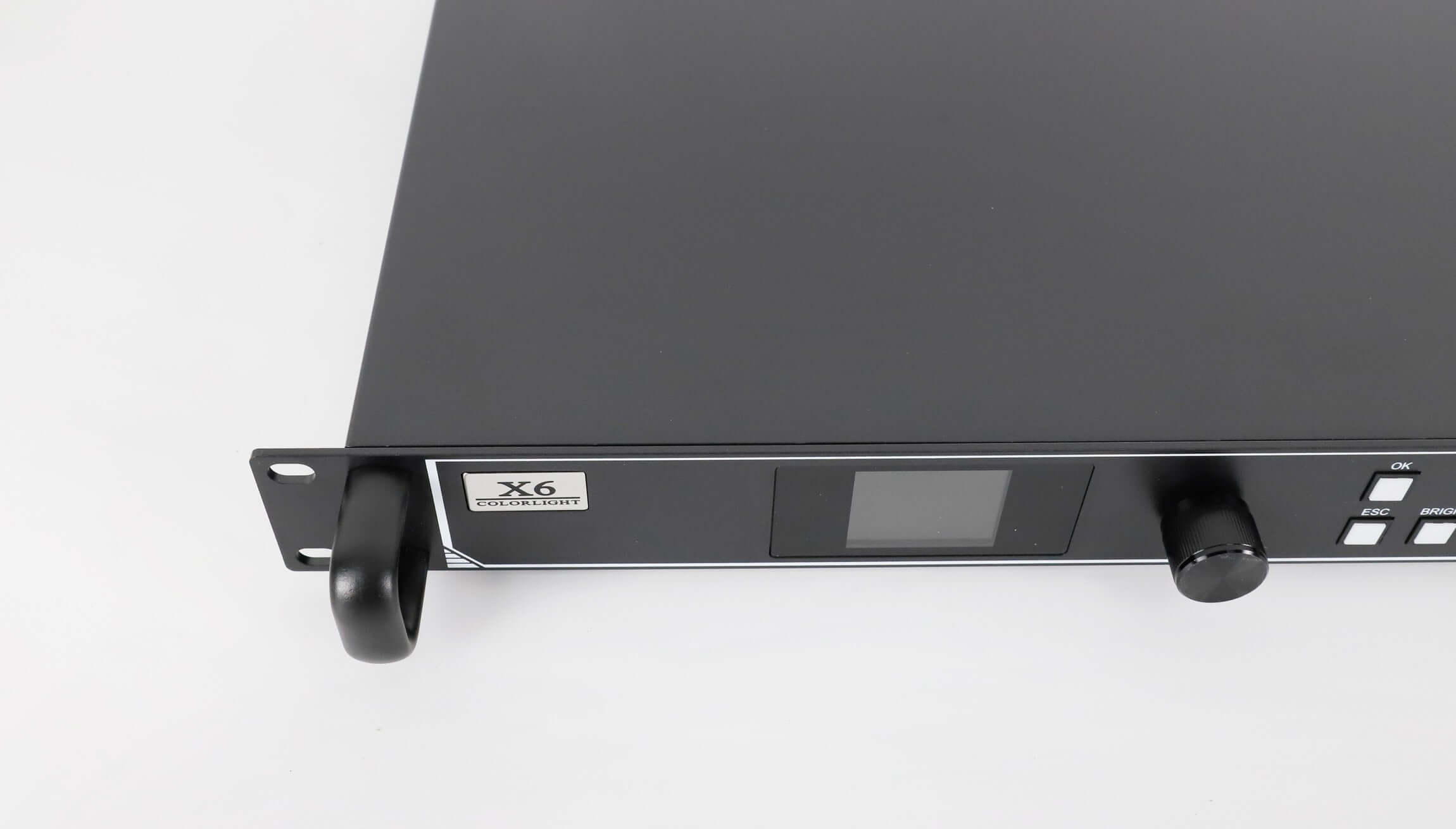

Use the front-panel LCD and knob for local operation, USB IN for computer configuration and USB OUT for controller cascading. The RS232 interface uses an RJ11 connector for central control. Confirm the exact screen mapping and receiving-card configuration before commissioning.
Technical parameters
| Parameter | Specification |
|---|---|
| LED outputs | 6 × RJ45 Gigabit Ethernet |
| Maximum loading | 3.9 million pixels |
| Maximum width / height | 8,192 / 4,096 pixels; total pixel capacity still applies |
| Video inputs | 1 × HDMI; 2 × DVI; 1 × SDI |
| HDMI / DVI input limit | 1920 × 1200 at 60 Hz |
| SDI compatibility | 3G-SDI, HD-SDI and SD-SDI |
| Picture layout | 3 independently sized and positioned pictures |
| HDCP | HDCP 1.4 |
| Audio | Audio input for use with an optional multi-function card |
| Control | USB IN / OUT; RS232 through RJ11 |
| Chassis | 1U; 482.6 × 44 × 237.5 mm |
| Supply / rated power | AC 100–240 V / 20 W |
| Working temperature | −20 to 60°C |
| Weight | 2.3 kg |

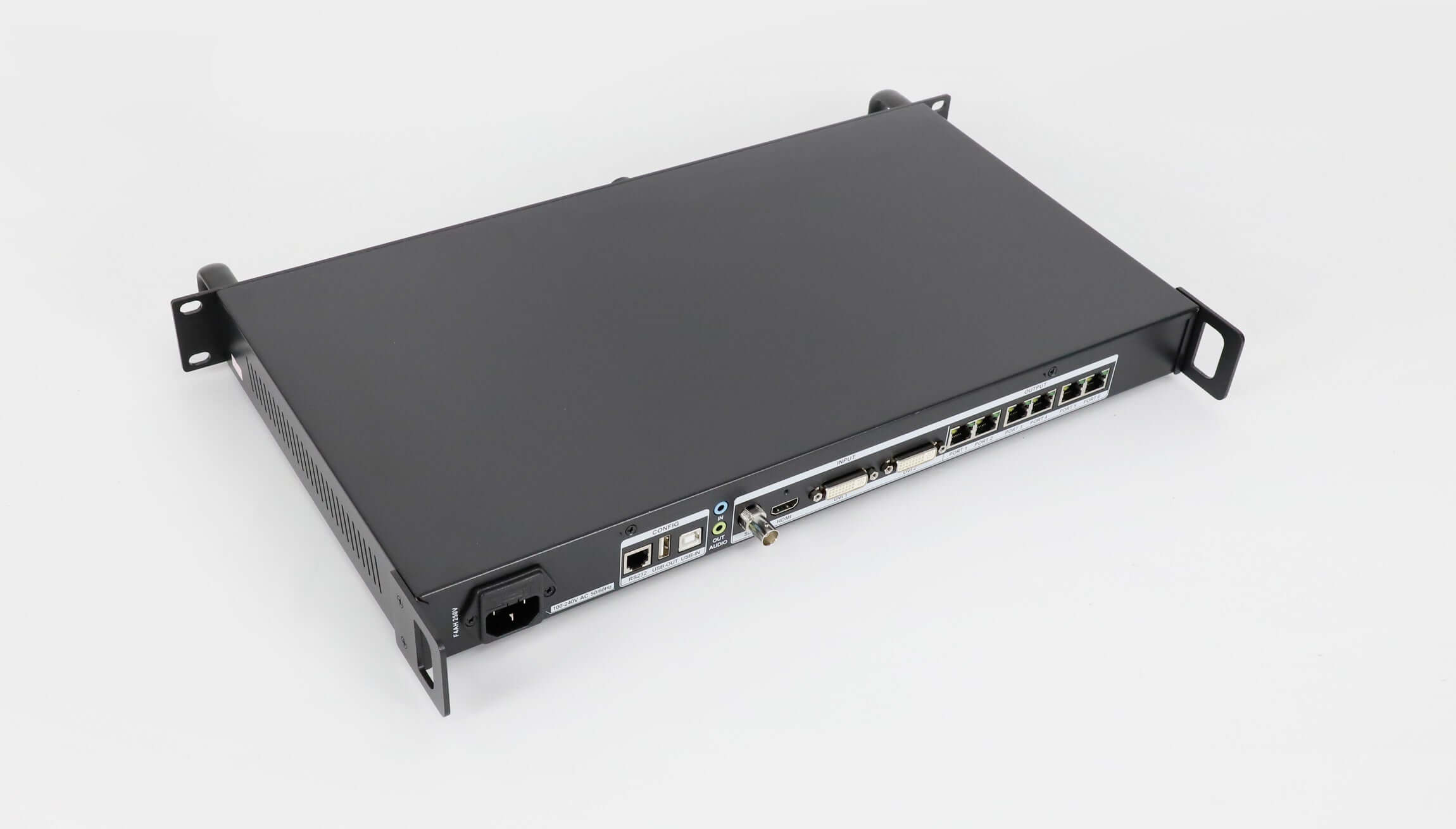

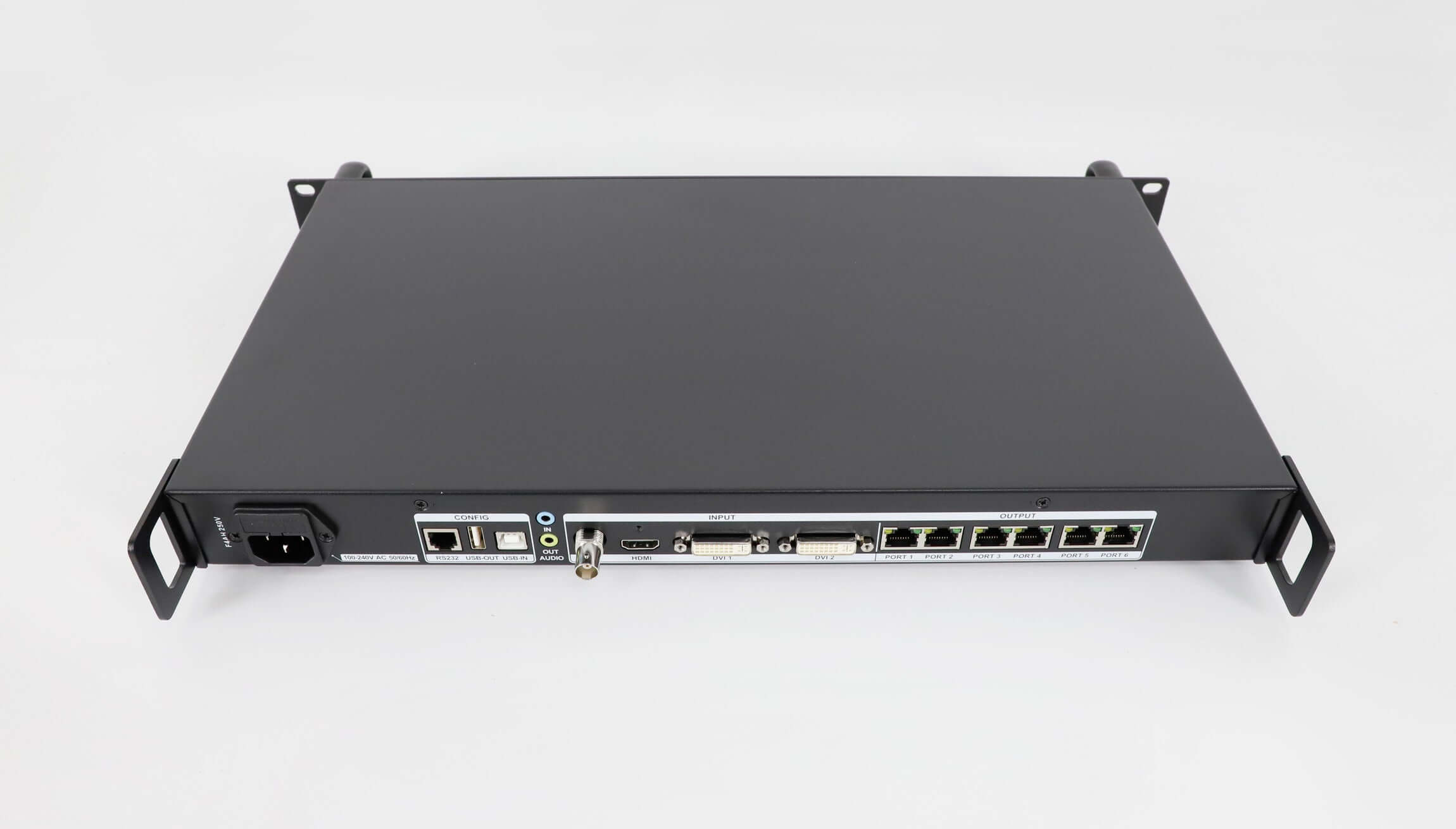

The six-output count follows both the overview and rear-panel table in the linked X6 V1.2 specification. Check width, height, total pixels and individual output allocation together when planning a wall.
Frequently asked questions
Does Colorlight X6 have six or eight Ethernet outputs?
The linked X6 V1.2 specification identifies six Gigabit Ethernet outputs, numbered Port 1–6. The earlier eight-port table on this listing did not match that document.
What is the maximum X6 LED screen capacity?
The total loading is 3.9 million pixels. Maximum width is 8,192 pixels and maximum height is 4,096 pixels, with the total loading limit still applying.
Can X6 show HDMI and SDI sources on the same screen?
It has HDMI, DVI and SDI inputs and supports a three-picture layout. Confirm each source format and the intended arrangement for the supplied controller configuration.
Does X6 need an optional card for audio?
The specification identifies the audio input for use with an optional multi-function card. Confirm the accessory and audio routing for the system.
Can X6 receive 4K HDMI input?
The V1.2 specification lists HDMI and DVI input up to 1920 × 1200 at 60 Hz. It does not establish 4K input support.
Download Specification
Colorlight X6 Professional LED Large Screen Controller Specification
| Weight | 7 kg |
|---|
