Linsn TS16 4K LED Controller | HDMI 2.0, 4 DVI, 16 Outputs
$ 855.00
TS16 controller documented in the August 2019 V1.0 manual: HDMI 2.0 plus four DVI inputs, sixteen Ethernet outputs and up to 10 million pixels.
10000 in stock
Product overview
This Linsn TS16 4K LED display controller listing corresponds to the V1.0 specification dated August 2019: one HDMI 2.0 input, four DVI inputs and sixteen Gigabit Ethernet outputs. The documented maximum load is 10 million pixels, with custom resolutions for wide or tall LED displays.
Product specifications
| Parameter | Specification |
|---|---|
| Model and document | TS16; V1.0, August 2019 |

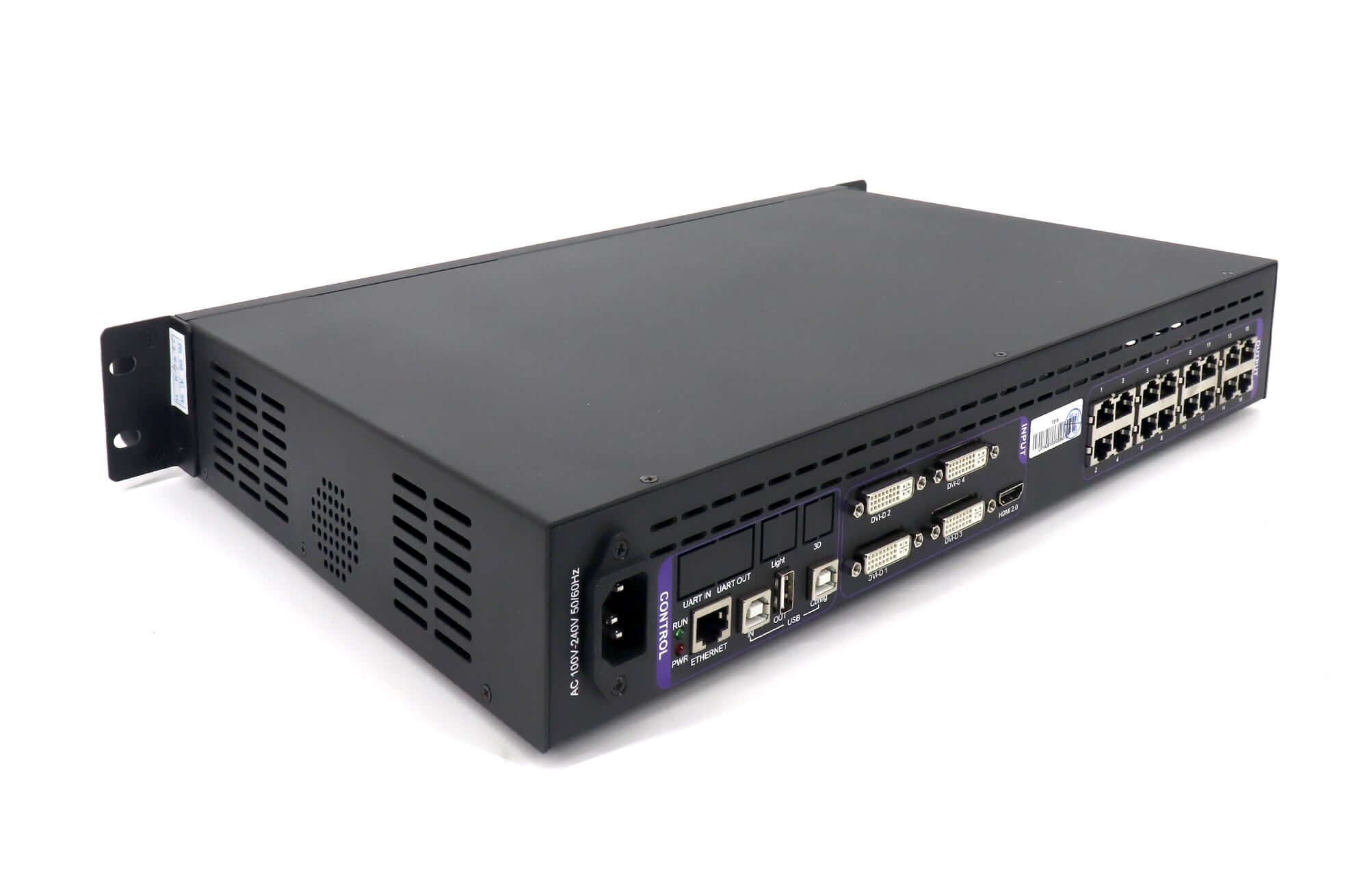

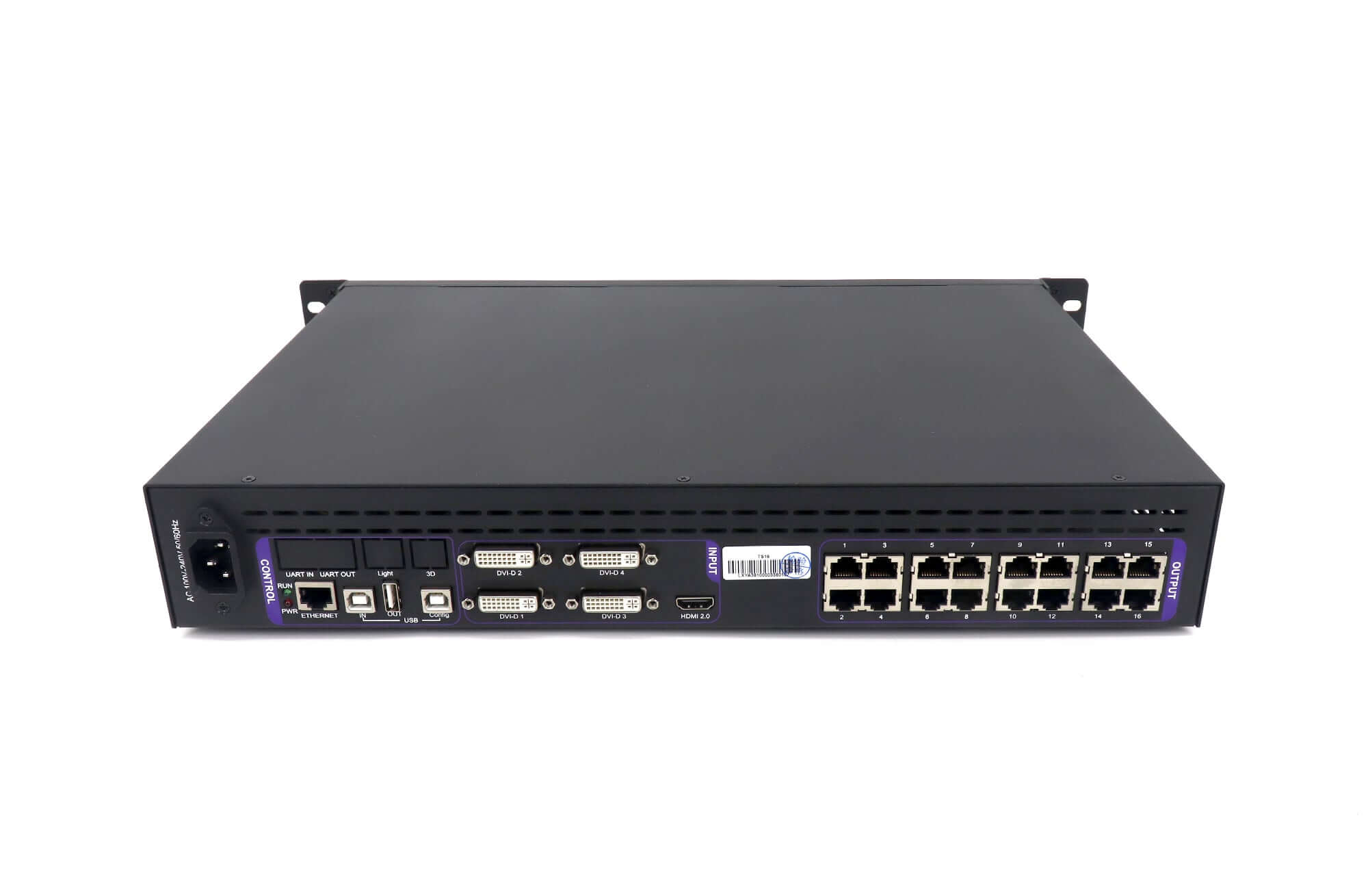

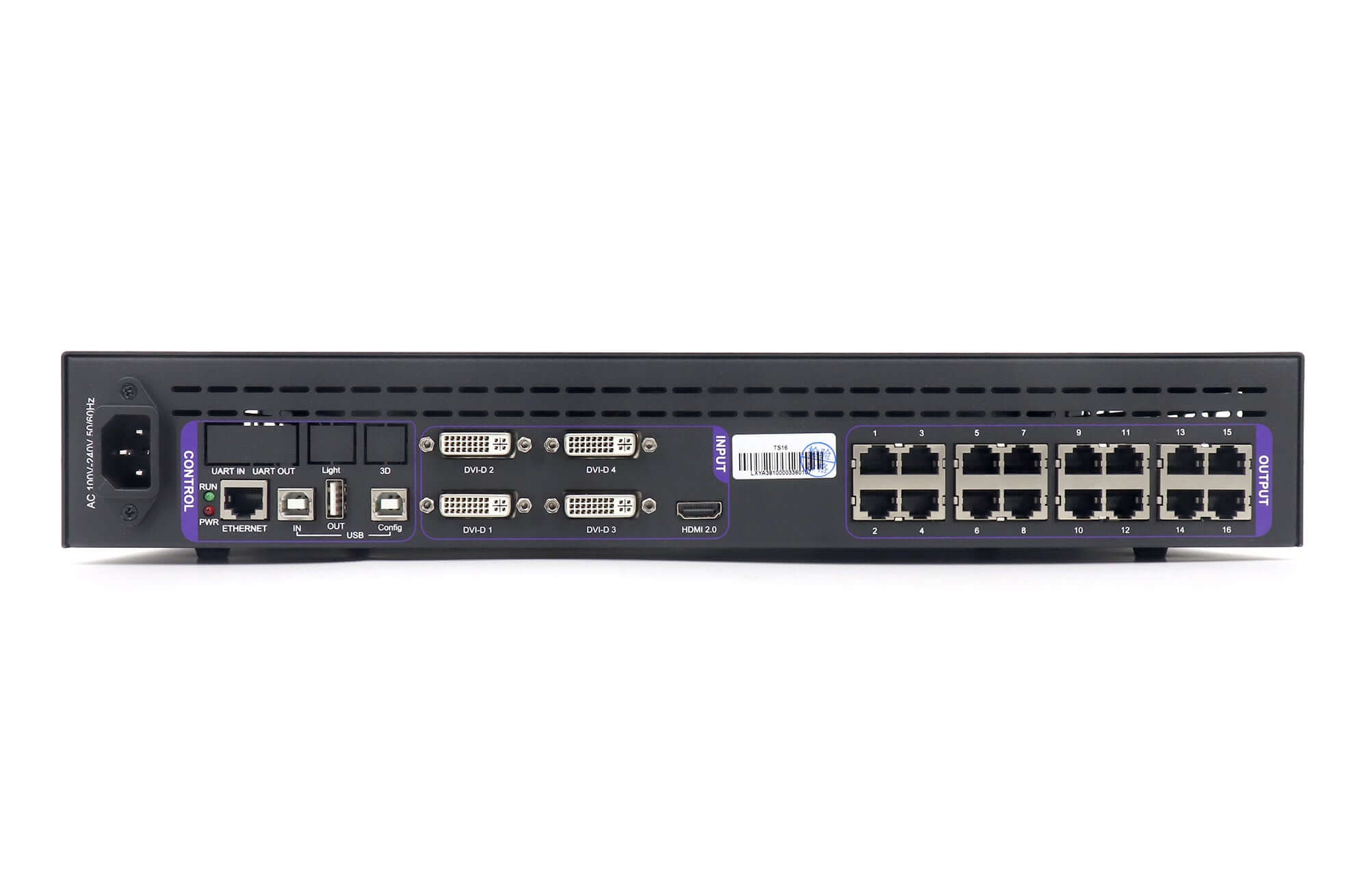

| Video inputs | 1 × HDMI 2.0; 4 × DVI |
| LED outputs | 16 × 1GE RJ45 |
| Maximum load | 10 million pixels |
| Maximum horizontal dimension | 15,360 pixels, subject to total pixel capacity |
| Maximum vertical dimension | 8,192 pixels, subject to total pixel capacity |
| Control connections | 100 Mb Ethernet LAN/WAN; USB IN; USB OUT; USB Config |

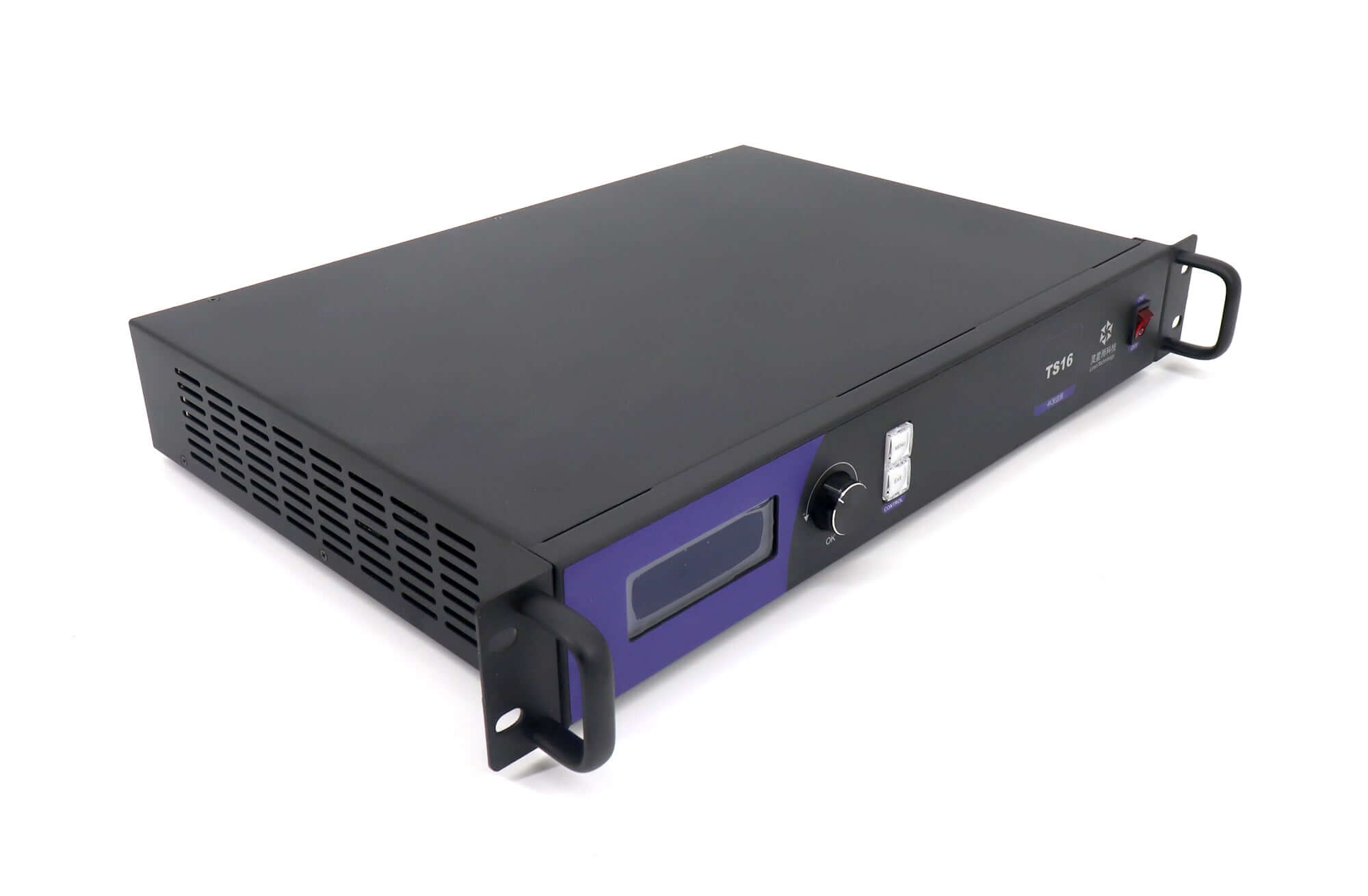

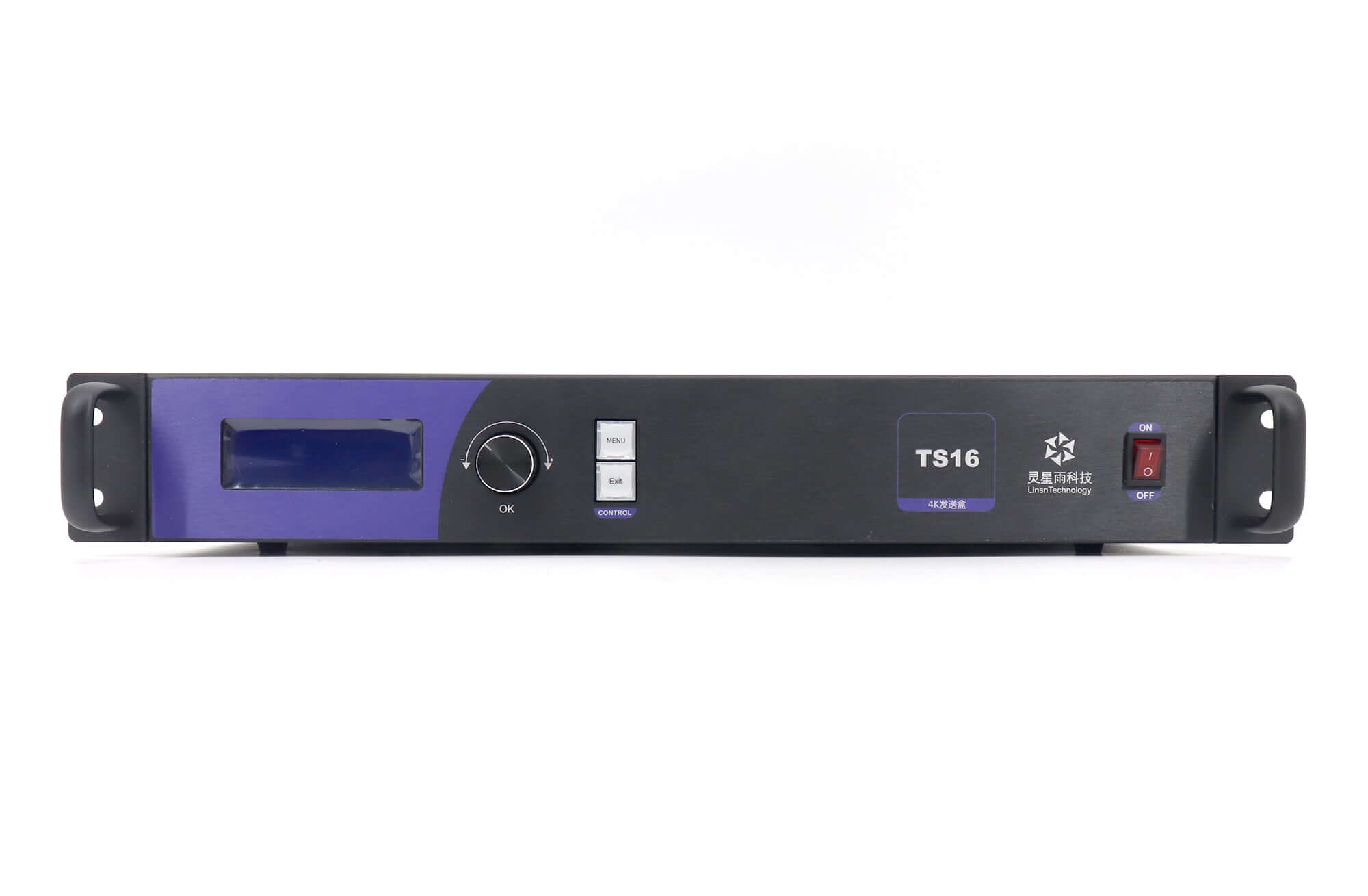

| Front-panel operation | TFT LCD, adjustment knob, MENU and EXIT keys |
| Power supply | 100–240 V AC |
| Rated power consumption | 35 W |
| Operating temperature | −20°C to +60°C |
| Rack size | 1.5U |
| Net weight | 4.2 kg |
Match the hardware revision to your display
The 15,360-pixel width and 8,192-pixel height are separate limits, not one supported full-size canvas. Keep the actual screen within the 10-million-pixel load stated in this document.
The TS16 name appears on more than one specification revision. For this listing, use the HDMI 2.0 plus four-DVI interface layout and the attached August 2019 manual to identify the required version. Confirm the rear panel when matching an existing controller.
USB IN and USB OUT support connection to a PC or cascading, and USB Config is listed for configuration. The manual states support for Linsn receiving cards and multifunction boards; confirm the particular card model and screen configuration for an upgrade.
Frequently asked questions
1. How many pixels does this TS16 version support?
The attached V1.0 manual specifies up to 10 million pixels through sixteen Gigabit Ethernet outputs. This value belongs to the August 2019 version documented on this page.
2. Which video inputs are available on this TS16?
This version has one HDMI 2.0 input and four DVI inputs. Check the rear-panel connectors when ordering a replacement.
3. Can the TS16 run a 15360 × 8192 LED screen?
Those figures are separate maximum width and height limits. The selected width and height must also remain within the specified 10-million-pixel total load.
4. What are the TS16 power and rack requirements?
The linked specification lists 100–240 V AC input, 35 W rated consumption, a 1.5U rack size and 4.2 kg net weight.
Download specification
Linsn TS16 4K LED Large Display Panels Controller Specification
