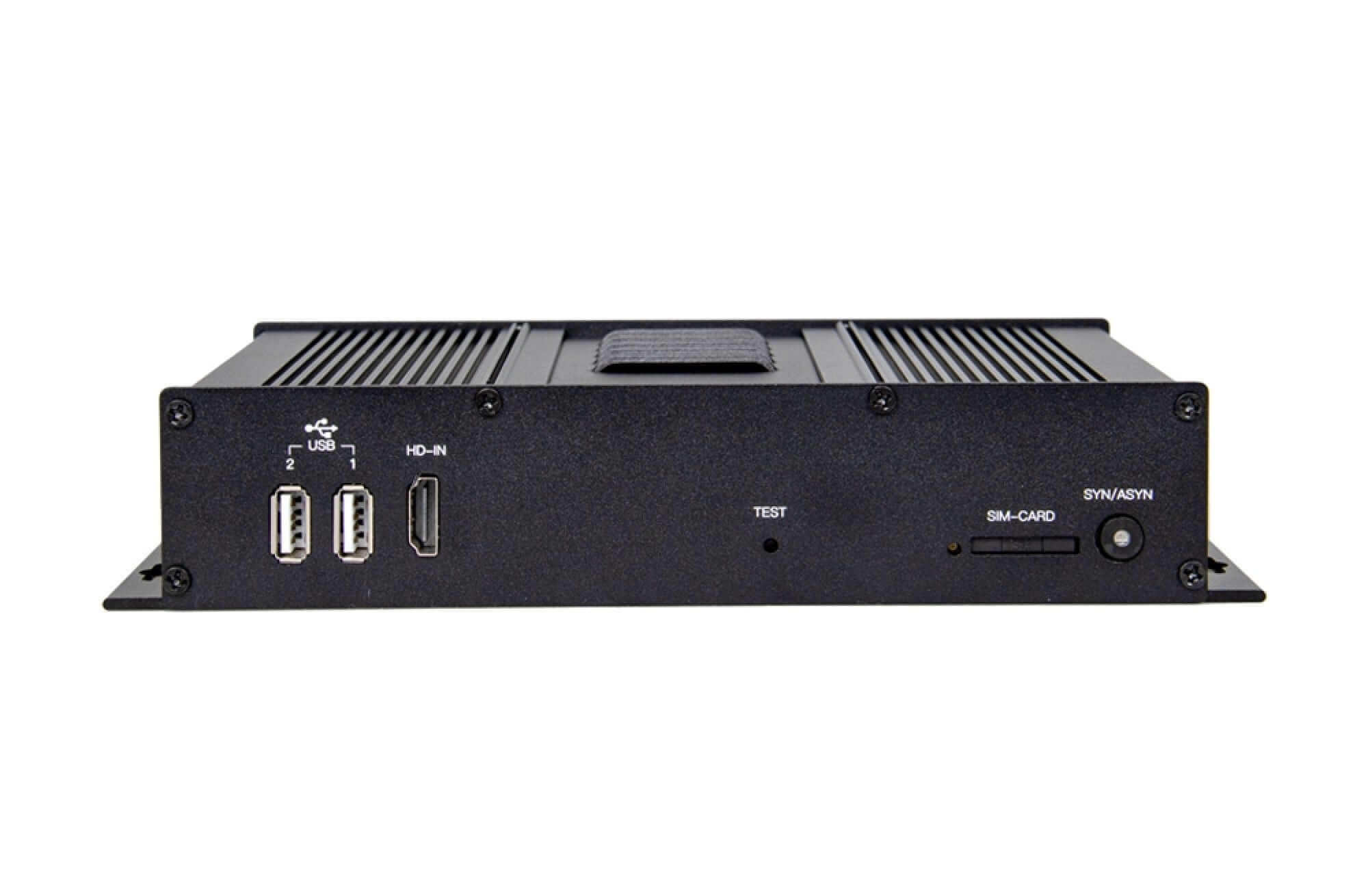

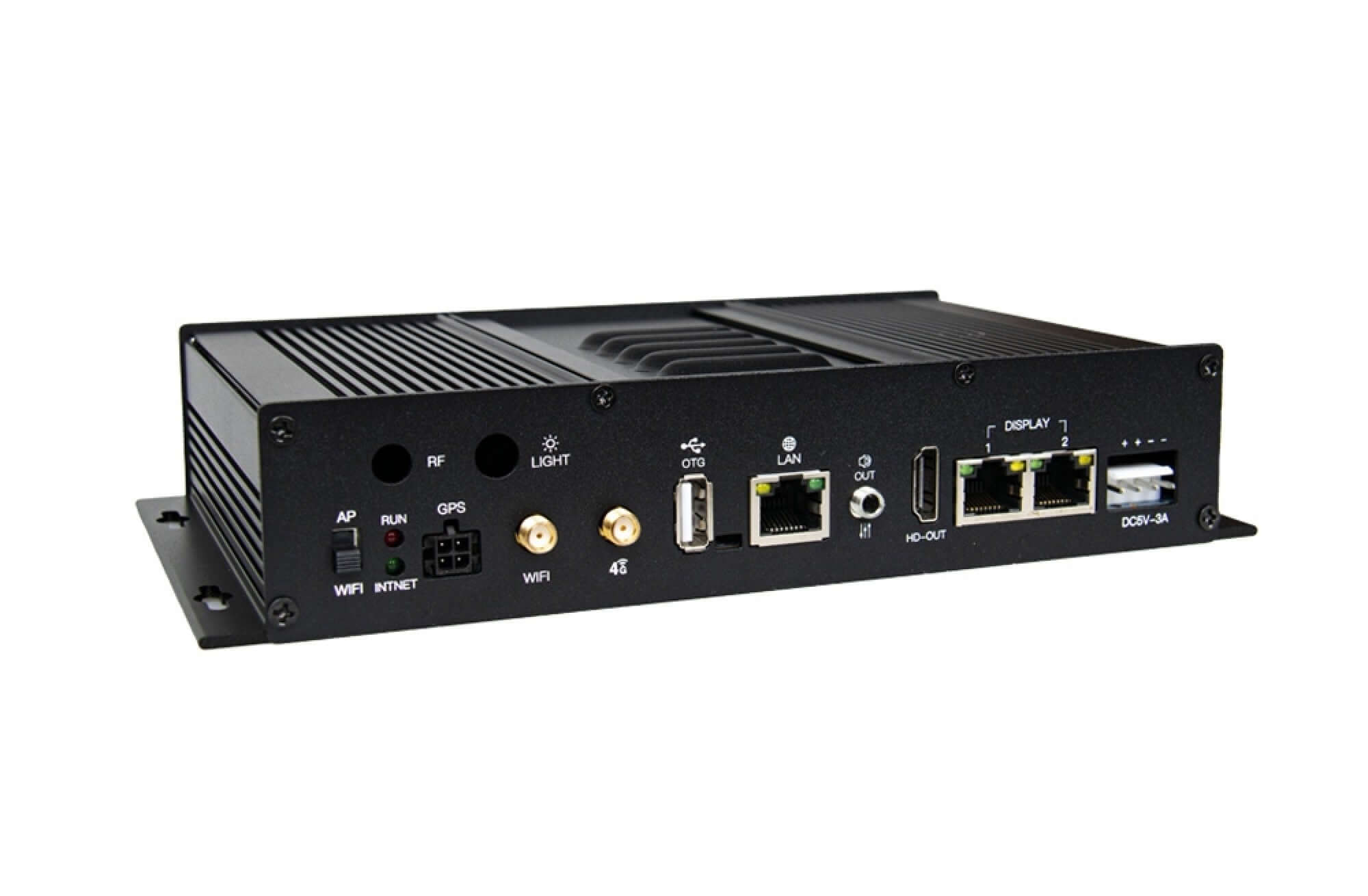

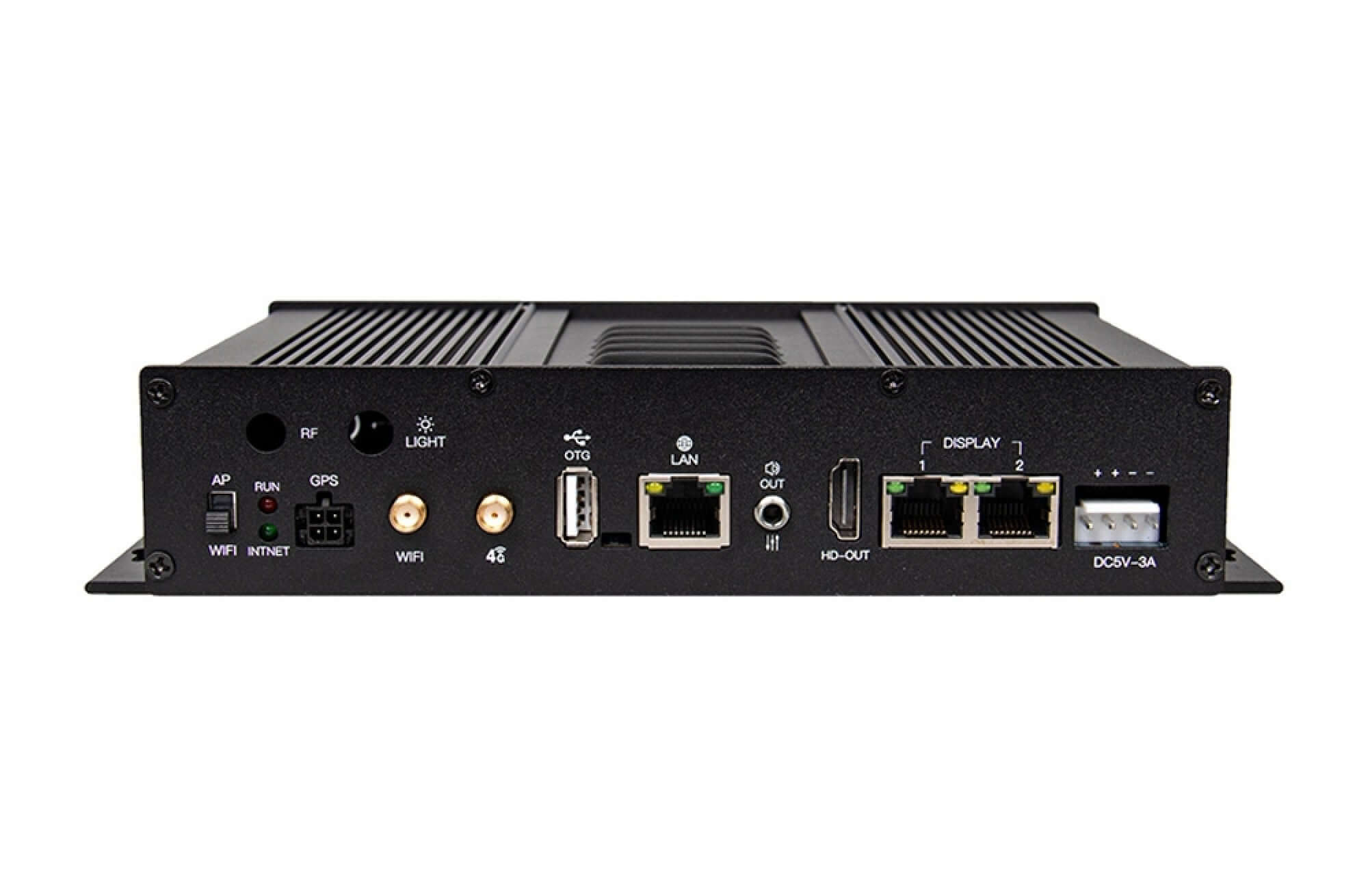

Sysolution M70 M-Series Dual-Mode Android Large Screen Sending Box Overview:
Sysolution M70 M-Series Dual-Mode Android Large Screen Sending Box is synchronous and asynchronous dual-mode sending box is a highly integrated and high-performance quad-core Cortex-A17 core board, running at a frequency of up to 1.8GHz, and comes standard with 2G memory and 16GB EMMC high-speed flash memory, supports synchronous HDMI input and output signals . It is more suitable for commercial display fields, such as mirror screen, advertising machine, lamp post sign and other applications.
M70 supports synchronous HDMI input and asynchronous playback without additional parts like video processors and various cables., supports 4G/Wi-Fi wireless remote control by smart phone or laptop.
Sysolution M70 M-Series Dual-Mode Android Large Screen Sending Box Features:
Support synchronous and asynchronous dual mode playback；
Support HDMI input and output；
Support Lora modem to realize programs synchronization via wireless；
Integrate auto-light sensor interface, plug sensor probe in directly；
Onboard dual WiFi module, support AP mode and Station mode;
Web server built in, support local webpage produce; support editing offline programs via computer, iphone, android smart phone, laptop and so on.；
Support video hard decoding, support 1080p video and most of formats of video, image and text；
1.3 million dual network ports loaded, the maximum width of asynchronous is 1920 pixels, the maximum of height is 1080 pixels, and the synchronization is 1.3 million custom width and height;
Support full color static, 1-32 scan modes modules, standard driver IC；
Support almost all types of driver IC like MBI, ICN,SUM, MY and so on ；
Industrial level Flash: 16GB；
Support plug in camera by USB ；
Support storage configuration parameters in receiver cards (The 8th and 9th Generation receiver card)；
Use LedOK Express software.
Sysolution M70 M-Series Dual-Mode Android Large Screen Sending Box Basic Parameters:
|Working Humidity （%）:
||Stock Temperature （℃）:
||-40~80℃ Recommend 5~35℃
Sysolution M70 M-Series Dual-Mode Android Large Screen Sending Box Specification
