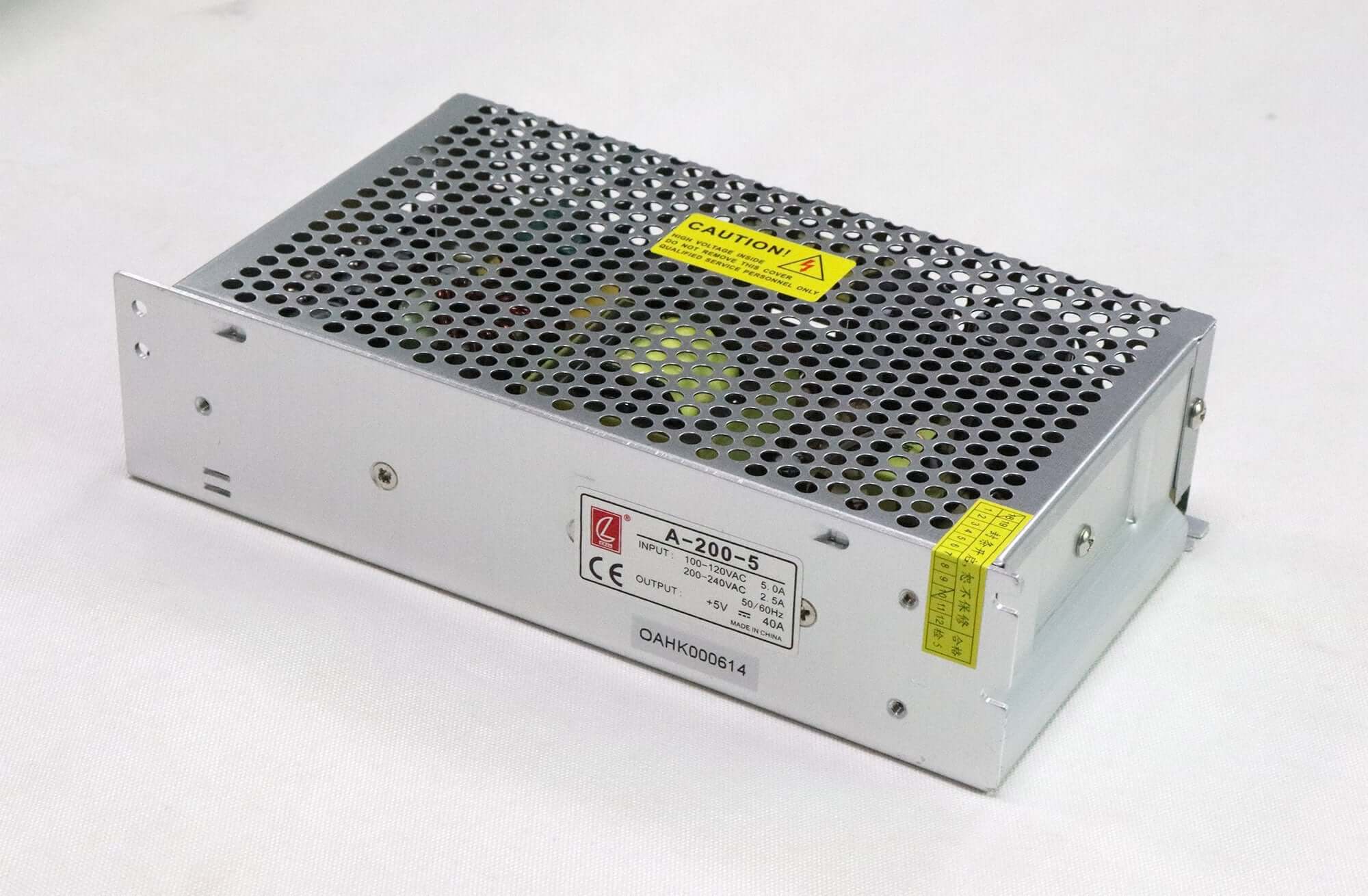

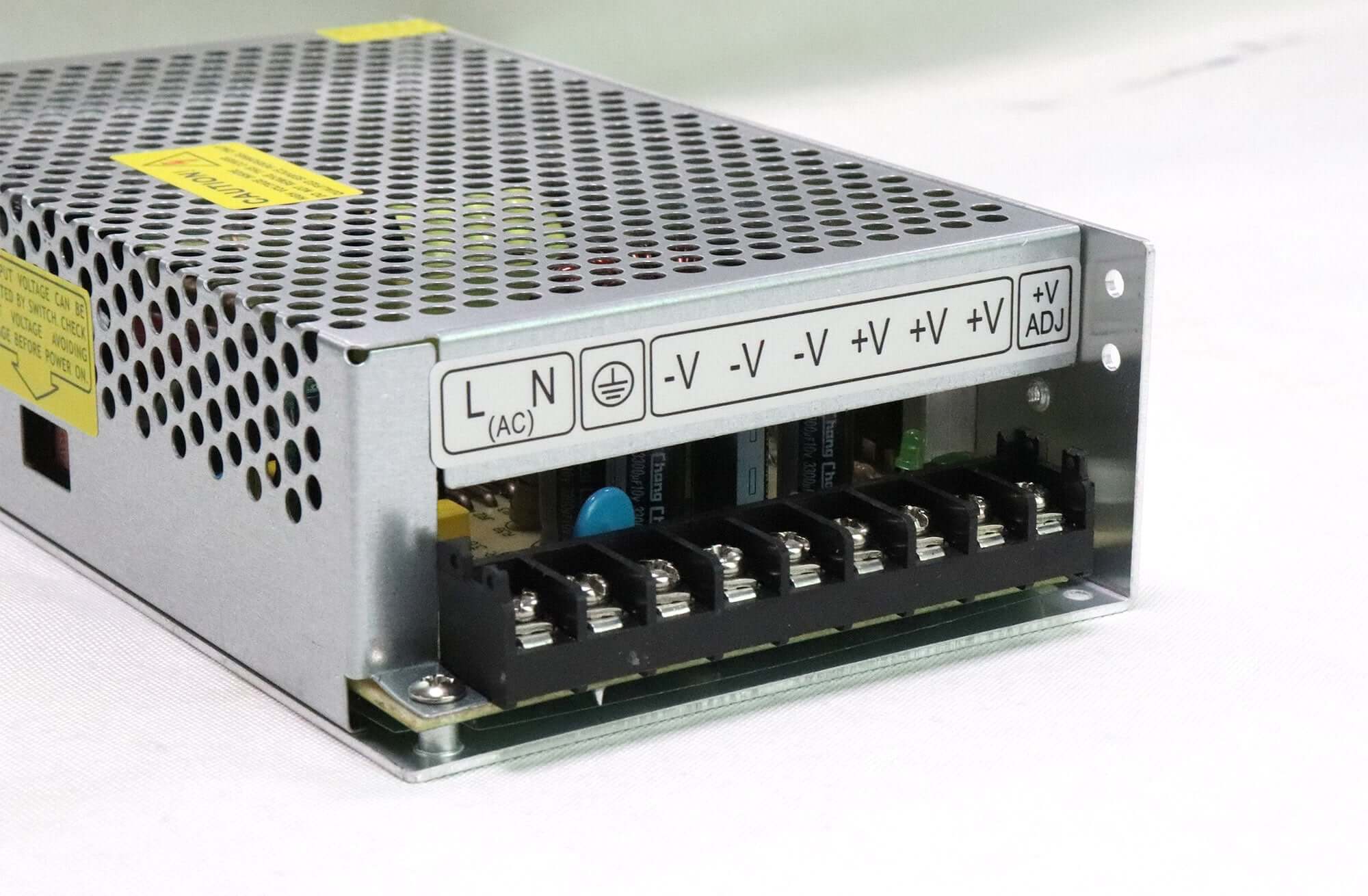

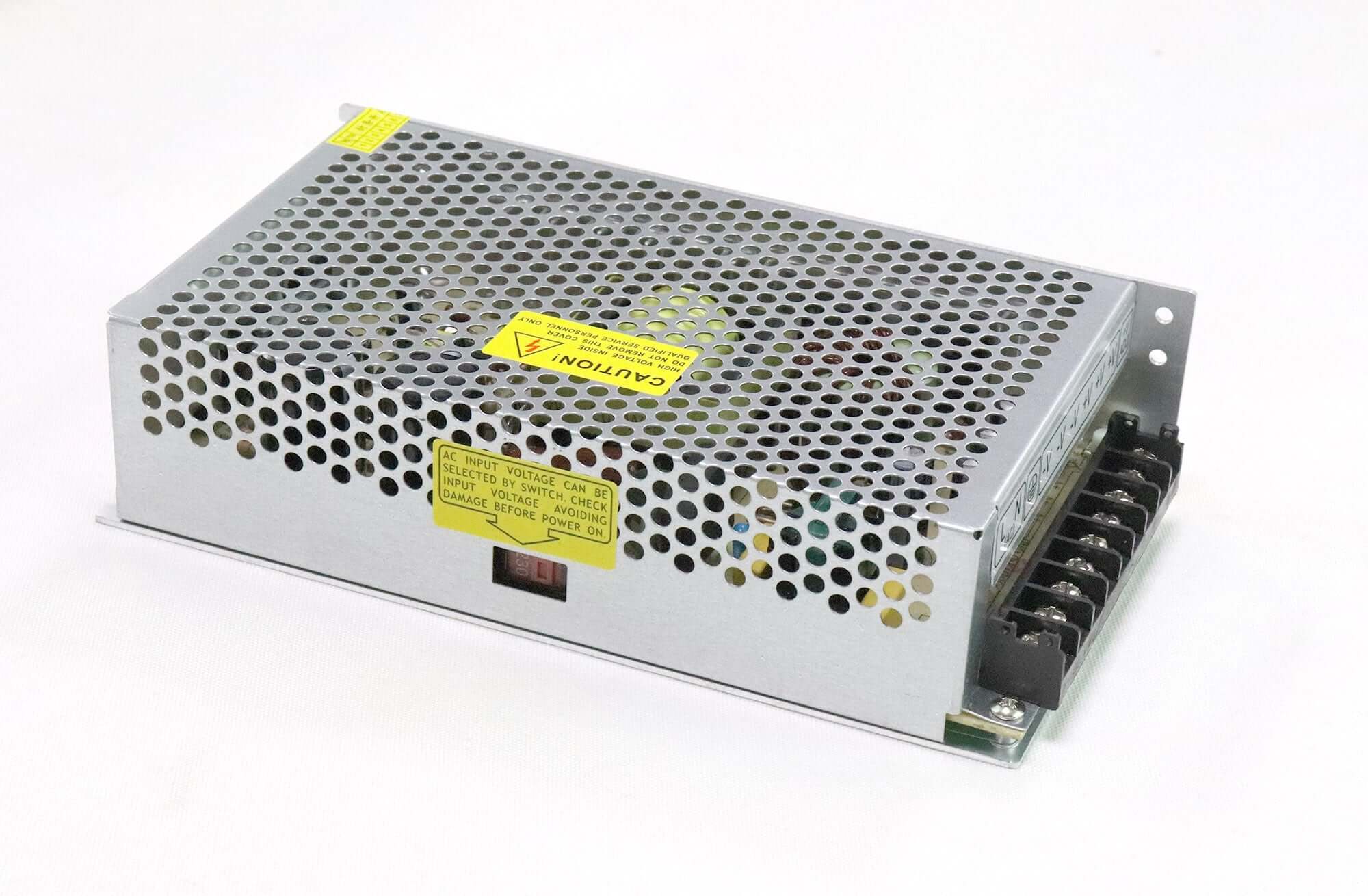

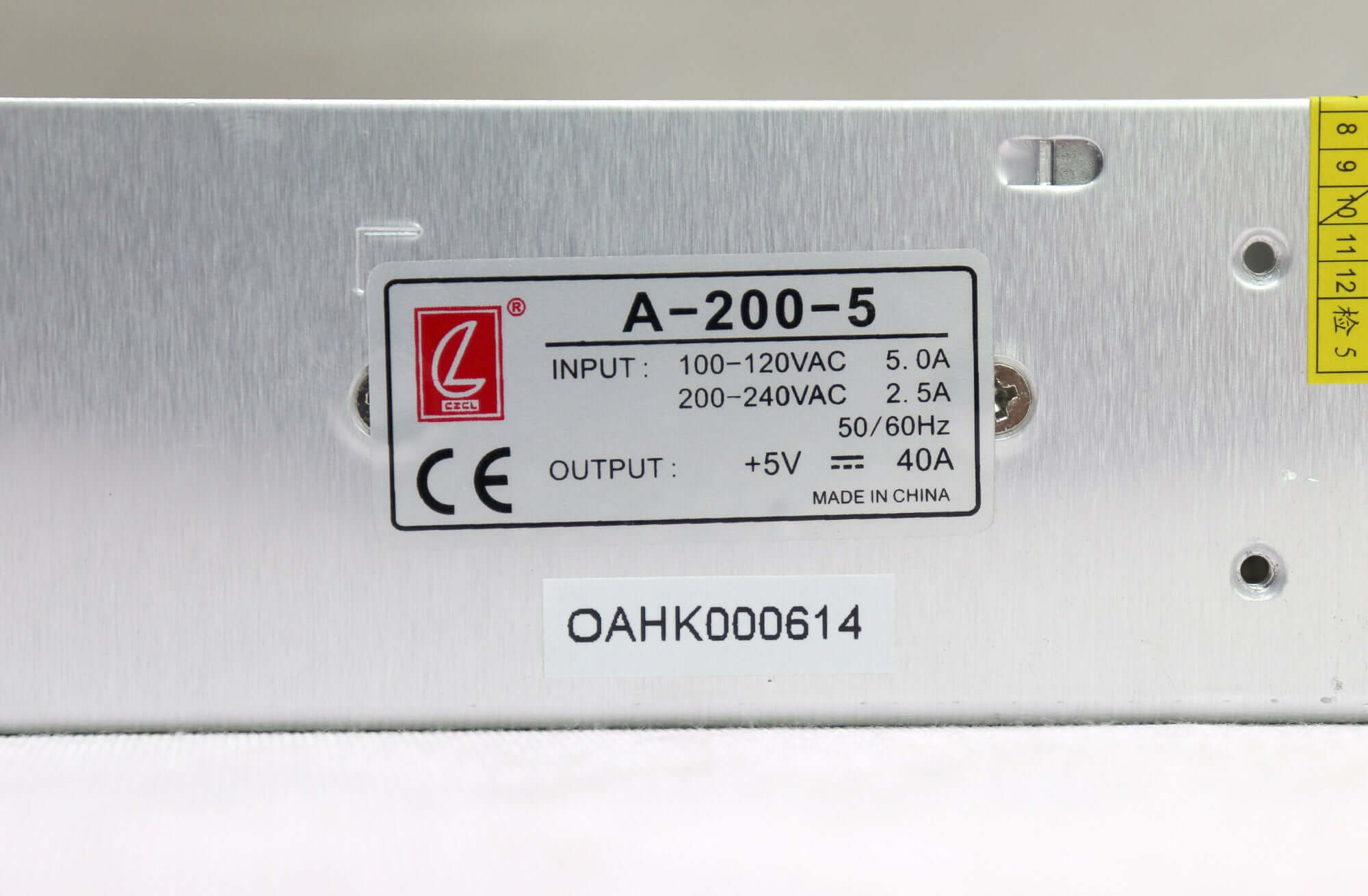

CZCL A-200W-5 5V40A LED Switching Power Supply

In stock
CZCL A-200W-5  5V40A LED Switching Power Supply CZCL A-200W-5  5V40A LED Switching Power Supply Features: Low output ripple&noiseLow cost,high reliabilityForced air cooling by Built-in DC fanProtections:Over load/Short circuitBuilt-in...

CZCL A-200W-5  5V40A LED Switching Power Supply

CZCL A-200W-5  5V40A LED Switching Power Supply Features:

Low output ripple&noise
Low cost,high reliability
Forced air cooling by Built-in DC fan
Protections:Over load/Short circuit
Built-in EMI filter
CASE:812; Size:222×115×50mm
1 year warranty


CZCL A-200W-5  5V40A LED Switching Power Supply Parameters


Input frequency----------------------47-63Hz
AC input voltage range-------------100-120VAC or 200-240VAC
Output over load protection---------110%-150% shut off, AC recycle to re-start
AC inrush current--------------------Cold start,40A/230VAC
Line regulation(full load)-----------≤0.5%
DC adjustment range----------------±10% rated output voltage
Rise,hold up time-------------------50mS,20mS at full load(typical)
Working temperature------------------10~+40℃@ 100%,+60℃@ 60% load
Withstand voltage-------------------I/P-O/P,I/P-FG:1.5KVAC, O/P-FG,0.5KVAC,1min
Safety standards---------------------Design refer to GB4943,UL60950-1,EN60950-1
Storage temperature---------------- -20℃~+85℃,20%~95%RH(non condensing)
EMC standards------------------ -----Design refer to GB9254,EN55022 class A
Cooling method----------------------- Forced air cooling by Built-in DC fan

 CZCL A-200W-5 5V40A

CZCL A-200W-5 5V40A


Download Specification

CZCL A-200W-5 Power  Specification
