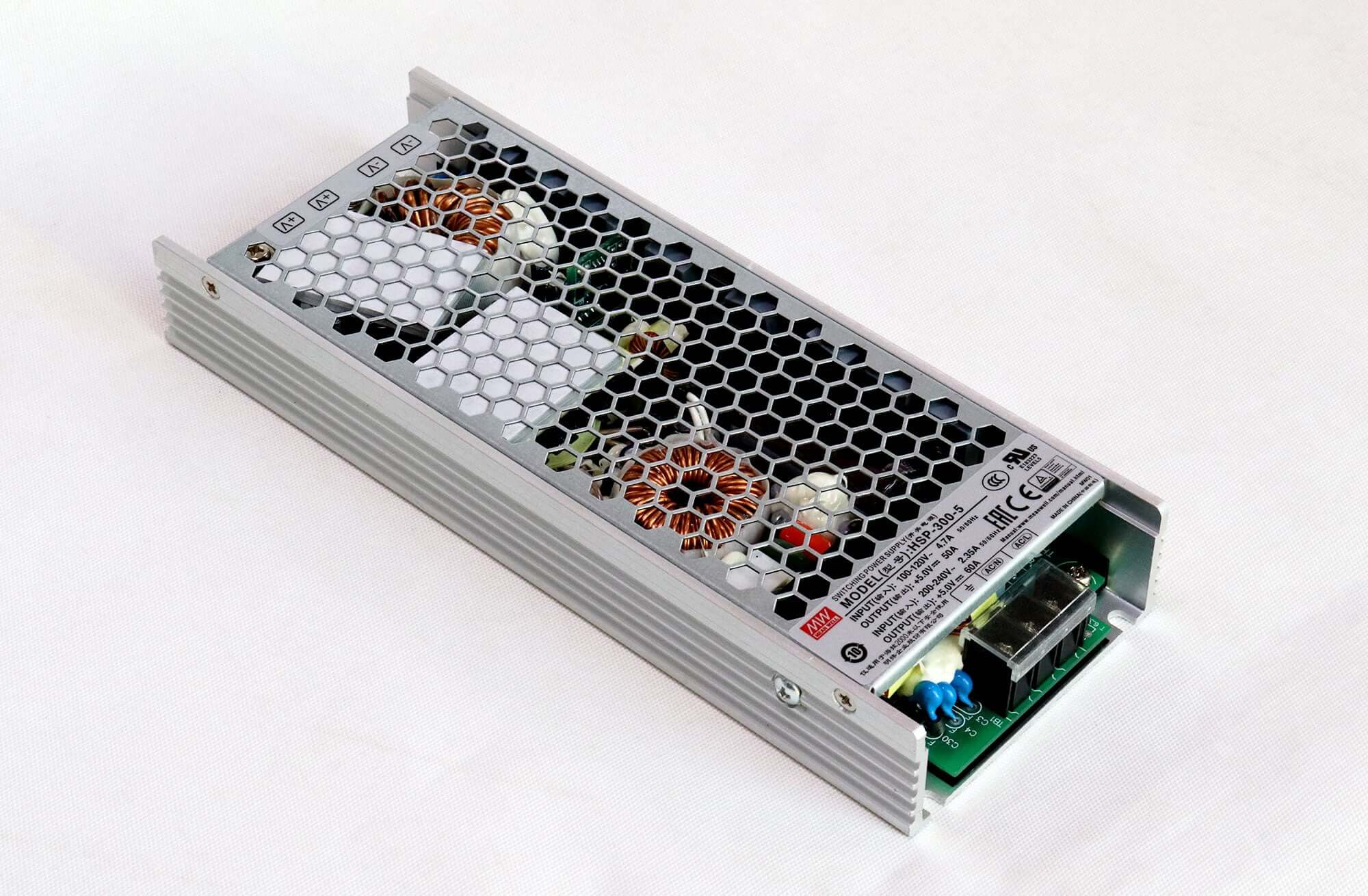

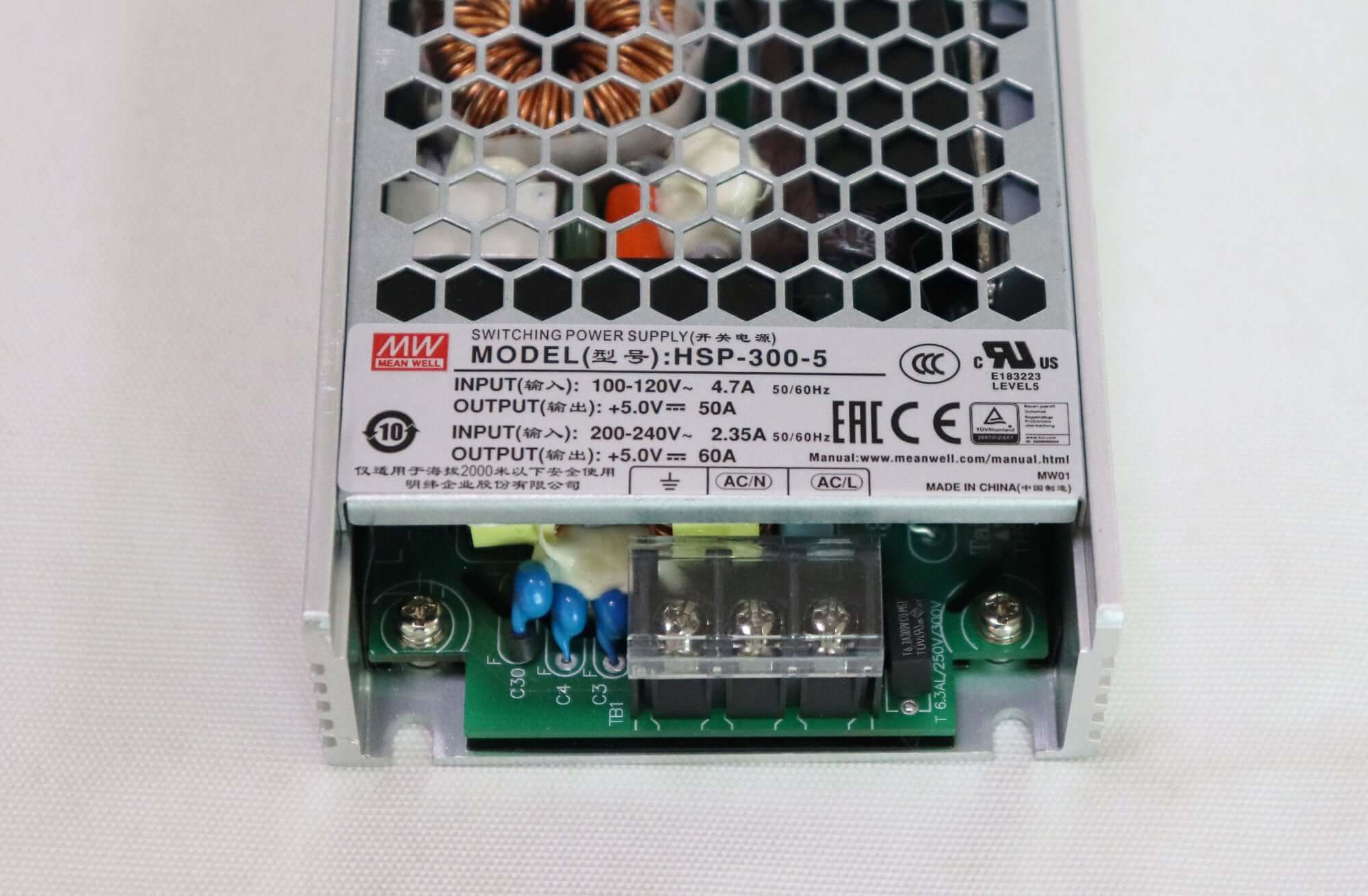

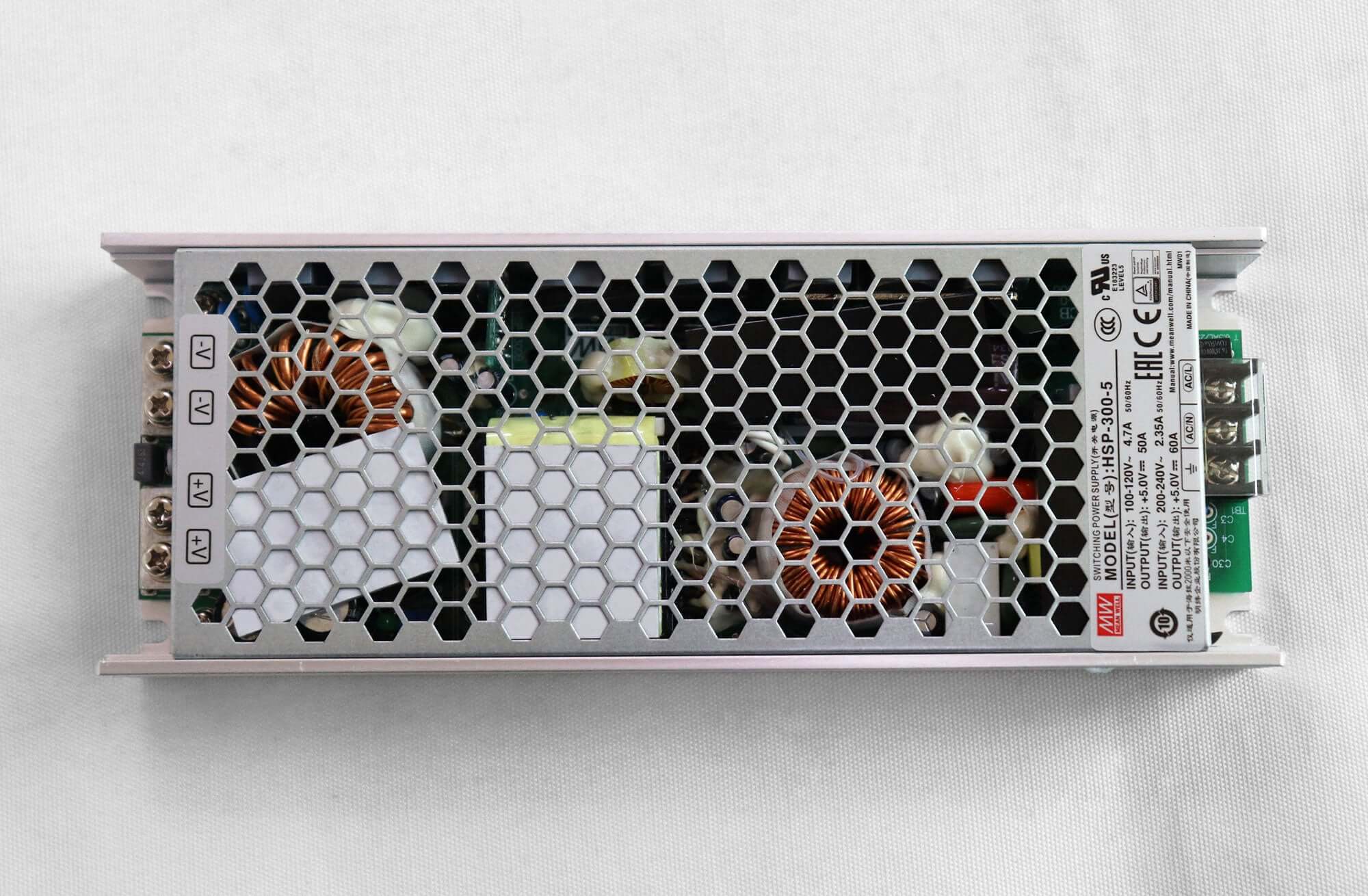

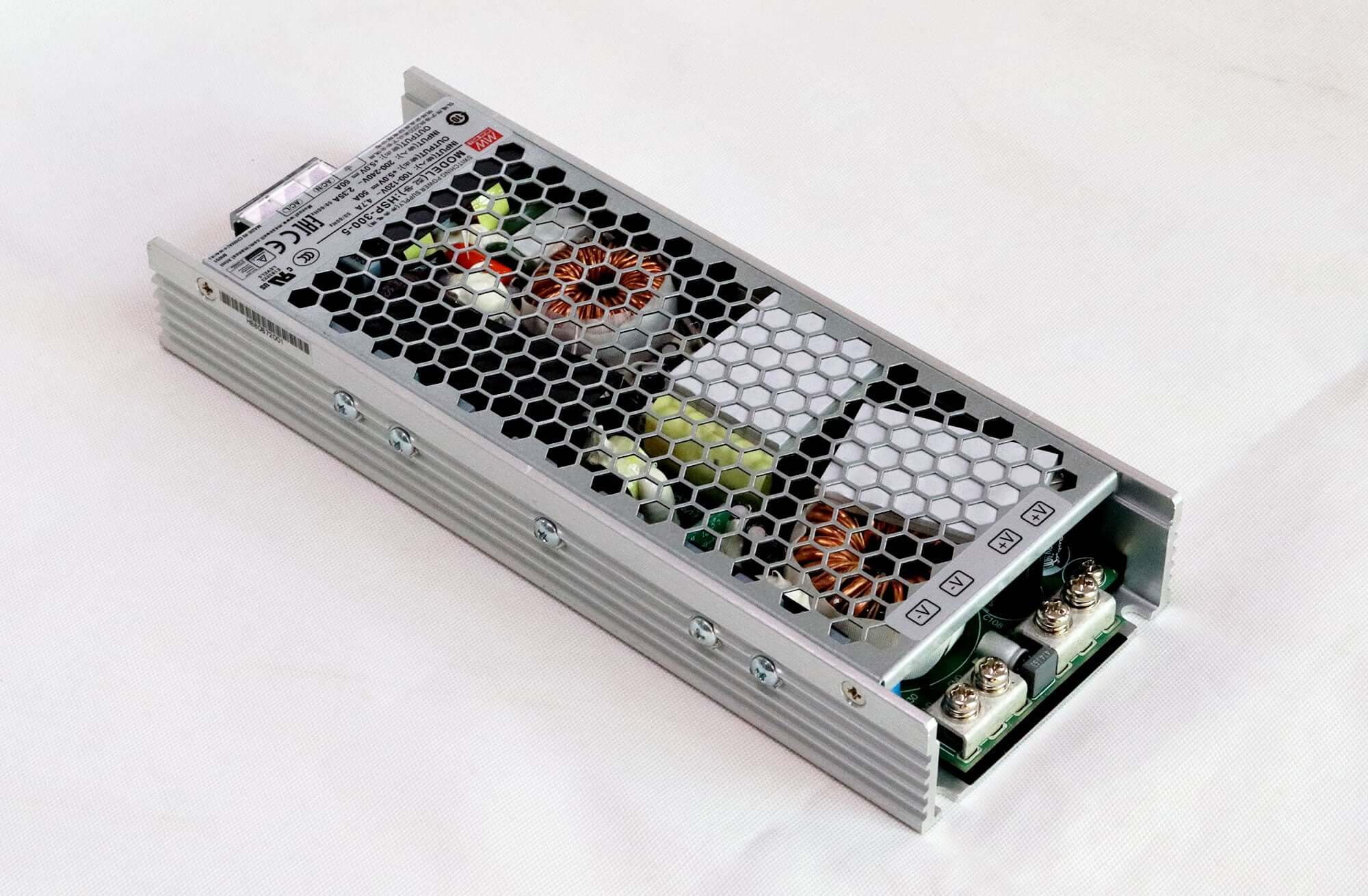

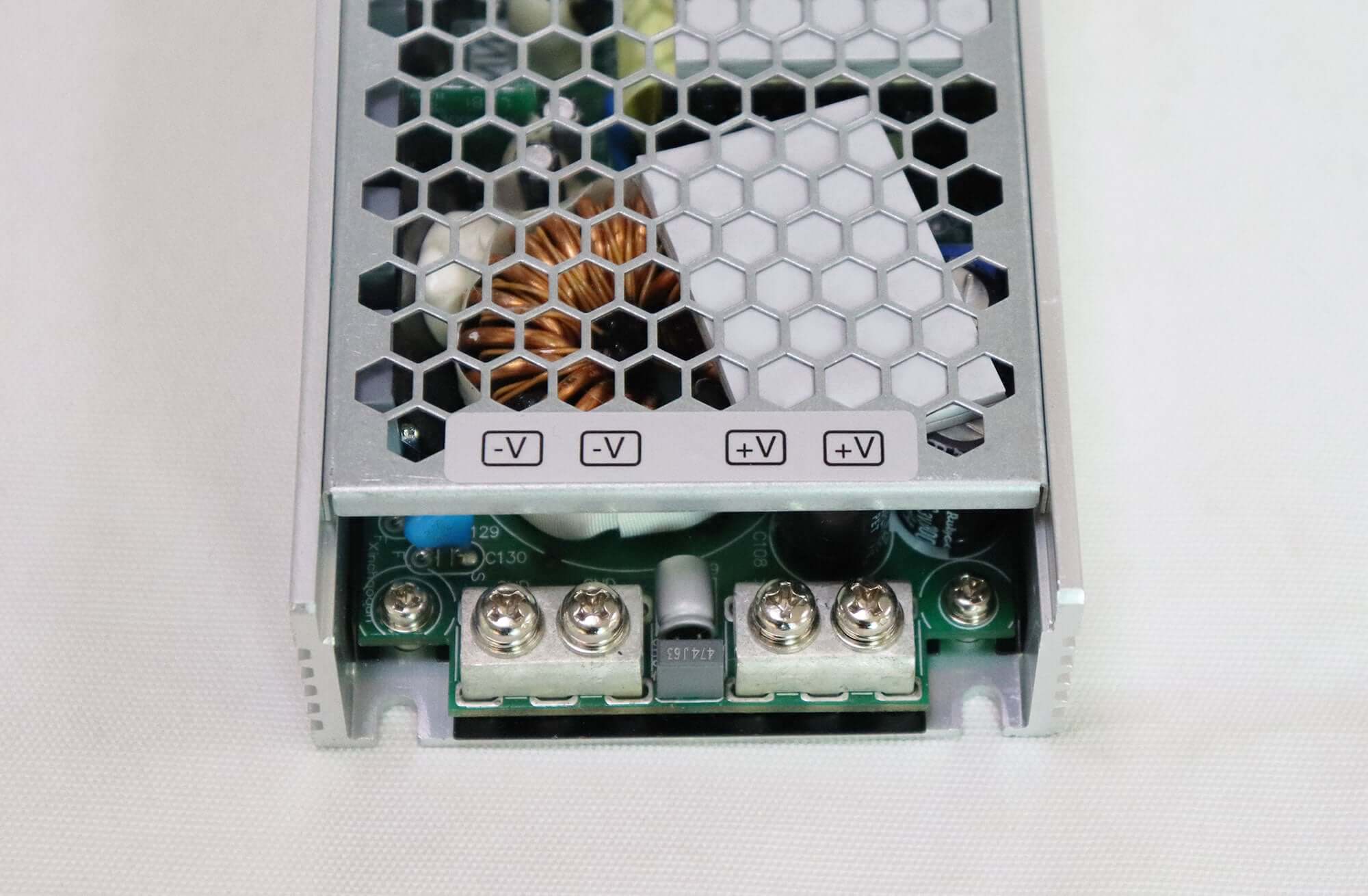

Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply

Meanwell
Meanwell-HSP-300-5
In stock
$38.50
Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Features: Universal AC input / Full range Withstand 300VAC surge input for 5 seconds Built-in active PFC function Low...

Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Features:

  1. Universal AC input / Full range
  2. Withstand 300VAC surge input for 5 seconds
  3. Built-in active PFC function
  4. Low leakage current<1mA
  5. Protections: Short circuit / Overload / Over voltage / Over temperature
  6. Cooling by free air convection
  7. Low profile:31mm
  8. Conformal coated
  9. LED indicator for power on
  10. Suitable for high efficiency moving sign applications
  11. 3 years warranty



Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Parameter:

MODEL HSP-300-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 60A
CURRENT RANGE 0 ~ 60A
RATED POWER 300W
RIPPLE & NOISE (max.) Note.2 150mVp-p
VOLTAGE ADJ. RANGE 4.5~5.5V
VOLTAGE TOLERANCE Note.3 ±2.0%
LINE REGULATION Note.4 ±0.5%
LOAD REGULATION Note.5 ±1.0%
SETUP, RISE TIME 2000ms, 100ms/230VAC
3000ms, 100ms/115VAC at full load
HOLD UP TIME (Typ.) 8ms/230VAC         8ms/115VAC at full load
INPUT VOLTAGE RANGE 180 ~ 264VAC     254 ~ 370VDC
or 90~135VAC    127~190VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR (Typ.) PF0.93/230VAC
PF 0.98/115VAC at full load
EFFICIENCY (Typ.) 87%
AC CURRENT (Typ.) 4.7A/115VAC        2.35A/230VAC
INRUSH CURRENT (Typ.) Cold start 30A/115VAC 60A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVER LOAD 105~150% rated output power
Protection type : Hiccup mode,
recovers automatically after fault
condition is removed
5.7 ~ 7.0V
OVER VOLTAGE Protection type : Shut down o/p voltage,
re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically
after fault condition is removed
ENVIRONMENT WORKING TEMP. -30 ~ +70℃(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 60℃)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min.
each along X, Y, Z axes
SAFETY& EMC SAFETY STANDARDS UL60950-1,EN60950-1,CCC GB4943 approved
WITHSTAND VOLTAGE I/P-O/P:3.0KVAC    I/P-FG:2.0KVAC
O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:
100M
 Ohms/500VDC/25/ 70%RH
EMC EMISSION Compliance to EN55022 (CISPR22),GB9254,
Class
 B, EN61000-3-2,-3,
GB17625.1
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11;
EN55024,
 light industry level
(surge 4KV), criteria A
OTHERS MTBF 263.2K hrs min.     MIL-HDBK-217F (25℃)
DIMENSION 210*81*31mm (L*W*H)
PACKING 0.8kg; 15pcs/ 12.1kg/ 0.7CUFT



Download Specification:

Meanwell HSP-300-5 5V60A 300W LED Sign EMC Power Supply Specification
