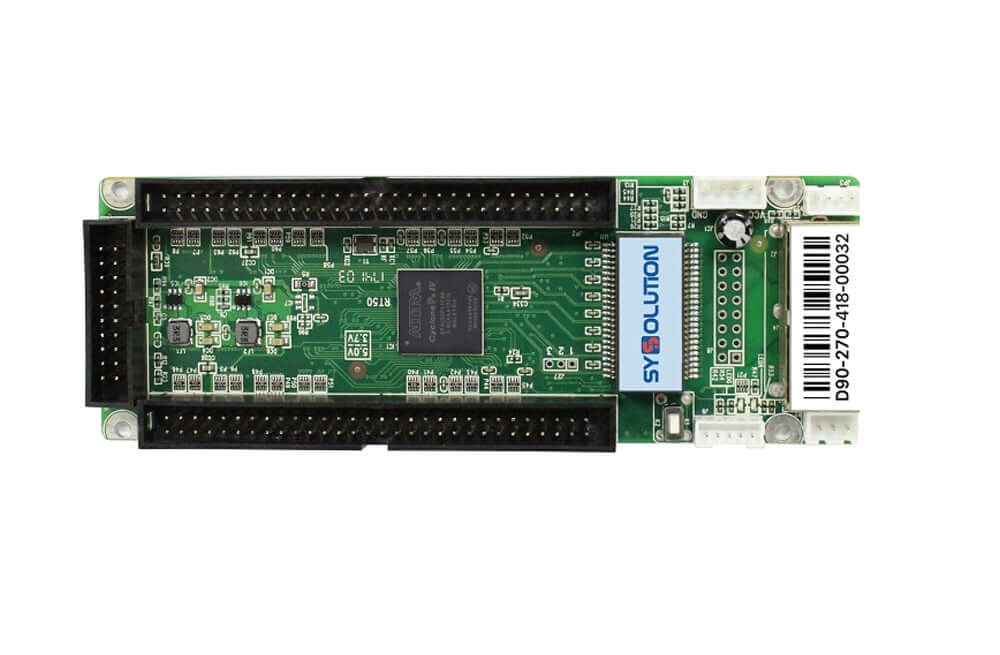

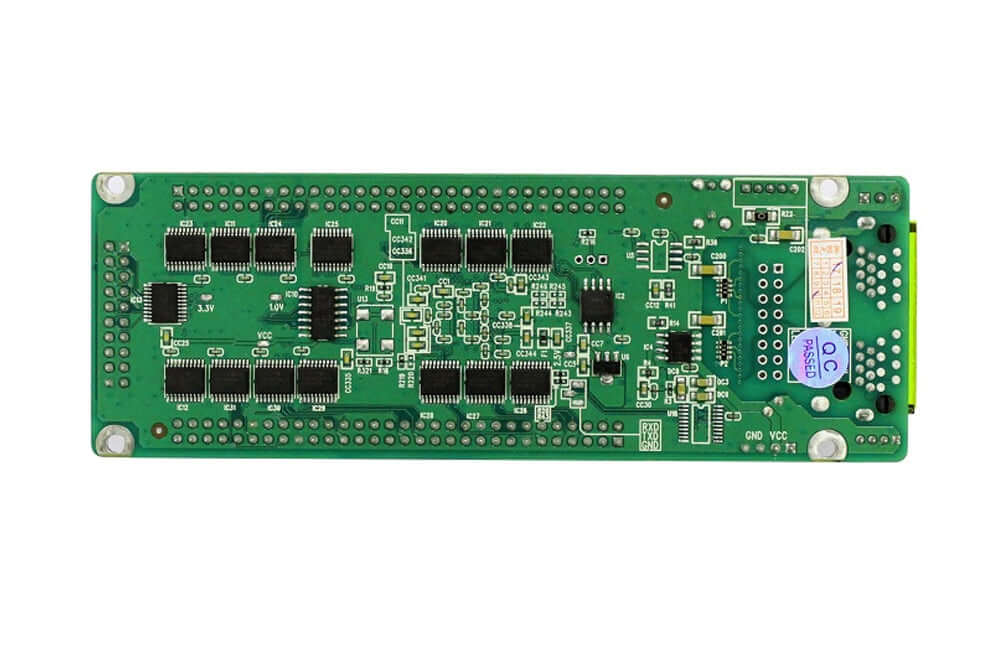

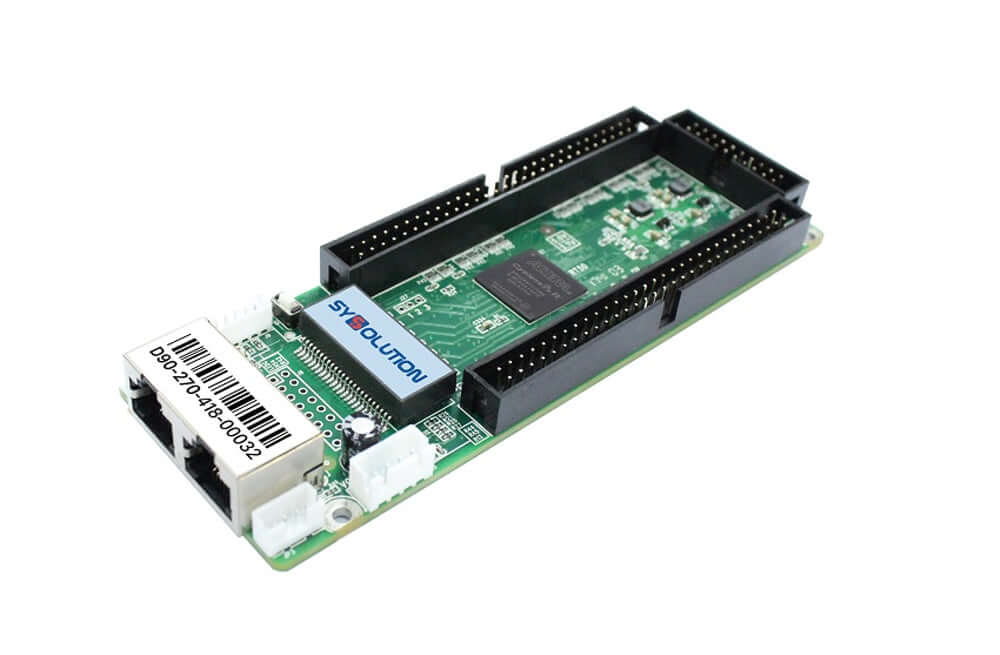

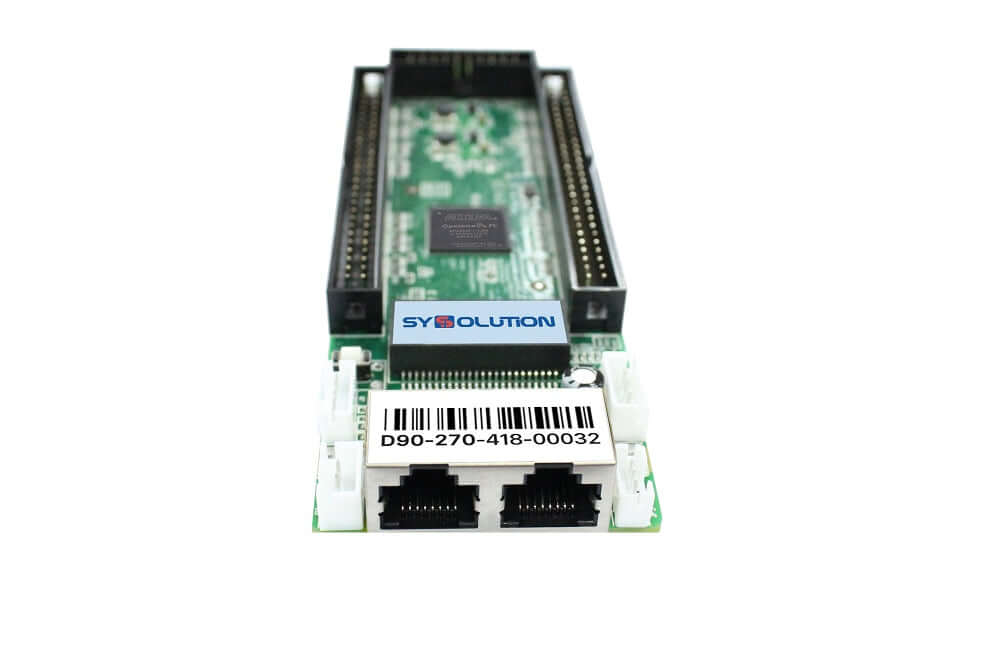

Sysolution D90-270 LED Display Receiving Card

Sysolution
Sysolution-D90-270
In stock
$17.98
Sysolution D90-270 LED Display Receiving Card Features: With tiny size Single block receiving card with pixel area:128×128 Working current:0.6A~1.0A Working temperature:-10℃ - 65℃ Extreme operating temperature:-20℃ - 75℃...

Sysolution D90-270 LED Display Receiving Card Features:

  • With tiny size
  • Single block receiving card with pixel area:128×128
  • Working current:0.6A~1.0A
  • Working temperature:-10℃ - 65℃
  • Extreme operating temperature:-20℃ - 75℃
  • Working humidity(%):0℃-95℃



Sysolution D90-270 LED Display Receiving Card Parameter:

Type Universal Receiving Card
Mode D90_270
LED module Full color
28 set of RGB output Support
24 set of RGB output Support
Output gray scale level Up to 20 bit
Input voltage +3.8V~+6V
Pixels Maximum 96K pixels,each set data can load 8K pixels
High refresh frequency, high brightness,high garyscale for general IC Support
Dual backup for the network calbe Support
Intelligent module, store debugged data and module parameters Support
Monitoring for the temperature, humidity, power supply voltage, fans of the screen box Support
Extract at any position, and shift the display position of date, make any of irregular screen display easy to realize Support
Variety of Driver ICs are supported, such as: PWM IC, Point by point Detecting IC and Conventional IC Support
Any scan type of 1-1/32, and 595 or other serial decode scan Support
Confirms RoHs and CE-EMC standards





Download Specification of Sysolution D90-270 LED Display Receiving Card:

Sysolution D90-270 Specification
