VDWALL A65 Series Multi-screen Splicing LED 4K Processor
VDWALL A65 Series 4K Multi-screen Splicing Processor Features:
Faroudja® Real Color® image processing，10+ Bit Faroudja® DCDI de-interlacing processing，Faroudja® TureLife™ image quality enhancement；
- 5 true 4K2K_60Hz input ports，among which 3 HDMI2.0（HDCP2.2）、2 DP1.2；3 2K combined digital+ analogue input ports, including one HDMI1.3(compatible with DVI、VGA ）、one 3G-SDI、one CVBS；
- Seamless and Fade in/out signal transition；
- Genuine 10-Bit image processing，color more vivid and natural，gray level transition more smooth;
- 4 DVI output ports，driving capability up to 9.2 million pixels. Synchronized splicing of 3840X2160 LED screen；each DVI output offers user defined resolution, maximum width or height 2160, 4 DVI outputs jointly realize 8640 pixels driving in width or height;
- Any size&position setup of output image and input image cropping, greatly facilitate irregular screen splicing;
- Provides saturation、gray level、brightness adjustment in individual RGB channel with 256 level；
- Adaptive calculation aided splicing，user just configure size&position of each unit screen, A65 will automatically calculate and apply mosaic parameter, flexible and intuitive;
- Synchronized monitoring available，connect one DVI output to 1080P LCD to monitor 4K input signal；
- Genlock multiple device cascading, extend pixel to pixel display to 8K4K@60Hz or 16K2K@60Hz via 4 A65 cascading;
- 13 preset display modes，support mode duplication and backup;
- Flexible and convenient front panel control or RS232/USB/LAN control;
- Widely applied in narrow pitch screen projects, such as exhibition、station advertisement、stage performance、restaurant hall、lecture room、school auditorium、church、market promotion etc；
VDWALL A65 Series 4K Multi-screen Splicing Processor Parameter:
| Input | ||
| Amount / Type |
3×HDMI 2.0（VESA/CEA-861） 2×DP1.2（VESA） 1×CVBS 1×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA 1×SDI（SDI/HD-SDI/3G-SDI） |
|
| CVBS Format | PAL/NTSC | |
| CVBS Impedance | 1V（p_p）/ 75Ω | |
| VGA Format | PC（VESA） | ≤1920×1200_60Hz |
| VGA Impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI Format | PC（VESA） | ≤1920×1200_60Hz |
| HDMIP Format（HDCP2.2） | PC（VESA） | ≤4096×2160_60Hz |
| HDMI2.0（CEA-861） | ||
| DP Format（HDCP2.2） | DisplayPort1.2（VESA） | ≤4096×2160_60Hz |
| SDI Format |
SMPTE259M-C SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M |
480i_60Hz 576i_50Hz 720p、1080i、1080p |
| Input Port |
CVBS: BNC/ 75Ω DVI: 24+1 DVI_D HDMI: HDMI (Type A) DP: DP port SDI: BNC/ 75Ω |
|
| Output | ||
| Type/Amount | 4×DVI | |
| DVI Format |
2160X1160_50Hz、2048X1200_50Hz、1920X1200_50Hz、 1920X1080_50Hz、1680X1440_50Hz、1440X1680_50Hz、 1200X1960_50Hz、1200x1600_60Hz、1440x1440_60Hz、1600x1344_60Hz、1920×1080_60Hz、2160x960_60Hz、 User defined resolution（Maximum 2160 pixels in width or height) |
|
| Output Port | DVI：24+1 DVI_D | |
| Others | ||
| Control Ports | RS232/USB/LAN | |
| AC Power | 100-240V/AC 50/60Hz | |
| Power Consumption | 35W | |
| Ambient Temperature | 0-45 ℃ | |
| Ambient Humidity | 15-85% | |
| Dimension | 482.6(L) x 380(W) x 66.6(H)mm | |
| Package Dimension | 535(L) x 475(W) x 145(H)mm | |
| Weight | G.Weight：8.5Kg, N.Weight：6Kg |
|

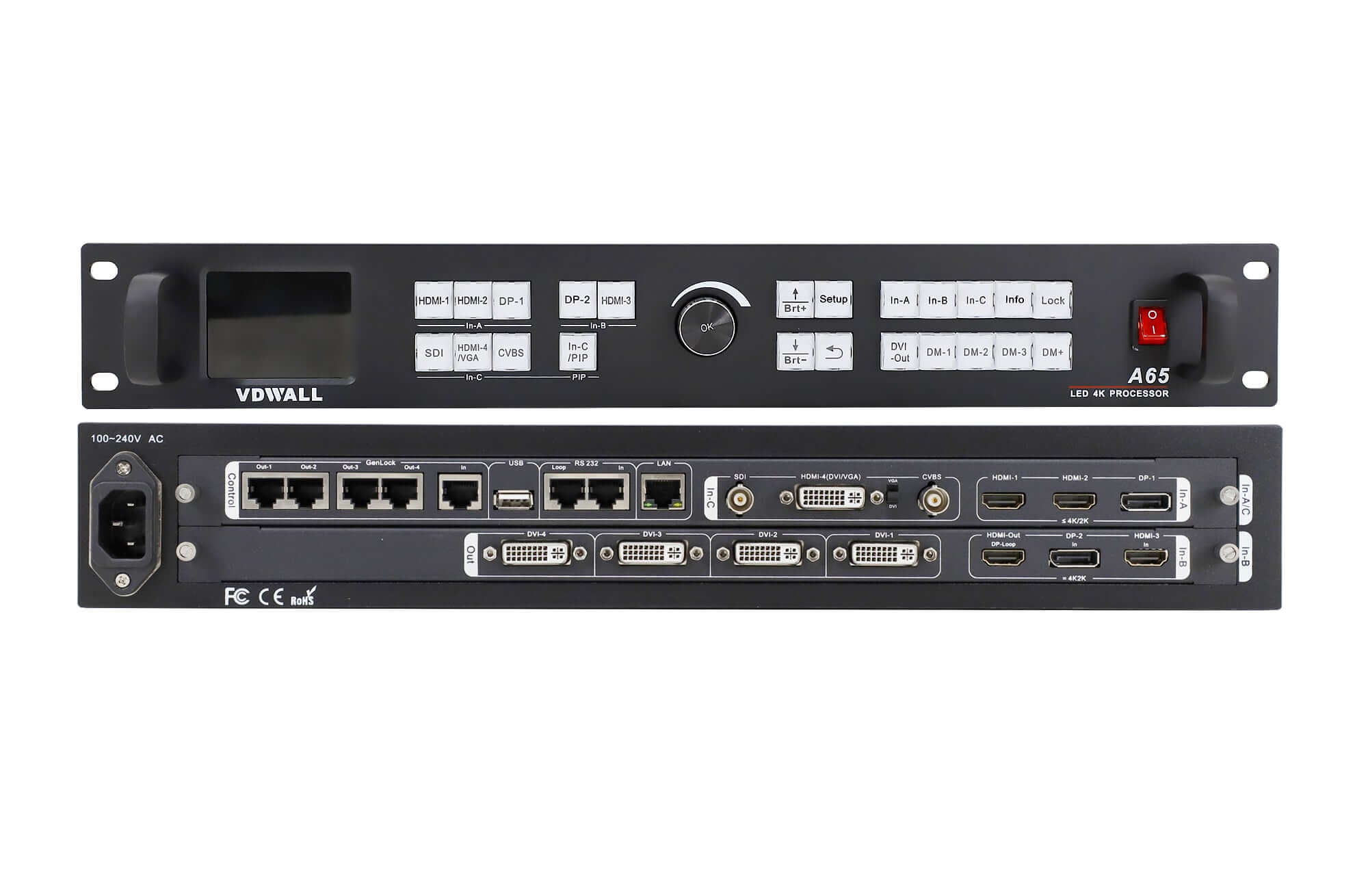

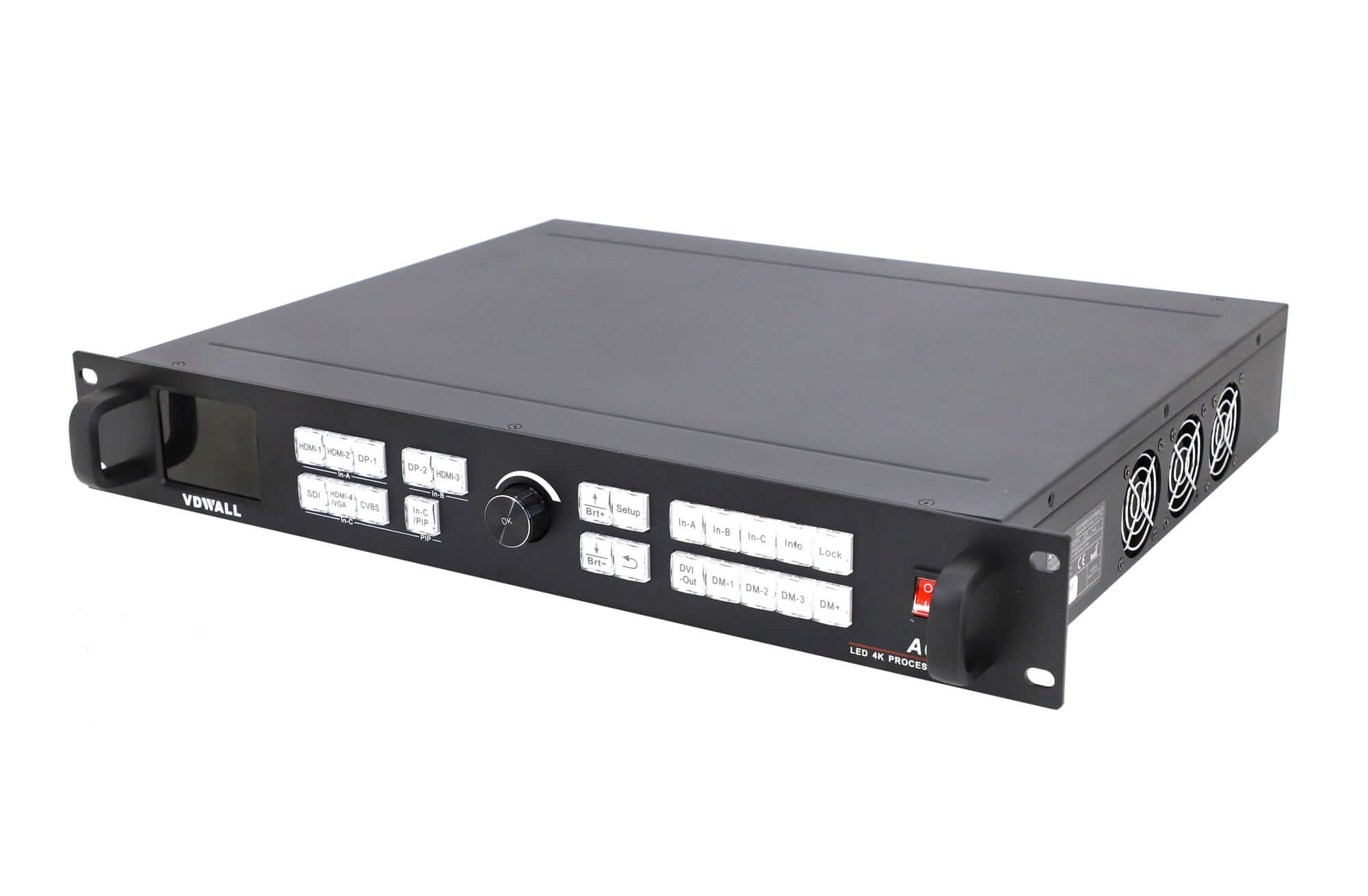

Most pictures of VDWALL A65 Series Multi-screen Splicing LED 4K Processor：
Download Specification
VDWall A65 OverviewVDWall A65 user quick setup guide
VDWall A65 GenLock Description
