Magnimage LED-W2000 4K LED Video Processor
$ 1,545.00
Magnimage LED-W2000 video processor with four paired DVI output groups, four-layer composition, source switching and Input Tile. Standard DP supports 3840 × 2160 at 30 Hz; 4K/60 Hz input requires the matching optional module. Confirm base, DH or 2DH configuration before ordering.
1000 in stock
Magnimage LED-W2000 video processor for splicing and switching
The Magnimage LED-W2000 combines image splicing, source switching and four-layer composition for LED walls in exhibitions, conferences and stage productions. Its eight DVI output connectors form four output groups with paired main/standby connections. Plan the display around these four groups rather than eight independent screen outputs.
The specifications below follow the manufacturer’s LED-W2000 series brochure, including its model table. The brochure has no printed revision date. The base LED-W2000, LED-W2000-DH and LED-W2000-2DH differ in installed 4K input modules; confirm the rear-panel configuration before choosing a source format.
Input formats and expansion options
| Connection | Brochure specification and condition |
|---|---|
| Standard inputs | 4 DVI, 4 DP, 3 HDMI and 1 SDI connector, arranged in four input groups. Select one connector from each group. |
| Standard DVI / HDMI | 3840 × 1080 at 60 Hz with EDID management. |
| Standard DP | 3840 × 1080 at 60 Hz or 3840 × 2160 at 30 Hz. |
| SDI | 3G-SDI, including 1080p at 50/60 Hz and lower listed formats; SDI loop connection is shown on the rear panel. |
| Optional 4K module | One DP 1.2 input and one HDMI 2.0 input per module; select either input. DP: 4096 × 2160 or 7680 × 1080 at 60 Hz. HDMI: 3840 × 2160 at 60 Hz, with HDMI loop output. |
| Model configurations | LED-W2000: base model. LED-W2000-DH: one 4K input module. LED-W2000-2DH: two 4K input modules. |
A 4K/60 Hz source therefore requires the appropriate expansion module. Standard DP’s 4K/30 Hz capability does not establish 4K/60 Hz support on every connector. Check the source’s resolution, refresh rate and connector together.
Output layout and show operation
Four DVI output groups can form a 2 × 2 mosaic or a wide horizontal display. The brochure illustrates 4096 × 2160 and 7680 × 1080 layouts. Individual output timing and downstream sending equipment must suit the actual screen map. The RJ45 control connection handles processor management; DVI feeds the downstream display chain.
Four layers support cropping, zoom, rotation and freeze, with logo display, test patterns, EDID management and saved presets. Input Tile combines up to four sources of the same resolution into a composite source, with two Tile groups available. Input hot backup allows manual or automatic selection between configured main and standby signals. Multiple processors can coordinate switching over the same local network.
| Installation item | Listed value |
|---|---|
| Output connectors | 8 DVI connectors in 4 paired groups; each pair provides copied outputs. |
| Synchronization / control | Genlock input and output; network, USB and RS232 connections. Front touch screen and operation buttons. |
| Power supply / consumption | 100–240 V AC, 50/60 Hz; 90 W listed consumption. |
| Operating temperature | 0–45°C. |
| Dimensions / net weight | 482.6 × 446.3 × 92.5 mm, listed as L × W × H; 6.7 kg. |

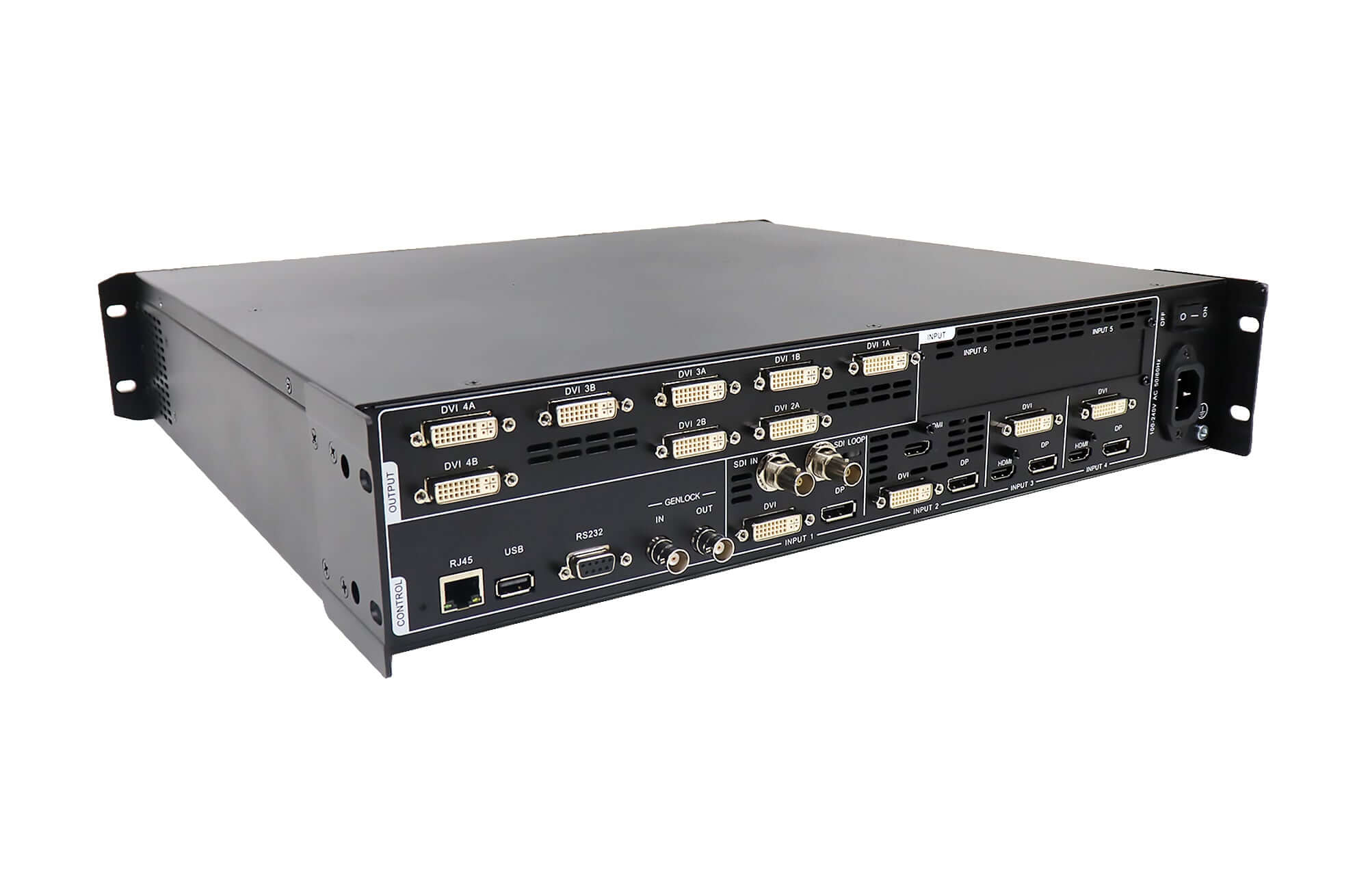

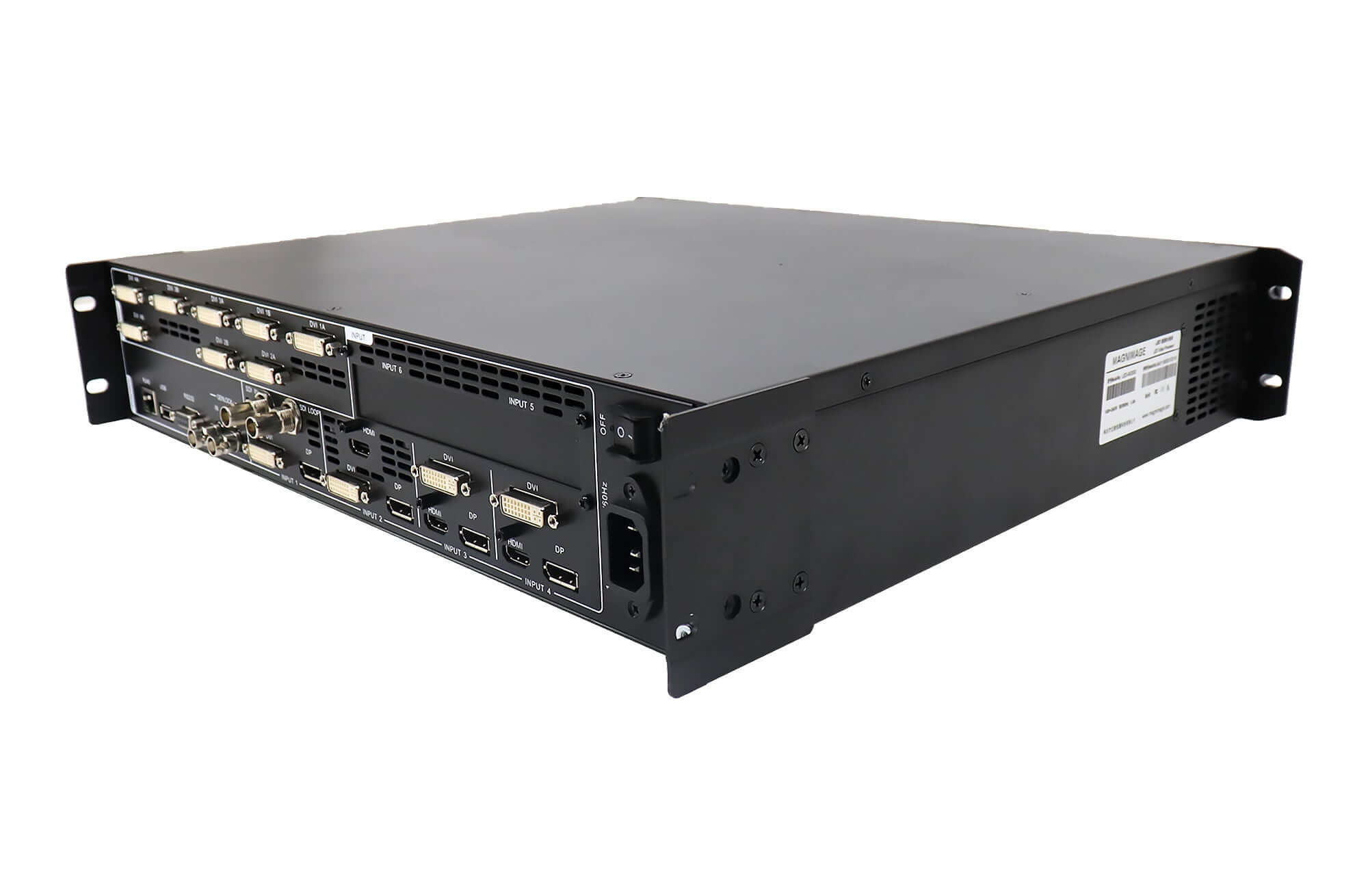

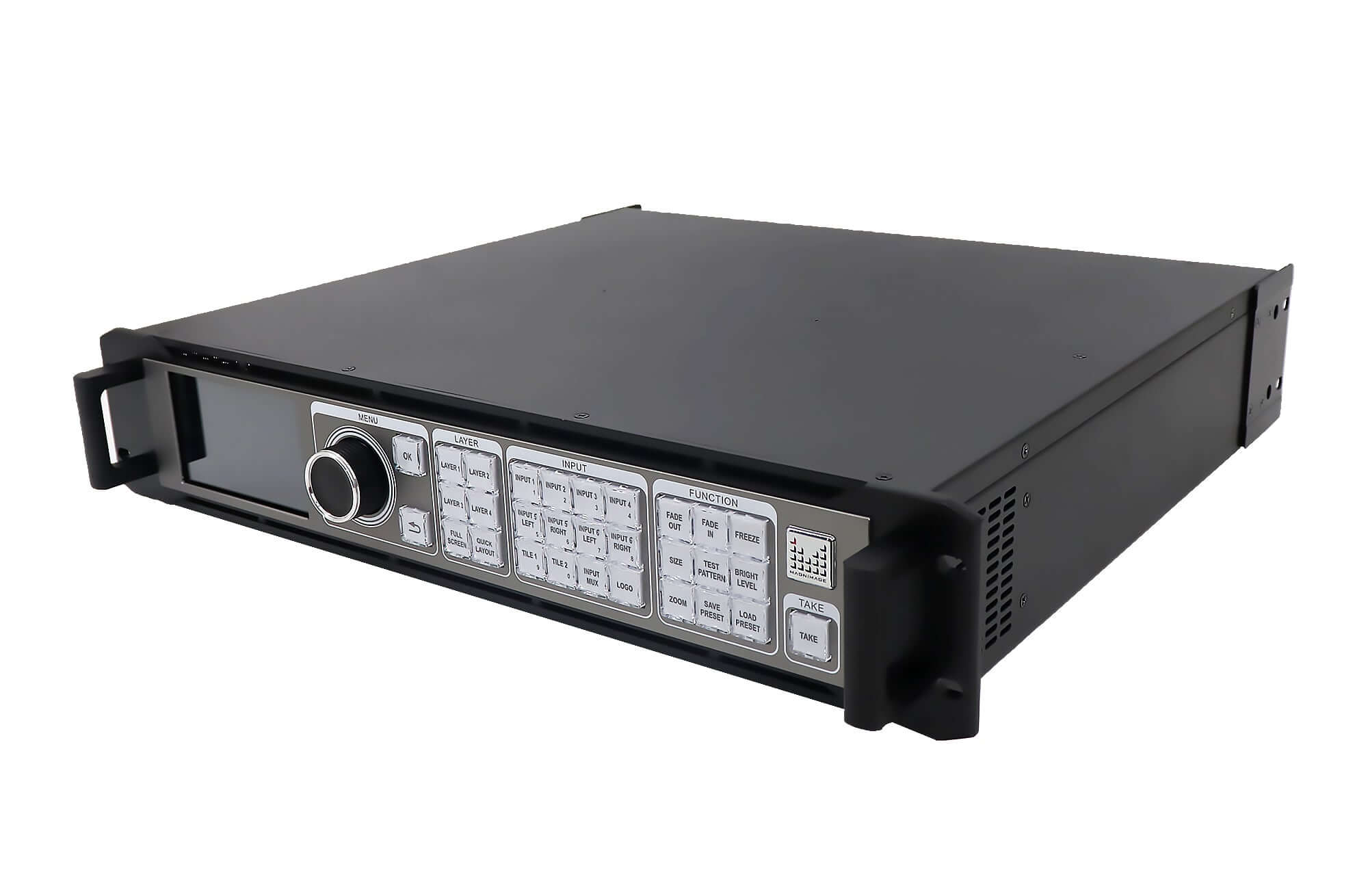

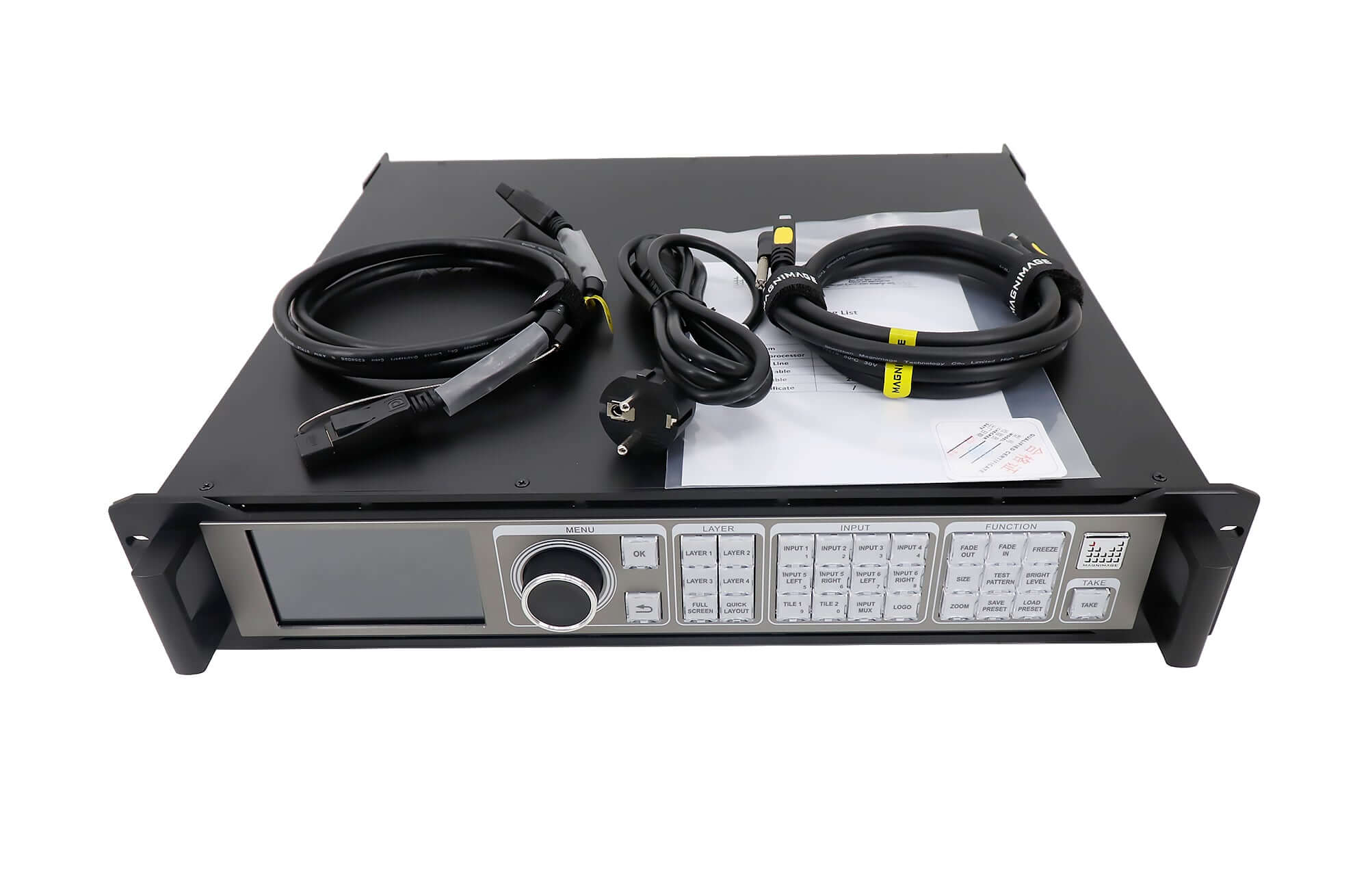

Original LED-W2000 product views
These original photographs show the front controls and rear connections. The rear views show blank expansion positions; photographs alone do not establish that optional 4K modules are included.
LED-W2000 selection questions
1. Does the base LED-W2000 include two 4K/60 Hz modules?
No. The brochure lists the base model separately from the one-module DH and two-module 2DH versions. Confirm the installed modules and quoted configuration before ordering.
2. Can all twelve standard input connectors be used as separate simultaneous sources?
The twelve connectors are divided into four groups, with one connector selected per group. Connector count and simultaneous source count are different selection criteria.
3. Are the eight DVI outputs independent?
They form four paired output groups. Allocate each main/standby pair correctly when preparing the screen map and backup wiring.
4. What information helps check a replacement processor?
Provide rear-panel photographs, current presets, screen pixel dimensions, output-group mapping, source timings and downstream sending-controller details. Include any Genlock, Tile and hot-backup requirements.
Documentation and configuration enquiry
Read the LED-W2000 series specification brochure, compare other LED video processors, or contact EagerLED with your source and screen layout to confirm the appropriate configuration.
| Weight | 6.7 kg |
|---|
