Colorlight H16F Fiber Optic Transceiver | 16 RJ45 Ports
Original price was: $ 2,500.00.$ 2,200.00Current price is: $ 2,200.00.
Colorlight H16F fiber optic transceiver with 16 gigabit RJ45 ports and two 10 Gb/s fiber interfaces. Single-mode twin-core LC connection, AC 100–240 V input, 1 km optical module and optional 20 km module.
10000 in stock
Colorlight H16F optical transmission for LED walls
The Colorlight H16F is a fiber optic transceiver with 16 gigabit RJ45 ports and two 10 Gb/s fiber interfaces. It supports single-mode twin-core fiber using full-duplex LC connectors, extending the data connection between compatible LED control equipment.
H16F parameters
| Parameter | Specification |
|---|---|
| Gigabit Ethernet | 16 RJ45 ports |
| Fiber interfaces | 2 × 10 Gb/s |
| Listed data rate | 20 Gb/s |
| Fiber type | Single-mode twin-core |
| Optical connector | Full-duplex LC |
| Transmission modules | 1 km; optional 20 km |
| Laser | DFB |
| AC input | 100–240 V |
| Operating temperature | 0 to +70 °C |
| Storage temperature | −40 to +85 °C |
Choosing the fiber link
The documented connection example uses a Z6 sender. Select the optical modules for the required route length and verify compatibility at both ends. The optional 20 km module should be specified when ordering if the link requires it.
H16F uses RJ45 Ethernet ports; check the connector requirements if comparing it with the H16F-N. Green indicators show Ethernet and fiber working status, while the separate power switch controls the unit.

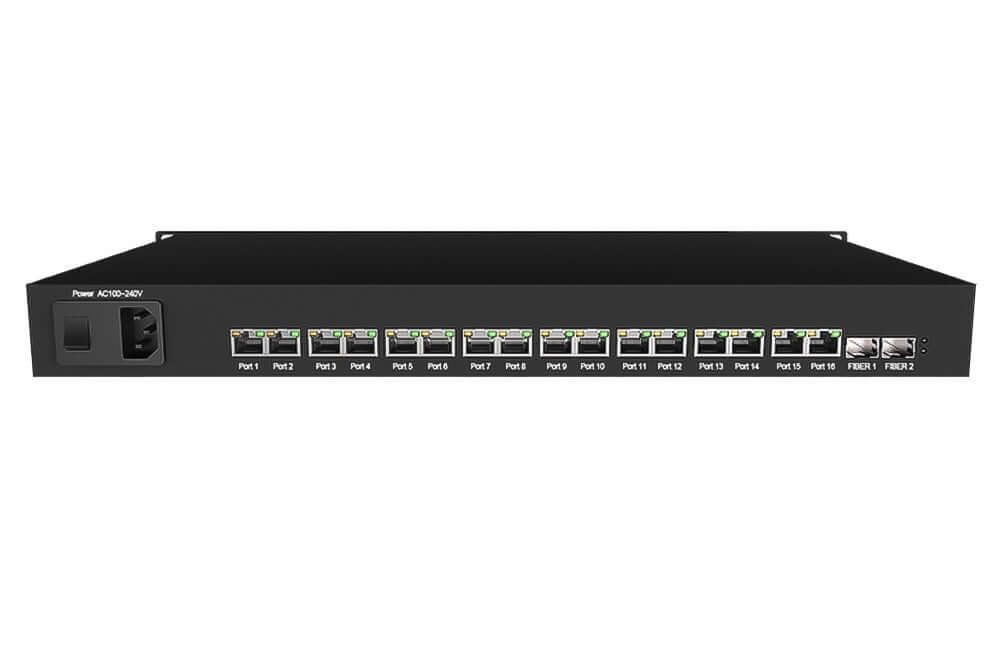

Product photos
Specification download
Download the H16F specification (V1.0)
Frequently asked questions
How does H16F connect to an LED control system?
The specification shows H16F used with a Colorlight Z6 sender. Its interfaces carry gigabit Ethernet and fiber signals; confirm the optical modules and port mapping for your sender and receiving system.
What is the difference between H16F and H16F-N connections?
The H16F specification lists 16 RJ45 gigabit ports. The H16F-N listing specifies Neutrik gigabit ports. Check connector requirements and the exact model when ordering a replacement.
Is the H16F fiber distance 1 km or 20 km?
Both appear as module options: 1 km is listed, while 20 km is optional. The installed optical module determines the applicable distance rating.
Does H16F use single-mode or multimode fiber?
The V1.0 document specifies single-mode twin-core fiber with a full-duplex LC connector. Do not substitute a different optical mode without checking the modules and equipment.
How fast are the Ethernet and fiber interfaces?
Each of the 16 RJ45 ports is gigabit Ethernet. The two fiber interfaces are listed at 10 Gb/s each, with a 20 Gb/s data-link figure for the device.
| Weight | 5 kg |
|---|
