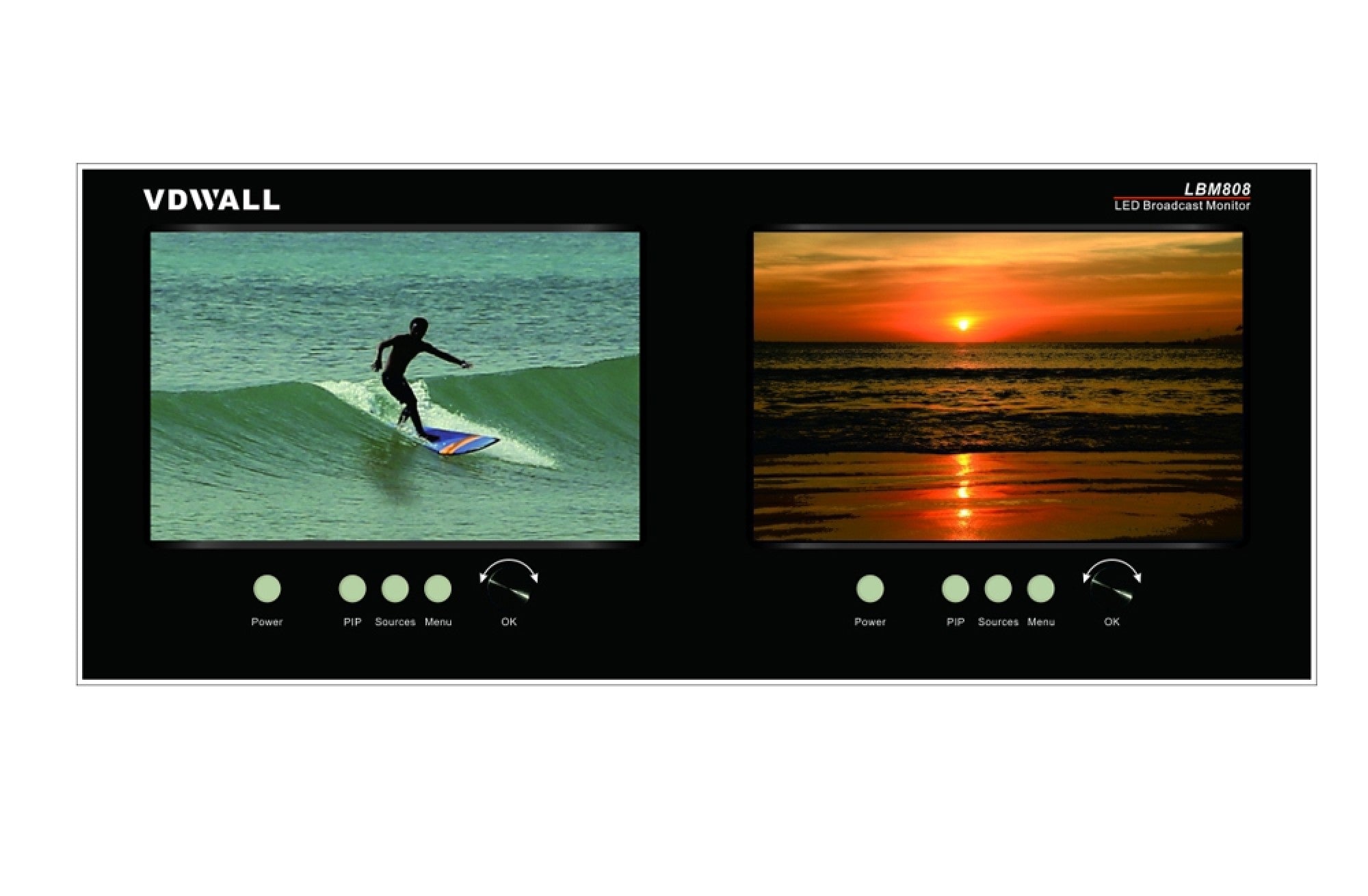

VDWall LBM808 LED Screen Broadcast Monitor
2. 2 x 8-inch LCD screens;
3. Resolution of LCD screen: 1280 x 800 / 60Hz;
4. Input signals: 2 x Video, 2 x VGA, 2 x DVI ( HDMI 1.3 compatible ) and 2 x SDI / HD-SDI / 3G-SDI;
5. Single screen supports PIP / PBP display;
6. State-of-the-art motion-adaptive de-interlacing processing technology: no more trailing or jagged pictures;
7. New Faroudja Real Color;
8. Faroudja TureLife;
9. Control Method: RS232.
VDWall LBM808 LED Screen Broadcast Monitor Parameter:
| Inputs | ||
| Number / Type | 2 x Video | |
| 2 x VGA（RGBHV） | ||
| 2 x DVI / HDMI（VESA / CEA-861） | ||
| 2 x SDI（SDI / HD-SDI / 3G-SDI） | ||
| Video Standard | PAL / NTSC | |
| Composite Video Amplitude / Impendence | 1V（p_p）/ 75Ω | |
| VGA Format | PC（VESA） | ≤2304 x 1152_60Hz |
| VGA Amplitude/ Impendence | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI Format | PC（VESA） | ≤2304×1152_60Hz |
| HDMI-1.3（CEA-861） | ≤1920×1080_60Hz | |
| SDI Format | SMPTE 259M | 480i_60Hz |
| SMPTE 292M | 576i_50Hz | |
| 720p、1080i、1080p | ||
| Input Connectors | Video：BNC | |
| VGA：15pin D_Sub(Female) | ||
| DVI / HDMI：24+1 DVI_D | ||
| SDI：BNC / 75Ω | ||
| Outputs | ||
| LCD panel parameters | Size：8" | |
| Resolution：1280 x 800_60Hz | ||
| Aspect ratio：full / 4：3 | ||
| Backlight brightness：350cd/m2(adjustable) | ||
| Contrast：900：1 | ||
| Viewing angle：H / V 890 / 890 | ||
| Others | ||
| Control port | RS232 | |
| Input Voltage | DC 12V | |
| Maximum Power Consumption | ≤24W | |
| Environment Temperature | 0-45 ℃ | |
| Environment Humidity | 15-85% | |
| Product Dimension | 482.6mm(L) ×54.5mm(W) ×176mm（H） | |
| Package Dimension | 530mm(L) ×155mm(W) ×250mm（H） | |
Download Specification:
VDWall LBM808 LED Screen Broadcast Monitor User Manual
VDWall LBM808 LED Screen Broadcast Monitor Brief Intrdouction
