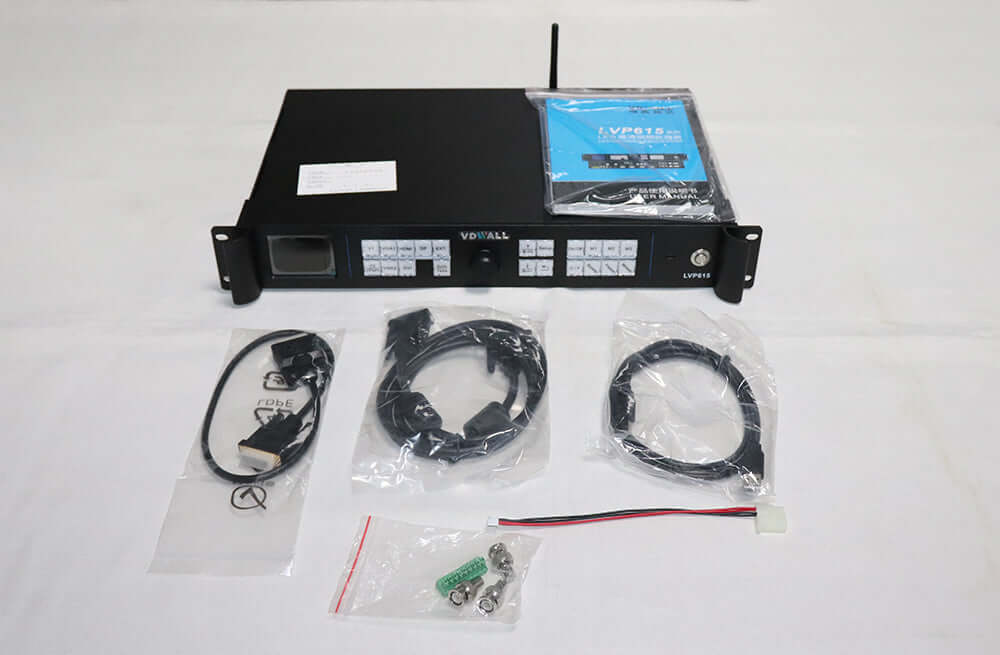

VDWALL LVP615 HD Video Processor, Basic Model of LVP615 Series

In stock
$431.00 $410.00
Videowall LVP615 HD Video Processor Key Features: 1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer2. Two...

Videowall LVP615 HD Video Processor Key Features:

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer
2. Two signal switching ways: one button to switch and pretake + Take switching
3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals
4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display
5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen
6. User define output format to reach maximal horizontal width 3840 or vertical height 1920
7. User define DVI EDID to realize pixel-to-pixel display
8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.
9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi

Videowall LVP615 HD Video Processor Parameter:


Nums / Type

3×CVBS  1×S-Video
2×DIV/HDMI(1.3a with HDCP)

Video system


Composite Video
Scope / Impedance

1V(p_p)/ 75Ω

S-video Scope /

Y:1.0V(p_p)/ 75Ω,C:0.35V(p_p)/ 75Ω

VGA Format



VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI Format

SD / HD(CEA-861)




HDMI 1.3 Format( HDCP )

SD / HD(CEA-861)




YPbPr Format

SD / HD(CEA-861)


YPbPr Scope / Impedance

Y= 1.0V(p_p)/ 75Ω
Pb= 0.35V(p_p)/ 75Ω
Pr= 0.35V(p_p)/ 75Ω

SDI format


576i @50Hz

480i @60Hz

3G-SDI format

SMPTE 274M/296M
SMPTE 424M/425M

≤1920 x 1080@50Hz / 60Hz

AUDIO Scope / Impedance

2.0Vp-p / 10KΩ

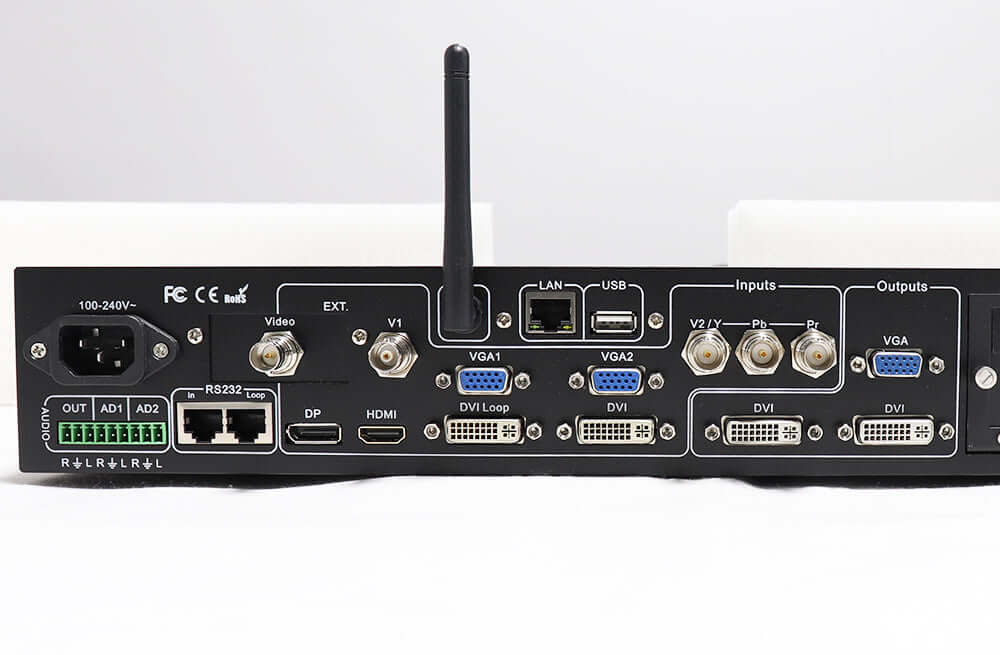

Input Connectors

VGA:15pin D_Sub( Female )
DVI:24+1 DVI_D
YPbPr: BNC×3
S-VIDEO:4pin mini DIN( Female )


Nums / Type


VGA / DVI Format

1024×768@60Hz / 75Hz
1280×1024@60Hz / 75Hz
1920×1080@50Hz / 60Hz

VGA Scope / Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

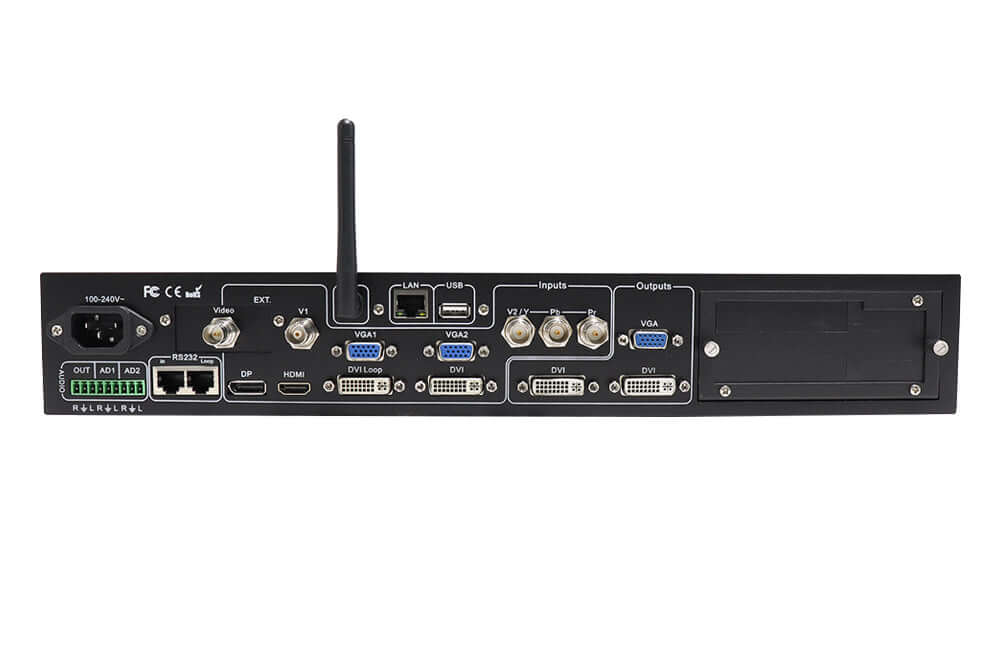

Output Connectors

VGA OUT:15pin D_Sub( Female )
DVI OUT2:<S, ?="" e="," ?,,="" styl,="" lang,="EN-US" n="" pa,="" 6.0pt?="" mso-bidi-font-size:="" 14px;="" font-size:="" #000000;="" color:="" 0pt;="" letter-spacing:="" arial;="" ?font-fami,="" ly:="" ,="">24+1 DVI_D

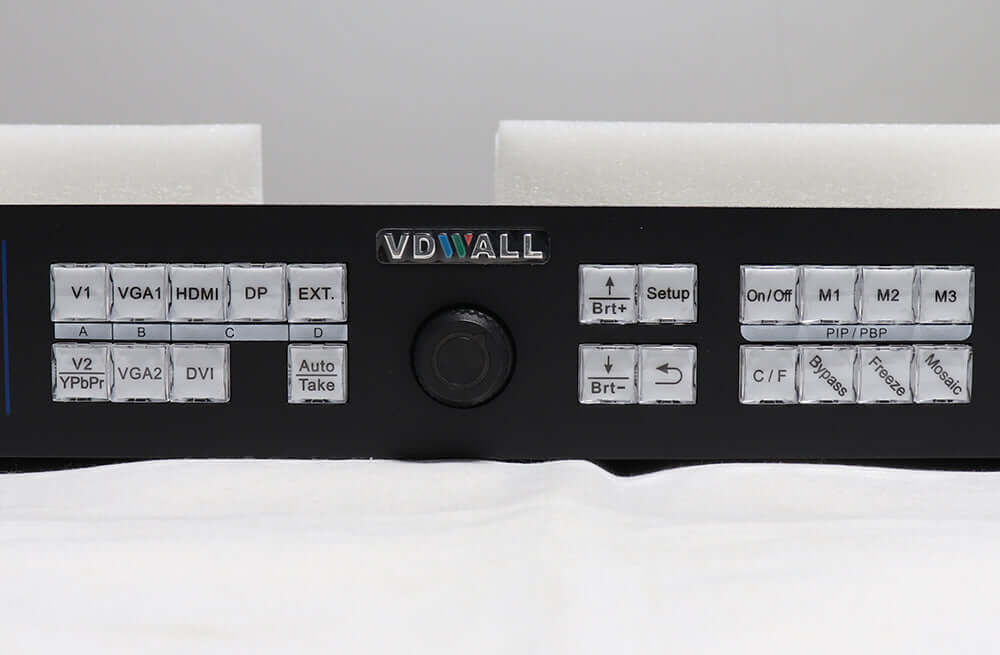

Panel Button / Knob / RS232


100-240VAC  35W  50 / 60Hz

Operating Temp

5-40 ℃




145 mm (height) ×370mm (width) ×535mm (length)


5.0 Kg




 VDWALL LVP615 HD Video Processor, Basic Model of LVP615 Series

VDWALL LVP615 HD Video Processor, Basic Model of LVP615 Series

Download Specification

VDWALL LVP615 HD Video Processor
