Linsn TS962 LED Sending Box – 4 Ports, HDMI and DVI
$ 328.00
Linsn TS962 provides four Gigabit LED outputs, HDMI/DVI inputs and loop outputs, with up to 2.6 million pixels of loading. LCD setup, rotary brightness control and external-sensor brightness adjustment are supported.
10000 in stock
Product overview
Linsn TS962 is an LED sending box with four Gigabit outputs and up to 2.6 million pixels of loading. It accepts DVI or HDMI video, provides corresponding loop outputs, and offers front-panel setup and brightness control for full-color, dual-color and single-color LED screens.
Product specifications
| Parameter | Specification |
|---|---|
| LED outputs / load | 4 Gigabit ports; up to 2.6 million pixels |
| Video inputs | 1 DVI and 1 HDMI |
| Video loop outputs | 1 DVI and 1 HDMI |
| Audio input | 1 × 3.5 mm |
| Configuration | RCG readback; RCG and CON broadcasting; USB setup |

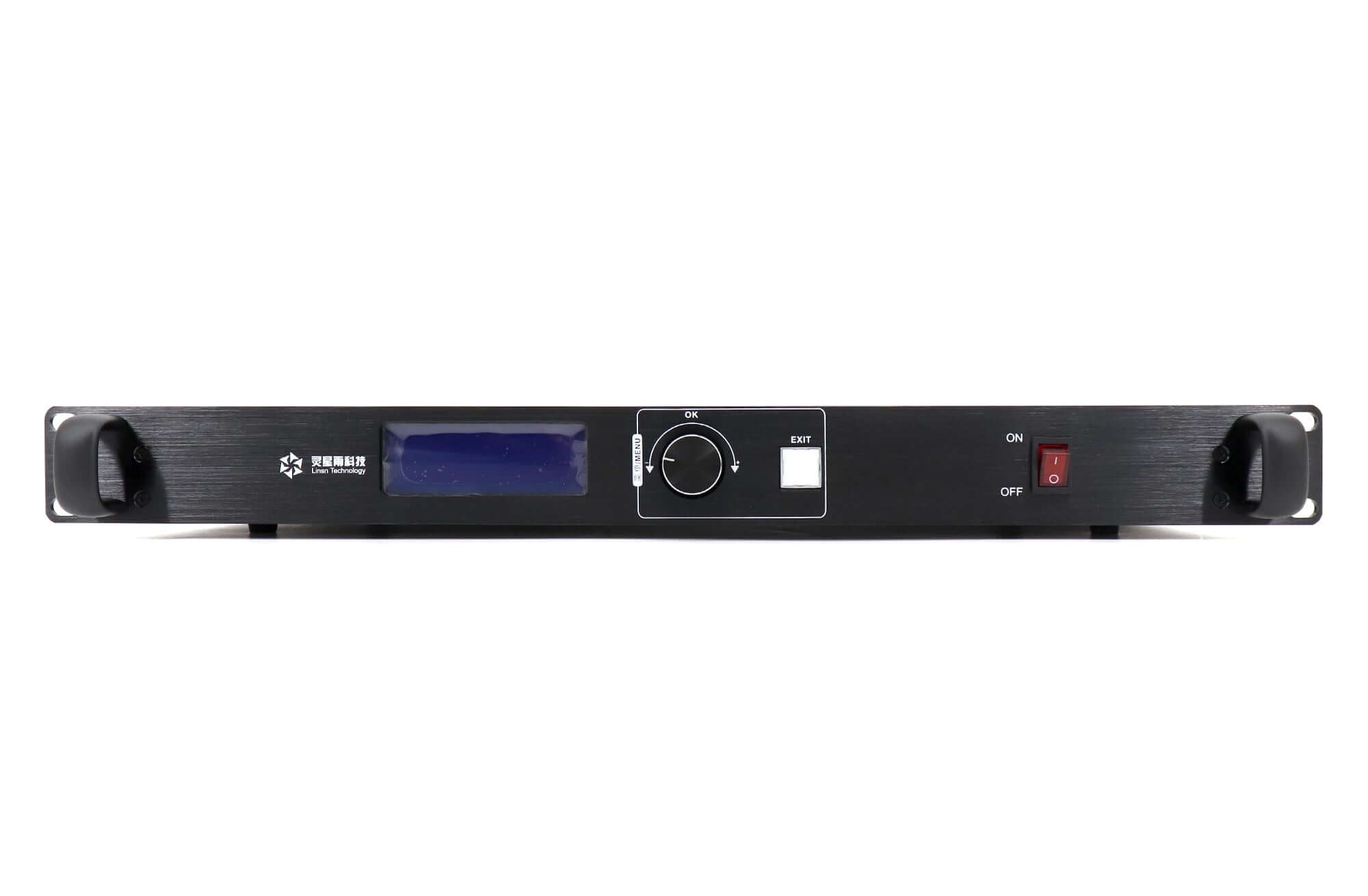

| Local controls | LCD panel and rotary control; quick setup without a PC |
| Brightness | Rotary adjustment; automatic adjustment with an external light sensor |
| Cascade | UART-IN and UART-OUT |
| Power | AC 100–240 V; 20 W consumption |
| Operating conditions | −20°C to +75°C; 0–95% humidity |
| Size class / weight | 1U; 3 kg |
Setup and brightness control
The linked V1.5 specification lists examples including 2560 × 1024, 1920 × 1200 and 2048 × 1152 video sources. Confirm the exact input timing and receiving-card screen map for the installation; source timing and LED loading are separate considerations.
The LCD and rotary control support quick setup and brightness adjustment. Automatic brightness needs an external light sensor. PC-free setup does not by itself mean the sending box stores or plays advertising files without a video source.
Frequently asked questions
1. How many pixels can TS962 control?
The specification lists up to 2.6 million pixels with four Gigabit network outputs. Confirm the cabinet-to-port map before installation.
2. Does TS962 have HDMI and DVI loop outputs?
Yes. The V1.5 document lists one DVI input and loop output, plus one HDMI input and loop output.
3. Can brightness change automatically?
Yes, with the required external light sensor. The front rotary control also supports brightness adjustment.
4. Can I set up TS962 without a computer?
Quick setup without a PC is listed. This refers to controller setup; the document does not establish standalone media-file playback.
Download specification
LINSN TS962 4 Ethernet LED Screen LED Sending Box Specification
