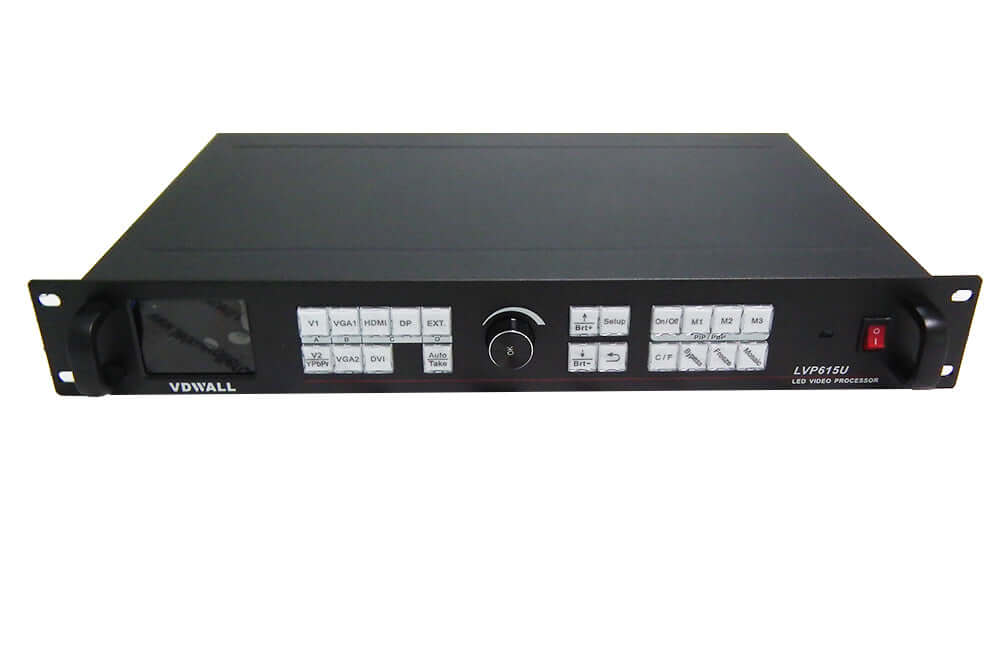

VDwall LVP615U HD LED Video Processor Price

VDWall
VDWALL-LVP615U
In stock
$524.00
VDwall LVP615U HD LED Video Processor Features: 1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer 2....

VDwall LVP615U HD LED Video Processor Features:

1.New generation Faroudja Real Color professional LED video processor. 10+ Bit Faroudja DCDI Cinema Processing and Faroudja TureLife Video Enhancer

2. Two signal switching ways: one button to switch and pretake + Take switching

3. Seamless switching, Fade-in/Fade out & Blend switching in different input signals

4. 3 custom PIP/PBP display modes to switch by one button. Any PIP/PBP display

5. AIAO(Any In Any Out) function allows for displaying any capturing picture in specific area on the screen

6. User define output format to reach maximal horizontal width 3840 or vertical height 1920

7. User define DVI EDID to realize pixel-to-pixel display

8. DVI loop to install multi-unit in parallel to drive indefinite LED lattice . Frame synchronous techology, no miss alignment or delay between two adjacent image output.

9. Convenient operation by panel/PC software/ infrared remote contol/Wi-Fi

10.Smart chip 4 core 64-bit processor, multi-core 3D CPU 4K / 2K 60FPS hard decoding

11.Plug and play USB interface, fast input

12.Supports multiple audio, video and file formats

13.Intelligent WIFI networking, full platform coverage, can play network resources

14.Support mobile phone wireless operation, support Airplay DNLA Miricast compatible with iOS Android and Windows operating system

15.Mobile phone operation to support the source switch, splicing, freeze and picture in the opening and closing



Feature one:Wireless Wi-Fi control&remote control

VDwall LVP615U HD LED Video Processor Price

Feature two:PIP/PBP,text overlay

VDwall LVP615U HD LED Video Processor Price

Feature three: Synchronic Multi-uit In Parallel

VDwall LVP615U HD LED Video Processor Price



VDwall LVP615U HD LED Video Processor Specification:

Inputs

Number/type

2×Video

1×YPbPr

2×VGA(VESA)

1×DP(VESA)

1×DVI(VESA)

1×HDMI

(VESA/CEA-861)

1×EXT.

(2*USB+WIFI)

Video system

PAL/NTSC

Composite

video amplitude

/Impedance

1V(p_p)/ 75Ω

YPbPr format

SD/HD(CEA -861)

YPbPr

Amplitude

/Impedance

Y= 1.0V(p_p)/ 75Ω

Pb= 0.35V(p_p)/ 75Ω

Pr= 0.35V(p_p)/ 75Ω

VGA format

PC(VESA)

≤2048x1152 _60Hz

VGA Amplitude

/Impedance

R、G、B = 0.7 V

(p_p)/ 75Ω

DP format

DisplayPort1.1

(VESA)

DVI format

PC(VESA)

≤2304x1152_60Hz

HDMI1.3

(CEA -861)

Custom

output format

width≤3840

height≤1920

HDMI format

(HDCP1.3)

PC(VESA)

≤2304x1152_60Hz

HDMI1.3

(CEA -861)

≤1920x1080p_60Hz

SDI format

SMPTE259M-C

SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、

1080i、

1080p

audio

2.0Vp-p/10K?

Input connectors

Video:BNC

YPbPr:BNC×3

VGA:15pin

D_Sub(female)

DP:DisplayPort

SMT female 20pin

DVI:24+1

DVI_D

HDMI:HDMI

 port A type

SDI :BNC

Outputs

Number /Type

1×VGA

(RGBHV)

2×DVI

VGA/DVI resolution

1024×768_60Hz

/75Hz

1080×1920_60 Hz

1200×1600_60 Hz

1280×1024_60Hz

/75Hz

1366×768_60Hz

1440×900_60Hz

1536×1536_60 Hz

1600×1200_60Hz

1920×1080p_50Hz

/60Hz

1920×1200_60 Hz

2048×1152_60Hz

2304×1152_60Hz

2560×816_60Hz

Custom

output format

(maximum output

horizontal 3840

pixels or vertical

1920 pixels.)

VGA Amplitude

/Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

Output ports

VGA OUT:

15pin D_Sub

( female)

DVI OUT1:

24+1 DVI_D

DVI OUT2:

24+1 DVI_D

Others

Control methods

Wireless wifi,

IP/LAN,front

panel button,

infrared remote

control, PC software.

Ipad, mobile phone

terminal and etc..

Input voltage

100-240VAC

 50/60Hz

Maximum power

consumption

≤25W

Environment

 temperature

0-45 ℃

Environment

humidity

15-85%

size(package)

130mm(H)

×350mm(W)×520mm(L)

Weight

G.W.:5.7 Kg,

N.W.:4.0 Kg

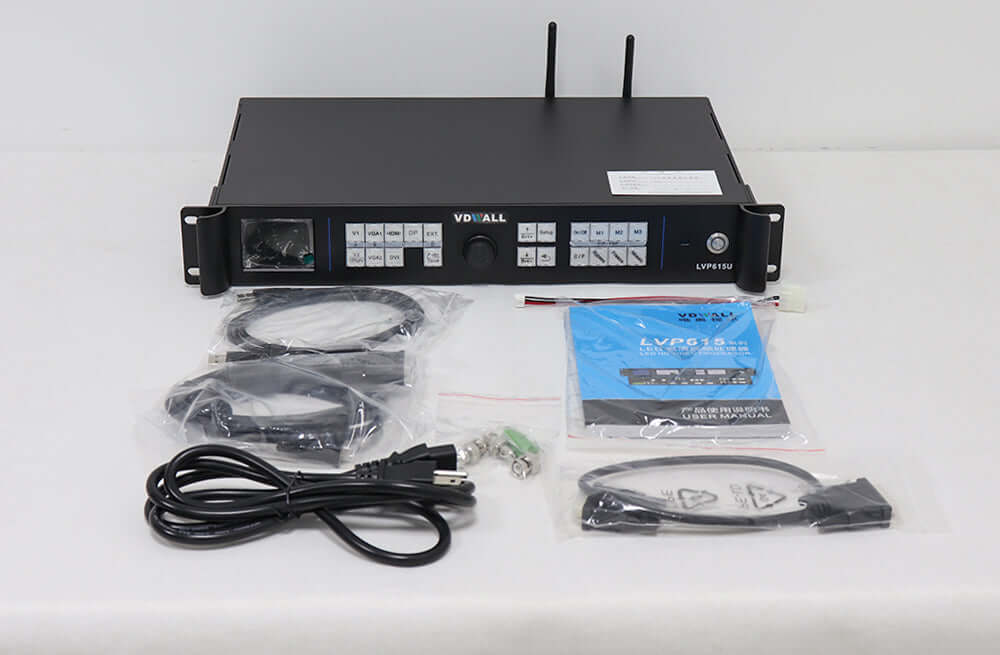

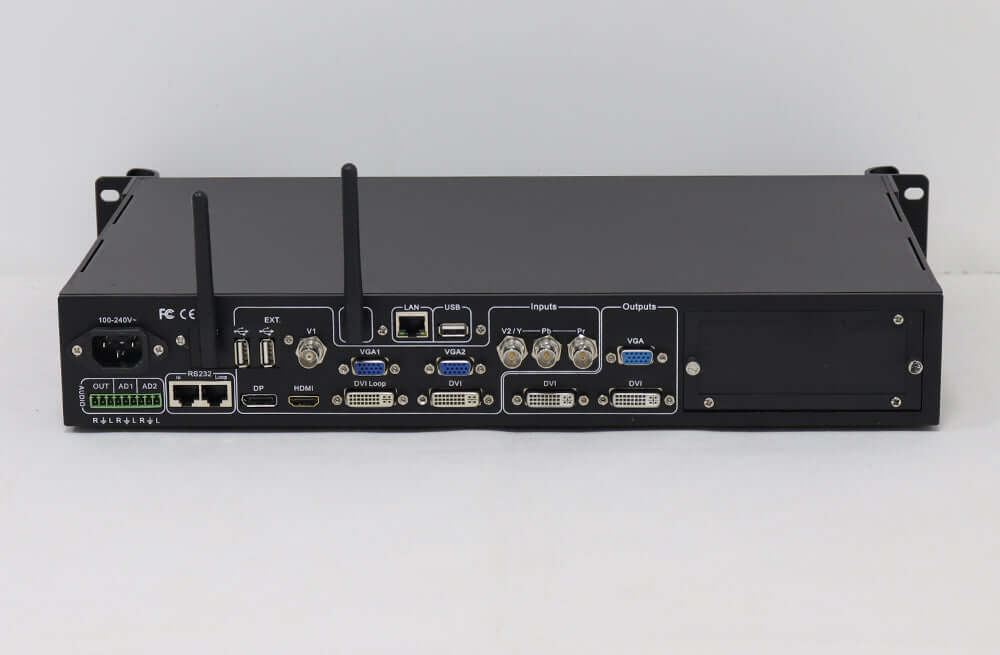

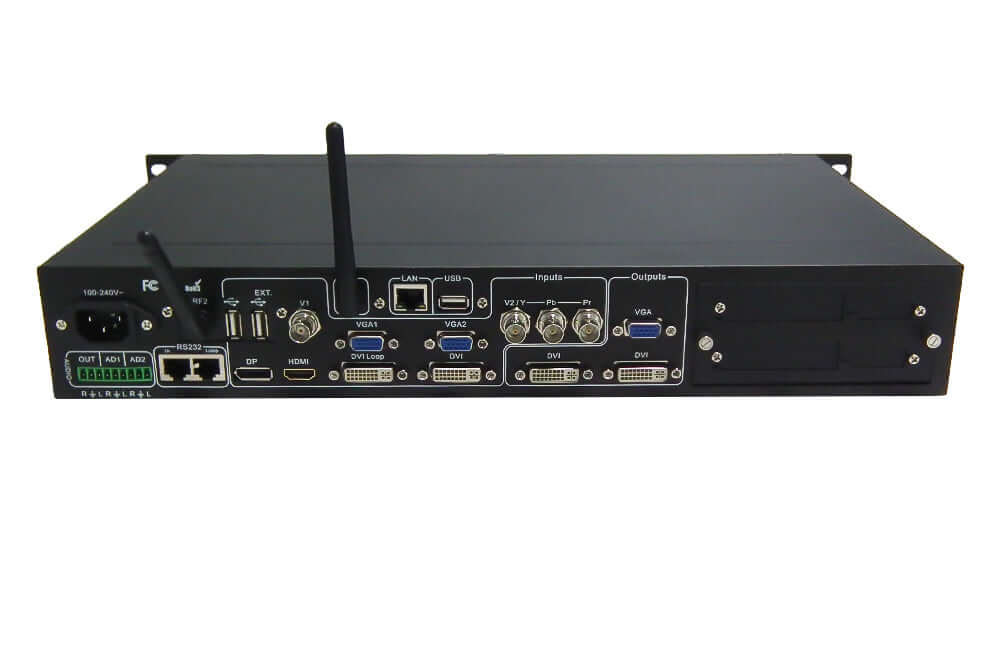

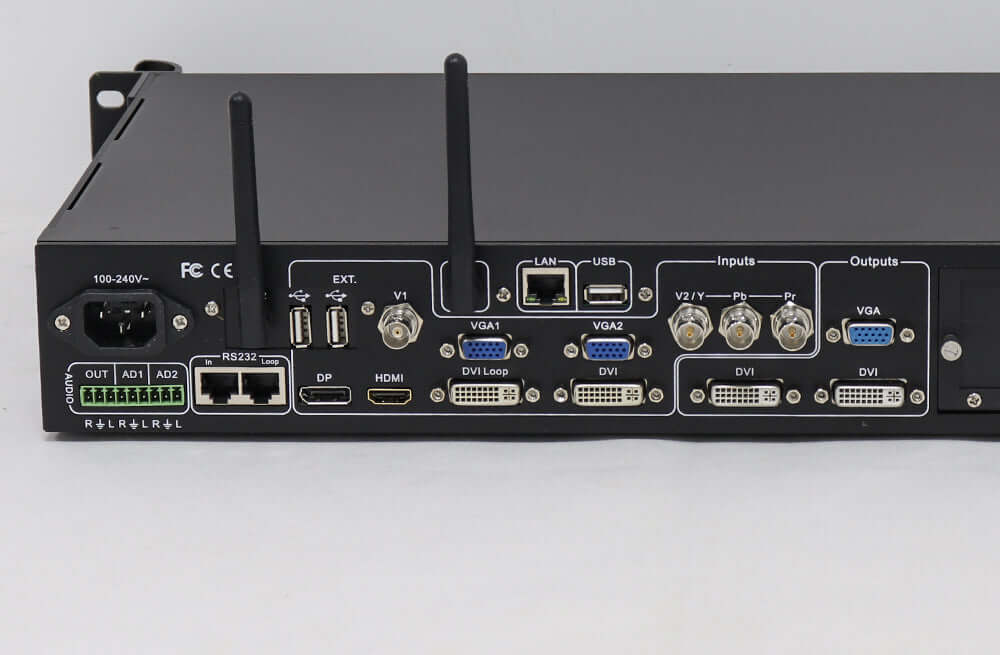

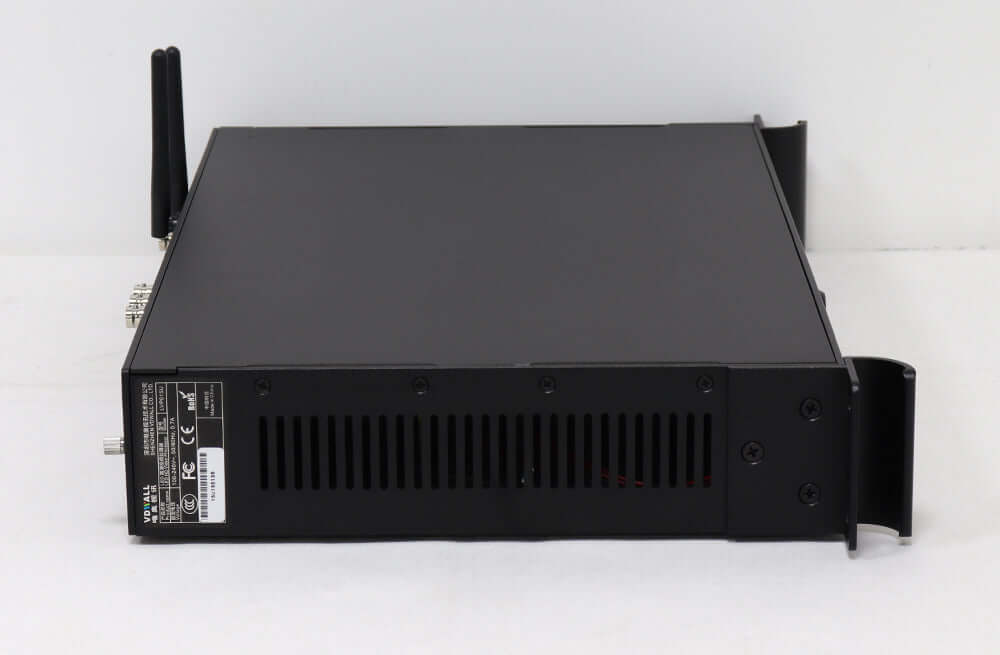

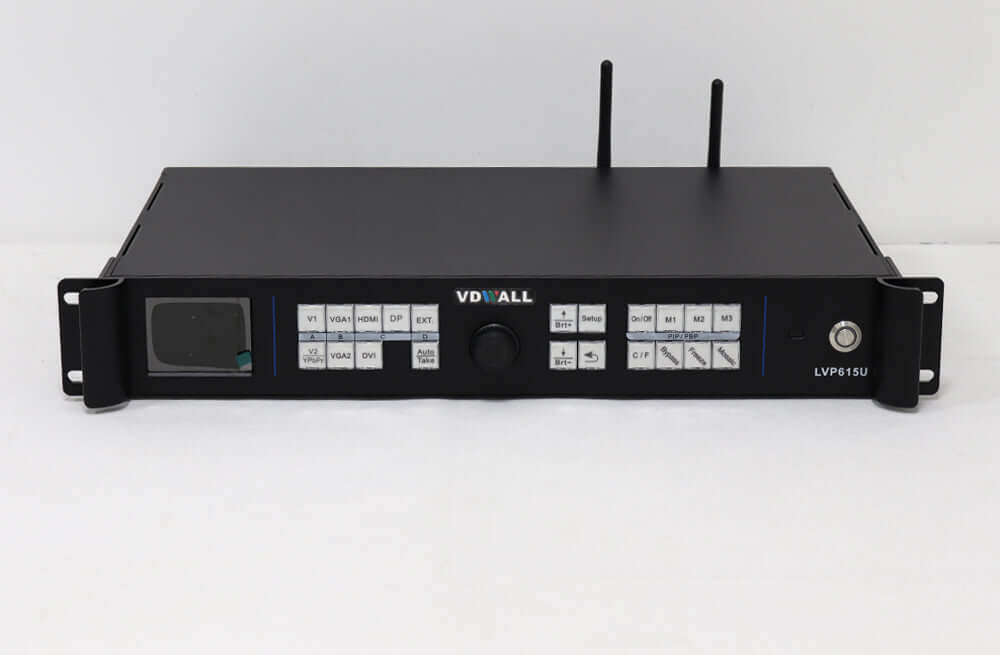

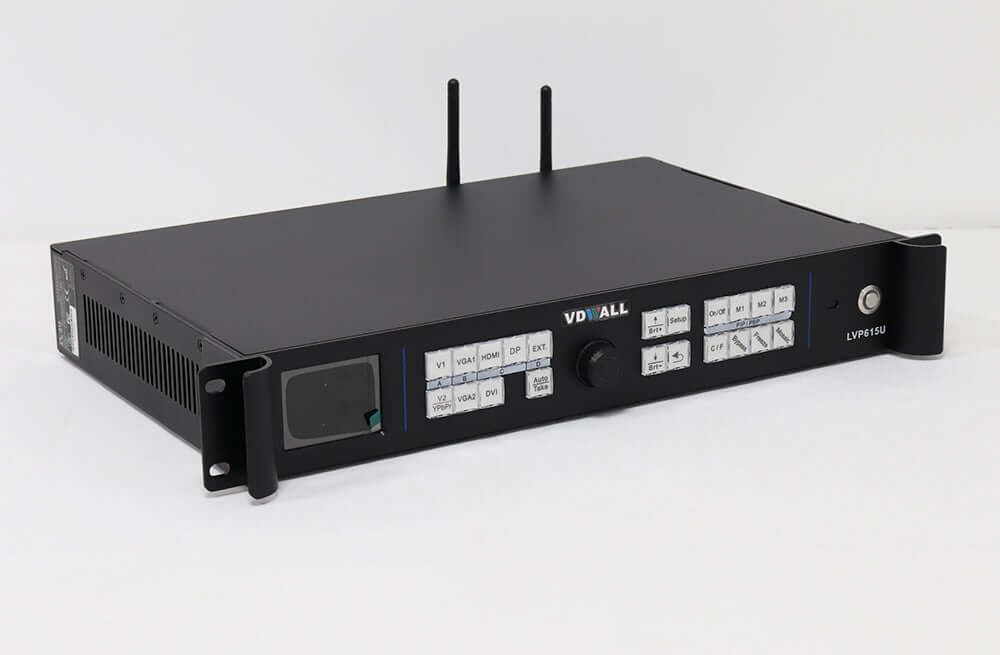

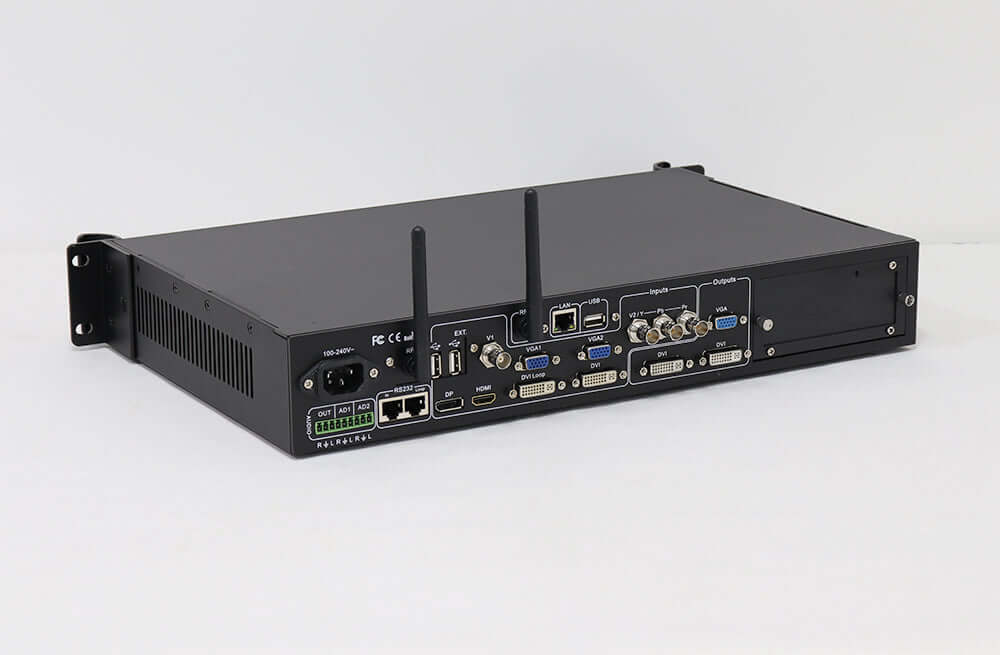

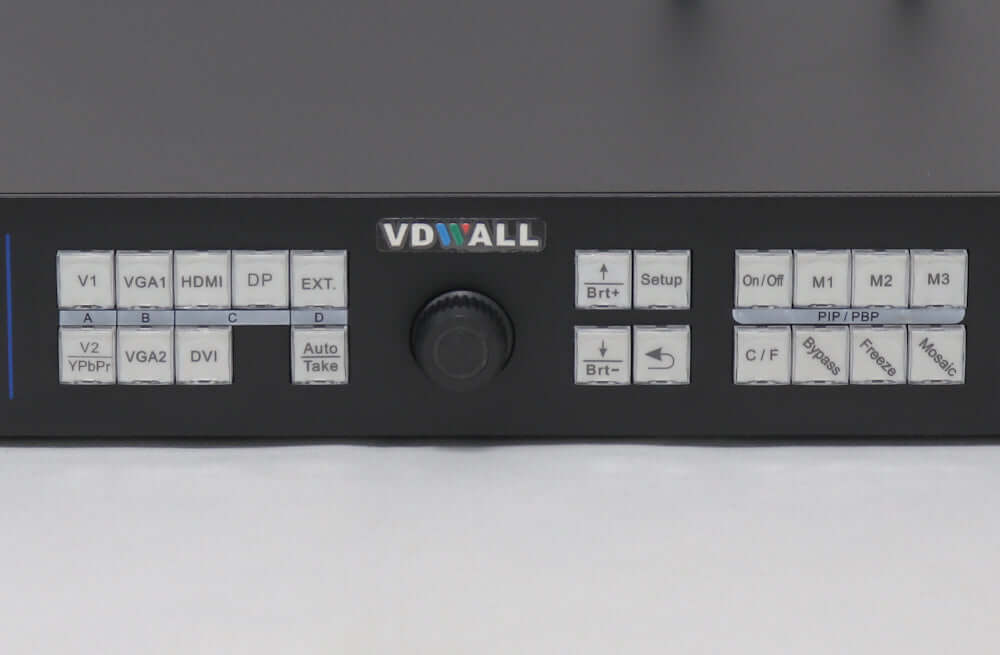

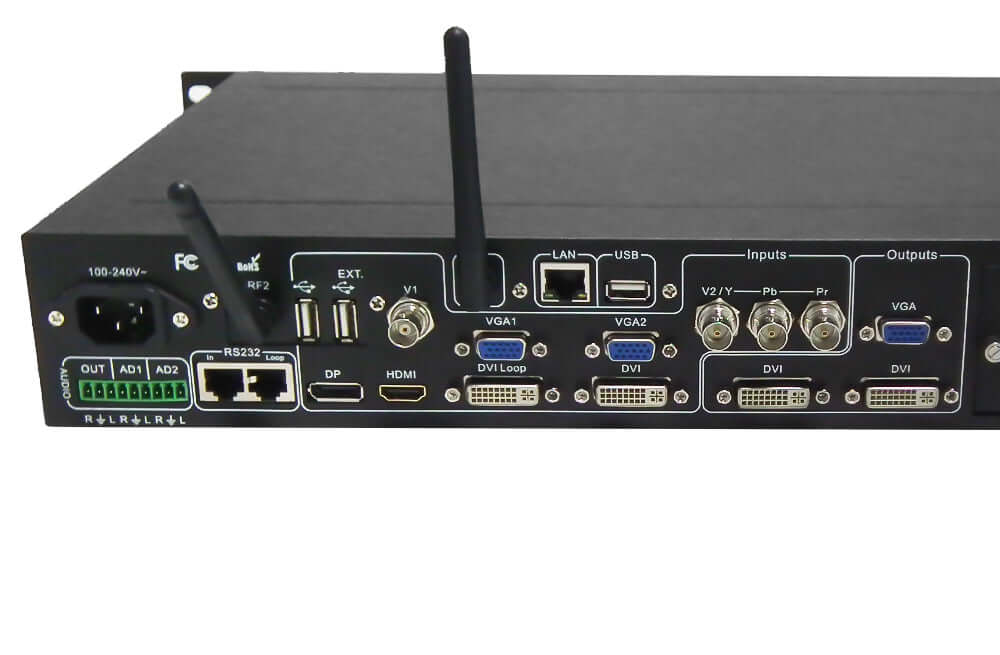

More Pictures of VDwall LVP615U HD LED Video Processor Price

VDwall LVP615U HD LED Video Processor Price

VDwall LVP615U HD LED Video Processor Price

VDwall LVP615U HD LED Video Processor Price

VDwall LVP615U HD LED Video Processor Price

VDwall LVP615U HD LED Video Processor Price



VDwall LVP615U HD LED Video Processor Download:

Overview of VDwall LVP615U HD LED Video Processor Price V1.0

VDwall LVP615U HD LED Video Processor user manual
