Xixun Y60C-EU Control Card For LED Display Screen Overview:
With the development of the LED display industry, in some fields, it is necessary to support wireless transmission, dual network port backup is required, the control card needs to be connected to the network through a network cable or Wi-Fi or 4G, and it needs to be controlled by a mobile phone. Xixun Y60 is tailored for these needs, which can eliminate the trouble of wiring and perform wireless network configuration like a router.
The Y60 series adopts the Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured with a 28nmLP CMOS process, with a quad-core frequency of 1.1GHz, and the memory supports 1GB+8GB (compatible with 2GB+16GB) LPDDR3. The chip can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards, and is a highly integrated product.
Xixun Y60C-EU Control Card For LED Display Screen Features:.
1. Support FCC, CE certification;
2. Lora wireless school time multi-screen synchronization;
3. Onboard WiFi module to realize wireless communication;
4. Support AP mode, Station mode;
5. Support secondary development and remote cluster control of cloud platform;
6. Built-in Web Sever, support local web page production, support computer, iPhone, Android phone, tablet stand-alone program editingEdit, fully compatible with cross-platform systems;
7. Video hard decoding, support 1080P;
8. Dual network port super load capacity, resolution 720*1280;
9. Support dual network port loop backup;
10. Support full color static to 32 scan modules;
11. Conventional chips with high refresh, high brightness, and high grayscale; full chip support: support for Accumulation, Chichuang North, Riyuecheng, Mingyang, etc.
A full range of driver ICs;
12. Industrial-grade on-board Flash: 8GB; highly integrated;
13. Support USB camera;
14. Support receiving card storage parameters (used with the ninth generation receiving card);
15. Supporting software: LedOK Express.

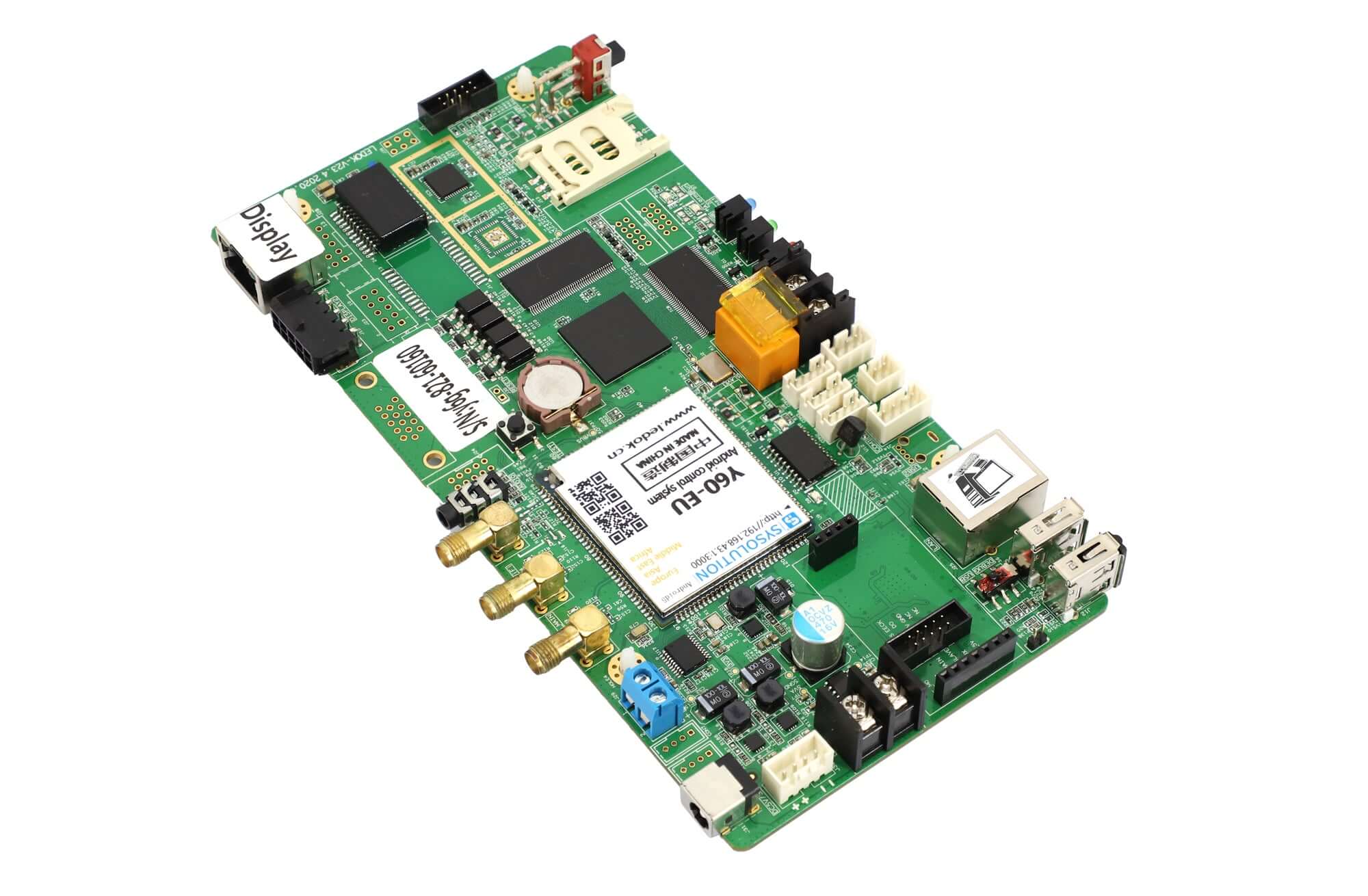

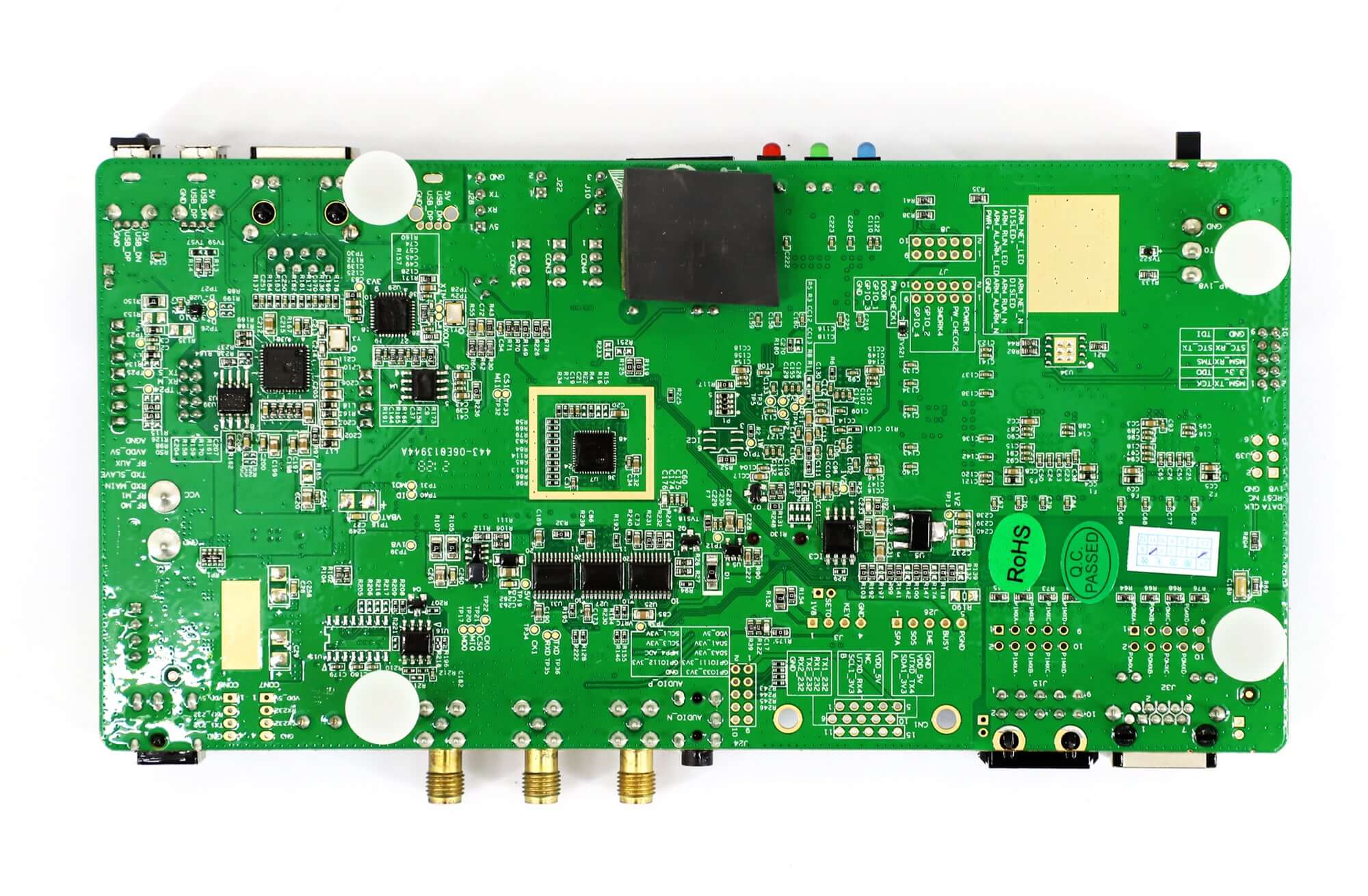

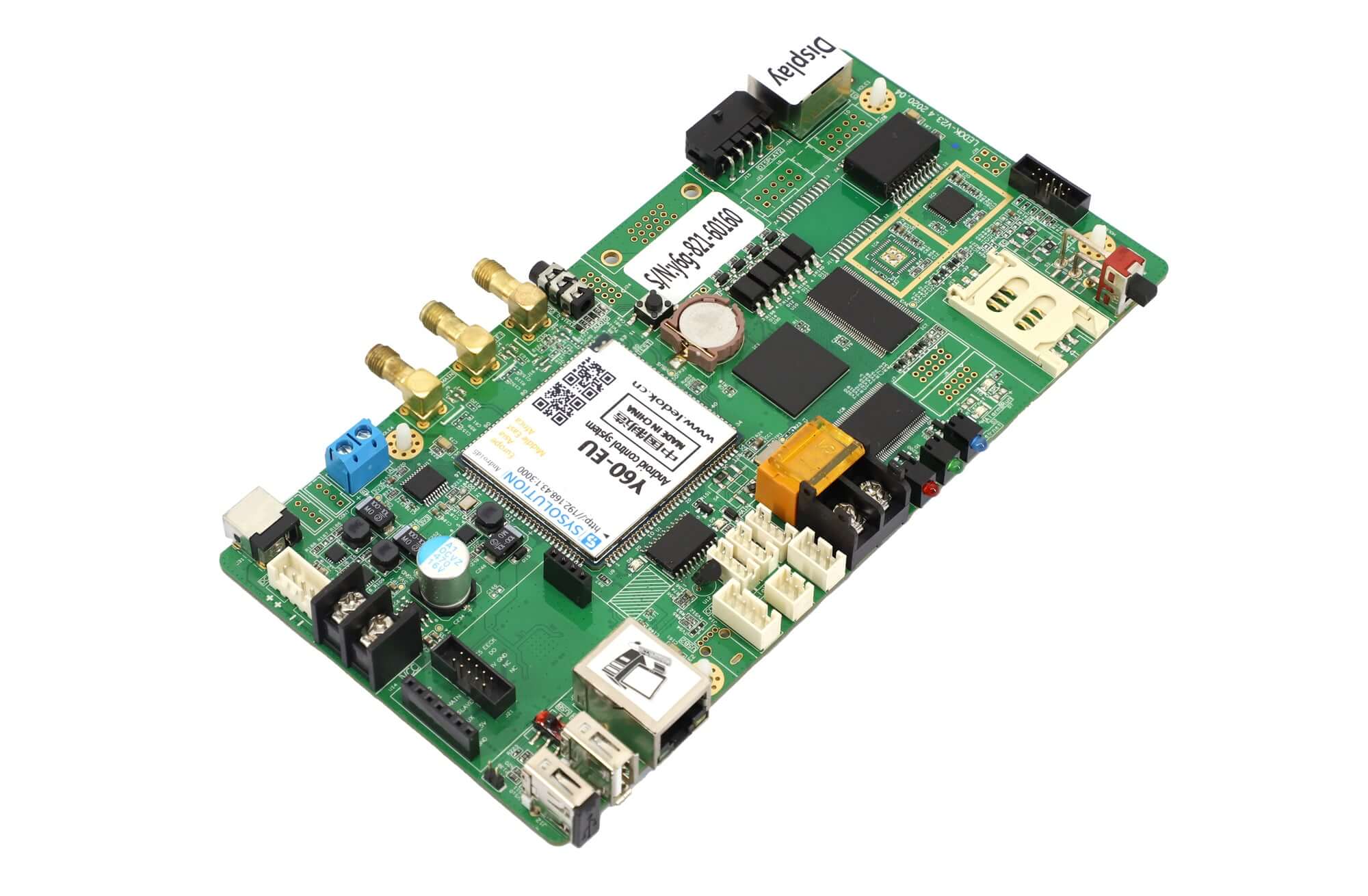

Most pictures of Xixun Y60C-EU Control Card For LED Display Screen：
Xixun Y60C-EU Control Card For LED Display Screen Specification
