YOUYI YY-D-400-5 5V80A 400W LED Power Supply

Eager-LED
YOUYI-YY-D-400-5
In stock
$17.60
YOUYI YY-D-400-5 5V80A 400W LED Power Supply Supply Features: 1. Toshiba high voltage MOS tube, with high pressure resistance, and good switching performance. 2. Provide over-voltage protection, over-current...

YOUYI YY-D-400-5 5V80A 400W LED Power Supply Supply Features:

1. Toshiba high voltage MOS tube, with high pressure resistance, and good switching performance.

2. Provide over-voltage protection, over-current protection, over-temperature protection short circuit protection, overload protection. When the protection mechanism is triggered, the power is automatically turned off, and after the fault is removed, the power supply is resumed.

3. Fan can automatically adjust the speed according to the power supply temperature, when the temperature is low or do not turn vulgar, when the temperature is high when the high-speed rotation.





YOUYI YY-D-400-5 5V80A 400W LED Power Supply Parameter:

Model

 YY-D-400-5

Output

Output Voltage

5V

Max Current

80A

Current Range

0~60A

Max Power

400W

Ripple and noise

100mV

Voltage adjustment range

±1%

Voltage tolerance

±0.2%

Linear adjustment rate

±0.5%

Load regulation

±2.0%

Start Time

50mS

Hold time

20mS

Input

voltage range

200V~240V

Frequency Range

47Hz~63Hz

Effectiveness

86%

Inrush current

≤40A

Leakage current

≤2.0mA

Protection

Overload

Over Max Power of 110% to 150%



Over temperature

95℃±5℃

Cooling mode

Fan forced cooling

Enviroment

Operating temperature

—30℃~+60℃

Working humidity

20~90%RH,No condensation

Storage temperature, humidity

—40℃~+80℃,10~95%RH

Temperature Coefficient

±0.03%/℃(0~50℃)

Resistant to vibration

10-300MHz,1G,10Minute / period,

X.Y.Z axis for 60 minutes each.

Safity

Safety Standard

Accord to GB4943、UL60950、EN60950

EMC Standard

Accord to GB9254、EN55022A

Pressure resistance

I/P-O/P:3KVAC/3mA/1min

I/P-FG:1.5KVAC/3mA/1min

O/P-FG:0.5KVAC/3mA/1min

Isolation resistance

I/P-O/P:50MΩmin/500VDC

Certified

CQC/ CE/ CB/ ROHS/CCC

Other

Dimensions

212*85*30mm

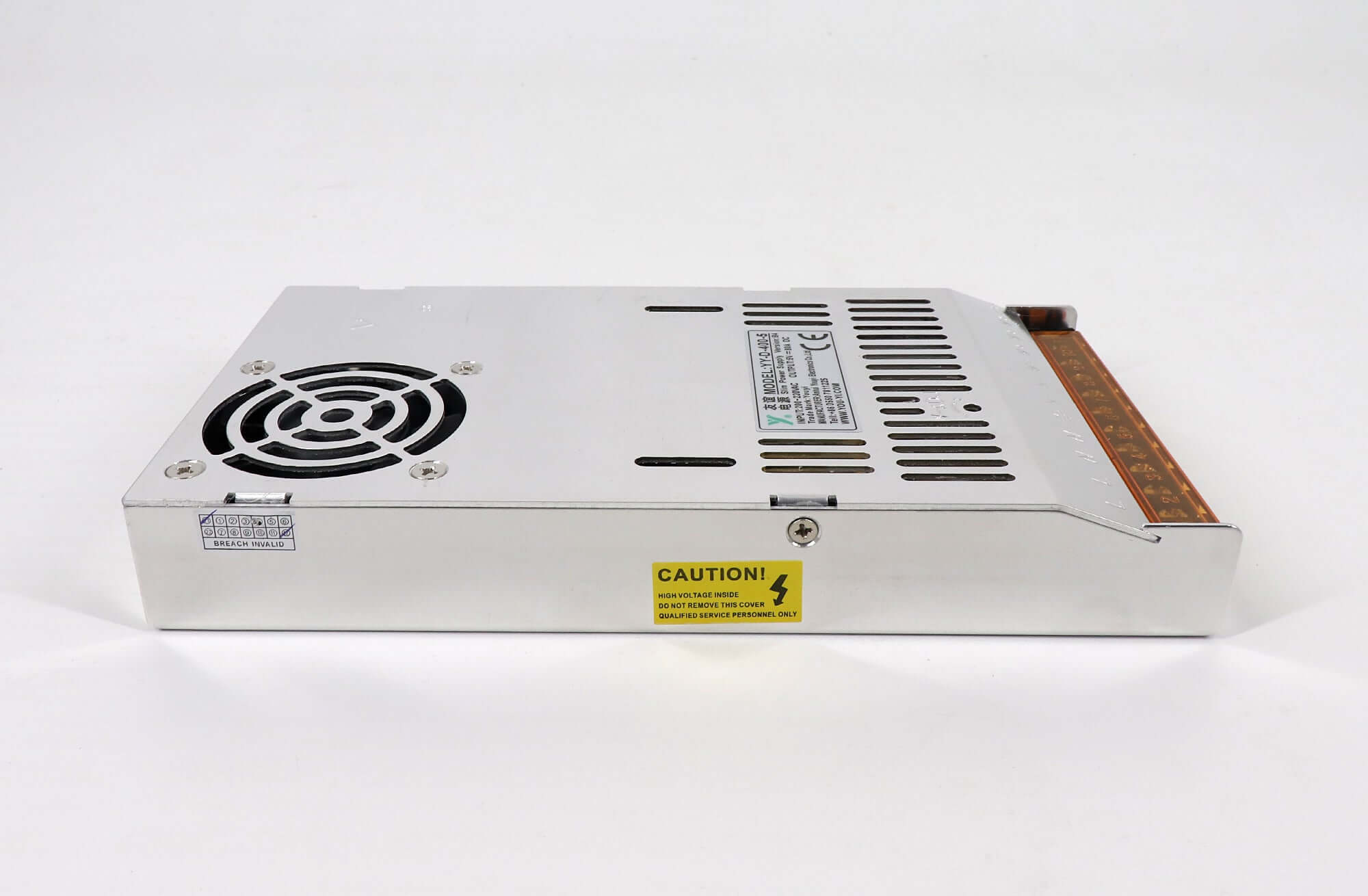

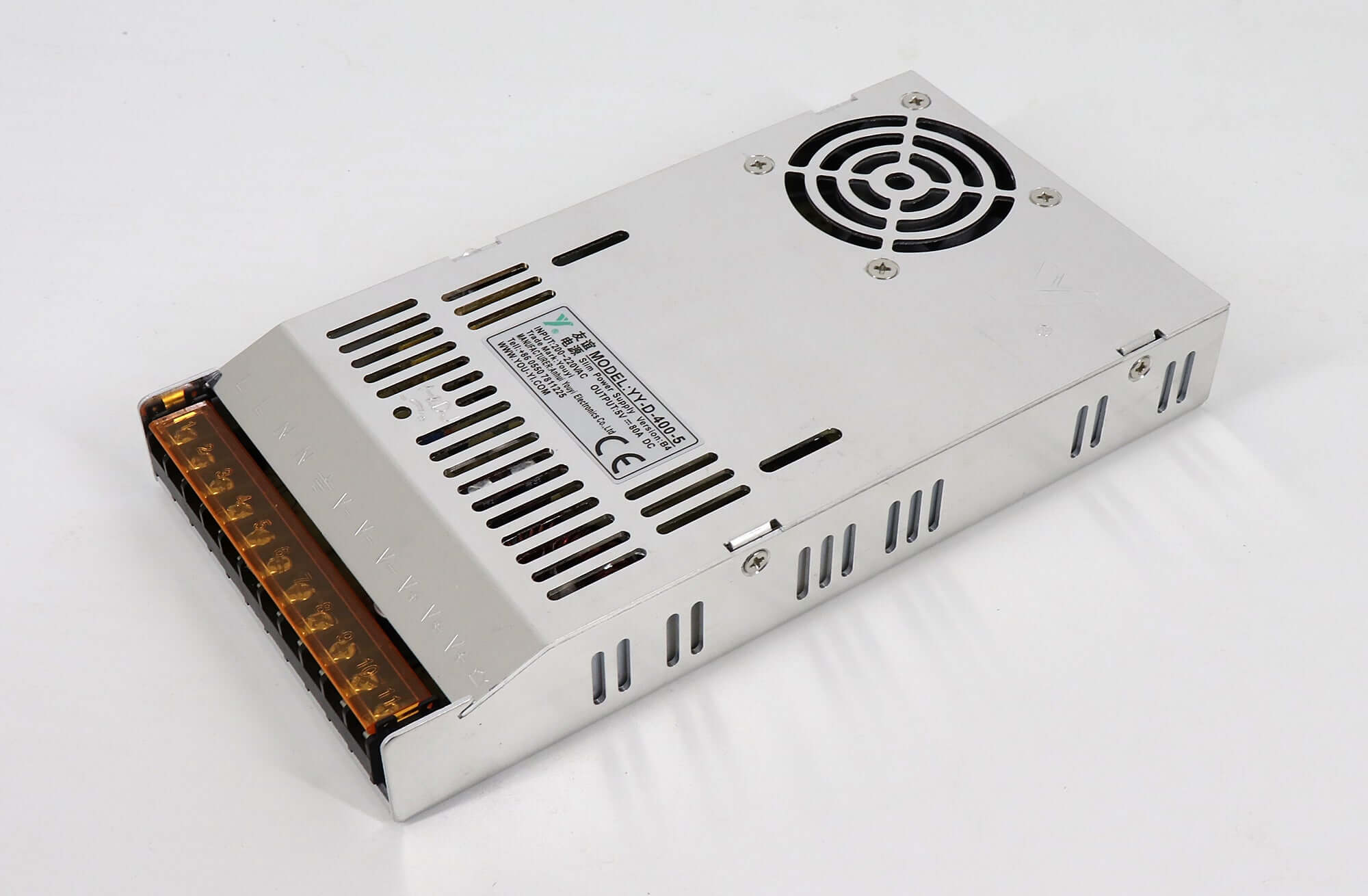

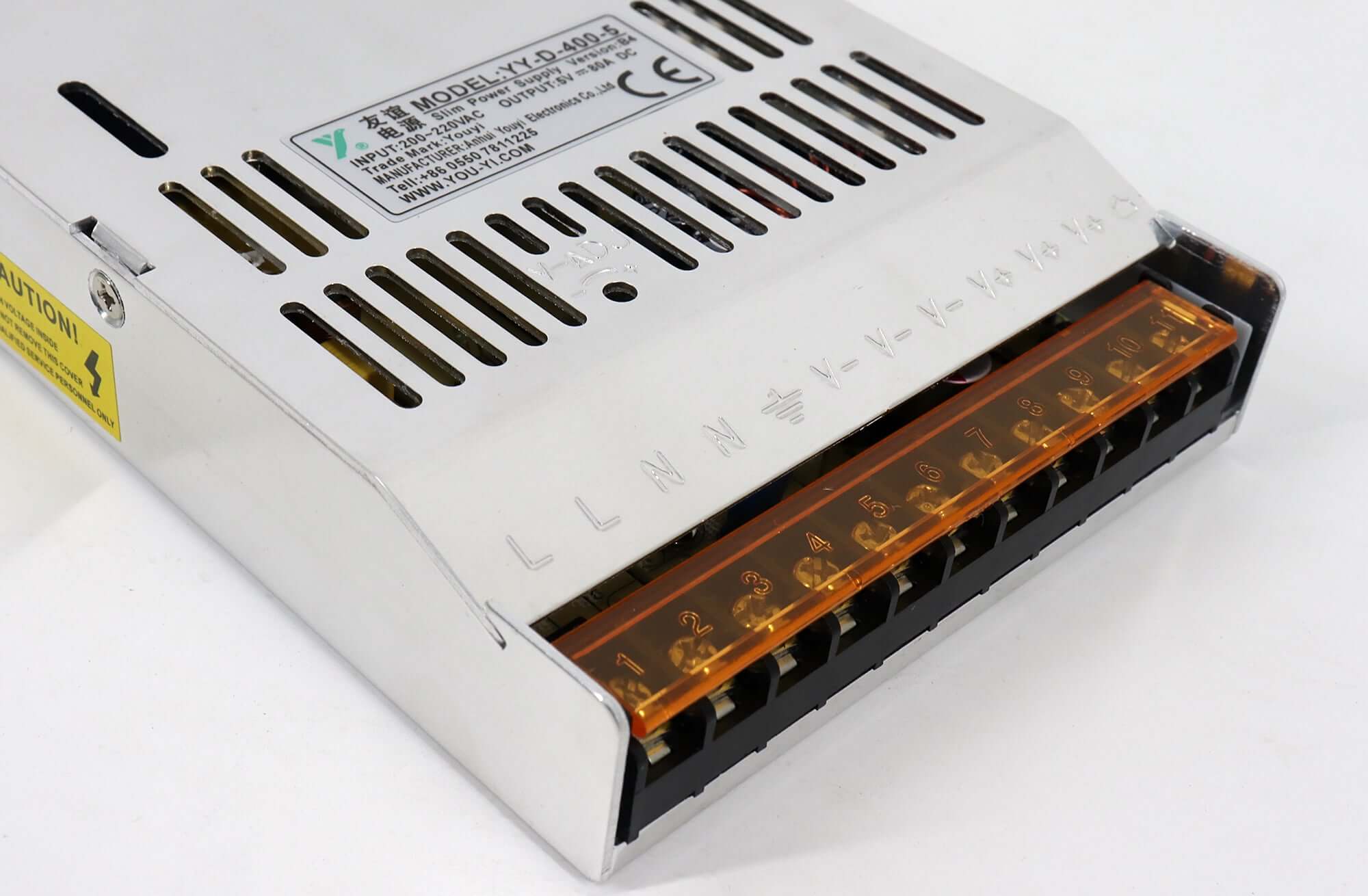

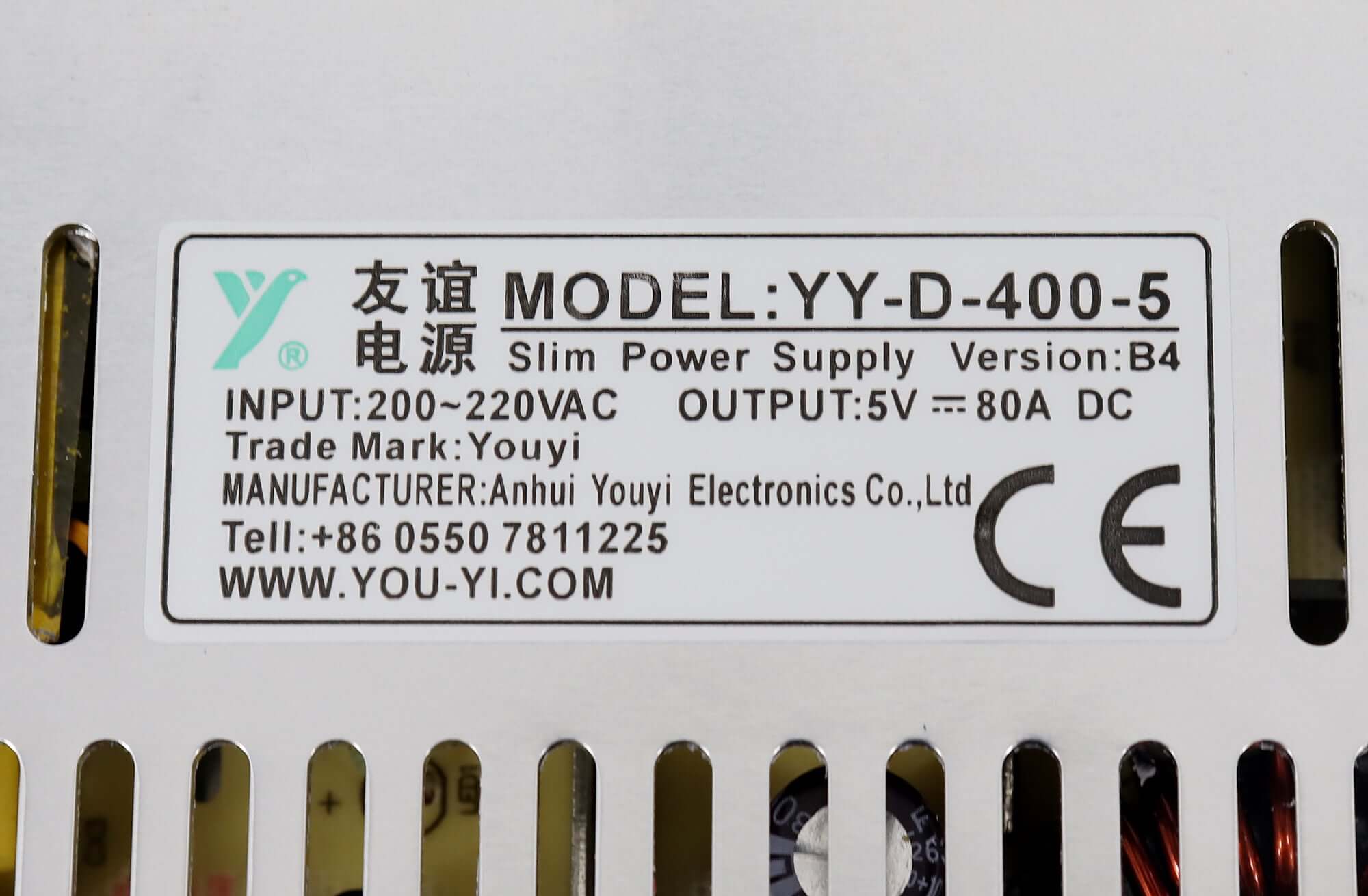

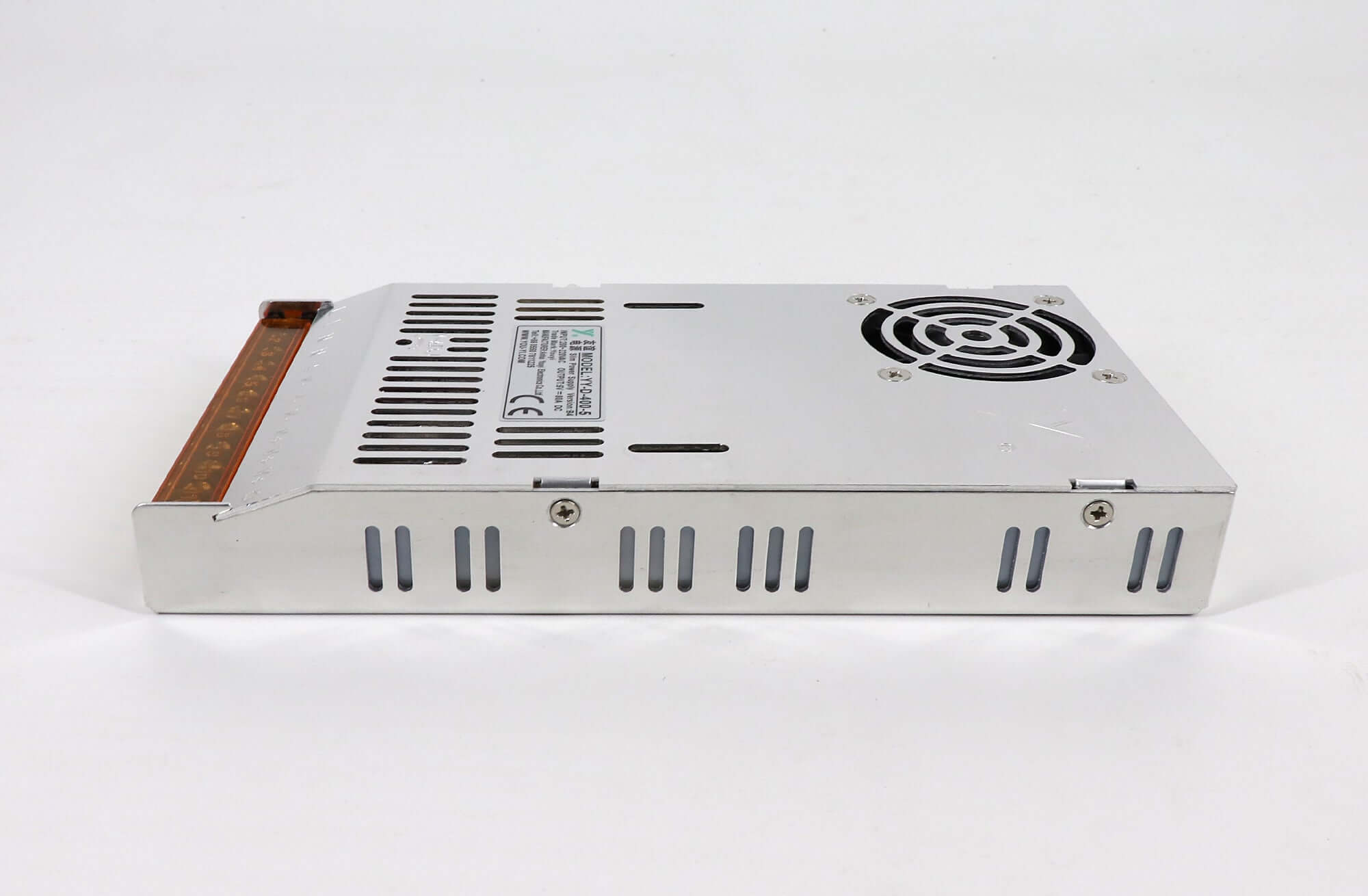

More Pictures of YOUYI YY-D-400-5 5V80A 400W LED Power Supply

YOUYI YY-D-400-5 5V80A 400W LED Power Supply

YOUYI YY-D-400-5 5V80A 400W LED Power Supply

Download Specification:

YOUYI-YY-D-400-5-5V80A-400W-LED-Power-Supply-Specification
