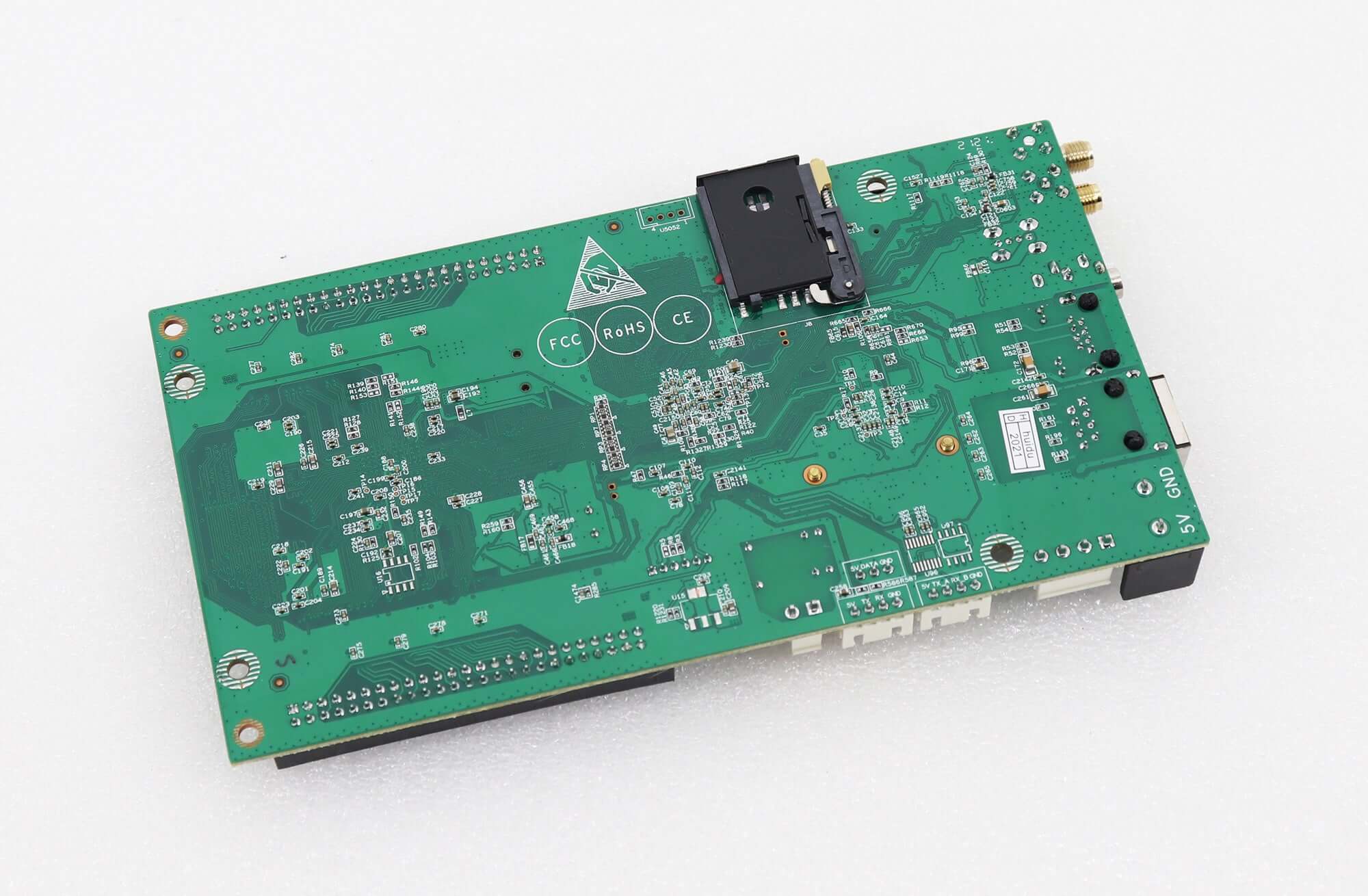

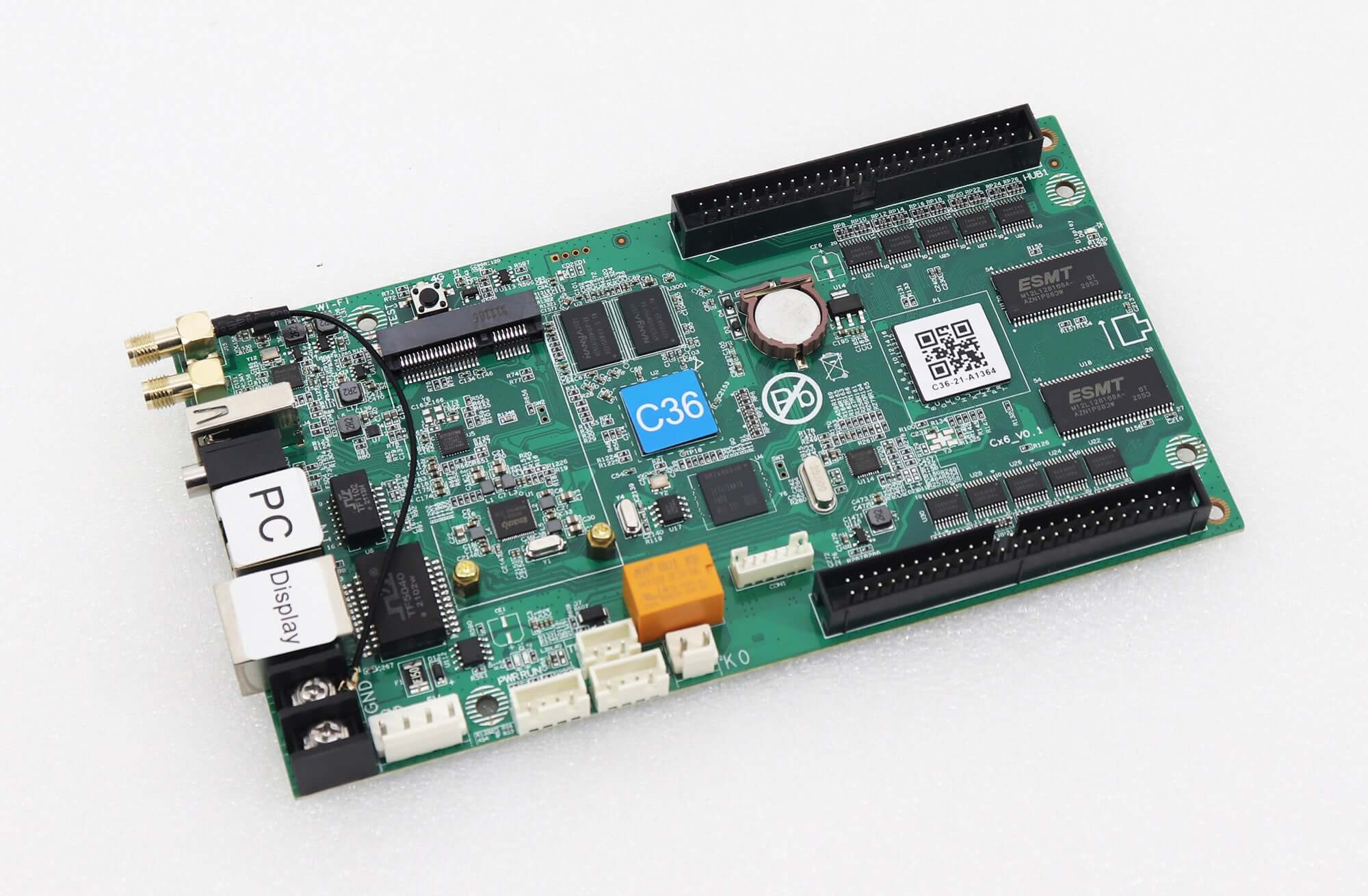

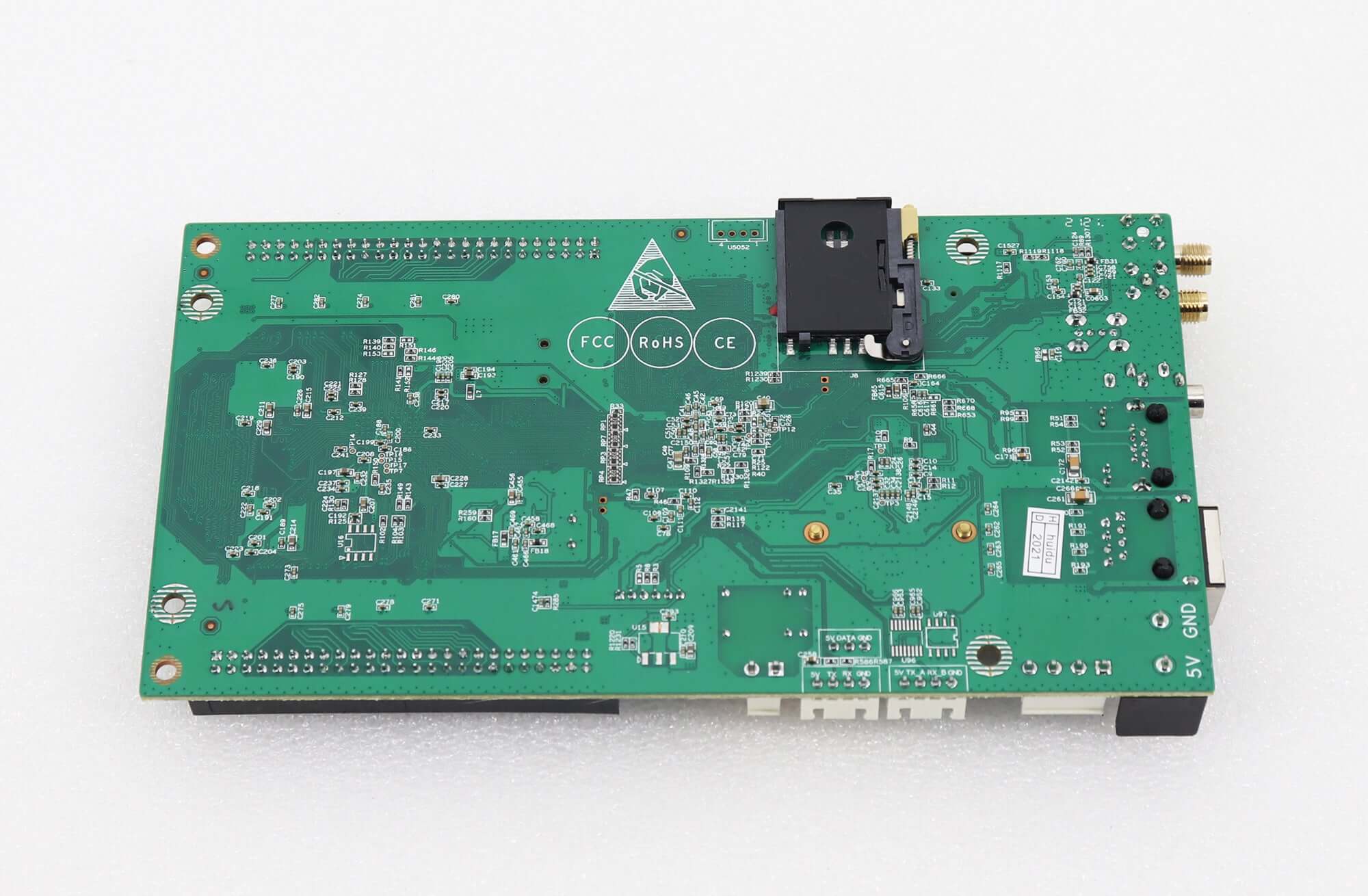

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card

Huidu
HUIDU-HD-C36
In stock
$103.00
HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Features: Control Range: 524,288 pixels. 4GB memory, support expending memory by U-disk. Support HD video hardware decoding, 60Hz...

HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Features:


  • Control Range: 524,288 pixels.
  • 4GB memory, support expending memory by U-disk.
  • Support HD video hardware decoding, 60Hz frame rate output.
  • Support widest 8192 pixel, Highest 1024.
  • No need set IP address, it could be identified by controller ID automatically.
  • Unified management of more LED display through Internet or LAN.
  • Come wiht Wi-Fi, Mobile APP management.
  • With a relay to control the power supply remotely.
  • Equipped 3.5mm standard audio interface output.
  • Support 4G connect to Internet (Optional).
  • HD C36 is equipped with 2-wire 50PIN HUB, which can be used for a receiving card.

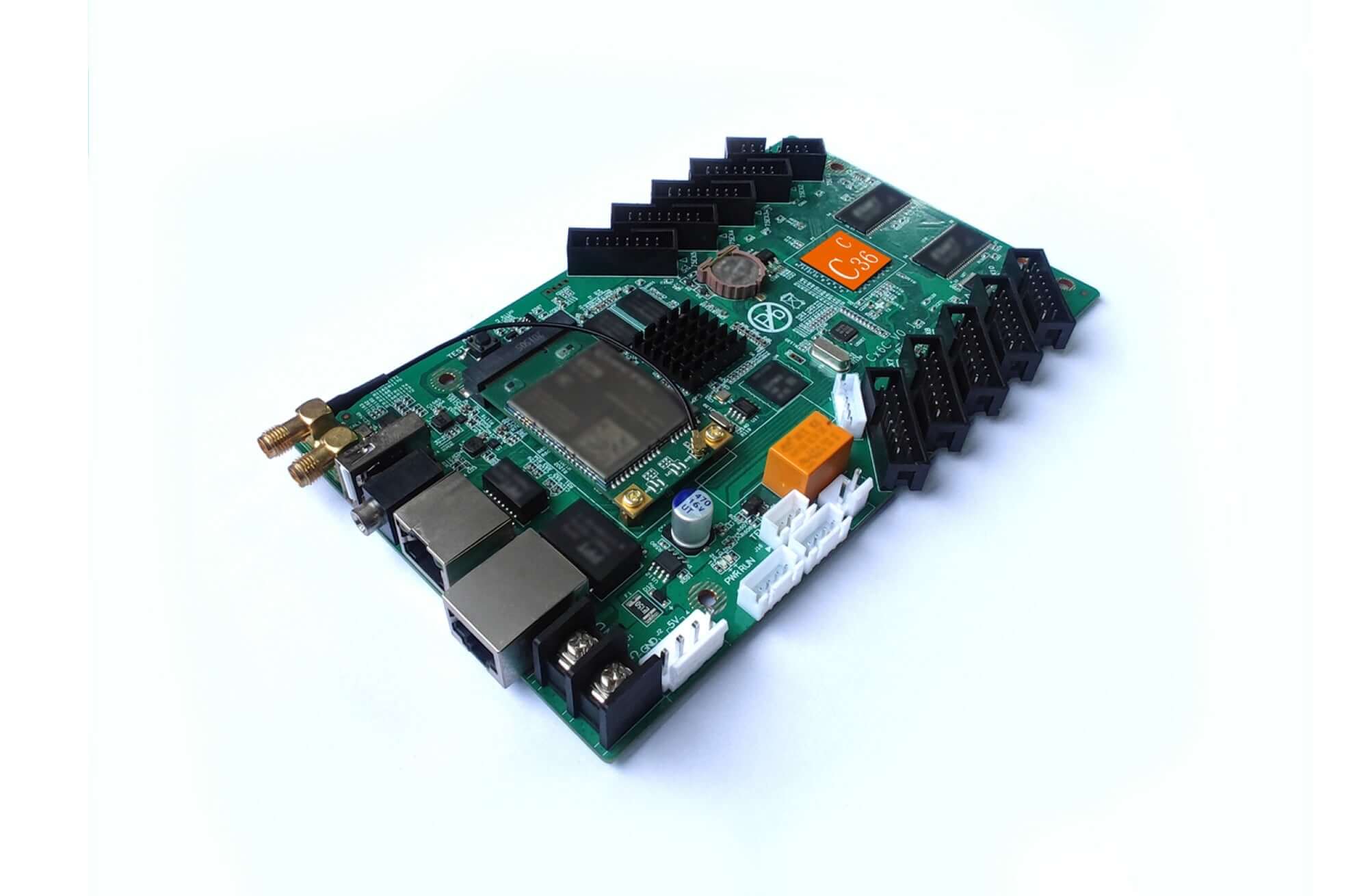

  • HD C36C is equipped with 10-wire HUB75E, which can be used for a receiving card.


 HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Control Mode:


  1. Internet unified management: The play box can be connected to the Internet through 4G (optional), network cable connection, or Wi-Fi Bridge.



  1. Asynchronous one-to-one control: Update programs by network cable connections, Wi-Fi connections or USB flash drives. LAN (cluster) control can access the LAN network through by network cable connection or Wi-Fi Bridge.



HUIDU HD-C36 HD-C36C Full Color Asynchronous LED Screen Control Card Parameter:

Function

Parameters

Module type

Compatible   with indoor and outdoor full color and single color module

Support   conventional chip and mainstream PWM chip

Scan Mode

Static to 1/64 scan mode

Control   Range

1024*512, widest 8192, highest 1024

Gray Scale

256-65536

Basic   functions

Video, Pictures, Gif, Text, office,   Clocks, Timing etc.

Remote, Temperature, Humidity,   Brightness etc.

Video format

Support 1080P HD video hardware   decoding, direct transmission, without transcoding waiting.

60Hz frame frequency   output

AVI,   WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.

Image Format

Support BMP, GIF, JPG, PNG, PBM, PGM, PPM,   XPM, XBM etc.

Text

Text editing, Image, Word, Txt, Rtf,   Html etc.

Document

DOC, DOCX, XLSX, XLS, PPT, PPTX etc. Office2007Document   format.

Time

Classic Analog clock, digital clock and   of clock with image background.

Audio output

Double track stereo audio output.

Memory

4GB Flash memory; Indefinite   expanding of U-disk memory.

Communication

Ethernet LAN port, 4G network (optional),   Wi-Fi, USB.

Working   Temperature

-20-80

Port

INPUTS: 5V DC*1, 100 Mbps RJ45*1, USB 2.0*1, test   button*1, sensor port*1, GPS port*1.

OUT:1Gbps RJ45*1, AUDIO*1

Power

8W






Download Specification

HUIDU HD C36 Full Color Asynchronous LED Screen Control Card Specification

HUIDU HD-C36C Full Color Asynchronous LED Screen Control Card Specification
