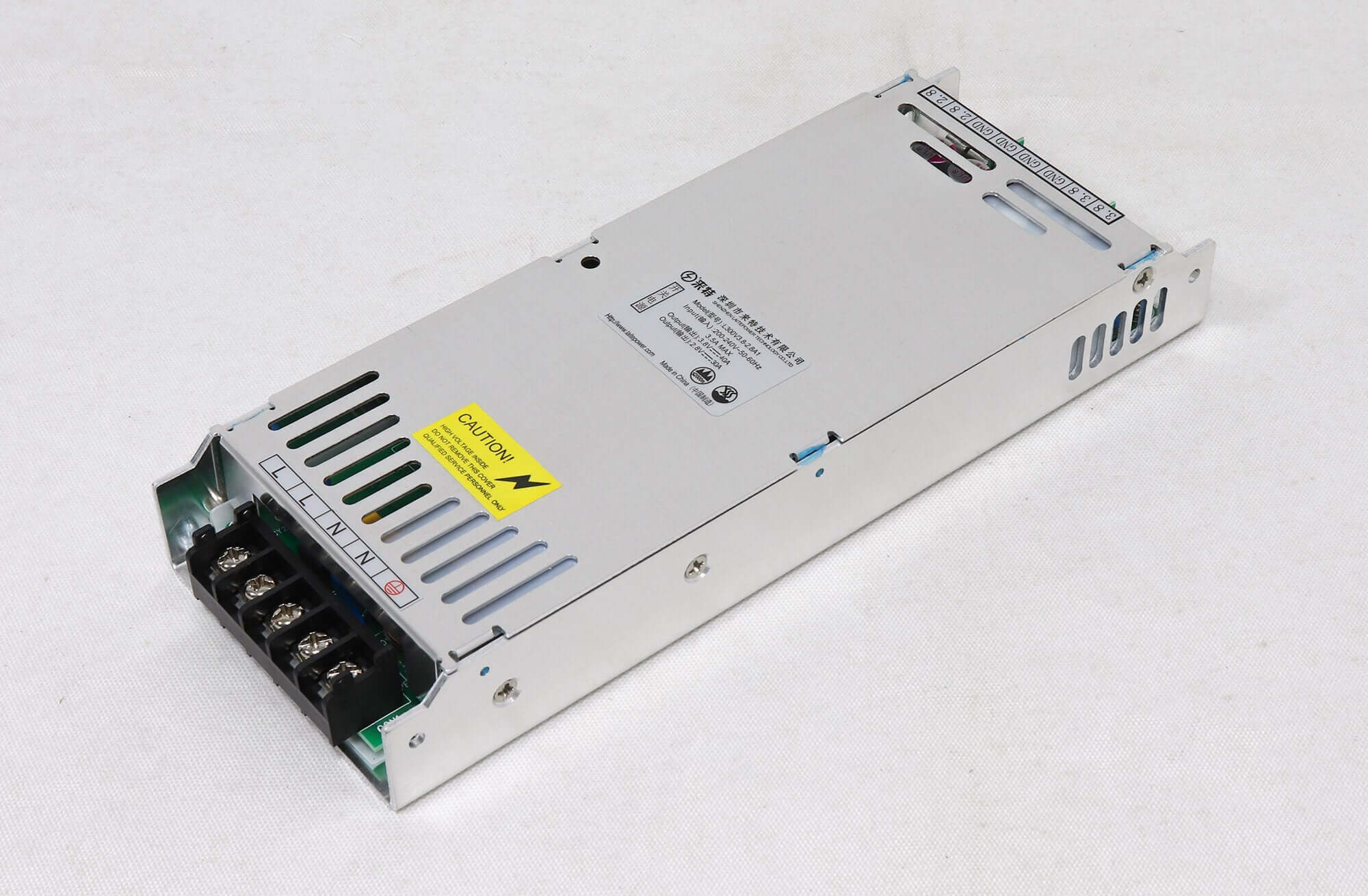

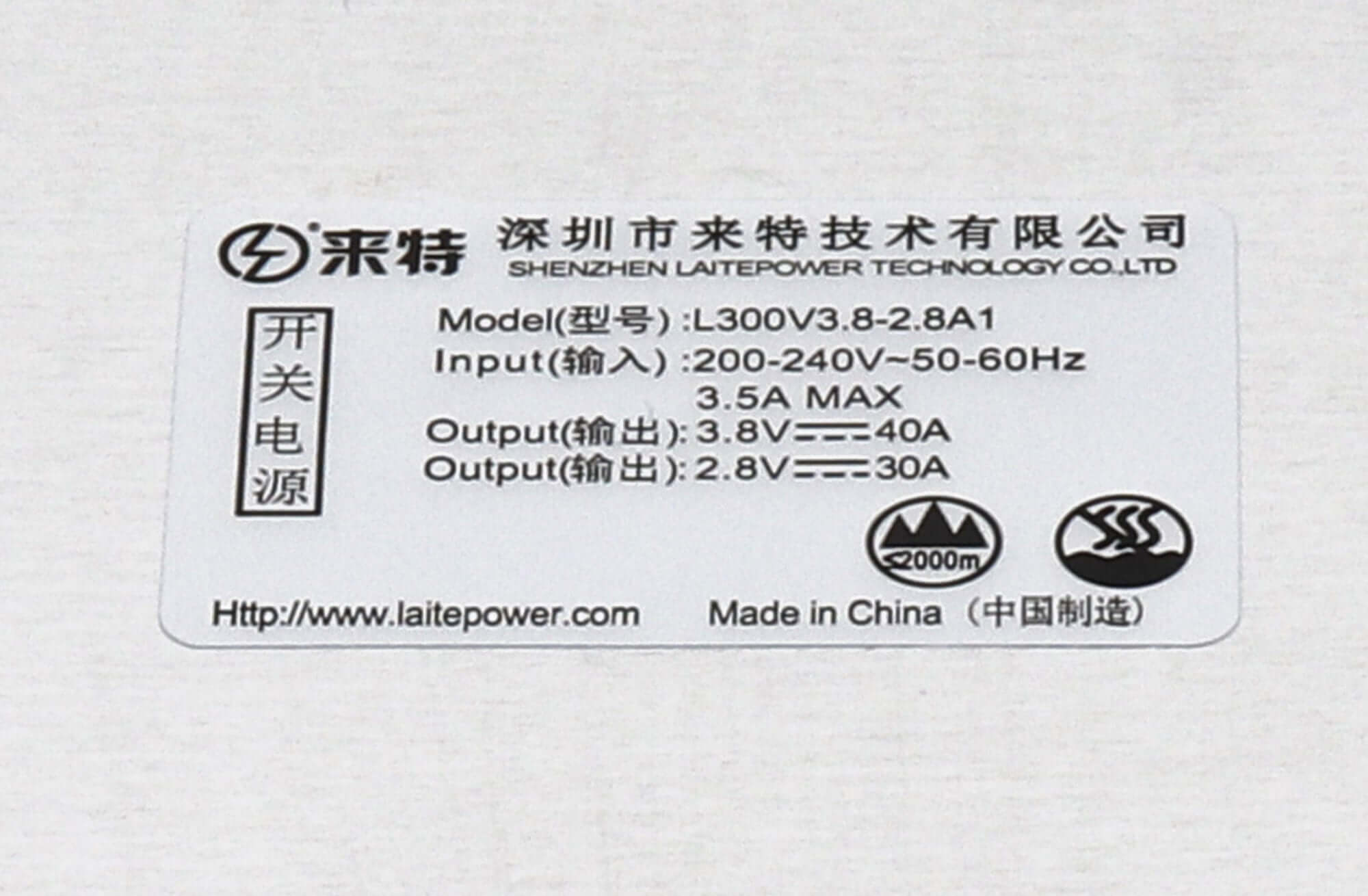

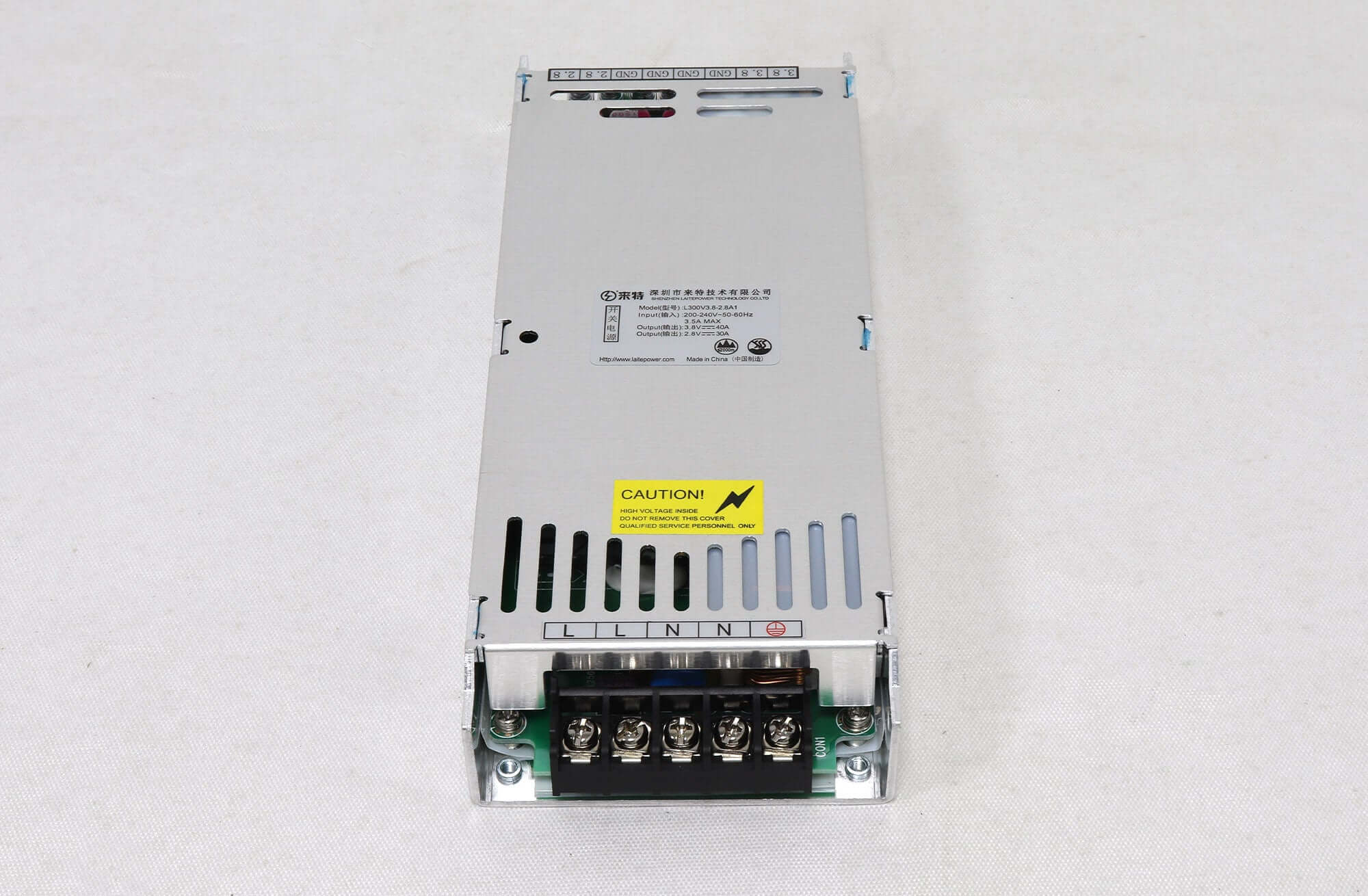

LaitePower L300V3.8-2.8A1 Power Supply For LED Sign

Eager-LED
LaitePower-L300V3.8-2.8A1
In stock
$42.90
LaitePower L300V3.8-2.8A1 Power Supply For LED Sign has the following features:   ● Input voltage: 200Vac to 264Vac ● Protection function: SCP; OCP; OVP ● Operation temperature range:...
LaitePower L300V3.8-2.8A1 Power Supply For LED Sign has the following features:



● Input voltage: 200Vac to 264Vac
● Protection function: SCP; OCP; OVP
● Operation temperature range: -30℃ to +70℃(-40℃ can start up)
● High Efficiency, long life and high reliability
● PCB using conformal coating process



LaitePower L300V3.8-2.8A1 Power Supply For LED Sign Parameter:



INPUT
Input Voltage Range  200Vac to 264Vac
Rated Input Voltage  200Vac to 240Vac
Input Frequency Range  47Hz to 63Hz
Rated Input Frequency  50Hz to 60Hz
Input Current  Max. 3.5A at 200Vac input at Full Load
Inrush Current  60A (TYP. peak) at 240Vac
Power Factor  0.5 at 220Vac
Efficiency  82% min@220Vac ,Full Load




OUTPUT
Output Power 236W

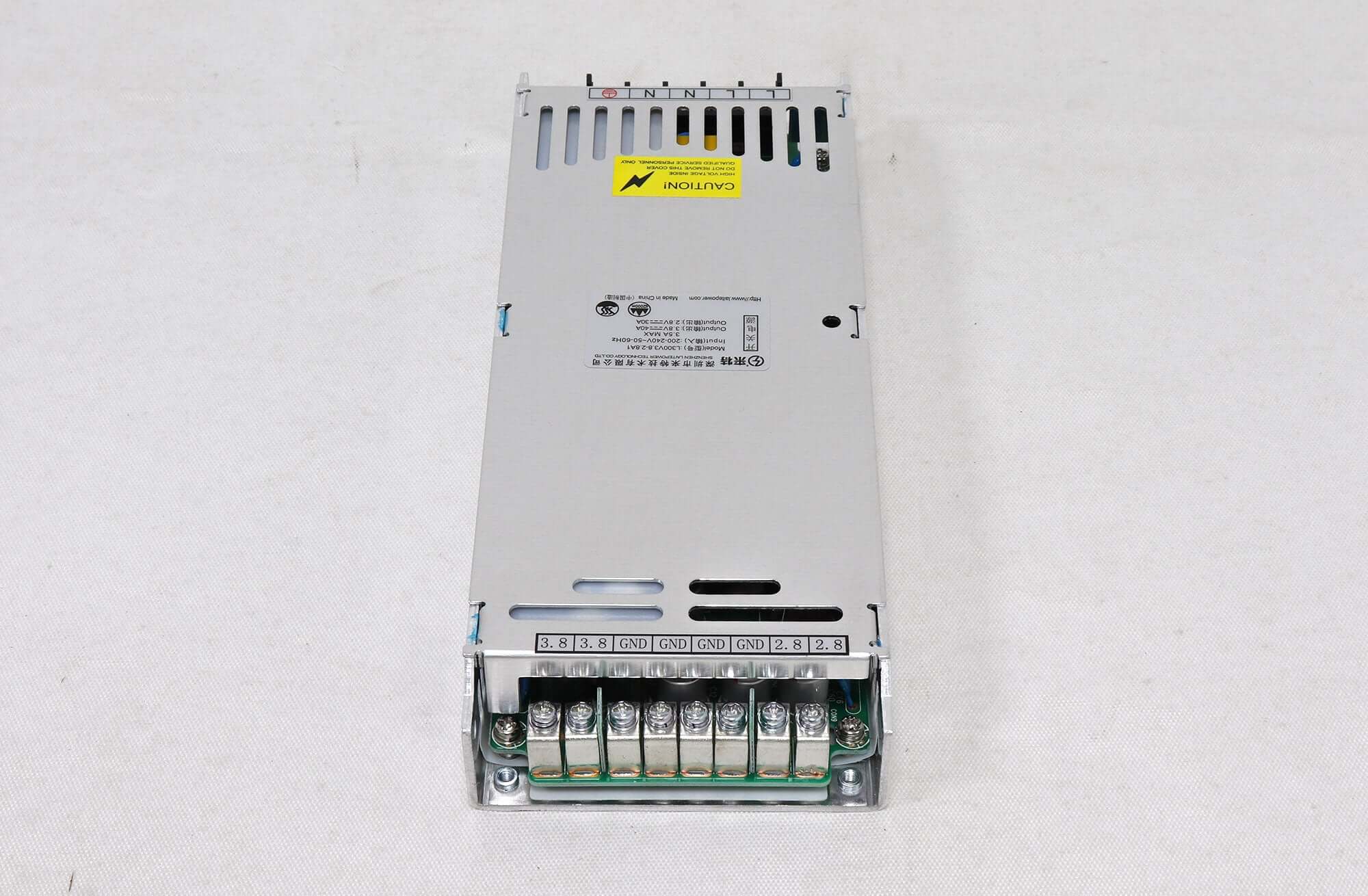

Output Channel Rated Output Voltage Voltage Rated Current
CON2/3  +3.8Vdc  ±5%  200Vac to 240Vac 0A-40A
CON8/9  +2.8Vdc  ±5%  200Vac to 240Vac 0A-30A



Dimensions 212mm x 81.5 mmx30mm±0.5mm



Download Specification:
LaitePower L300V3.8-2.8A1 Power Supply Specification
