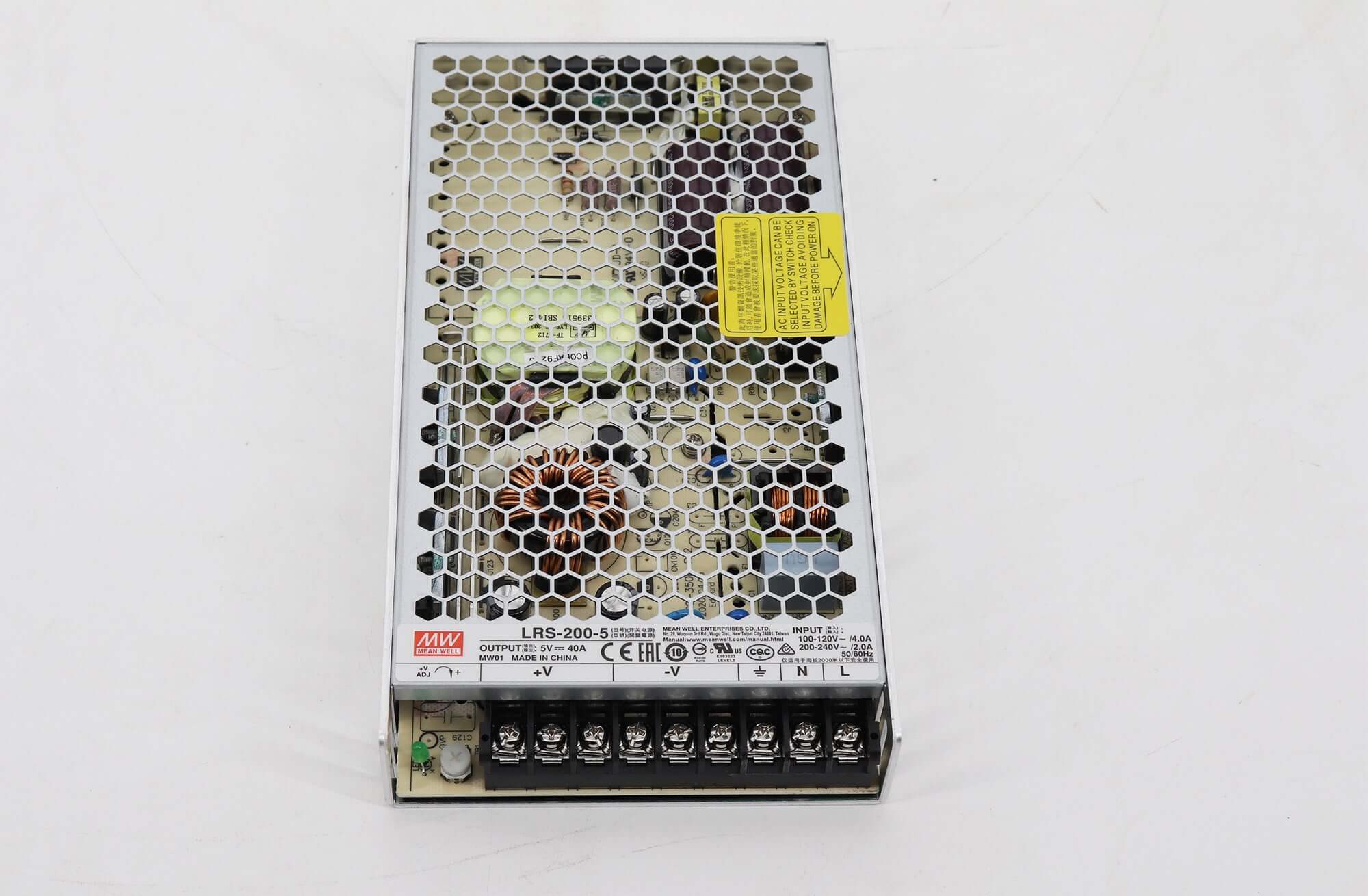

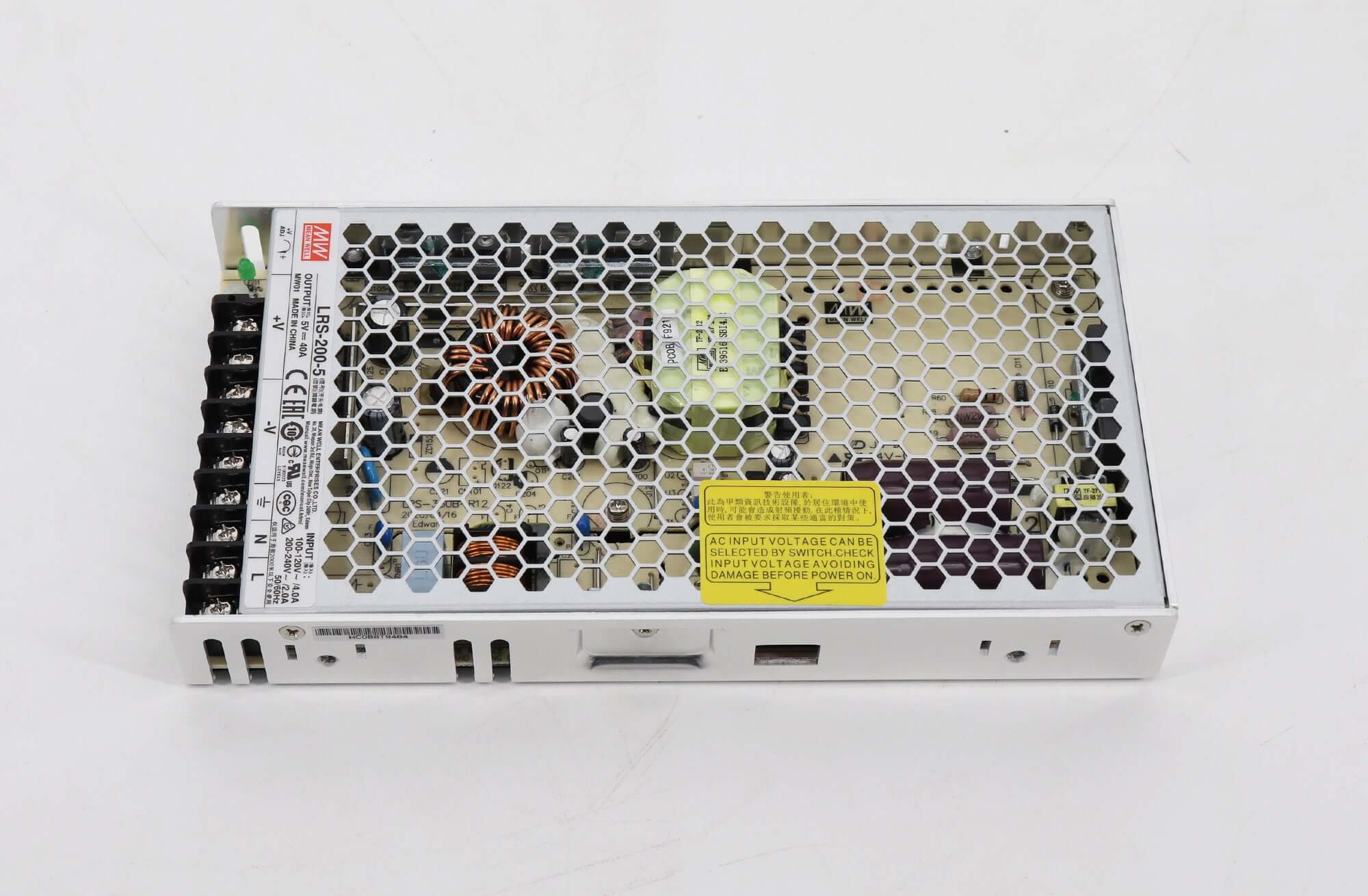

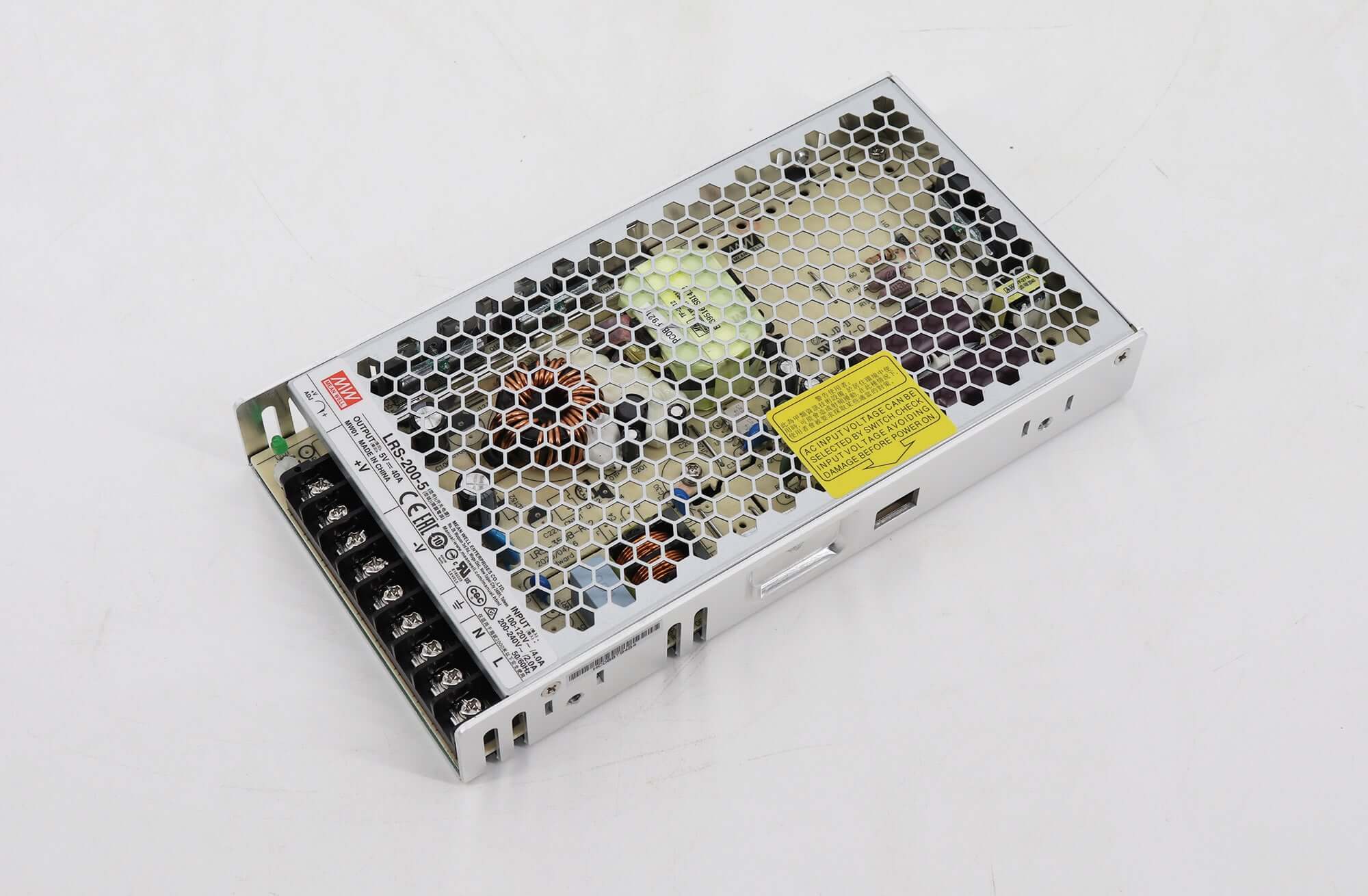

Meanwell LRS-200-5 5V40A Switching LED Power Supply

Meanwell
Meanwell-LRS-200-5
In stock
$19.00
Meanwell LRS-200-5 5V40A Switching LED Power Supply Features: AC input range selectable by switch Withstand 300VAC surge input for 5 second Protections: Short circuit/Overload/Over Voltage/Over Temperature Cooling by free...

Meanwell LRS-200-5 5V40A Switching LED Power Supply Features:

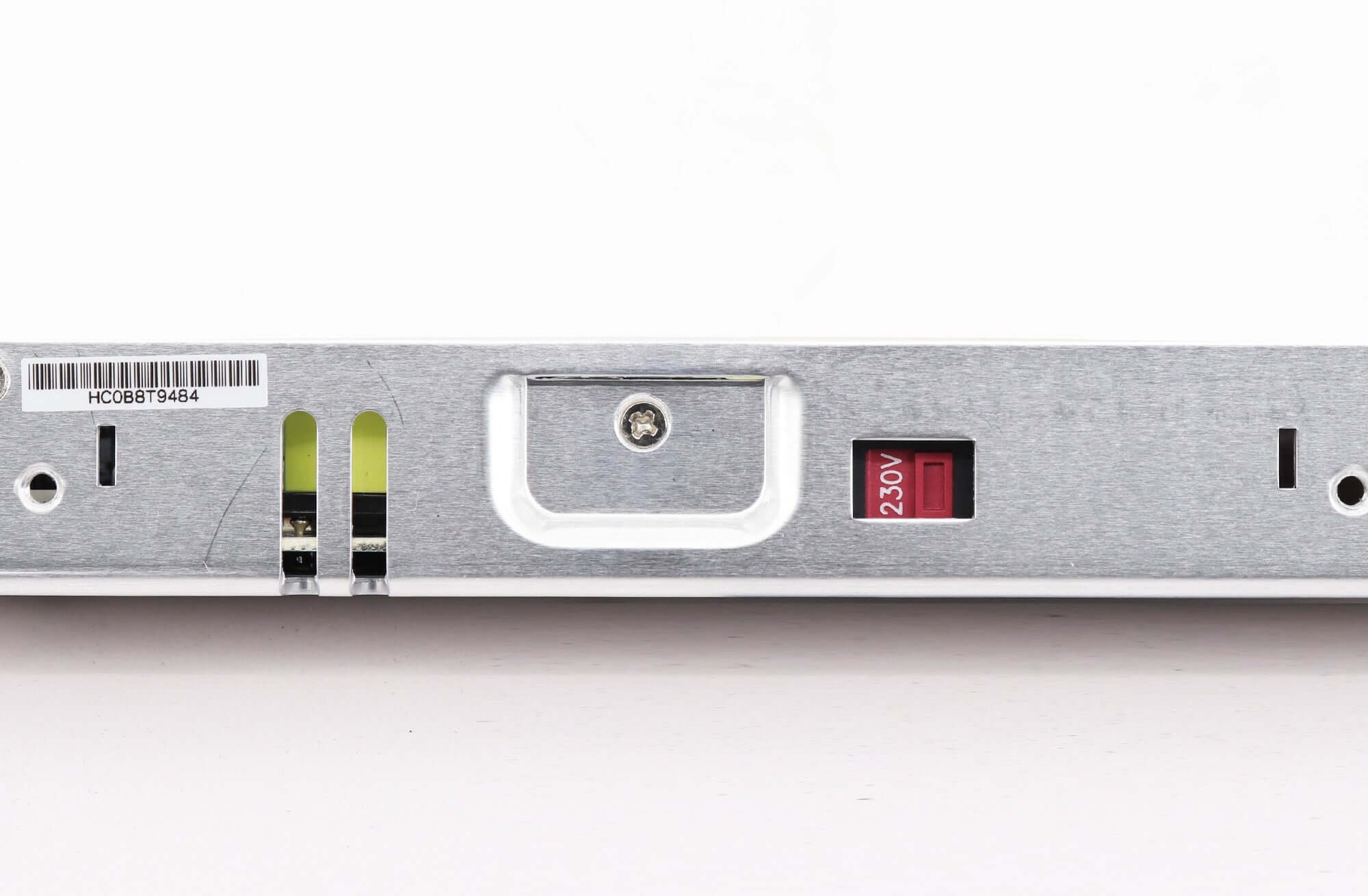

  1. AC input range selectable by switch
  2. Withstand 300VAC surge input for 5 second
  3. Protections: Short circuit/Overload/Over Voltage/Over Temperature
  4. Cooling by free air convection
  5. 1U Low Profile
  6. Wisthstand 5g Vibration test
  7. LED indicator for power on
  8. No Load power Consumption <0.75w
  9. 100% full load burn-in test
  10. High operating temperature up to 70 cesus
  11. Operating altitude up to 5000 meters
  12. High efficiency, long life and high reliability
  13. 3  Year Warranty



Meanwell LRS-200-5 5V40A Switching LED Power Supply Description:

LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting

the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V,

4.2V, 5V, 12V, 15V, 24V, 36V and 48V.

In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation

of LRS-200 that the whole series operates from -25℃ through 70℃ under air convection without a fan.

Delivering an extremely low no load power consumption (less than 0.75W), it allows the end system to

easily meet the worldwide energy requirement. LRS-200 has the complete protection functions and 5G anti-

vibration capability; it is complied with the international safety regulations such as UL 60950-1.

LRS-200 series serves as a high price-to-performance power supply solution for various industrial

applications.



Meanwell LRS-200-5 5V40A Switching LED Power Supply Parameters:

MODEL LRS-200-5
OUTPUT DC VOLTAGE 5V
RATED CURRENT 40A
CURRENT RANGE 0 ~ 40A
RATED POWER 200W
RIPPLE & NOISE (max.) Note.2 150mVp-p
VOLTAGE ADJ. RANGE 4.5 ~ 5.5V
VOLTAGE TOLERANCE Note.3 ±3.0%
LINE REGULATION Note.4 ±0.5%
LOAD REGULATION Note.5 ±2.0%
SETUP, RISE TIME 1500ms, 50ms/230VAC
1500ms,50ms/115VAC at full load
HOLD UP TIME (Typ.) 16ms/230VAC
12ms/115VAC at full load
INPUT VOLTAGE RANGE 90 ~ 132VAC / 180 ~ 264VAC by switch
240 ~ 370VDC    (switch on 230VAC)
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87%
AC CURRENT (Typ.) 4A/115VAC         2.2A/230VAC
INRUSH CURRENT (Typ.) COLD STAR 60A/115VAC        60A/230VAC
LEAKAGE CURRENT <2mA / 240VAC
PROTECTION OVER LOAD 110 ~ 140% rated output power
Protection type : Hiccup mode,
recovers automatically after fault
condition is removed
5.75 ~ 6.75V
OVER VOLTAGE Protection type : Hiccup mode,
recovers automatically after
fault condition is removed
OVER TEMPERATURE Hiccup mode, recovers automatically
after fault condition is removed
ENVIRONMENT WORKING TEMP. -25 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/℃ (0 ~ 50℃)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle,
60min. each along X, Y, Z axes
SAFETY SAFETY STANDARDS UL60950-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC    I/P-FG:2KVAC
O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:
100M
 Ohms / 500VDC / 25/ 70% RH
OTHERS MTBF 347.5K hrs min.     MIL-HDBK-217F (25℃)
DIMENSION 215*115*30mm (L*W*H)
PACKING 0.66Kg; 15pcs/10.9Kg/0.78CUFT



 Meanwell LRS-200-5 5V40A Switching LED Power Supply

Meanwell LRS-200-5 5V40A Switching LED Power Supply



Download Specification:

Meanwell LRS-200-5 5V40A Switching LED Power Supply Specification.
