Novastar Taurus Series T6 Large Screen Multimedia Player Control Card

Novastar
Novastar-Taurus-T6
Out of stock
$346.00
T6 has been no longer in production and we recommend the alternative model as following: Novastar T50       Classification of Taurus` application cases is shown in Table:  ...

T6 has been no longer in production and we recommend the alternative model as following: Novastar T50







Classification of Taurus` application cases is shown in Table:



Table1-1 Application

Classification

Description

Market type

•Advertising media: To be used for advertising and information promotion including bar screen and advertising machine,

•Digital signage: To be used for signage display in retail stores including retail store screens and door head screens.

•Commercial display commercial information of hotel, cinema and shopping mall, such as chain store screens.

Networking mode

•Independent screen: Use a PC or the client software of a mobile phone to enable single-point connection and management of a screen.

•Cluster screen: Use the cluster solution developed by NovaStar to realize centralized management and monitor of multiple screens.

Connection type

•Wired connection: A PC connects to Taurus through the Ethernet cable or LAN.

•Wi-Fi connection: PC, Pad and mobile phone can connect to Taurus through Wi-Fi, which can be enabled in the case without PC in conjunction with ViPlex software,



2.1. Synchronous Display

The T6 support switching on/off unction of synchronous display.



When synchronous display is enabled, the same content can be played on different displays synchronously if the time of different T6 units are synchronous with one another and the same program is being played.



2.2. Powerful Processing Capability



The T6 feature powerful hardware processing capability:

•Support for 1080P video hardware decoding

• Eight-core processor

• 2 GB operating memory and 8 GB internal storage space.



2.3. Omnidirectional Control Plan



   Table 3.3 Control Plan

Connecting Mode

Client Terminal

Related Software

Connecting via network line Connection via Wi-Fi

PC

ViPlex Express NovaLCT-Taurus

 Connection via LAN

PC

ViPlex Express NovaLCT-Taurus

 Connection via Wi-Fi

Mobile phone and Pad

ViPlex Handy

Wi-Fi AP=Sta/wired/4G

Mobile phone and PC

ViPlex Handy ViPlex Express

Wi-Fi AP=Sta/wired/5G

Mobile phone and PC

ViPlex Handy ViPlex Express



Cluster control plan is a new internet control plan featuring following advantages:



• More efficient: Use the could service mode to process services through a uniform platform. For example, VNNOX is used to edit and publish program. And NovaiCare is used to centrally monitor display status.



• More reliable: Ensure the reliability based on active and standby disaster recovery mechanism and data backup mechanism of the server.



• More safe: Ensure the system safety through channel encryption, data fingerprint and permission management.



• Easier to use: VNNOX and NovaiCare can be accessed through Web. As long as there is internet, operation can be performed anytime and anywhere.



• More effective: This mode is more suitable for the commercial mode of advertising industry and digital signage industry, and makes information spreading more effective.





2.4 Synchronous and Asynchronous Dual-Mode



The T6 supports synchronous and asynchronous dual-mode, allowing more

 Application cases and being user-friendly.



 When Internal video source is applied, the T6 is in asynchronous mode, when

HDML-input video source is used, the T6 is in synchronous mode content can be

scaled and displayed to fit the screen size automatically in synchronous mode.



 Users can manually and timely switch between synchronous and asynchronous

Modes, as well as set HDML priority





2.5. Dual Wi-Fi Mode:

The T6 have permanent Wi-Fi AP and support the Wi-Fi Sta mode, carrying advantages as shown below:



  • Completely cover Wi-Fi connection scene, The T6 can be connected to through self-carried Wi-Fi AP or the extern al router,



• Completely cover client terminals. Mobile phone, Pad and PC can be used to log in T6 through wireless network.



 • Require no wiring. Display management can be managed at any time, having improvements in efficiency.



T6`s Wi-Fi AP signal strength is related to the transmit distance and environment. Users can change the Wi-Fi antenna as required.



2.5.1 Wi-Fi AP Mode

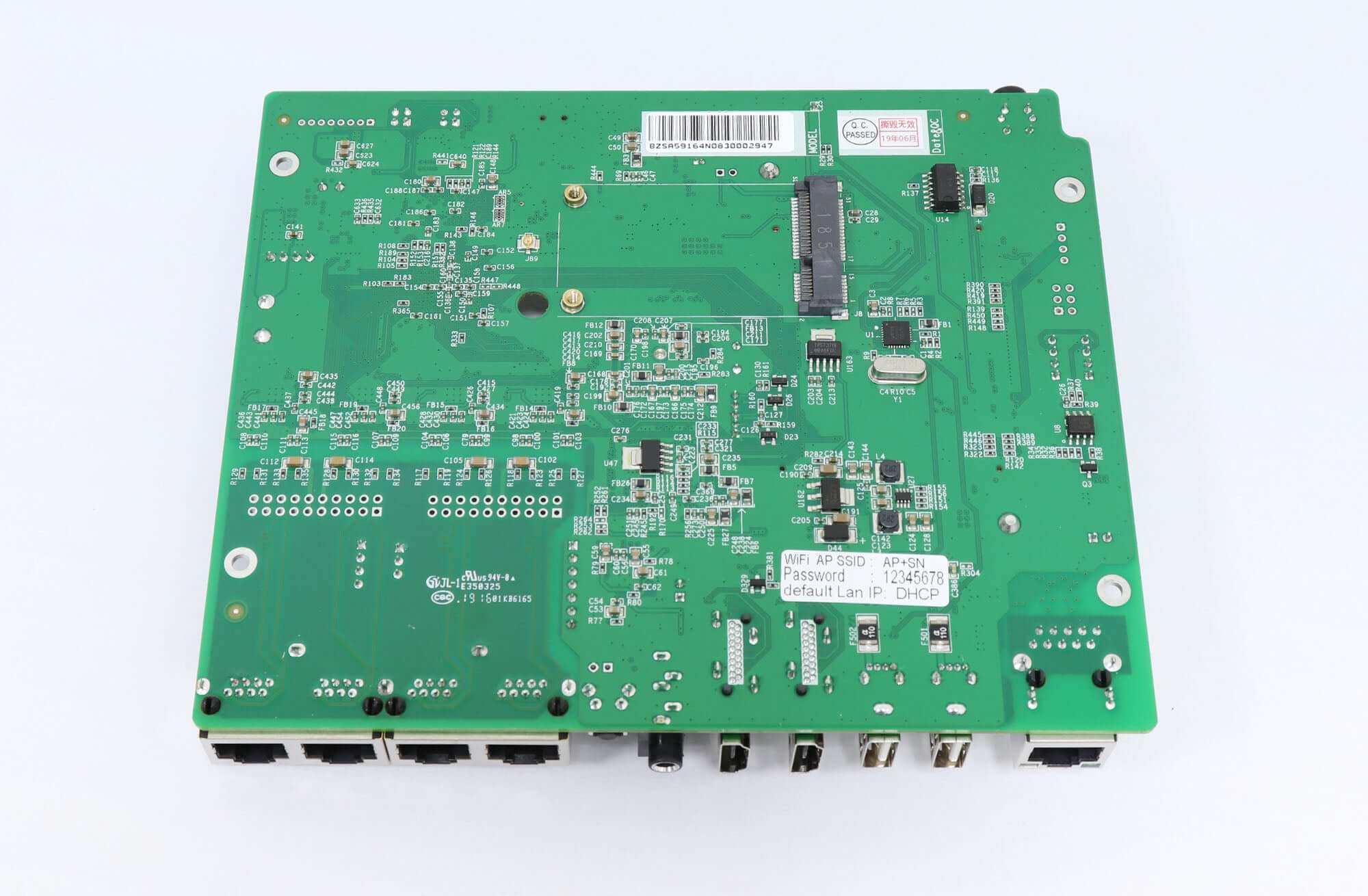

       Users connect the Wi-Fi AP of a T6 to directly access the T6 .The SSID is “AP + the last 8 digits of the SN”, for example, “AP10000033”, and the default password is “12345678”.

Novastar Taurus Series T6 Large Screen Multimedia Player Control Card



2.5.2 Wi-Fi Sta Mode

     Configure an external router for a T6 and users can access the T6 by connecting the external router. If an external router is configured for multiple T6 units, a LAN can be created. Users can access any of the T6 via the LAN.

Novastar Taurus Series T6 Large Screen Multimedia Player Control Card



2.5.3 Wi-Fi AP +Sta Mode



In Wi-Fi AP + Sta connection mode, users can either directly access the T6 or access Internet through bridging connection. Upon the cluster solution, VNNOX and NovaiCare can realize remote program publishing and remote monitoring respectively through the Internet.



Novastar Taurus Series T6 Large Screen Multimedia Player Control Card



2.6. Redundant Backup



T6 support network redundant backup and Ethernet port redundant backup



• Network redundant backup: The T6 automatically selects internet connection mode among wired network, Wi-Fi Sta or 4Gg network according to the priority.



• Ethernet port redundant backup: The T6 enhances connection reliability through active and standby redundant mechanism for the Ethernet port used to connect with the receiving card



3.1 Appearance

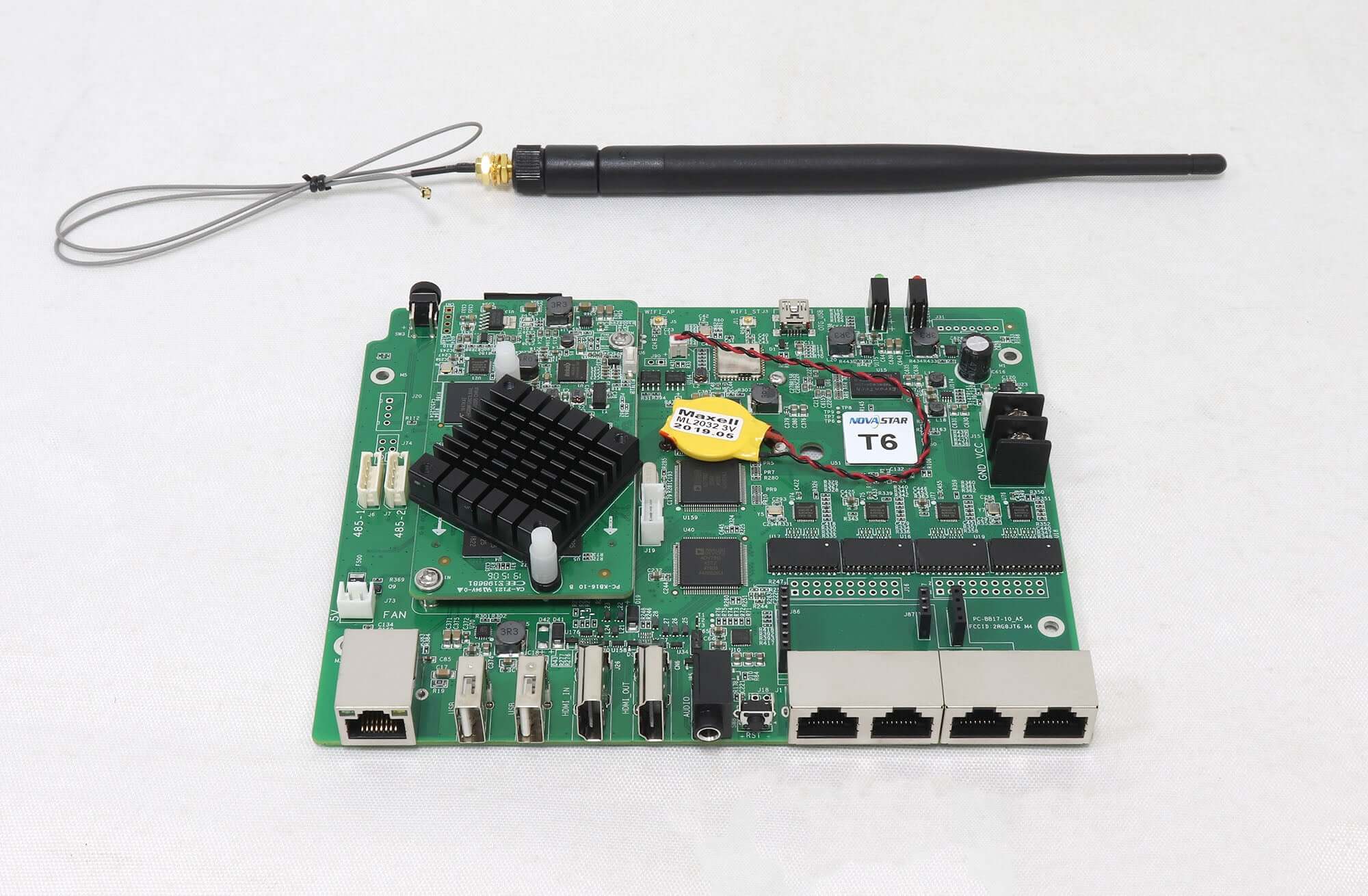

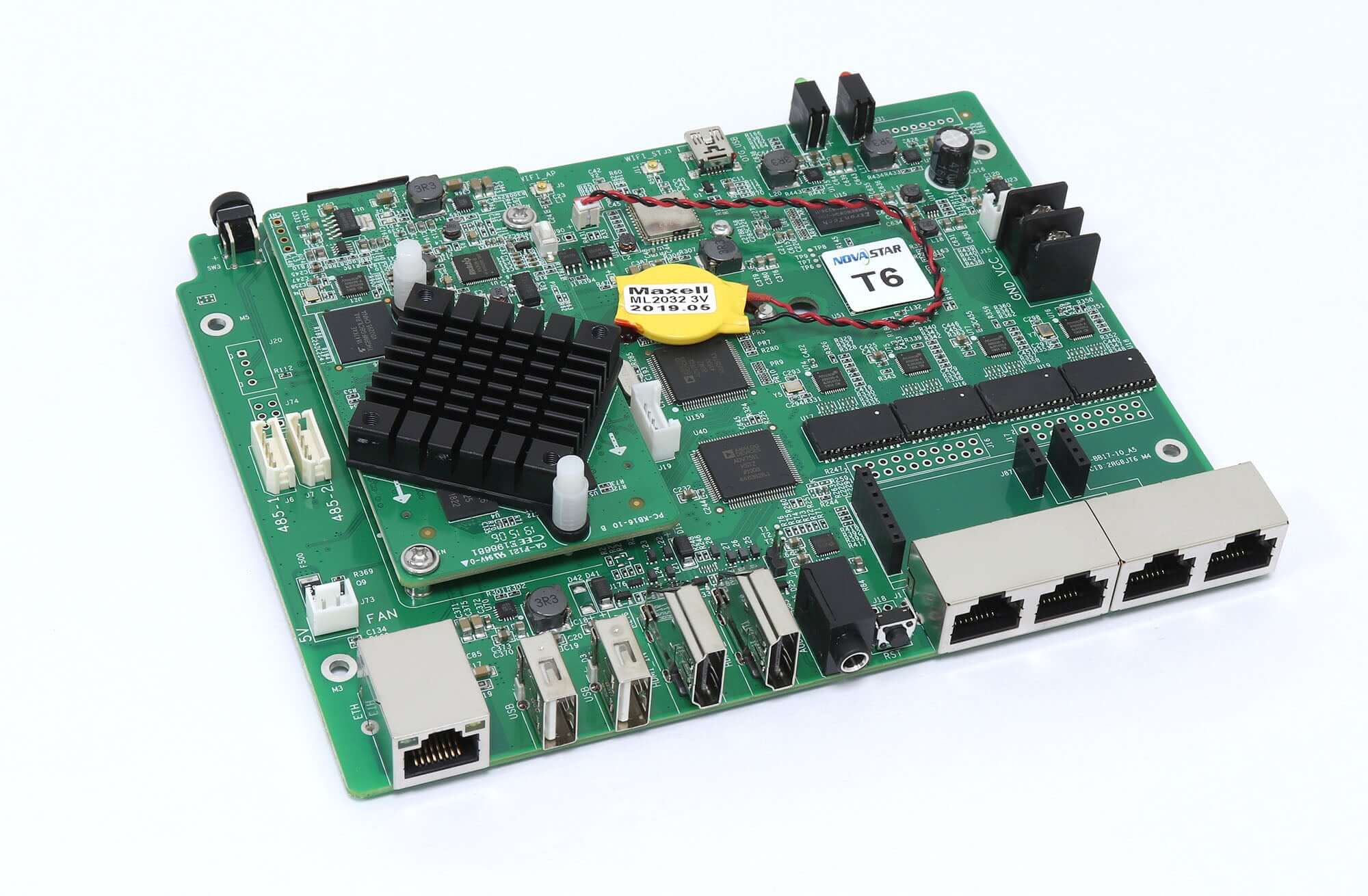

      Figure 3.1 Appearance of T6

Novastar Taurus Series T6 Large Screen Multimedia Player Control Card



Note: Product images provided in this file are for reference only, and the actual products shall prevail



1

Gigabit Ethernet port

9

Ethernet port

2

USB2.0 port 1

10

Backup for Ethernet port 1

3

USB2.0 port 2

11

Backup for Ethernet port 2

4

HDMI1.4 input

12

Power input

5

HDMI1.4 output

13

SIM card eject button

6

Audio output

14

SIM card slot

7

Factory reset button, hold down for 5 seconds to reset to factory defaults

15

Dual-mode switching button (Synchronous/Asynchronous)

8

Ethernet port

16

4G module slot







Table 3-1 Indicators of the T6

No

Indicator Color

Indicator Status

Description

1

Green

Both the green and yellow indicators are turned on simultaneously.

The product is connected to the Gigabit Ethernet cable and the connection status is normal.

2

Yellow

Always on

The product is connected to the 100M Ethernet cable and the connection status is normal.

3

Red

Always on

Power input is normal.

4

Green

Flashes once every 2 seconds.

The system is operating normally.

Flashes once every 0.5 second.

System is sending data.

Always on/off

The system is operating abnormally.

5

Green

Always on

The product is connected to the Internet and the connection status is normal.

Flashes once every 2 seconds.

The product is connected to VNNOX and the connection status is normal.

6

Green

Same as the signal light status of the sending card

FPGA is operating normally.





4.1.   Related Configuration Software



       Table 4-1Related configuration software



Software

Description

ViPlex Handy

Mobile phone client software of the T6 includes android and iOS which are mainly used for screen management, editing, and program publishing.

ViPlex Express

PC client software of the T6 only includes windows which is mainly used for screen management, editing, and program publishing.

NovaLCT-Taurus

Display screen configuration software works in Windows only, and is used to adjust screens to the best display status.





T6 Item

Sub-Item

Specifications

Physical specifications

Dimension(H*W*D)

167.0mm*135.6mm*22.0mm

Weight

181.7g

Input power supply

DC

Rated voltage

5V

Rated current

3A

Maximum power consumption

18W

Storage humidity

0℃-50℃

Storage temperature

0%RH-80%RH

Operating temperature

-40℃-80℃

Operating humidity

0%RH-80%RH

Operating memory

2GB

Internal storage space

8GB

Packing information

Dimension(H*W*D)

200MM*120MM*40MM

List

• One bare card of T6 led
 multimedia player


• One patch Wi-Fi antenna



• One column Wi-Fi
 omnidirectional antenna


• One iPex convert SMA
 18cm extension line

Characteristics

 • Support 1.3 Megapixel loading capacity, with maximum width of

4096 pixels and maximum height of 1080 pixel.

 • Support 2-primary 2-standby Ethernet port redundant
 mechanism.

 • Support dual Wi-Fi, and features Wi-Fi AP and Wi-Fi Sta functions.

 • Support Gigabit wired network.

 • Support stereo audio output.

• Support HDMI Loop.



• Support HDMI input mode.



• Support HDMI input full-screen self-adaptive display.



• Support manual and timing switching between synchronous and

asynchronous modes.


 • 2-way USB Host interface supports USB drive Importing display.

 • Onboard brightness sensor interface supports

    automatic and timing smart brightness adjustment.
