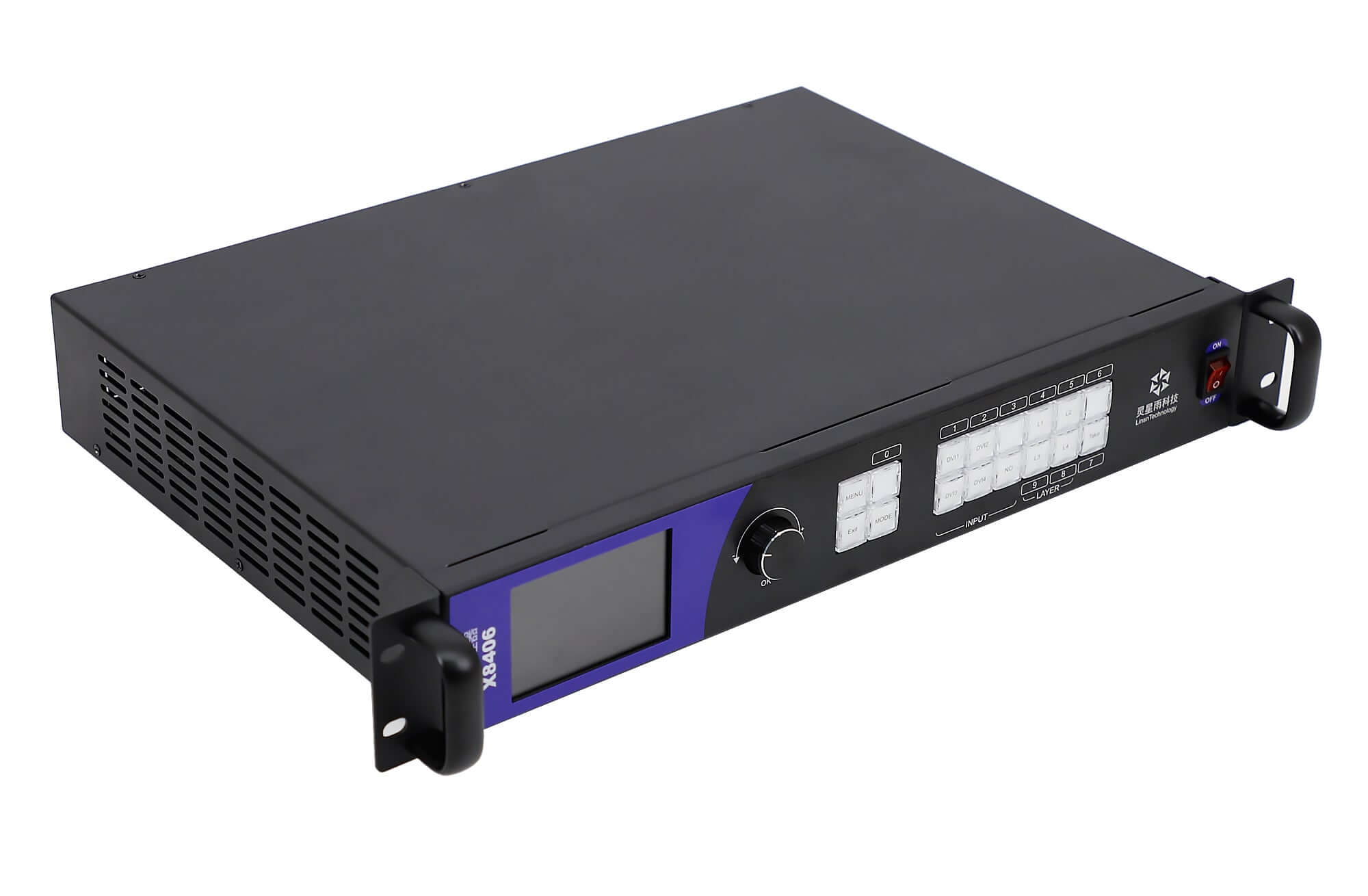

Linsn X8406 LED Video Controller – 4 Layers, 6 Outputs
$ 458.00
Linsn X8406 combines video processing and LED sending, with four DVI inputs, four adjustable layers and six Gigabit outputs. Its stated total loading is 3.84 million pixels.
10000 in stock
Product overview
Linsn X8406 is a two-in-one LED video controller combining sending and processing. It offers four DVI inputs, four adjustable image layers and six Gigabit outputs, with a specified total LED loading capacity of 3.84 million pixels.
Product specifications
| Parameter | Specification |
|---|---|
| DVI input | 4 × DVI; up to 1920 × 1080 at 60 Hz, VESA |
| Layers | 4; adjustable size and position |
| Outputs | 6 Gigabit RJ45 |
| Total LED capacity | Up to 3.84 million pixels |
| Screen dimension limits | Up to 7680 pixels wide or 4000 pixels high, within total capacity |
| Individual output limit | Up to 650,000 pixels; width 384–2048 pixels in multiples of 32 |
| Control connections | LAN/WAN; USB setup and cascading |
| Transitions | Fade in/out |
| Power | AC 100–240 V, 50/60 Hz; 35 W |
| Operating conditions | −20°C to +60°C; 0–95% RH |
| Dimensions / weight | 482 × 315 × 66.4 mm; 4.2 kg |
Plan the four-image layout
Use the stated 3.84-million-pixel device limit when planning the full screen; do not replace it with a total calculated from six individual port maxima. Screen width, height and port allocation must all fit the specified operating limits.

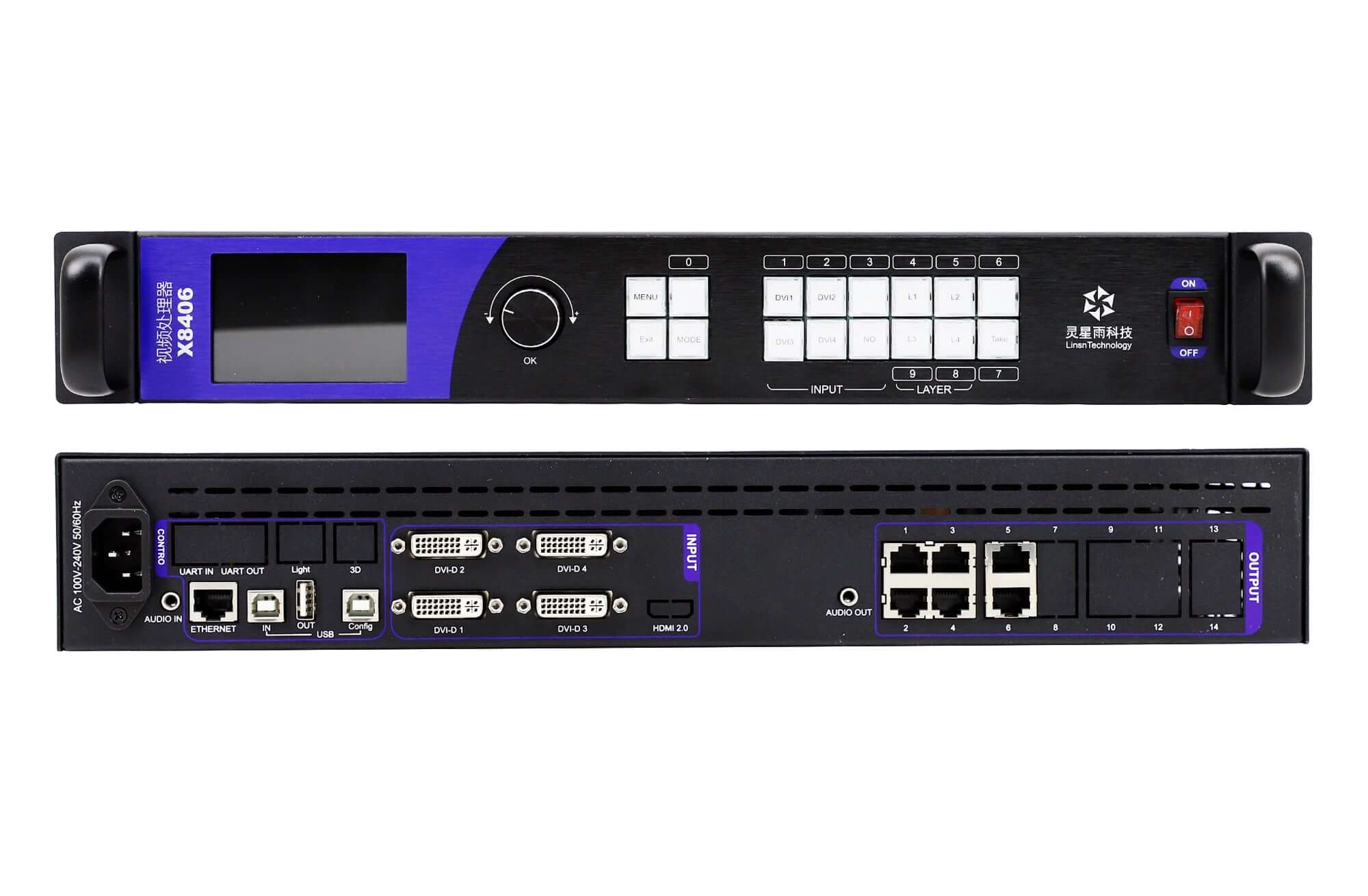

The V3.0 document for hardware V2 supports software control and USB setup/cascading. Its front-panel table mentions HDMI 2.0, but the input and rear-interface tables identify four DVI inputs. Confirm any requested HDMI capability against the supplied unit rather than assuming it is included.
Frequently asked questions
1. How many images can X8406 display?
It supports four adjustable layers, with image size and position control and fade-in/fade-out effects.
2. Is X8406 rated for 3.84 or 3.9 million pixels?
The linked specification explicitly states 3.84 million pixels total. Use that value even though it separately lists up to 650,000 pixels per output.
3. What DVI resolution is supported?
The DVI input table lists up to 1920 × 1080 at 60 Hz. The maximum LED screen width does not increase the source input resolution.
4. Can I cascade X8406 controllers?
USB input/output communication is listed for setup or cascading. Confirm the connection scheme and software for the required installation.
Download specification
| Weight | 8 kg |
|---|
