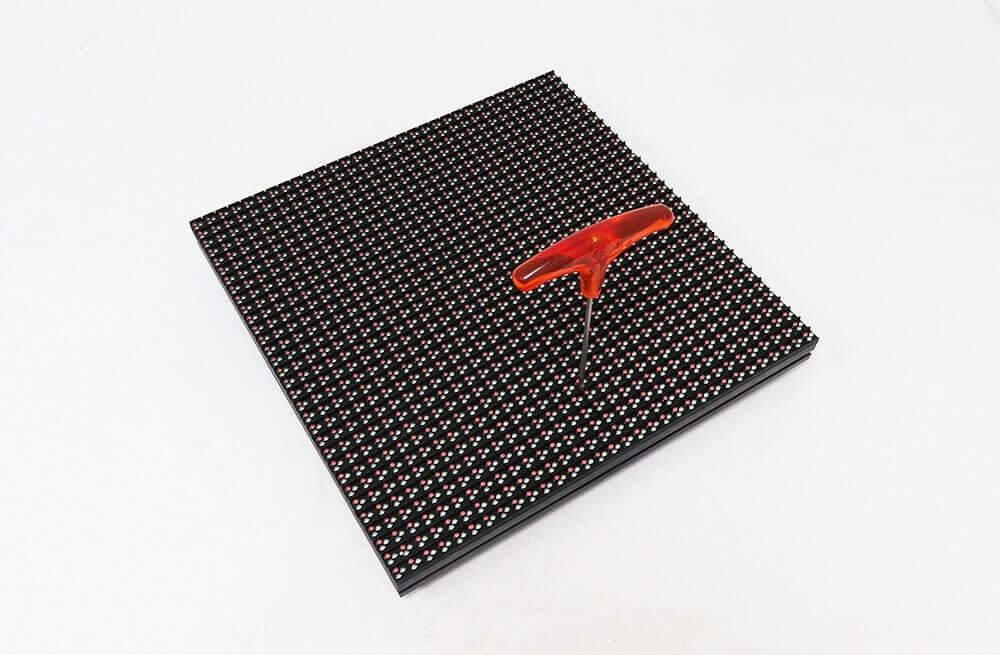

P10 Dual Maintenance LED Module Outdoor DIP 1R1G1B 320x320mm

Eager-LED
P10-OF4L-1R1G1B32x32
In stock
$123.60
Notice before order 1) Parts included: LED module, signal cable between modules, power cable between module and power supply. 2) Buy modules of same batch: to avoid brightness&color difference on...

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness&color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.

 Features of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:

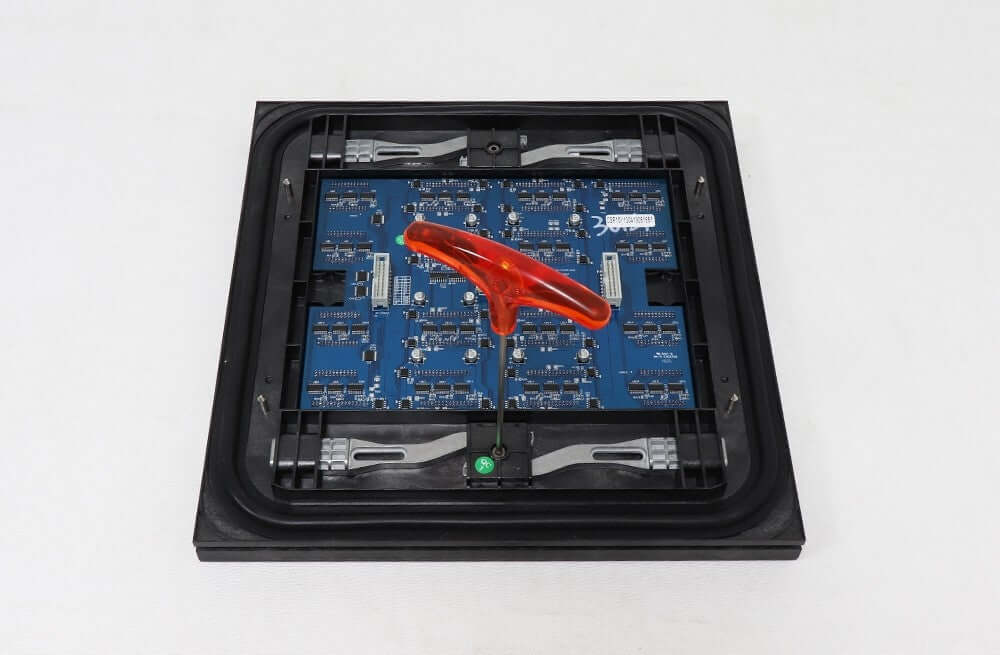

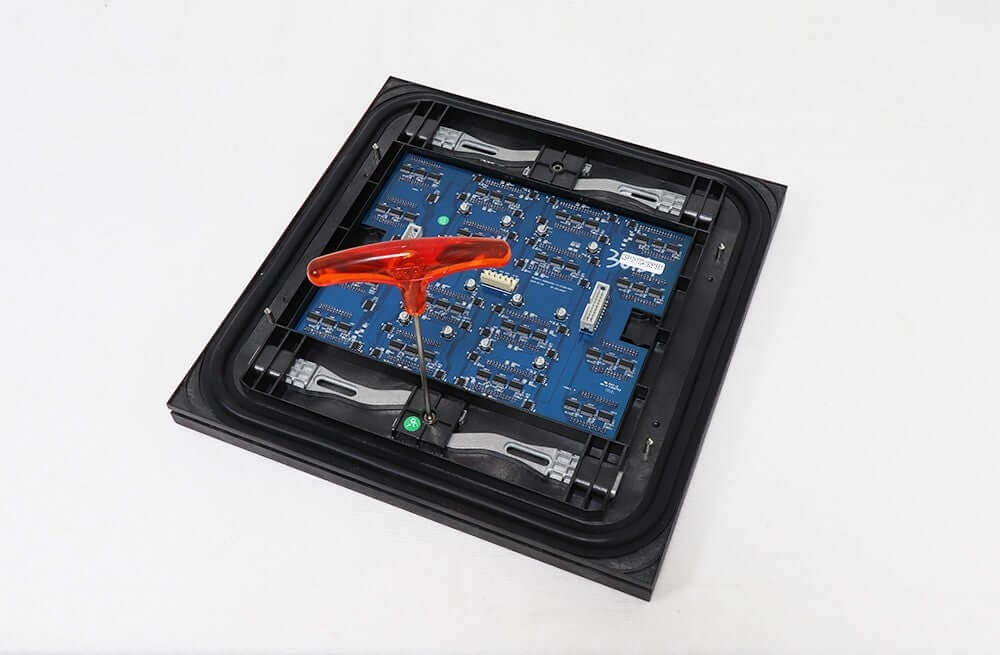

1) Dual-maintenance, from both the front side and the rear side. People usually use its front maintenance function.
2) Easy maintenance, easy to take the modules with a hexagonal screwdriver.
3) No screws, easier to take the modules and mount the modules on the cabinet.
4) 10mm pixel pitch is suitable for small banner screen.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.


 PCB Versions of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:

P10U4L-RGB32X32-EMC-Y1401-SWH

  P10U4L-RGB32X32-Y1212-SWH

P10QU4L-RGB32X32-J1210-SWH

  P10QU4L-RGB32X32-Y1212-SWH

P10U4L-RGB32X32-J1210-SWH

P10DU4L-RGB32X32-J1210-SWH



 Parameters of P10 1R1G1B 320x320 Outdoor Dual Maintenance LED Module:

Item

Specification

LED type

DIP346

Pixel pitch

10mm

Pixel configuration

1R1G1B

Module Size

320x320mm

Module resolution

32x32pixels

Density

10,000 pixels/ ㎡

Driving Mode

1/4 duty

Brightness

≥8000CD/ ㎡

Viewing angle

H:120°, V:120°

Best viewing distance

10m---100m

Working voltage

5V

Power consumption

60W

Module weight

2.5 KG

>Protection grade

Front: IP65

Working Temperature

-20 ~60℃



Download Specification

P10 Dual Maintenance LED Module Outdoor DIP 1R1G1B 320x320mm Specification
