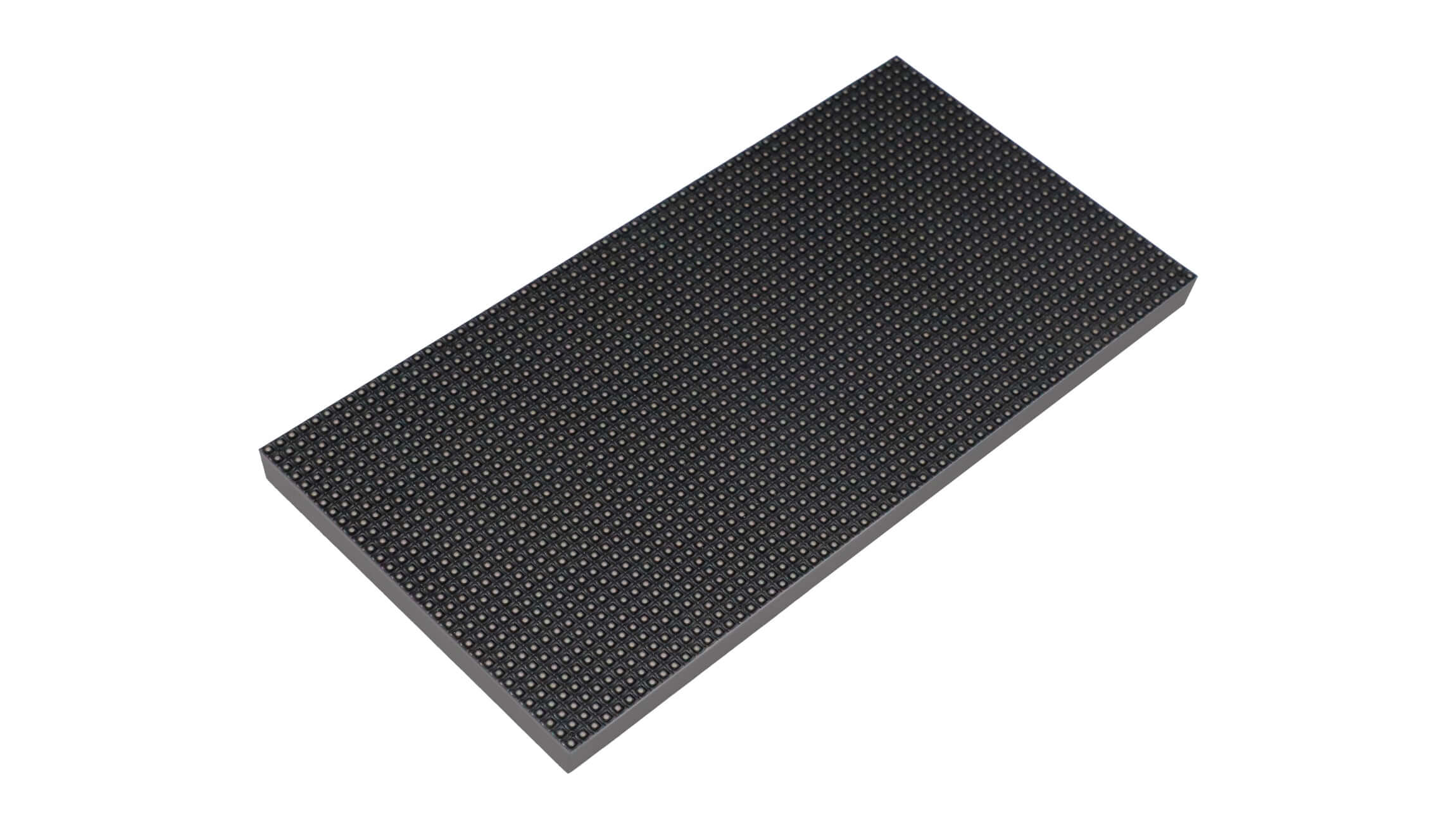

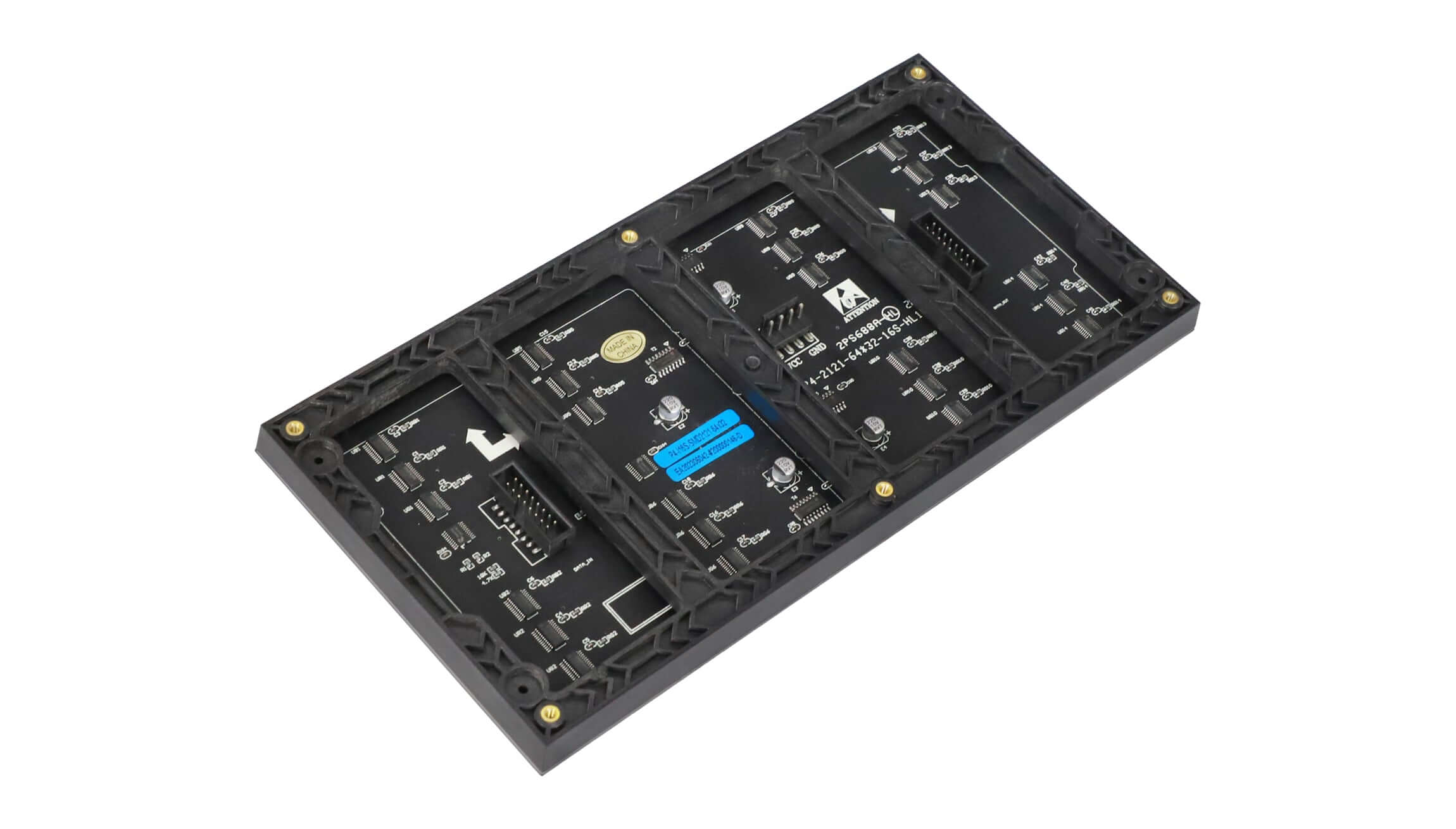

P4 256x128mm SMD2121 LED Display Module

Eager-LED
P4-I16S-SMD2121-64x32
In stock
$19.80
Notice before order 1) Parts included: LED module, signal cable between modules, power cable between module and power supply. 2) Buy modules of same batch: to avoid brightness and color...

Notice before order

1) Parts included: LED module, signal cable between modules, power cable between module and power supply.

2) Buy modules of same batch: to avoid brightness and color difference on one single screen, you must buy modules of the same batch. That is, you must buy the modules for one single screen by one order from us.

3) Caution: Our LED modules can NOT be used as spare parts of your existing old LED display. We don't offer technical support or services if you used our LED modules to replace existing old LED modules.

4) Tariff: our price does not include any tariffs or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.










Instock Indoor P4 1/16Scan 64x32dot 256X128mm LED Display Module Parameter:



LED Lamp Specification

Color

Package

Intensity

Viewing Angle

Wavelength

Testing Conditions

Red

SMD2121

70-100mcd

120°/120°

620-625nm

25℃,20mA

Green

SMD2121

120-200mcd

120°/120°

515-530nm

25℃,10mA

Blue

SMD2121

30-40mcd

120°/120°

465-475nm

25℃,5mA

Module Parameter

Pixel Pitch

4mm

Pixel Configuration

SMD2121

Density

62,500 pixels/㎡

Module Resolution

64pixel(L) * 32pixel(H)

Module Dimension

256mm(L) * 128mm(H) * 18mm(D)

Driving Mode

Constant current, 1/16 duty

Module Mask

Pure black mask---high contrast screen

Electricity Parameter

Optical Ratings

Brightness

≥1,000 cd/㎡

Viewing Angle

120°(Horizontal); 120°(Vertical)

Best Viewing Distance

≥4m

Gray Grade

14 bits

Display Color

4.4 trillion colors

Brightness Adjustment

100 grades by software or automatically by sensor

Max. Power Consumption

19 W

Control System

Frame Frequency

≥60Hz

Refresh Frequency

≥1,920Hz

Input Signal

Composite Video, S-video, DVI, HDMI, SDI, HD-SDI

Control Distance

100m(Ethernet cable);

20KM(optical fiber cable)

Support VGA Mode

800*600, 1024*768, 1280*1024, 1600*1200

Color Temperature

5000—9300 adjustable

Brightness Correction

Pixel by pixel, module by module, cabinet by cabinet

Reliability

Working Temperature

-20~+60 ºC

Storage Temperature

-30~+70 ºC

Working Humidity

10%~90% RH

Lifetime

100,000 hours

MTBF

5000 hours

Continuous Operating Time

≥72 hours

Protection Grade

IP31

Out-of-Control Pixel Rate

≤0.01%





Download Specification:

Instock Indoor P4 1/16Scan 64x32dot 256X128mm LED Display Module Specification
