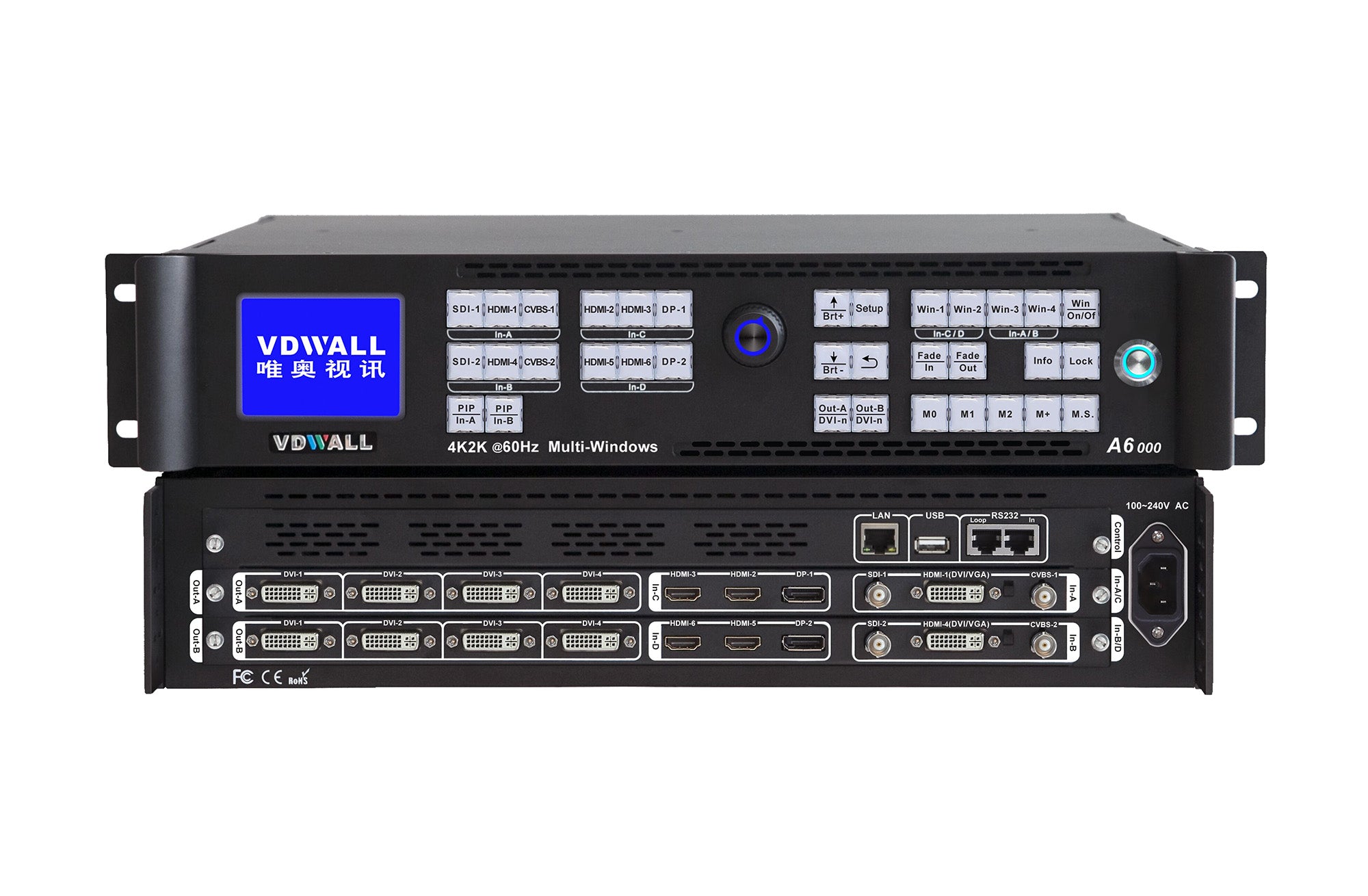

VDWall A6000 4K HD Multi-window Video Processor

VDWall
VDWall-A6000
In stock
$1,463.00
VDWall A6000 4K HD Multi-window Video Processor Features: VDWall A6000 4K HD Multi-window Video Processor Inputs - 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input -...

VDWall A6000 4K HD Multi-window Video Processor Features:



VDWall A6000 4K HD Multi-window Video Processor Inputs

- 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input

- 6 UHD Inputs@ 4K2K_60Hz, maximum resolution up to 4096×2160@60Hz, including HDMI2.0 × 4 DP1.2 × 2

- Seamless switching between different inputs, no black, splash, jitters



VDWall A6000 4K HD Multi-window Video Processor Multi-window Processing

- 4k -4 windows 6 images display, random zoom in/out and overlay display

- 4K seamless switching and Fade-in / Fade-out switching

- Any in any out(AIAO) 4K image crop

- Accurate image quality adjustment

- Image frame function, clearly identify different layer

- 16 preset display modes, seamless mode switching without black screen or blurred screen



VDWall A6000 4K HD Multi-window Video Processor Outputs

- Maximum 8 DVI outputs, synchronized joint split, driving capability up to 8K*2K

-  Any size and position of cropped image

- Accurate image quality adjustment realize uniform color of different screen batches

- 16 preset display modes, conveniently save/load

- Adaptive calculation aided splicing, auto calculate mosaic parameters according to the size and position of screen units

- User-defined output resolution, 8 Outputs reach to 17280 pixels in width or 12800 pixels in height. High efficient outputs utilization



VDWall A6000 4K HD Multi-window Video Processor Key Applications

- Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing

- Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc



Others

- Power on self test, convenient configuration data export and import

- Plug-in card design, customized input card and output card built in, convenient maintenance

- High stability and reliability, 7/24 operation



VDWall A6000 4K HD Multi-window Video Processor Parameter:

Features of Input Signals
Quantity/Type 4×HDMI 2.0(VESA/CEA-861)
2×DP1.2(VESA)
2×CVBS

2×DVI(VESA/CEA-861)compatible

with HDMI1.3a/VGA

2×SDI(SDI/HD-SDI/3G-SDI)
Composite Video Input SYS PAL/NTSC
Composite Video Amplitude Impedance 1V(p_p)/ 75Ω
VGA Format PC(VESA)

≤1920×

1200_60Hz

VGA Amplitude the impedance R、G、B = 0.7 V(p_p)/ 75Ω
DVI Format PC(VESA)

≤1920×

1200_60Hz

DMI Format(HDCP2.2) PC(VESA)

≤4096×

2160_60Hz

HDMI2.0

(CEA-861)

DP Format(HDCP2.2)

DisplayPort1.2

(VESA)

≤4096×

2160_60Hz

SDI Format SMPTE259M-C 480i_60Hz
SMPTE 292M 576i_50Hz
SMPTE 274M/296M

720p、

1080i、

1080p.

SMPTE 424M/425M
Input Interface CVBS: BNC/ 75Ω
DVI:  24+1 DVI_D

HDMI:

Type A-HDMI format

DP:   DisplayPort1.2
SDI:  BNC/ 75Ω
Specification of Outputs
Quantity / Type 8×DVI
DVI Format

1200x1600_60Hz、

1440x1440_60Hz、

1600x1344_60Hz、

1920×1080_60Hz、

2160x960_60Hz

Output Interface DVI:24+1 DVI_D
Others
Control Ports RS232/USB/LAN
Voltage of Input

100-240VAC

50/60Hz

Max Power Consumption 75W
Ambient Temperature 0-45℃

Ambient

Humidity

15-85%
Product Size 482x465.5x89mm
Package Size 500x510x160mm
Net Weight 7.6KG


VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor

VDWall A6000 4K HDMI Input & 8 DVI Output HD Multi-window Video Processor



More Pictures of VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor

VDWall A6000 4K HD Multi-window Video Processor



Download Specification

VDWall A6000 4K HD Multi-window Video Processor Specification
