Magnimage LED-760H Video Processor for Four-Screen Splicing
$ 1,236.00
Magnimage LED-760H video processor for four-screen splicing or independent screen layouts, with custom resolutions, rotation and multi-unit cascading.
10000 in stock
LED-760H screen splicing and independent display control
The Magnimage LED-760H video processor can combine four screen areas into one layout or assign independent content to four screens. Custom input and output resolutions support pixel-to-pixel splicing or scaling a single source across the display.
Product specifications
| Parameter | Specification |
|---|---|
| Screen layout | 4-screen splicing; horizontal, vertical, equal-size or different-size layouts |
| Independent output capability | 4 independent outputs |
| Input matrix | Up to 8 inputs and 4 outputs; confirm supplied input configuration |
| Layers in non-splicing mode | 4 independent pictures per output, with adjustable source, size and position |
| Listed source interface types | DP, DVI, HDMI, VGA and SDI; verify installed interfaces |
| Image orientation | Rotated output splicing; vertical and horizontal image reversal |
| Expansion of the display | Multi-unit cascading |
Planning your screen layout
Use splicing mode for a shared image across the wall, or independent output control when screens need separate content. For wider displays, multiple processors can be cascaded; prepare the source-server arrangement and output map before setup. Connector availability and accepted timings should be confirmed for the actual unit rather than inferred from the model number.

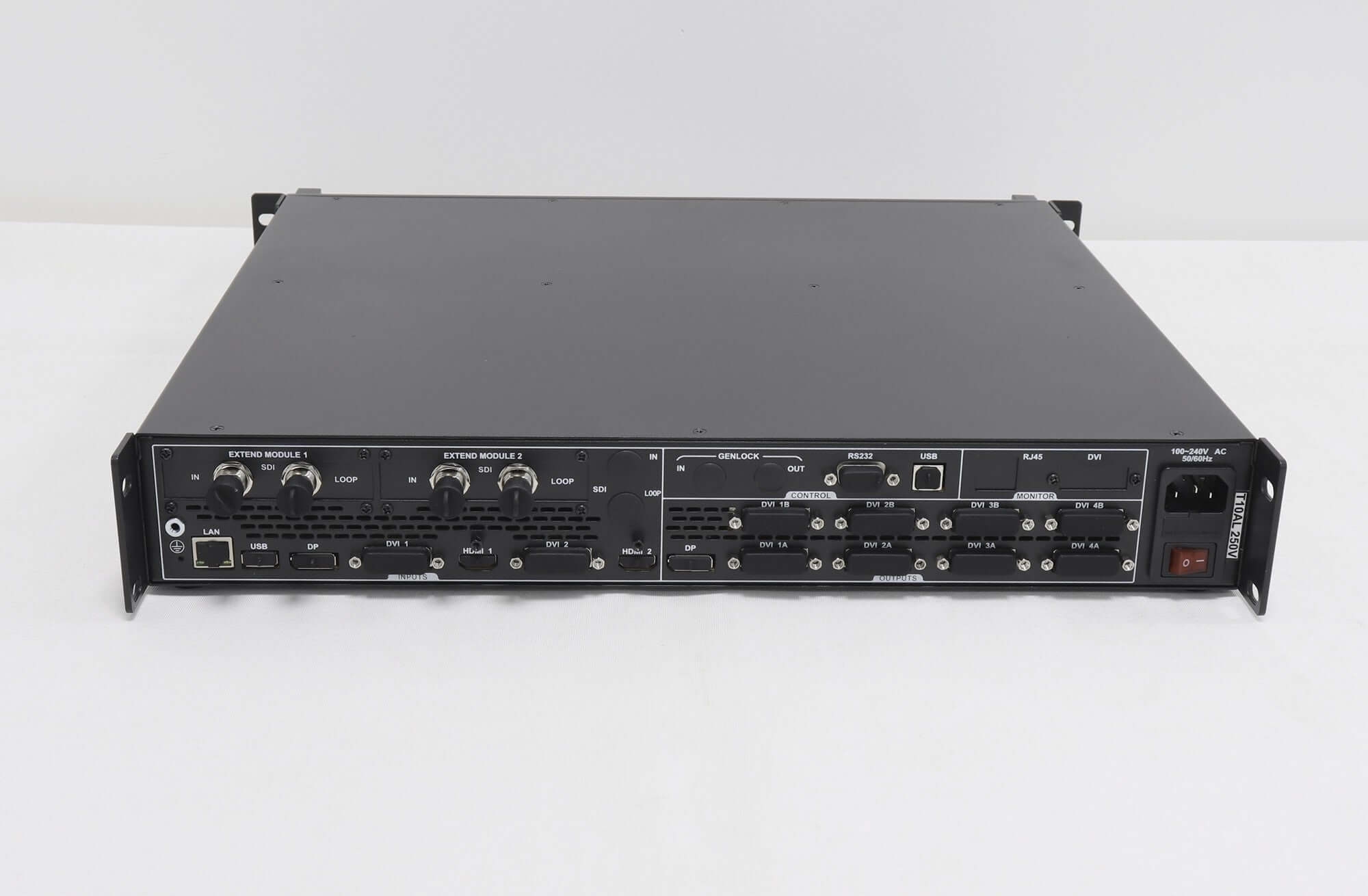

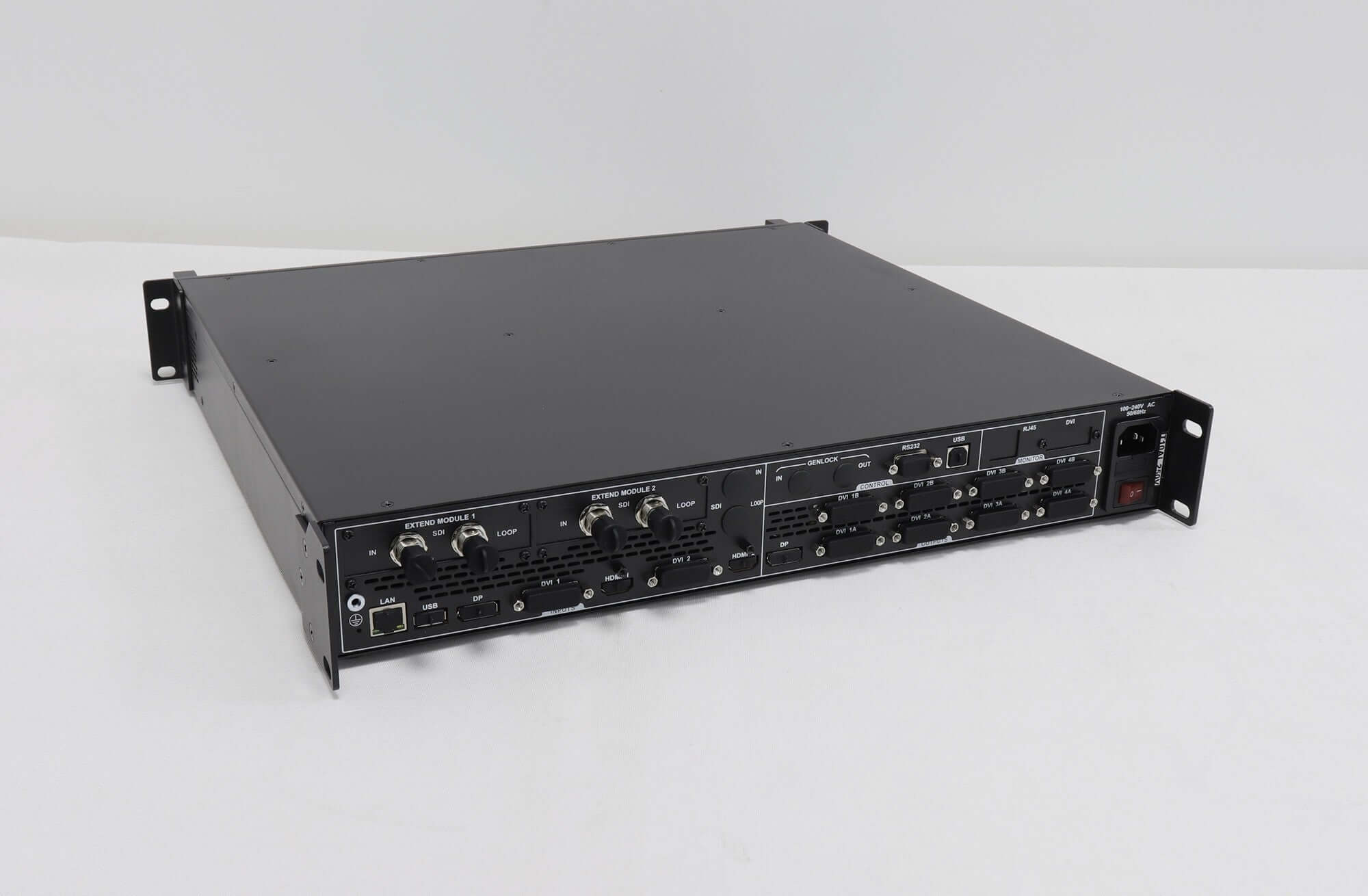

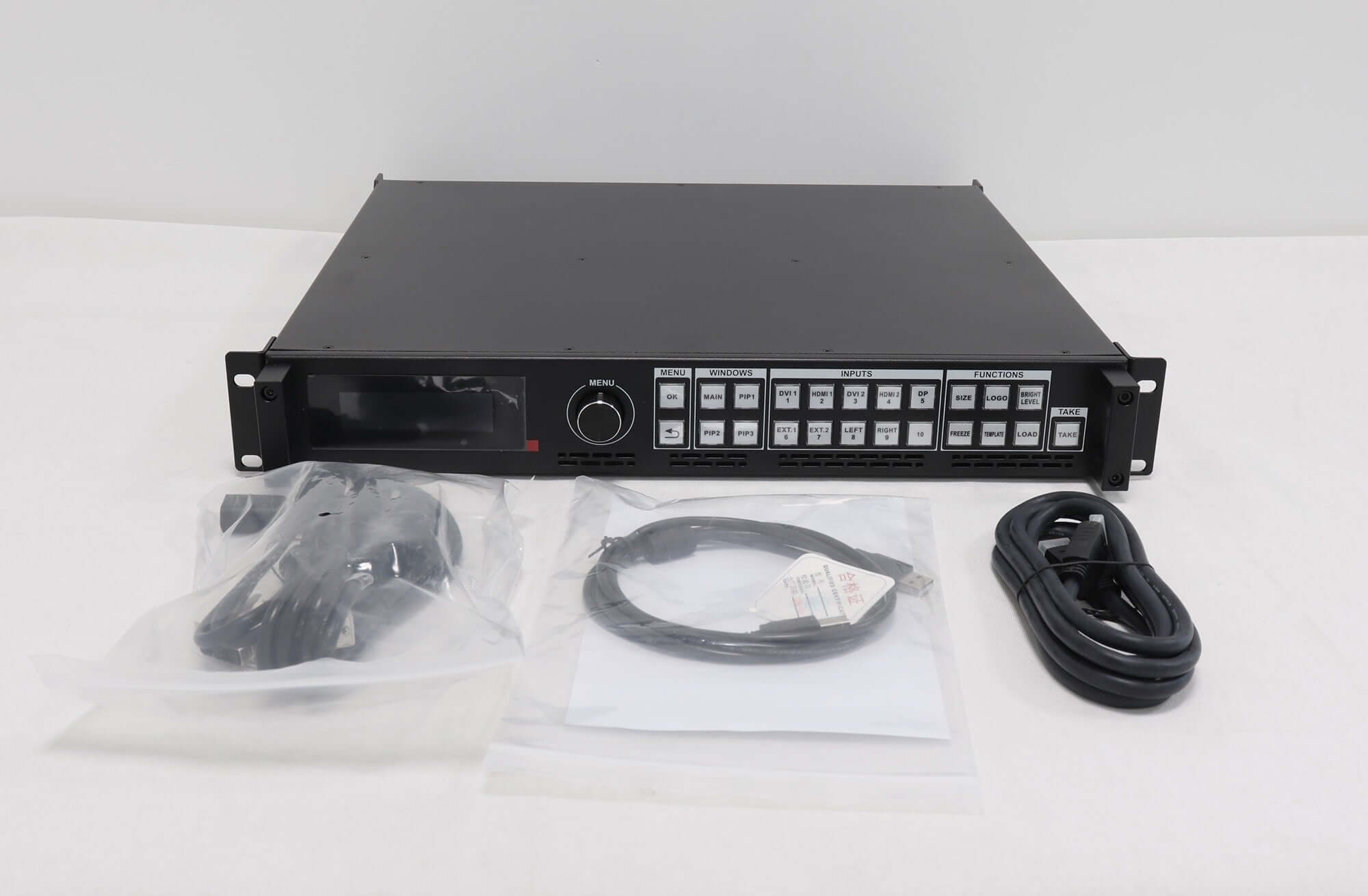

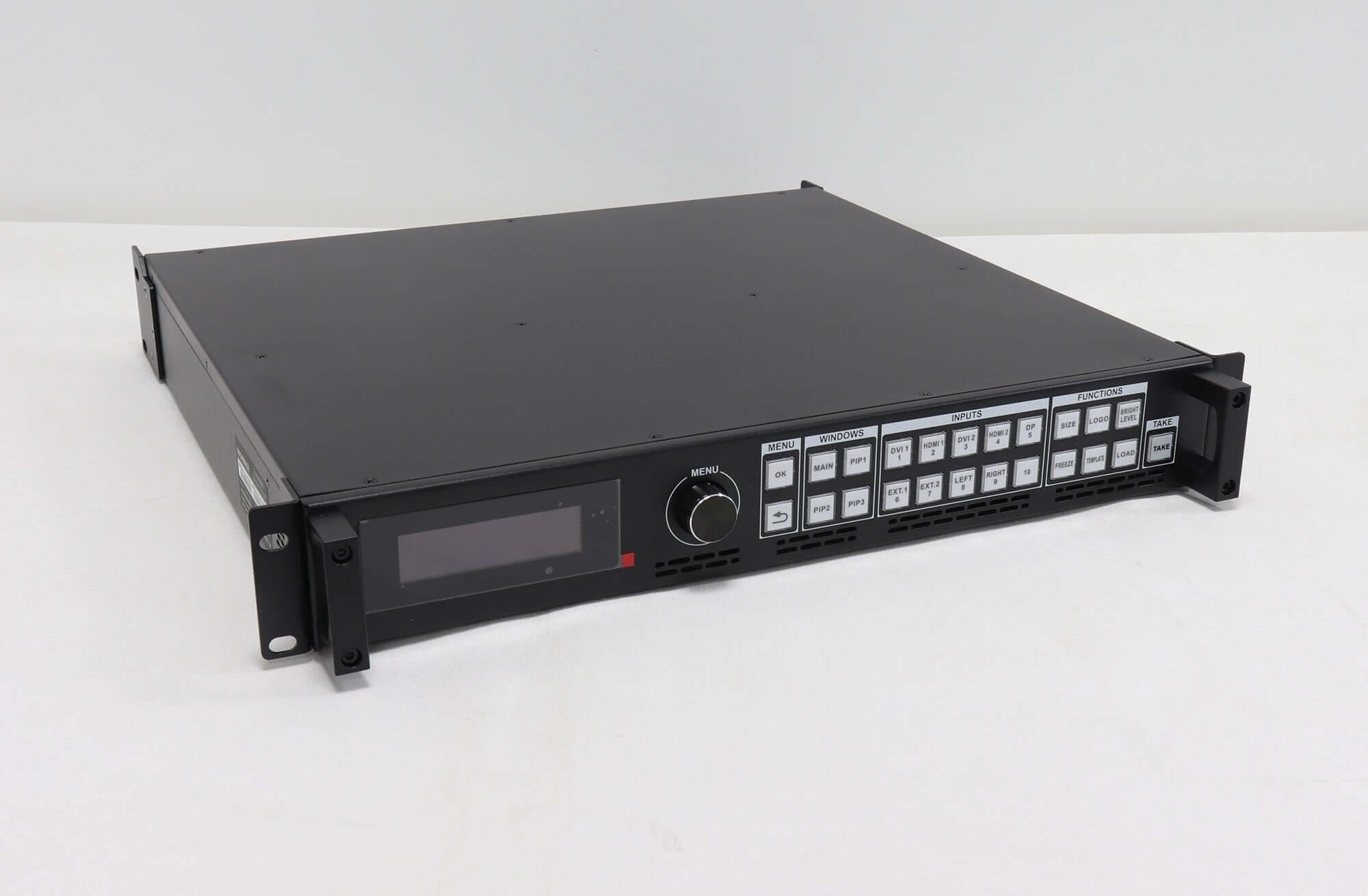

Product images and downloads
Magnimage LED 760H Video Processor For LED Screen Video Wall Specification
Frequently asked questions
1. Can one LED-760H control four screens with different content?
Yes. The listed independent-output function allows separate content on four screens.
2. How many pictures can each output show?
In non-splicing mode, each output can display four independent pictures with adjustable size, position and input source.
3. Can the output image be rotated or reversed?
Yes. The listed functions include splicing after rotation and vertical or horizontal image reversal.
4. Can I cascade units for a wider screen?
Yes. Multi-unit cascading is supported. Confirm the source distribution, output timings and screen map for the installation.
| Weight | 9 kg |
|---|
