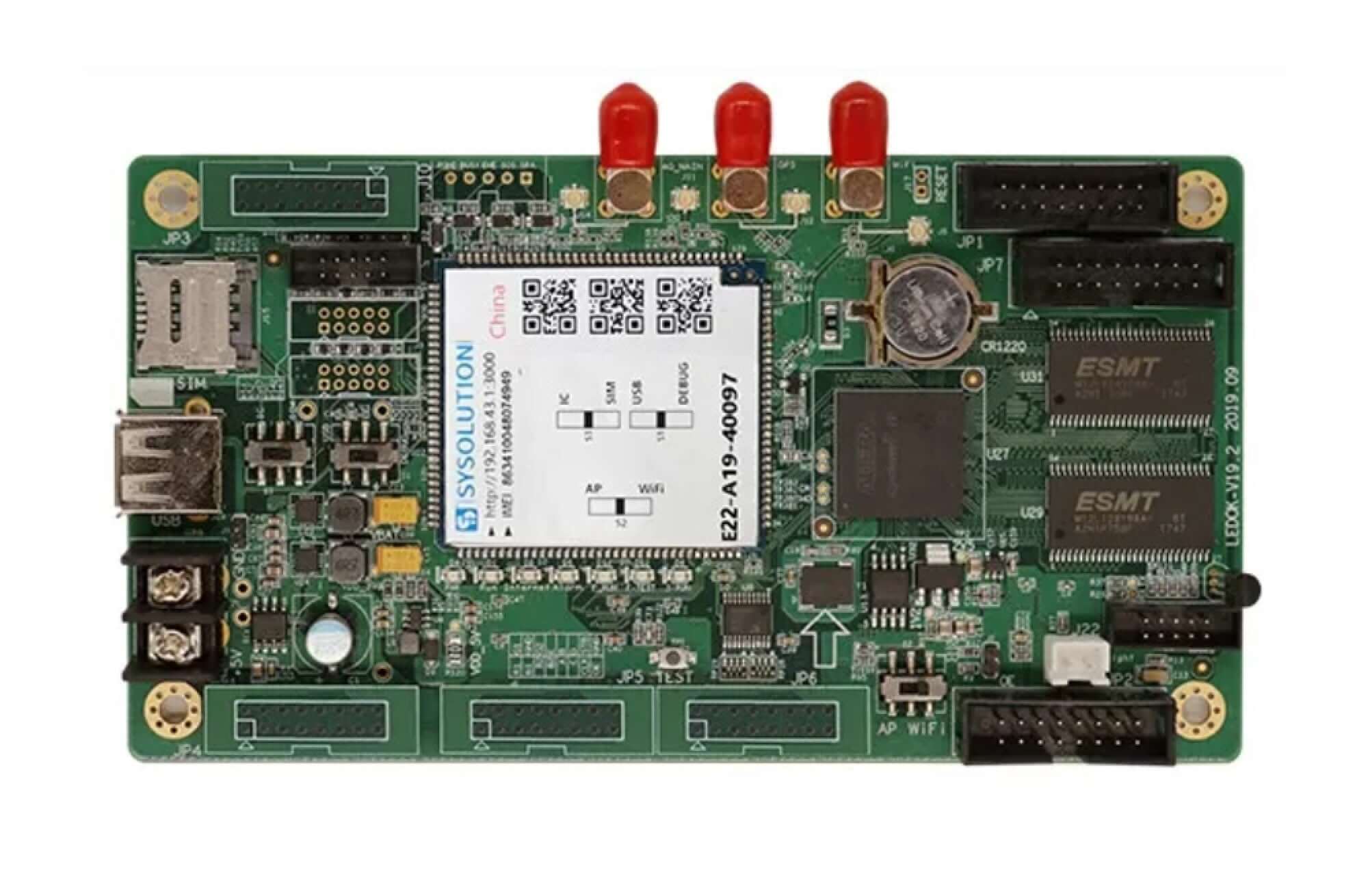

Sysolution E22 Special Control Card For Car Rear Window Screen

Sysolution
Sysolution-E22
In stock
$78.00
Sysolution E22 Special Control Card For Car Rear Window Screen With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster...
Sysolution E22 Special Control Card For Car Rear Window Screen With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through WiFi or 4G, and need to be controlled by mobile phone. Xixun E22 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.

E22 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.


Sysolution E22 Special Control Card For Car Rear Window Screen Features:

  • Integrated 2 + 1 HUB75E interfaces;
  • Dedicated for car screen, with “Passenger” and “No passenger” independent interfaces;
  • Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
  • Support secondary development, support remote cluster control of cloud platform;
  • Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
  • Support full color static to 32 scan module;
  • Industrial-strength onboard Flash: 8GB.


Sysolution E22 Special Control Card For Car Rear Window Screen

Product Features Description
Model E22
Load Pixels 256*32 No support for cascade receiving card (with two 75 interfaces)
Communication 4G full Netcom, WiFi, U disk
Platform Qualcomm MSM8909
CPU Quad-core A7(32bit)Quad core 1.1GHz
GPU A307 409.6MHz
System Memory 8GB Emmc+1GB LPDDR3
Operating System Android 5.1
WiFi IEEE 802.11b/g/n 2.4G
GPS GPS/Beidou/Glonass
3G/4G frequency band (China)

-CH(China)

FDD-LTE:B1/3

TDD-LTE:B38/39/40/41

TDSCDMA:B34/39

WCDMA:B1/8

CDMA 1X/EVDO:BC0

GSM:B3/5/8

Audio Support
Camera Support
Weather Forecast Support
Display content read back Support
Configuration Software Easyboard


Download Specification

Sysolution E22 Special Control Card For Car Rear Window Screen Specification
