Colorlight A35 Networked LED Player – 350,000 Pixels
Price range: $ 127.00 through $ 247.00
Colorlight A35 networked LED player with 350,000-pixel loading, dual-band Wi-Fi, LAN and USB content updates. Supports H.265 4K decoding, with optional 4G and GPS hardware.
Colorlight A35 networked LED screen player
The A35 manages stored programs for LED advertising screens, storefront signs and similar displays. It supports up to 350,000 LED pixels, with content updates over wired LAN, Wi-Fi or USB. Optional 4G hardware provides a mobile-network connection where required.
A35 technical specifications
| Parameter | Specification |
|---|---|
| Total LED loading | 350,000 pixels |
| Maximum screen dimensions | 2048 pixels wide; 1200 pixels high, within total capacity |
| Video decoding | H.265 4K hardware decoding; up to one 4K or two HD video windows |
| Storage / operating memory | 8GB storage, 4GB program-available / 1GB RAM |
| Program pages | Up to 32 |
| LED output | RJ45 DISPLAY port |
| Networking | LAN; 2.4GHz/5GHz Wi-Fi; optional 4G |
| USB | USB-B configuration; USB-A 3.0 for program updates |
| Audio | 3.5mm stereo output |
| Device power input | DC 5–12V |
| Maximum power | 15W |
| Dimensions / weight | 108 × 128 × 26mm / 0.33kg |
Program layouts and installation checks
Arrange video, pictures, text and clocks in adjustable, overlapping windows, and schedule multiple program pages. The specification also describes a four-video-window layout limited to one HD window in that mode; it does not claim four simultaneous HD or 4K streams.
Use the DISPLAY port for the receiving-card connection and LAN for network management. Sensor connections support environmental monitoring and brightness-control applications with the appropriate probes. Match screen dimensions, receiving-card settings and optional communication hardware to the installation.

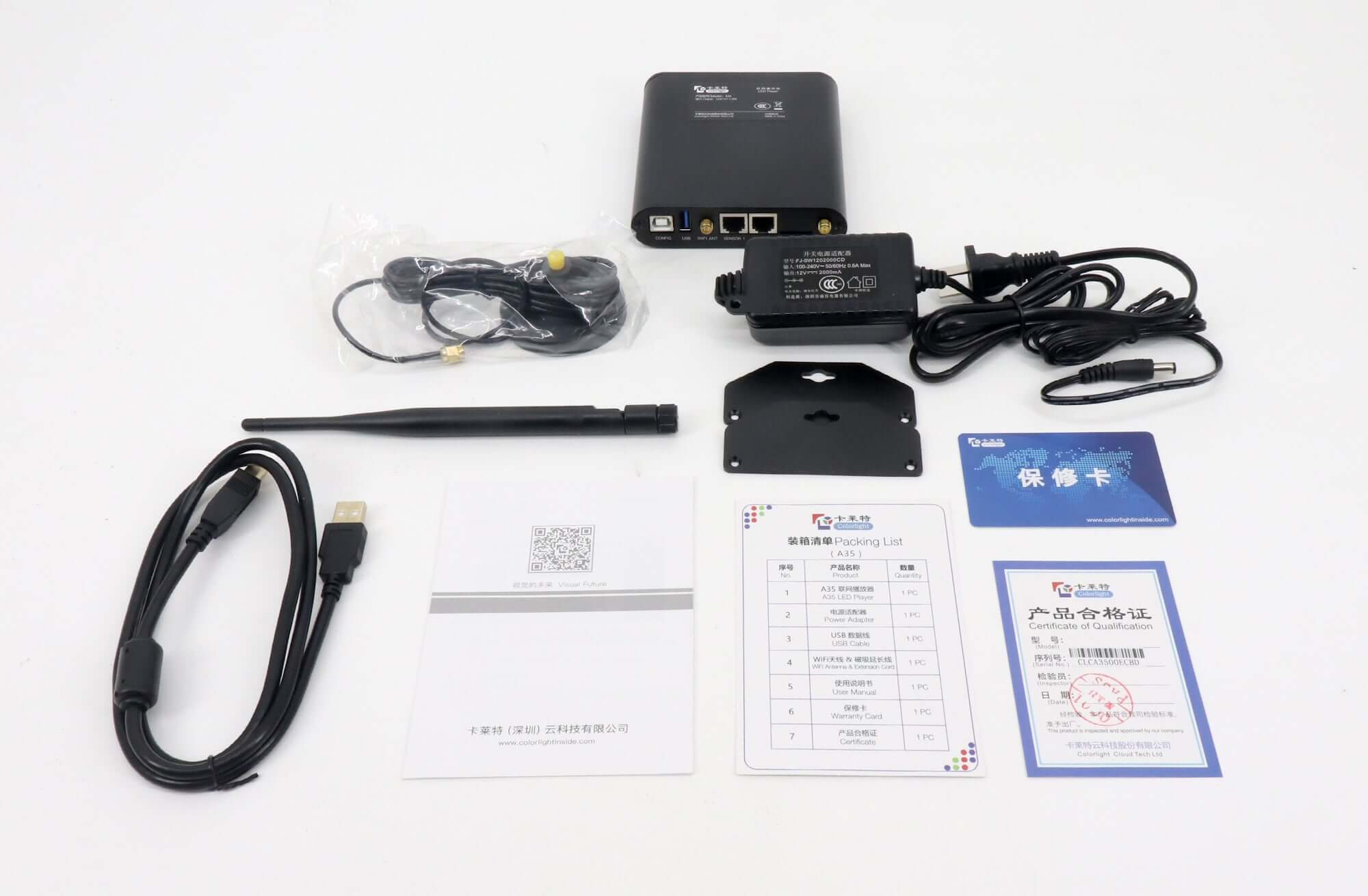

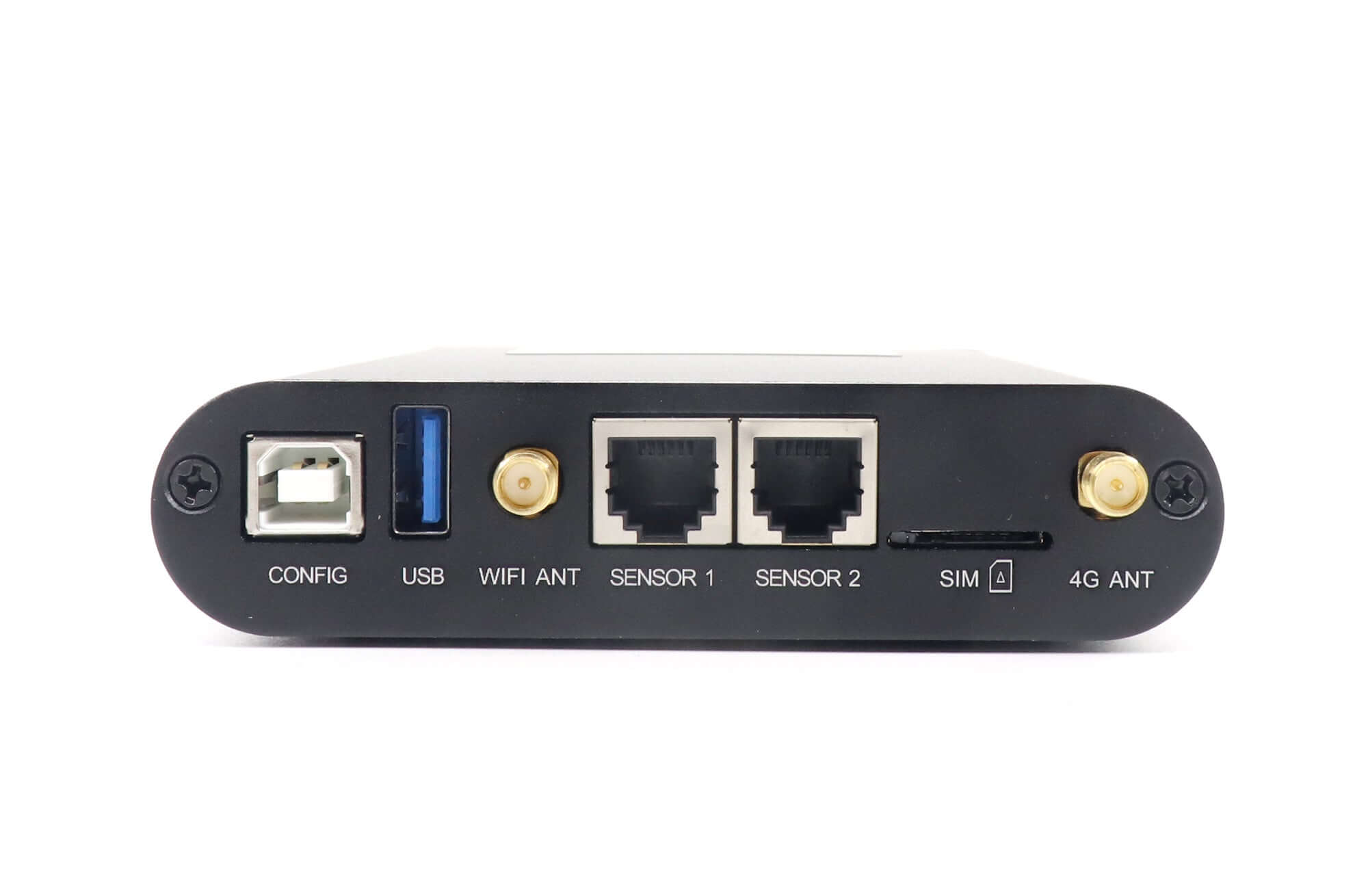

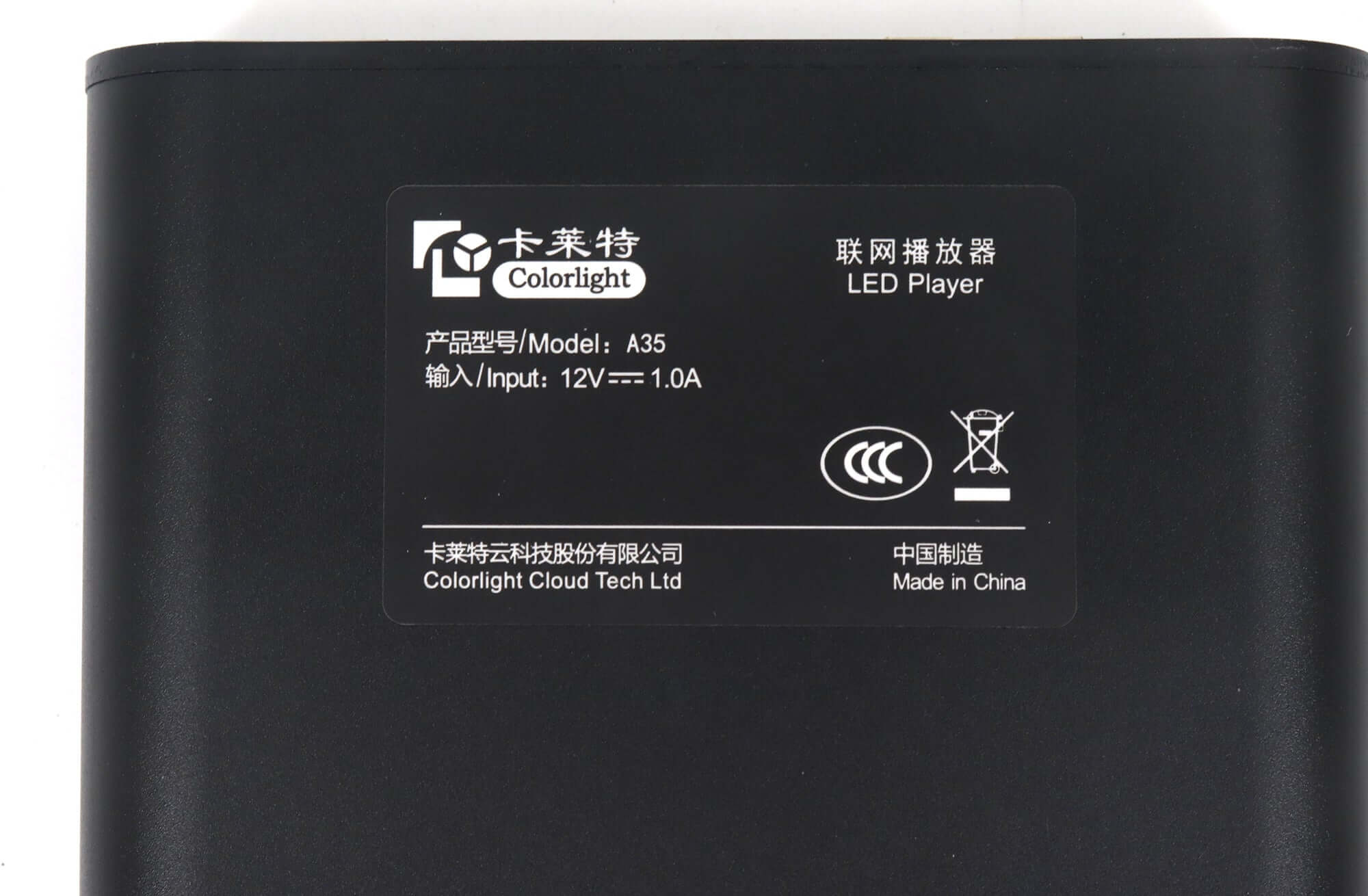

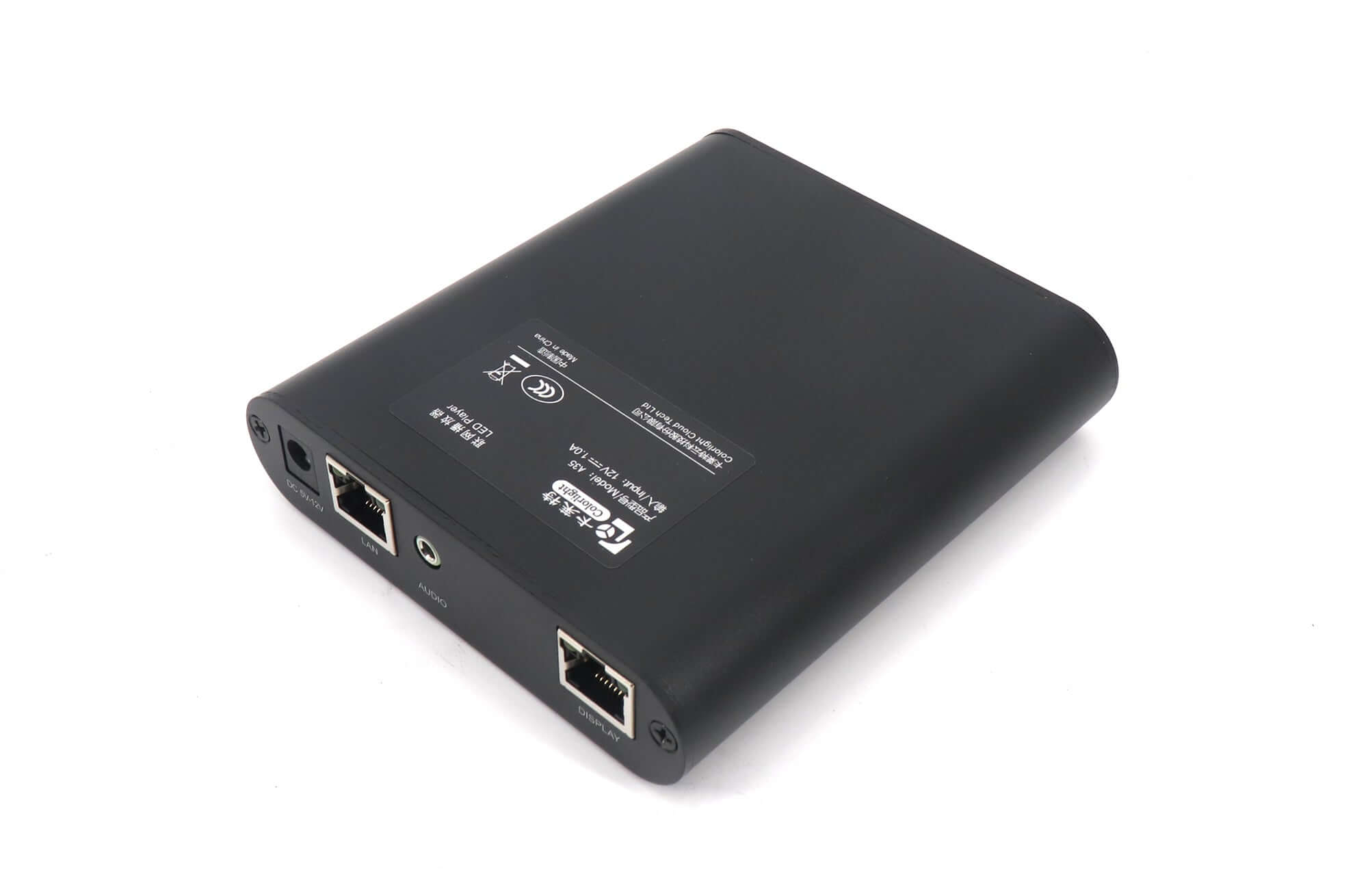

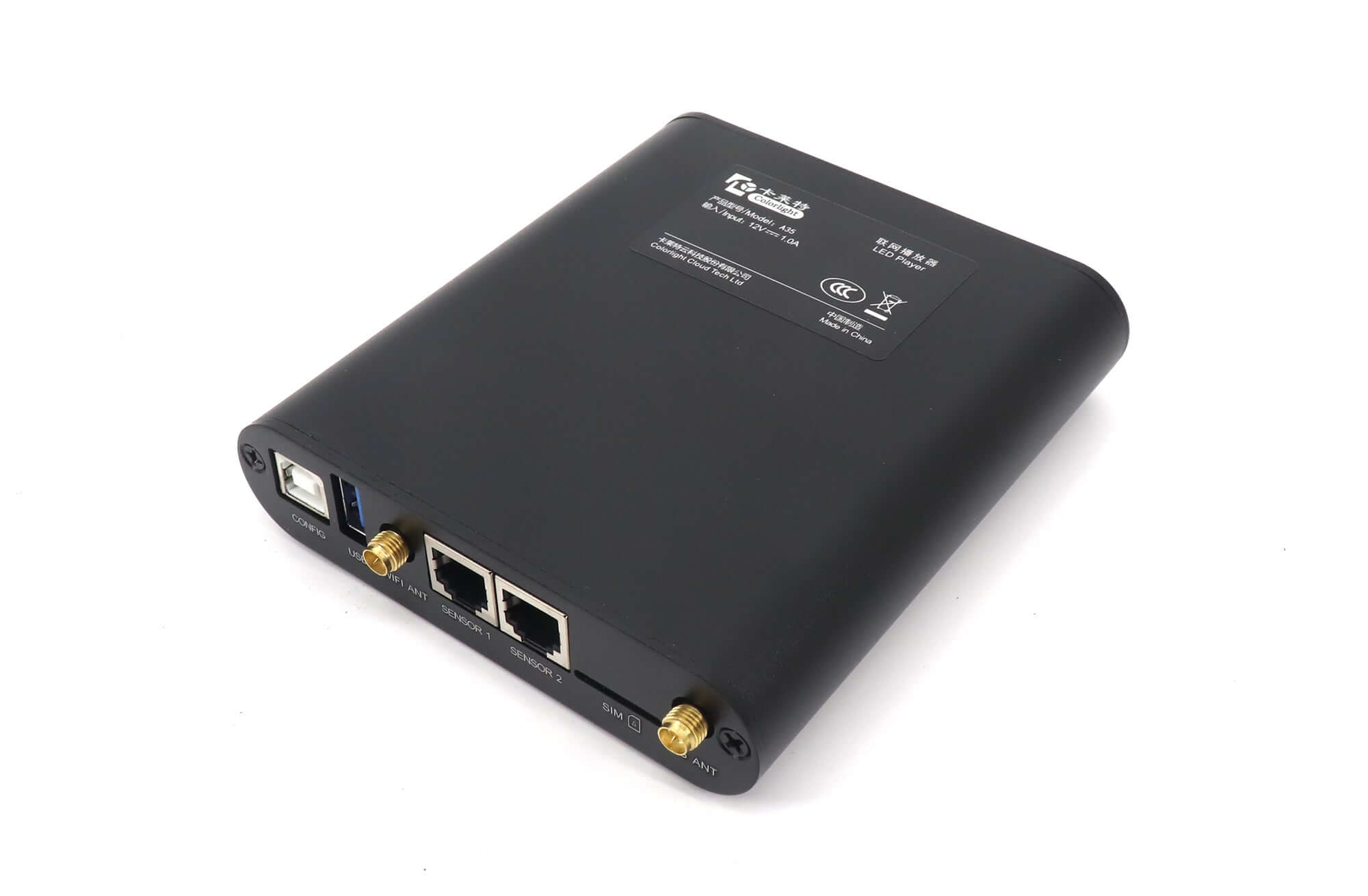

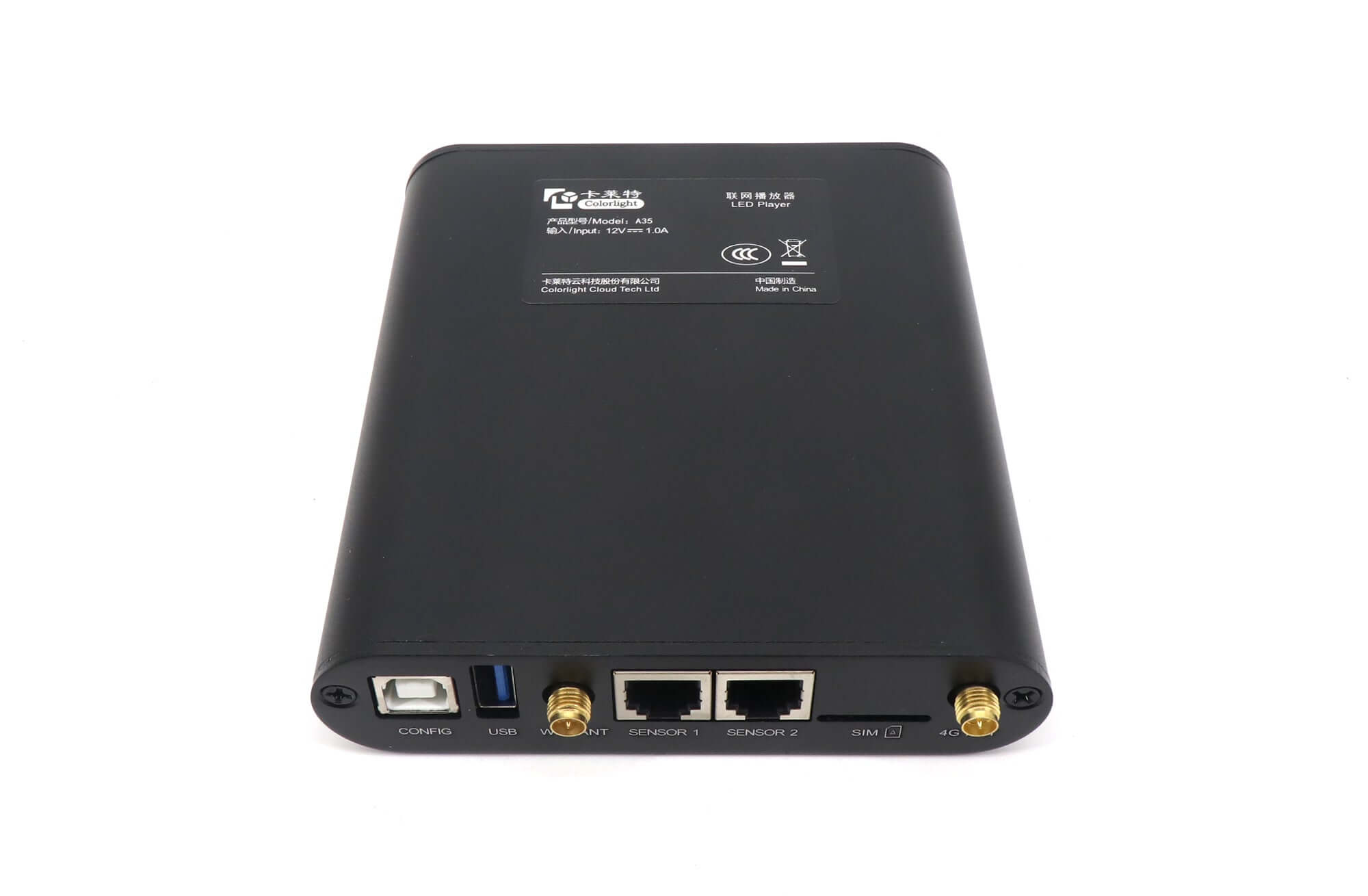

Product photos
Specification download
Download A35 specification V1.0 (PDF, Chinese)
Frequently asked questions
Can the Colorlight A35 drive a 4K LED screen?
Its 4K specification refers to video decoding. LED loading is limited to 350,000 pixels in total, with a maximum width of 2048 pixels and maximum height of 1200 pixels. Those width and height limits cannot both be used at once if the total area exceeds 350,000 pixels.
Which A35 port connects to the LED receiving card?

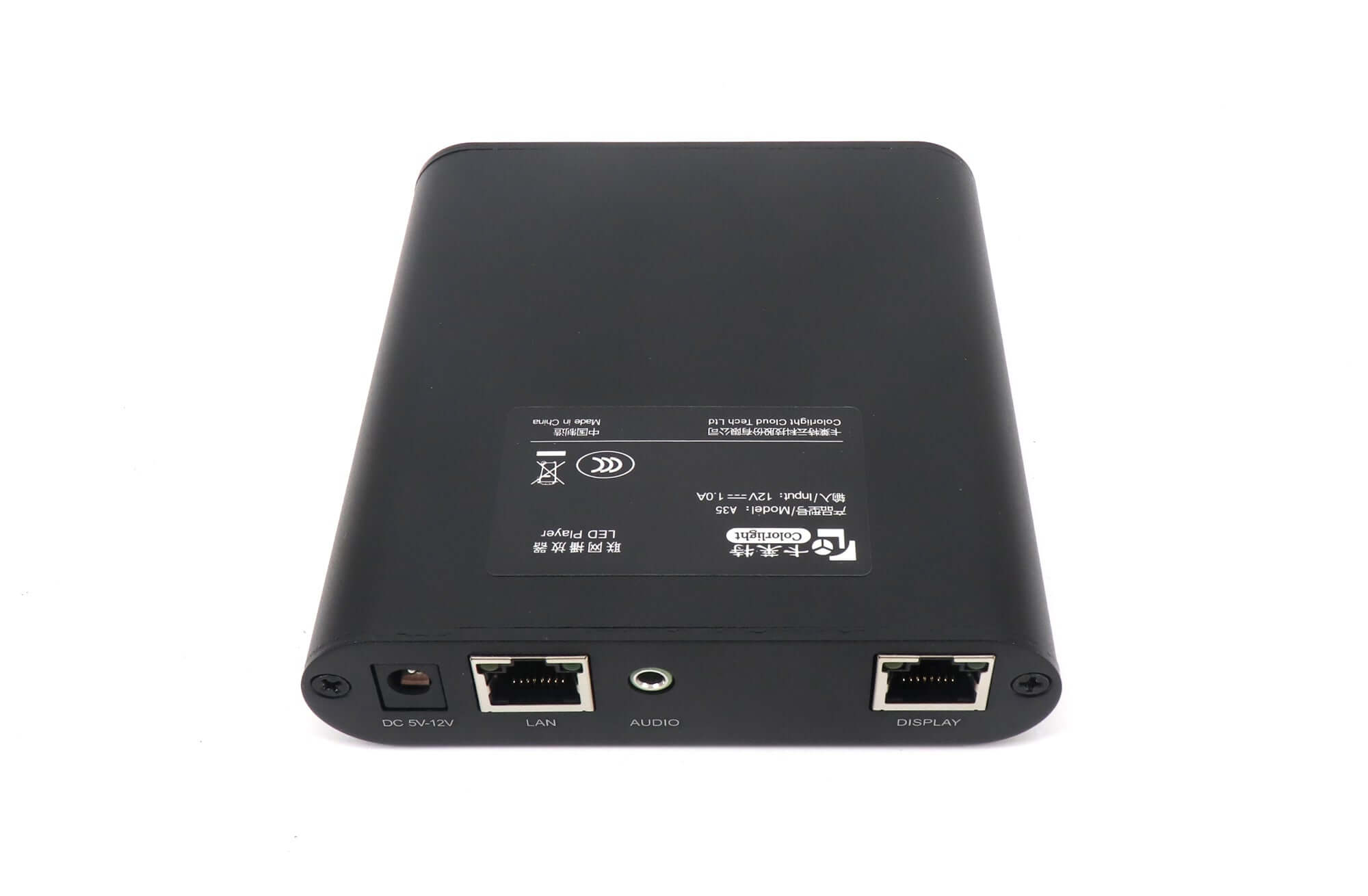

Use the RJ45 port labelled DISPLAY for the receiving card. The separate LAN port connects the player to a local network for communication and management.
Does the A35 support Wi-Fi and 4G?
It supports 2.4GHz and 5GHz Wi-Fi in hotspot or client mode, and wired LAN with DHCP or static addressing. 4G networking and GPS positioning are optional; confirm the fitted hardware before ordering.
How much program storage is available?
The V1.0 specification lists 8GB of storage with 4GB available for programs. It also lists 1GB of operating memory. USB flash drives can update the playlist or provide plug-and-play content.
Which software is used with the A35?
The specification lists PlayerMaster for program editing and publishing, LEDVISION for screen configuration, ColorlightCloud for web-based management and a mobile client for Android and iOS. Check compatible software versions and current cloud-service availability for the installation.
