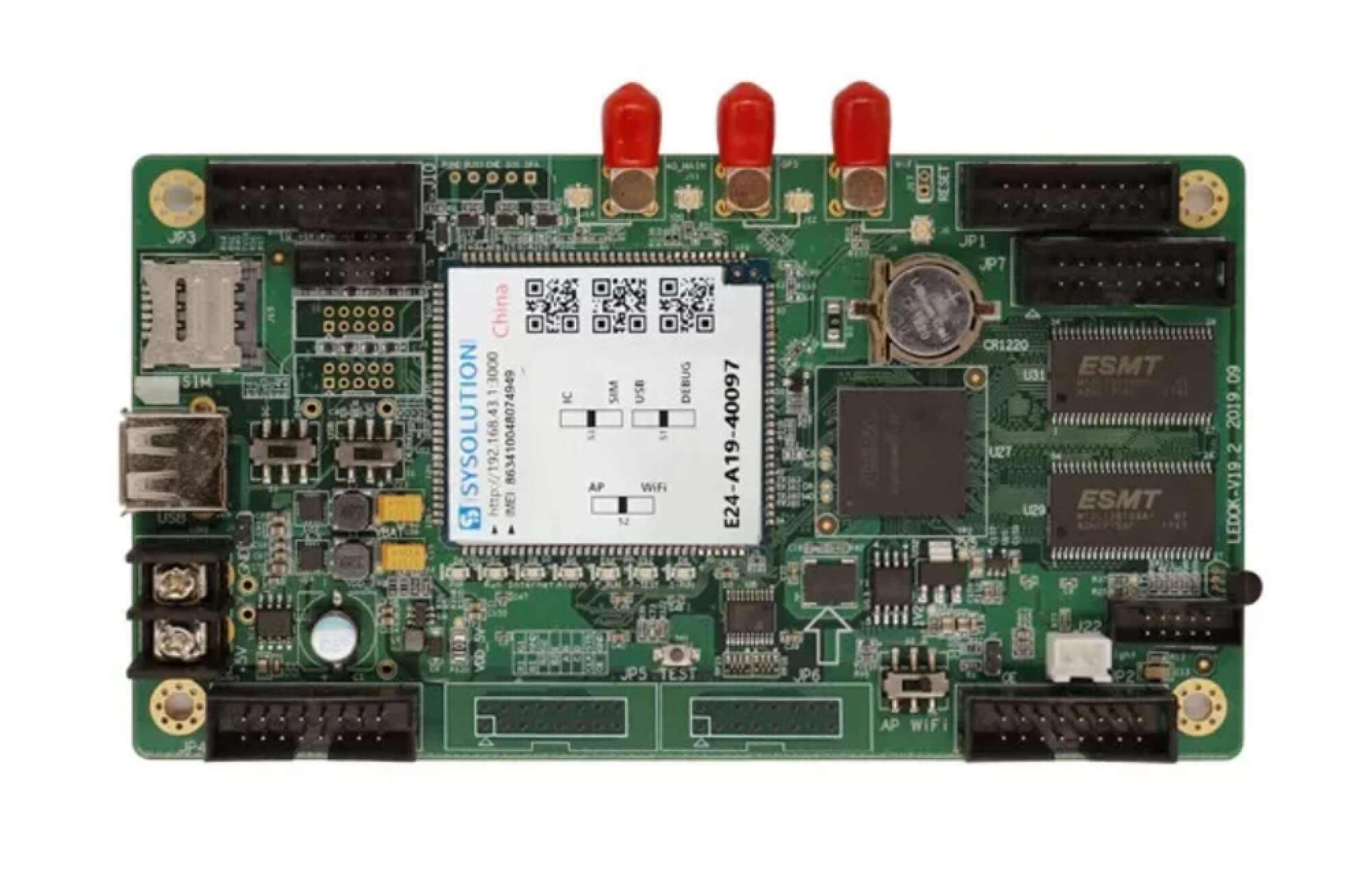

Sysolution E24 Dedicated Control Card For Bus Rear Screen

In stock
Sysolution E24 Dedicated Control Card For Bus Rear Screen Overview: With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster...

Sysolution E24 Dedicated Control Card For Bus Rear Screen Overview:

With the development of LED car displays, in some areas, it needs to support wireless transmission, remote cluster control, docking with third-party platform applications, need control cards access the network and GPS positioning through Wi-Fi or 4G, and need to be controlled by mobile phone. Xixun E24 is tailor-made for these needs, leading the mobile car screen market. Make user control easier.

E24 uses Qualcomm MSM8909 platform solution. The MSM8909 processor is manufactured using the 28nmLP CMOS process, and the quad-core frequency is 1.1GHz. The memory supports 1GB + 8GB (compatible with 2GB + 16GB) LPDDR3. The chip is a highly integrated product, can support GSM, WCDMA, TD-SCDMA, EVDO, TDD-LTE, FDD-LTE and other standards.

Sysolution E24 Dedicated Control Card For Bus Rear Screen Features:

  • Integrated 4+ 1 HUB75E interfaces;
  • Dedicated for car screen, with “Passenger” and “No passenger” independent interfaces;
  • Onboard WiFi module, realize wireless communication, support AP mode, tation mode;
  • Support secondary development, support remote cluster control of cloud platform;
  • Built-in Web Sever, support for local web page production, support computer, iPhone, Android phone, tablet stand-alone program editing, cross-platform system fully compatible;
  • Support full color static to 32 scan module;
  • Industrial-strength onboard Flash: 8GB.

Sysolution E24 Dedicated Control Card For Bus Rear Screen Parameter:

Product Features Description
Model E24
Load Pixels 256*32 No support for cascade receiving card (with four 75 interfaces)
Communication 4G full Netcom, WiFi, U disk
Platform Qualcomm MSM8909
CPU Quad-core A7(32bit)Quad core 1.1GHz
GPU A307 409.6MHz
System Memory 8GB Emmc+1GB LPDDR3
Operating System Android 5.1
WiFi IEEE 802.11b/g/n 2.4G
GPS GPS/Beidou/Glonass
3G/4G frequency band (China) -CH(China)
Audio Support
Camera Support
Weather Forecast Support
Display content read back Support
Configuration Software Easyboard

Download Specification

Sysolution E24 Dedicated Control Card For Bus Rear Screen Specification
