Amoonsky AMS-MVP300 LED Display Video Processor

In stock
* Seamlessly switch any channel* Signal detection function* Maximum output resolution 1920*1080@60Hz* 6-channel digital-analog video input:1HDMI、1DVI、1VGA、1AV、1USB(Optional: 1 SDI、1 WIFI)* 3-channel digital-analog video output:2 DVI* Quick knob adjustment settings*...

* Seamlessly switch any channel
* Signal detection function
* Maximum output resolution 1920*1080@60Hz
* 6-channel digital-analog video input:
1HDMI、1DVI、1VGA、1AV、1USB(Optional: 1 SDI、1 WIFI)
* 3-channel digital-analog video output:2 DVI
* Quick knob adjustment settings
* Support audio output
* Support U disk playback
* Support SDI input, loop out
* Black/ Freeze
* Key Lock Function
* 10 sets of preset templates saved and called


Features of Amoonsky AMS-MVP300 LED Screen Video Processor

Multiple Video Input——MVP300 series uses 5 channels of video input, including 1 composite video AV (CVBS), 1 channel VGA, 1 channel DVI, 1 channel HDMI, 1 channel USB. Basically, the needs for civil and industrial use have been covered. Seamless switching of all video input.

Video Output Interface——MVP300 series has 2 video output, Adopt 2 DVI output interfaces. The 2 videos programmed output to LED sending card or display.

Seamless Switching Of Any Channel——MVP300 series video processor can also seamlessly switch between any channels, switch quickly.

Rich Output Resolution——MVP300 series has designed a number of practical output resolutions for users. The widest is 1920 points, the highest is 1080 points. Applicable to a variety of dot matrix displays. Up to 10 output resolutions are available for user selection and can be adjusted point-to-point output.

Support Audio Output——MVP300 series has 1 channel audio output, audio and video synchronized output.

Black/ Freeze——MVP300 series has BLACK features, after setting, press the BLACK button directly to achieve black screen or screen freeze.

Key Lock Function——MVP300 series has key lock function,open Keypad lock , during use,can effectively prevent misuse and other situations,provides a favorable guarantee for the use of the process.

Preset Save Function——MVP300 series adopts 10 sets of user presets. Each set of user presets can store all user setting parameters, and can realize parameter backup and on-site calling functions <require to enter system menu enable>.

24-bit Image Lossless Scaling Function——MVP300 series uses a dual-core image processing engine. A single core can handle 24-bit image scaling technology, which can output from 64 to 1920 pixels, and can achieve 10 times image magnification output, that is, the maximum screen is 19200.

Unique Brightness Adjustment Technology——MVP300 series has a built-in unique brightness adjustment function, which solves the problem of loss of layering after reducing the brightness, making the color reproduction more realistic.

Real-time Storage Technology——The ready-to-use technology solves the user's cumbersome setup and manual storage process, that is, the user does not need to perform manual save operation after adjusting or adjusting parameters. MVP300 series automatically stores the user parameters in the EEPROM, even after the power is turned off, The previous parameters remain in the device.

34-level GAMMA Curve——The rich GAMMA curve pool can be used by users in various brightness environments and color matching environments.

ACC ACM Image Filtering——MVP300 series uses ACC and ACM image filtering engines. When processing each color, the nonlinear filtering effect minimizes image loss and restores color realism.

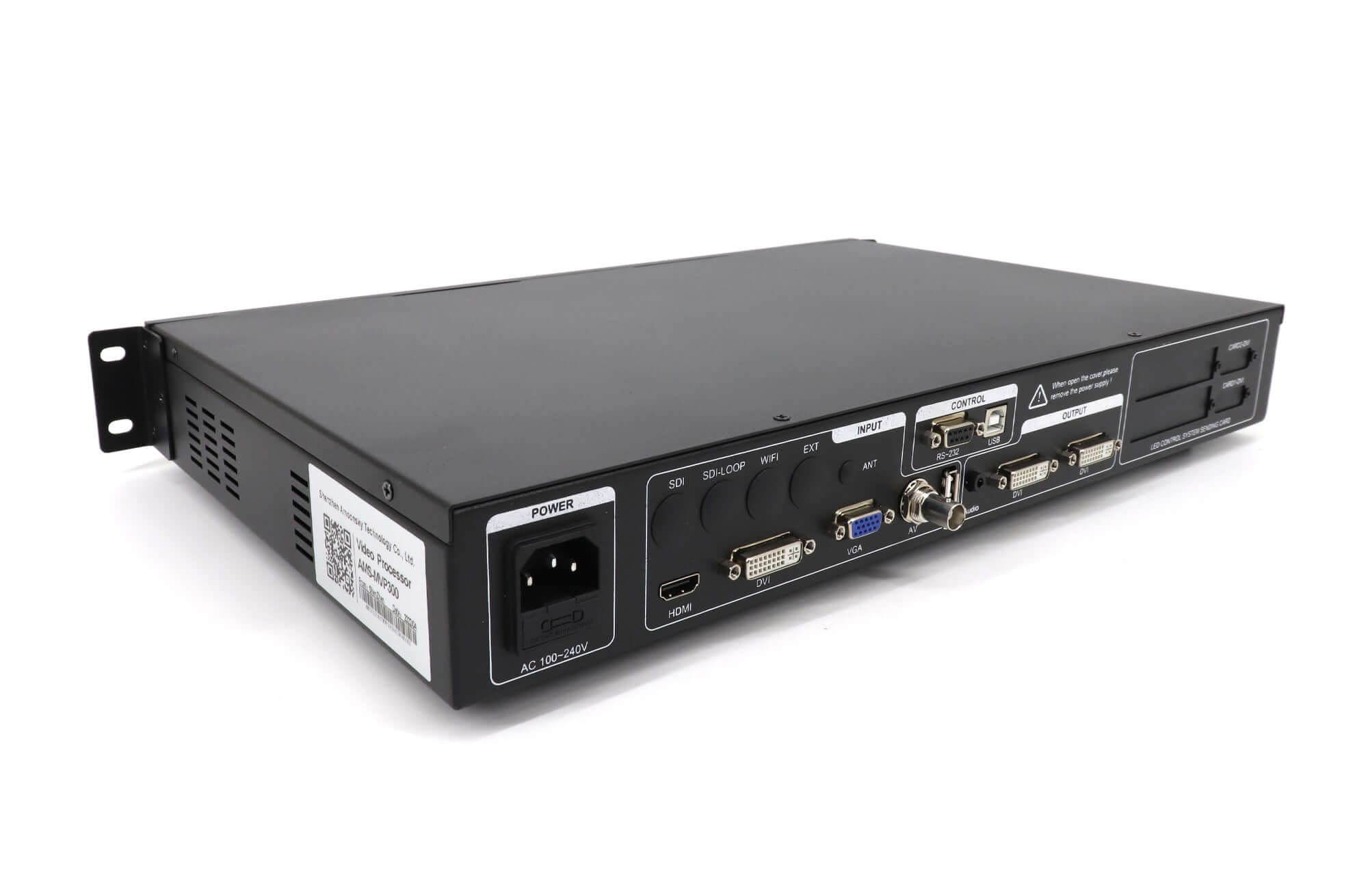

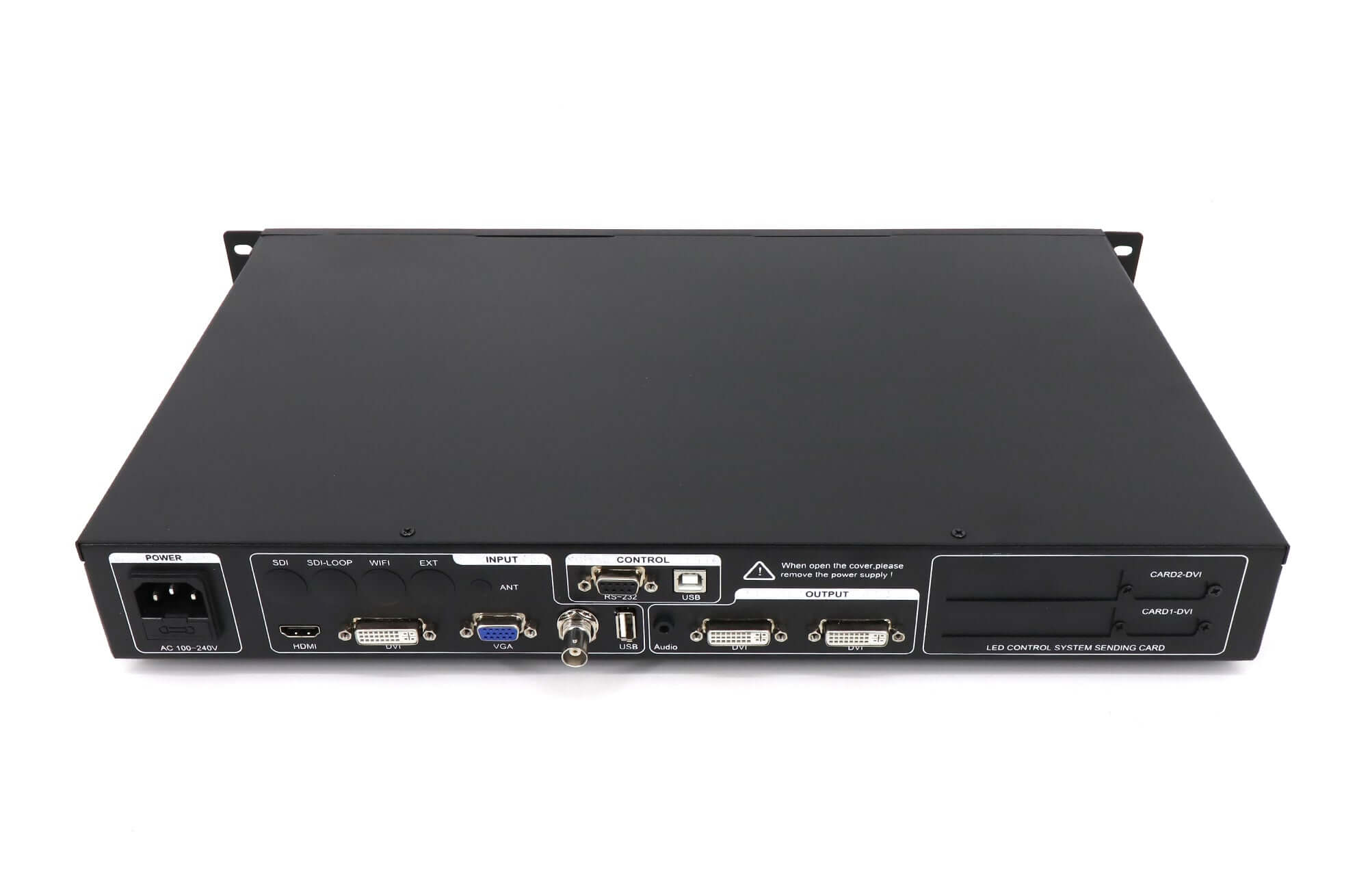

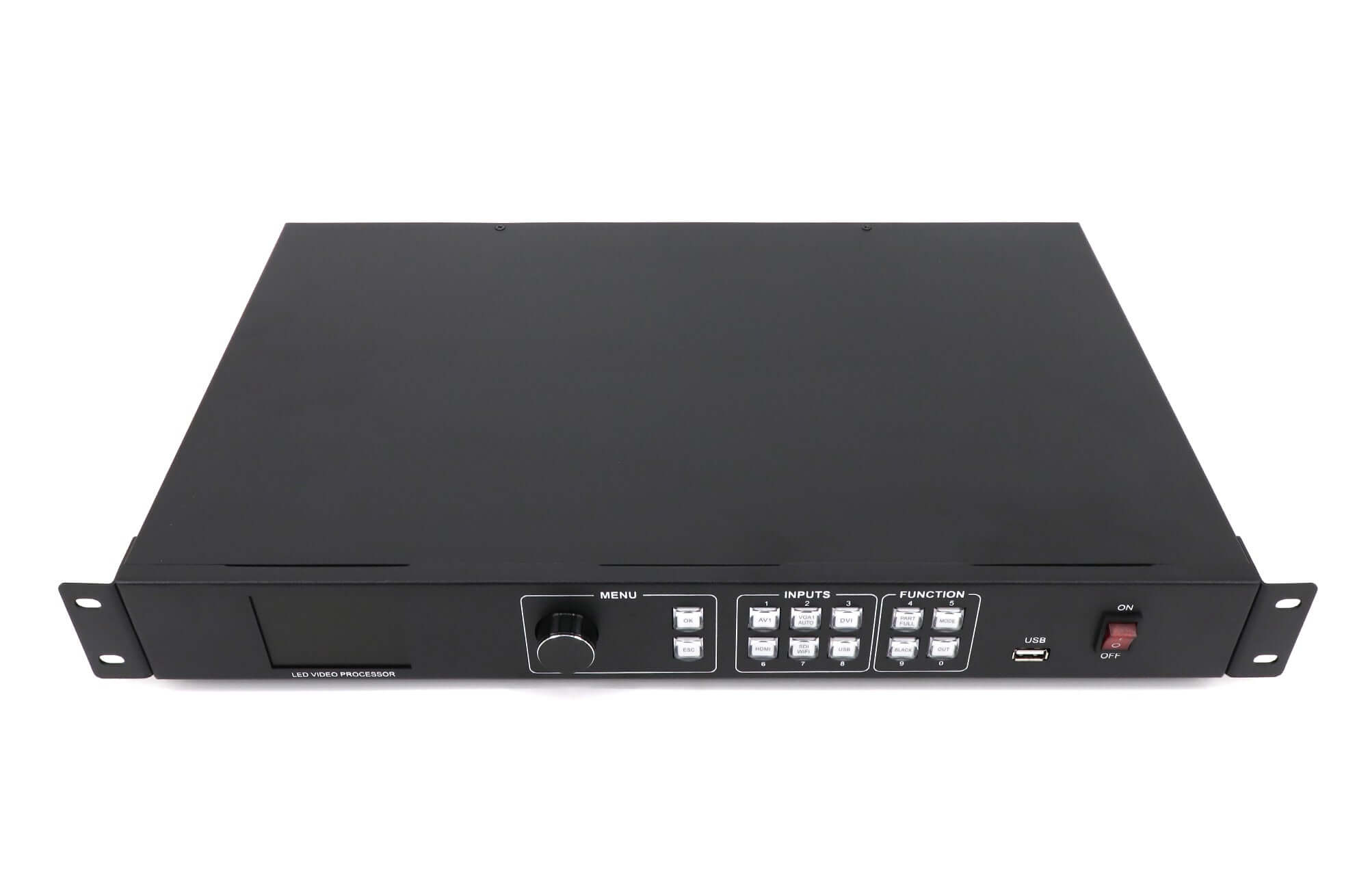

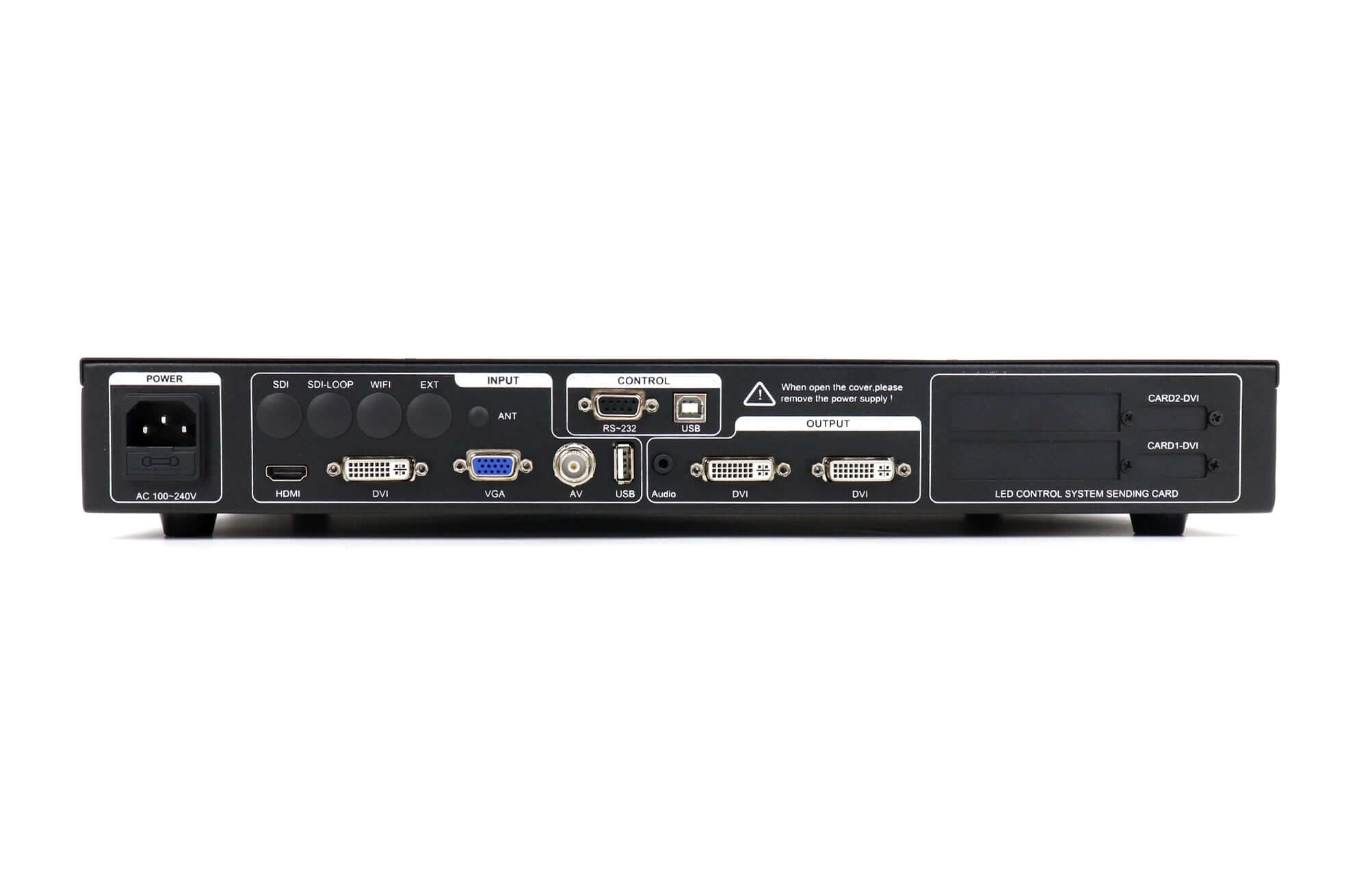

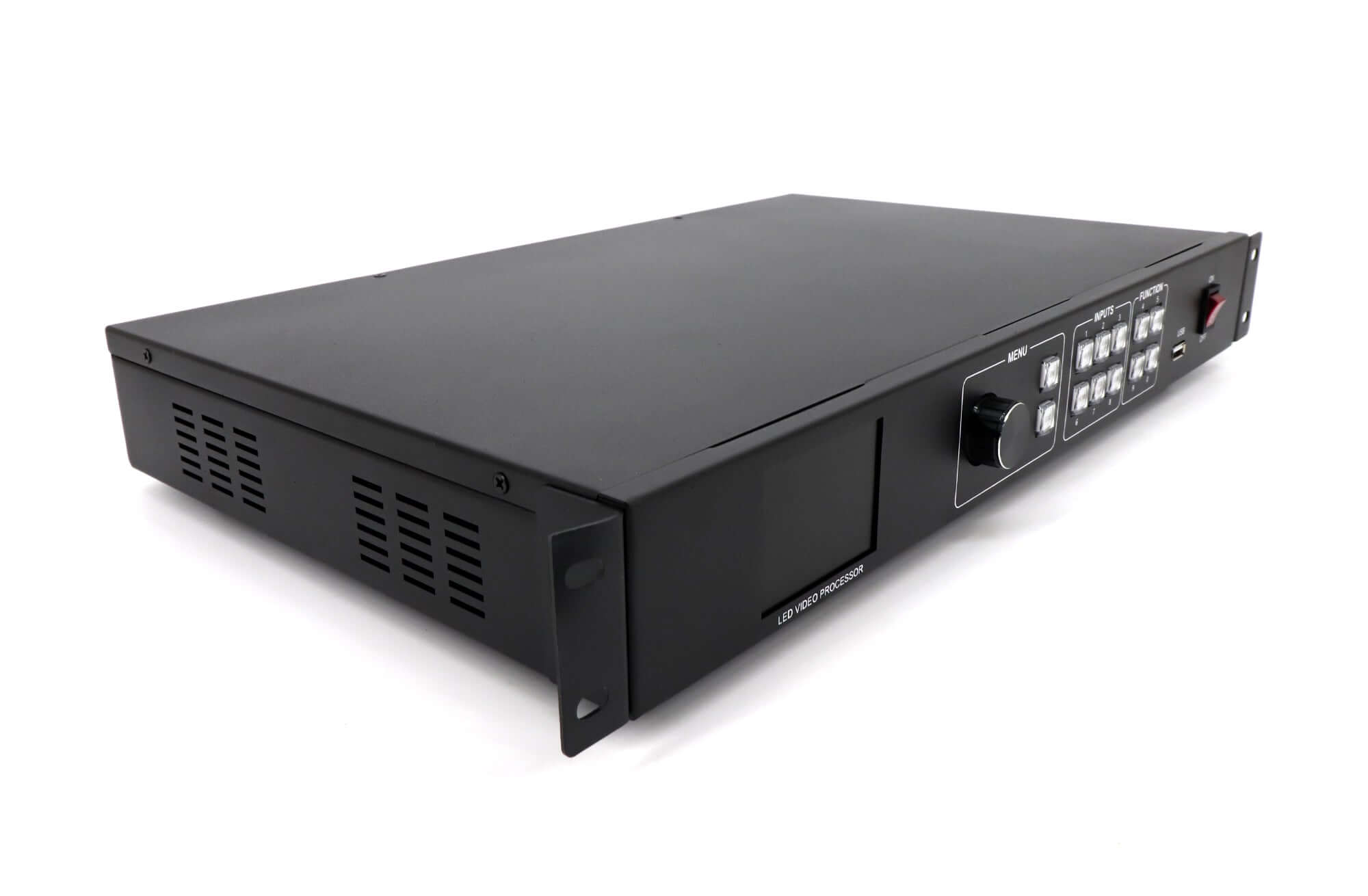

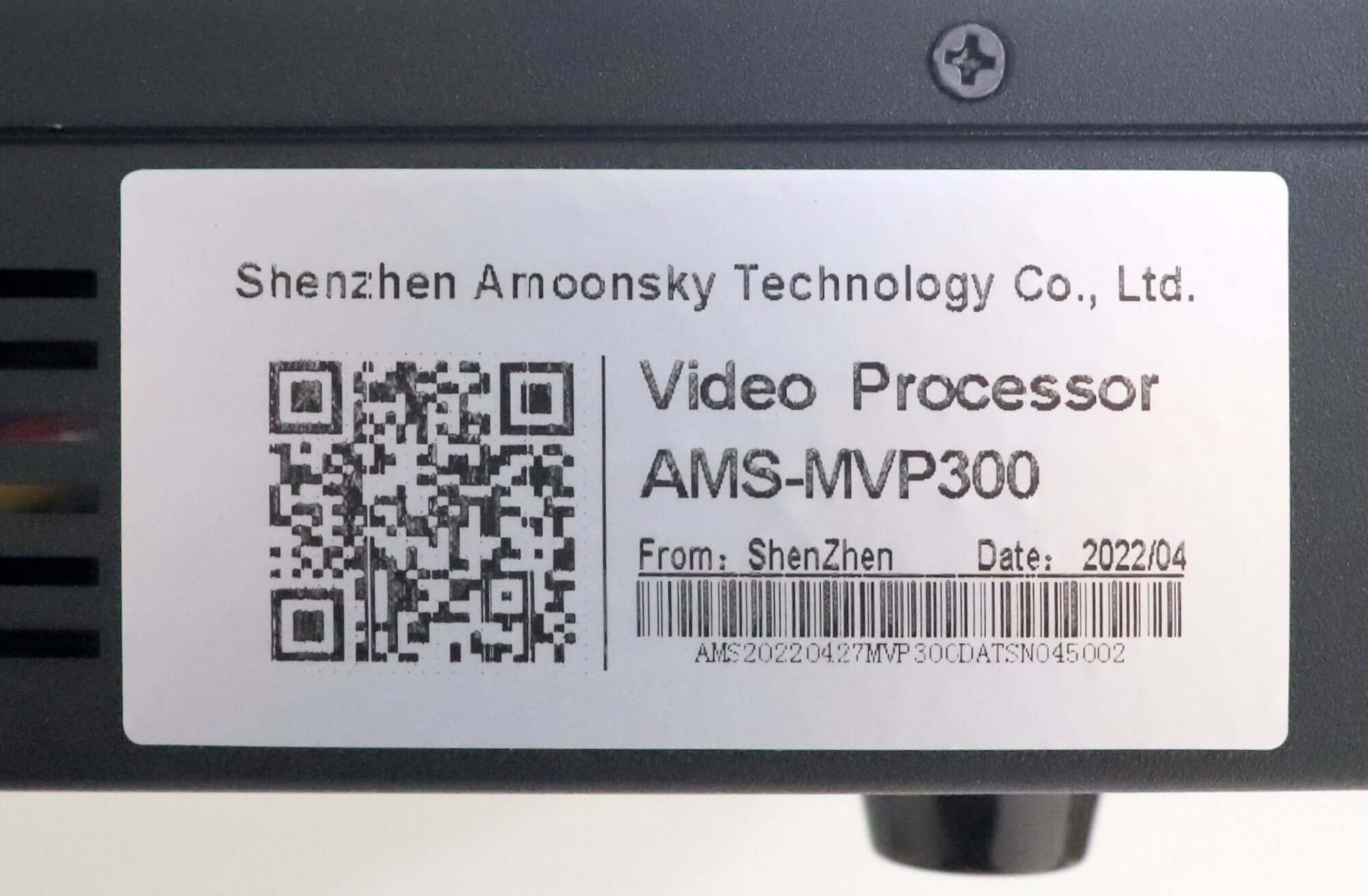

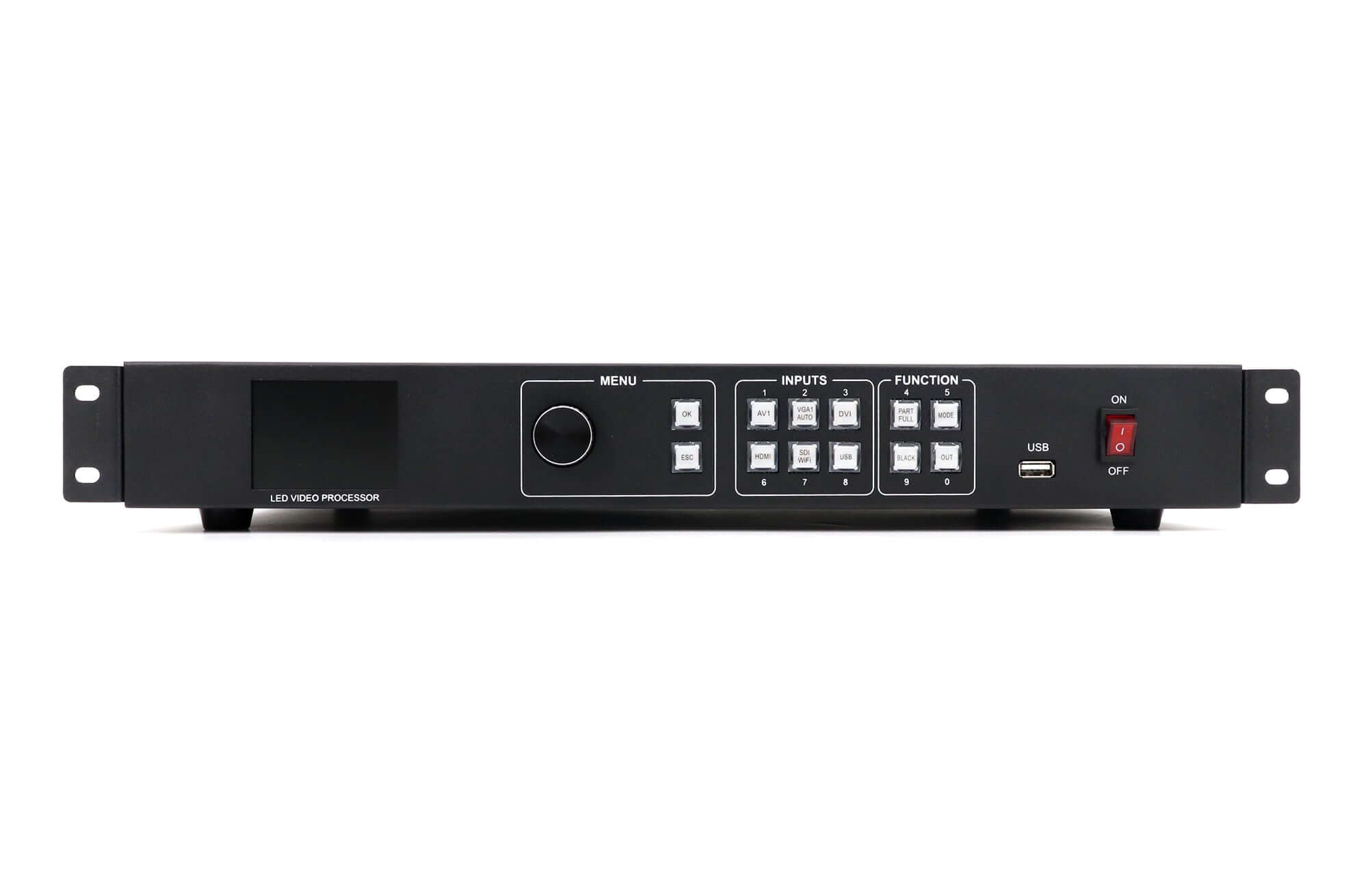

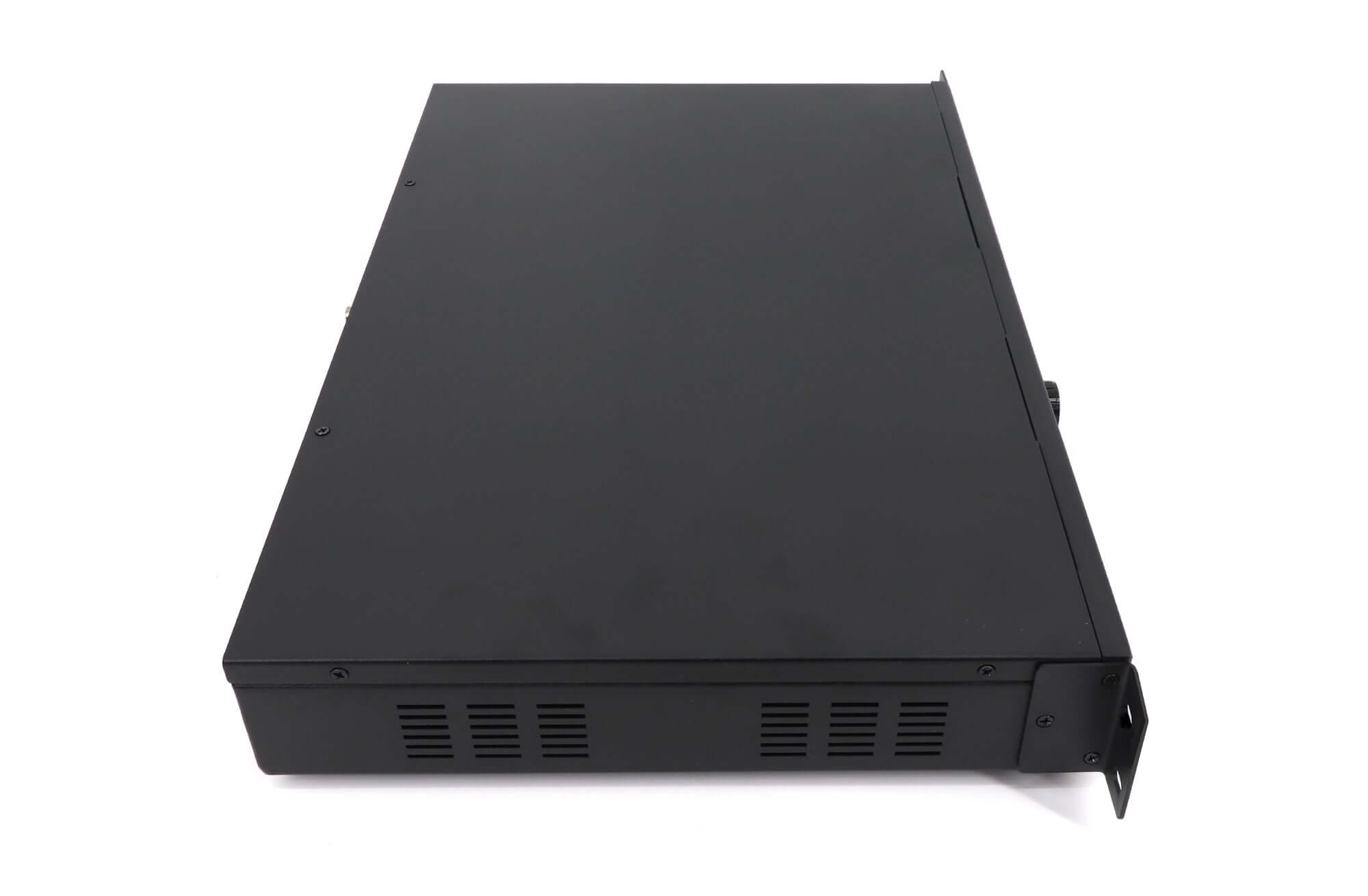

More Pictures of Amoonsky AMS-MVP300 LED Screen Video Processor


Amoonsky AMS-MVP300 LED Display Video Processor



Amoonsky AMS-MVP300 LED Display Video Processor


Download Specification

Amoonsky AMS-MVP300 LED Display Video Processor Specification
