G-Energy JPS200PV5.0A33 5V 40A LED Power Supply
$ 28.80
JPS200PV5.0A33 LED power supply with +5.0Vdc output, 0–40A current range and 200W output power. The linked model-specific PDF lists a 60–264Vac input range.
10000 in stock
G-Energy JPS200PV5.0A33 LED power supply
The G-Energy JPS200PV5.0A33 is a 5V LED display power supply with 200W output power and a 0–40A output current range. The linked V1.0 specification dated 2020/12/1 confirms a rated input range of 60–264Vac. Use the exact A33 model designation when checking a replacement.
Technical specifications
| Model | JPS200PV5.0A33 |
|---|---|
| Output power | 200W |
| Rated input voltage | 60–264Vac |
| Rated output voltage | +5.0Vdc |
| Output current range | 0–40.0A |
| Precision | ±2% |
| Ripple and noise | ≤250mVp-p |
| Working temperature — PDF | -30°C to +60°C |
| Thermal note — PDF | Increase the heat-dissipation area if the power-supply casing temperature exceeds 80°C. |
| Protection functions — PDF | Input undervoltage, output current limiting and output short circuit |
The main electrical values above are confirmed in the model-specific PDF. Compare the mounting, terminal layout and thermal installation with your cabinet before ordering.

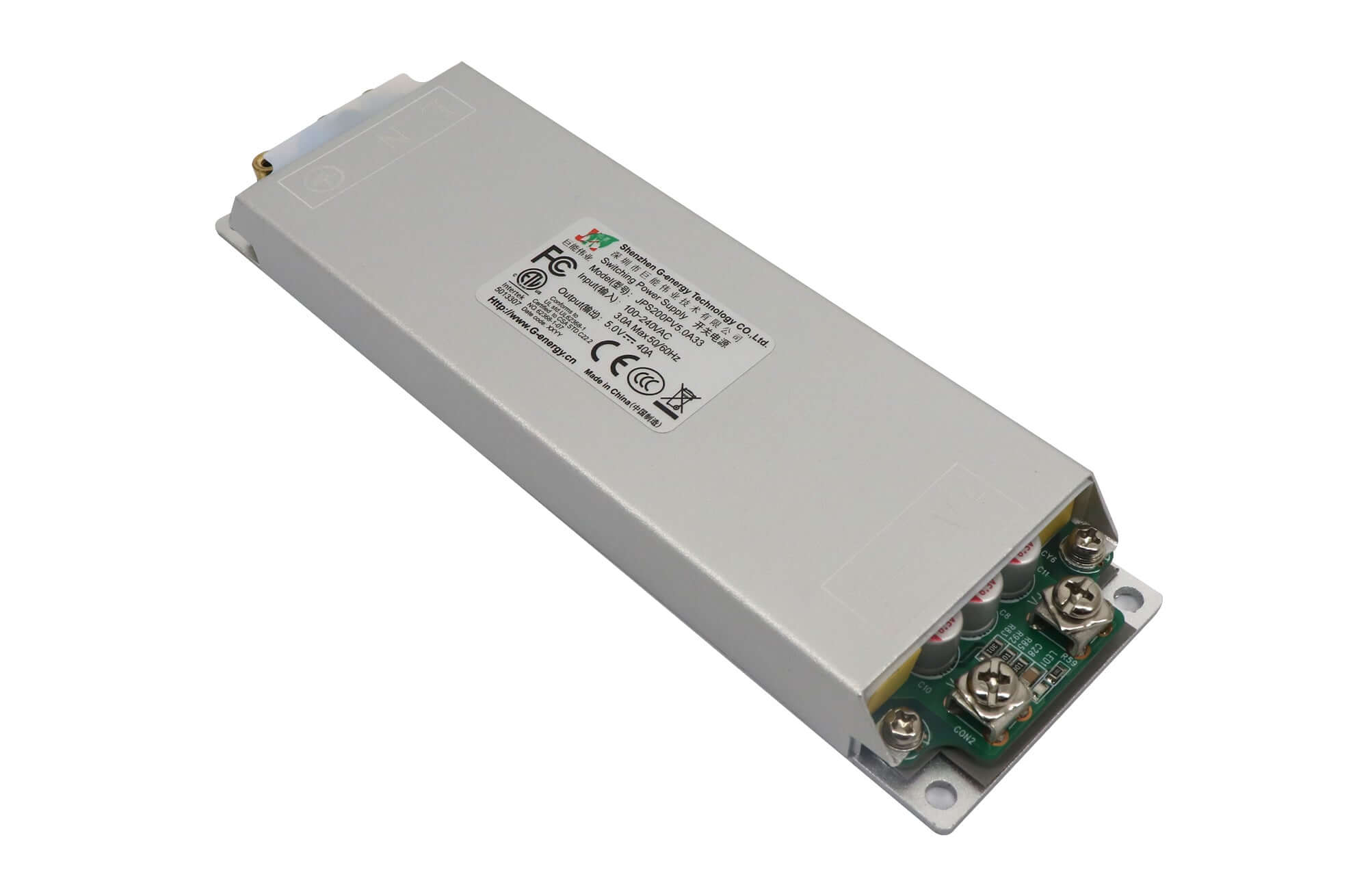

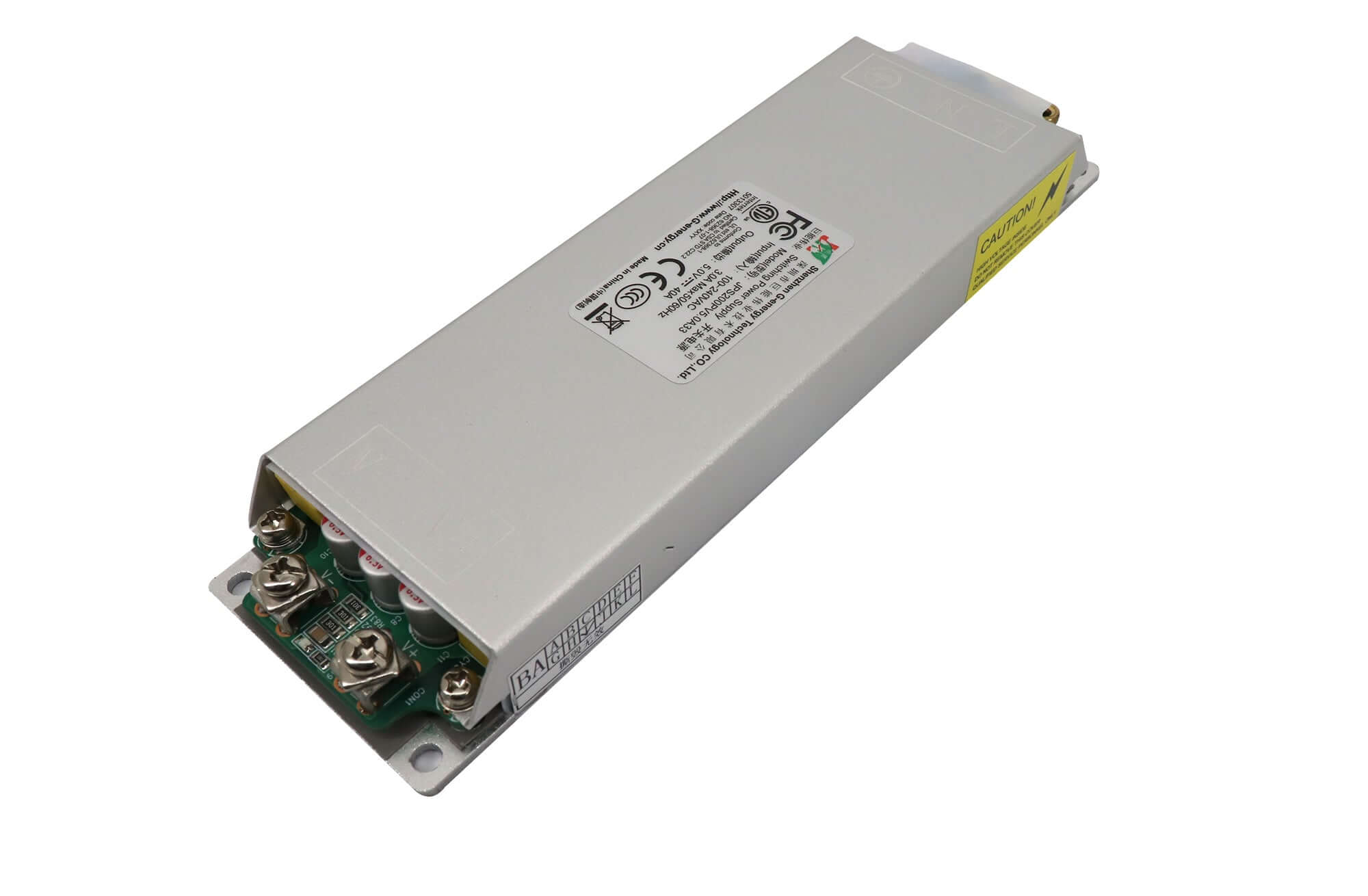

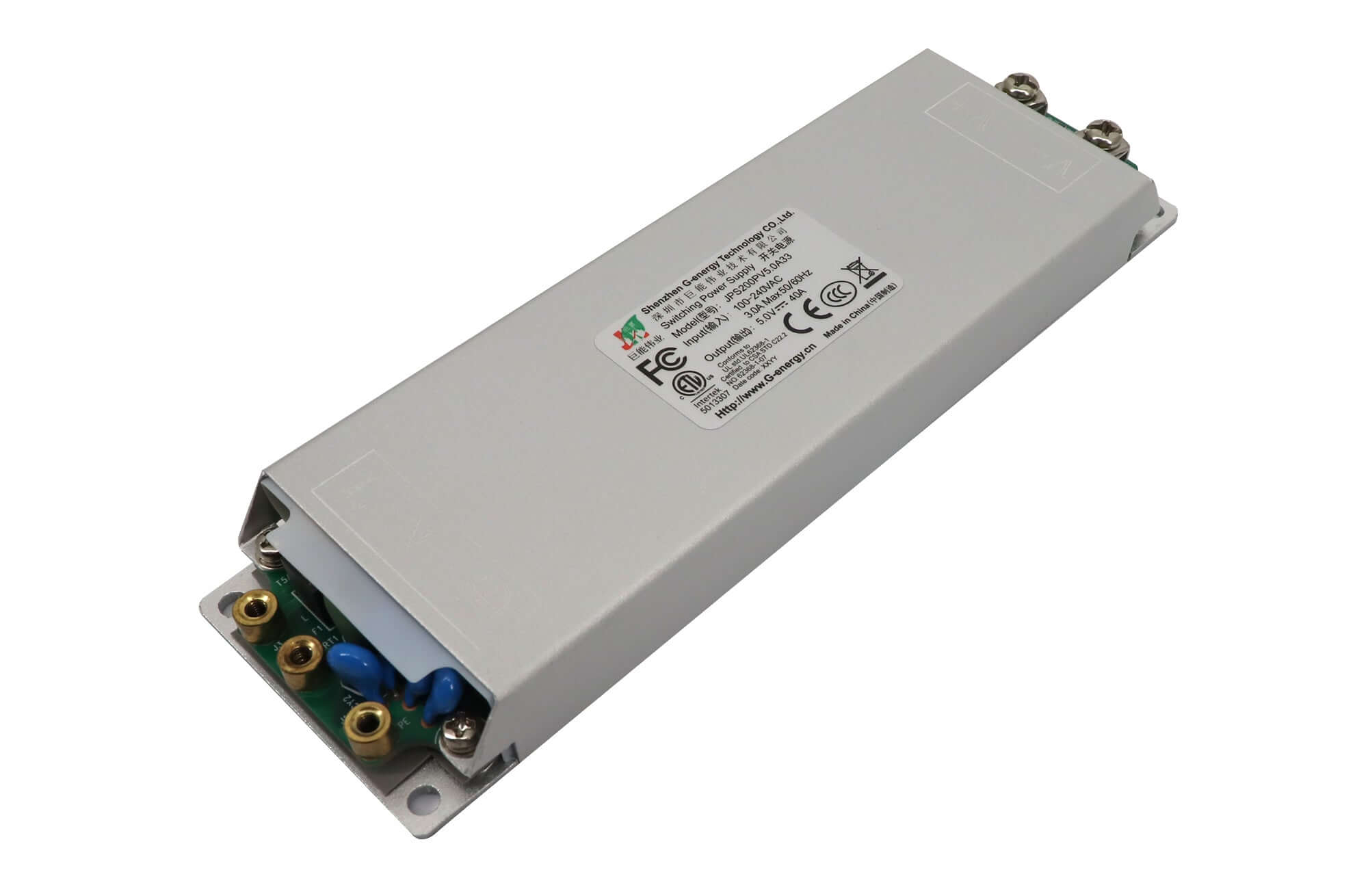

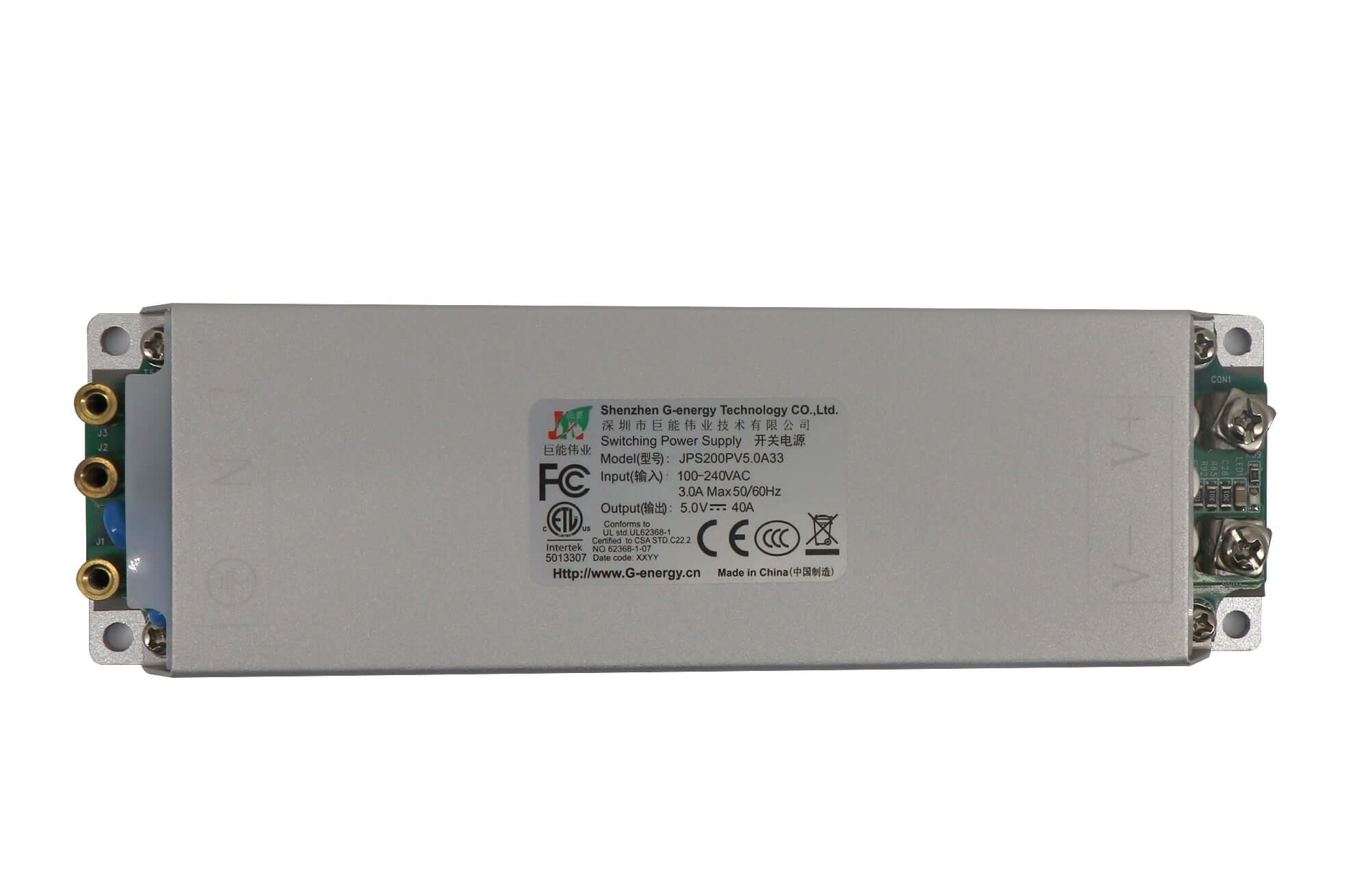

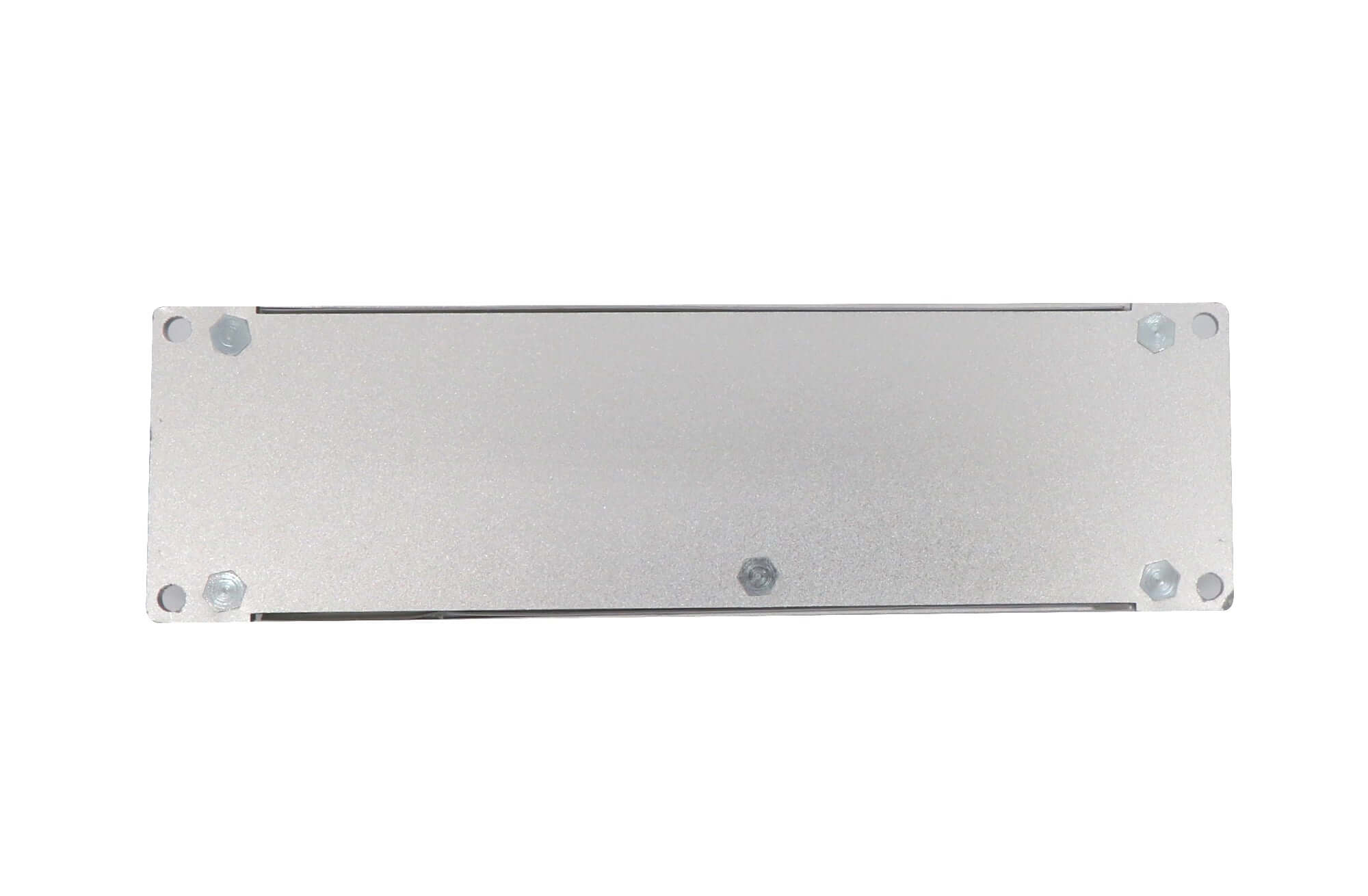

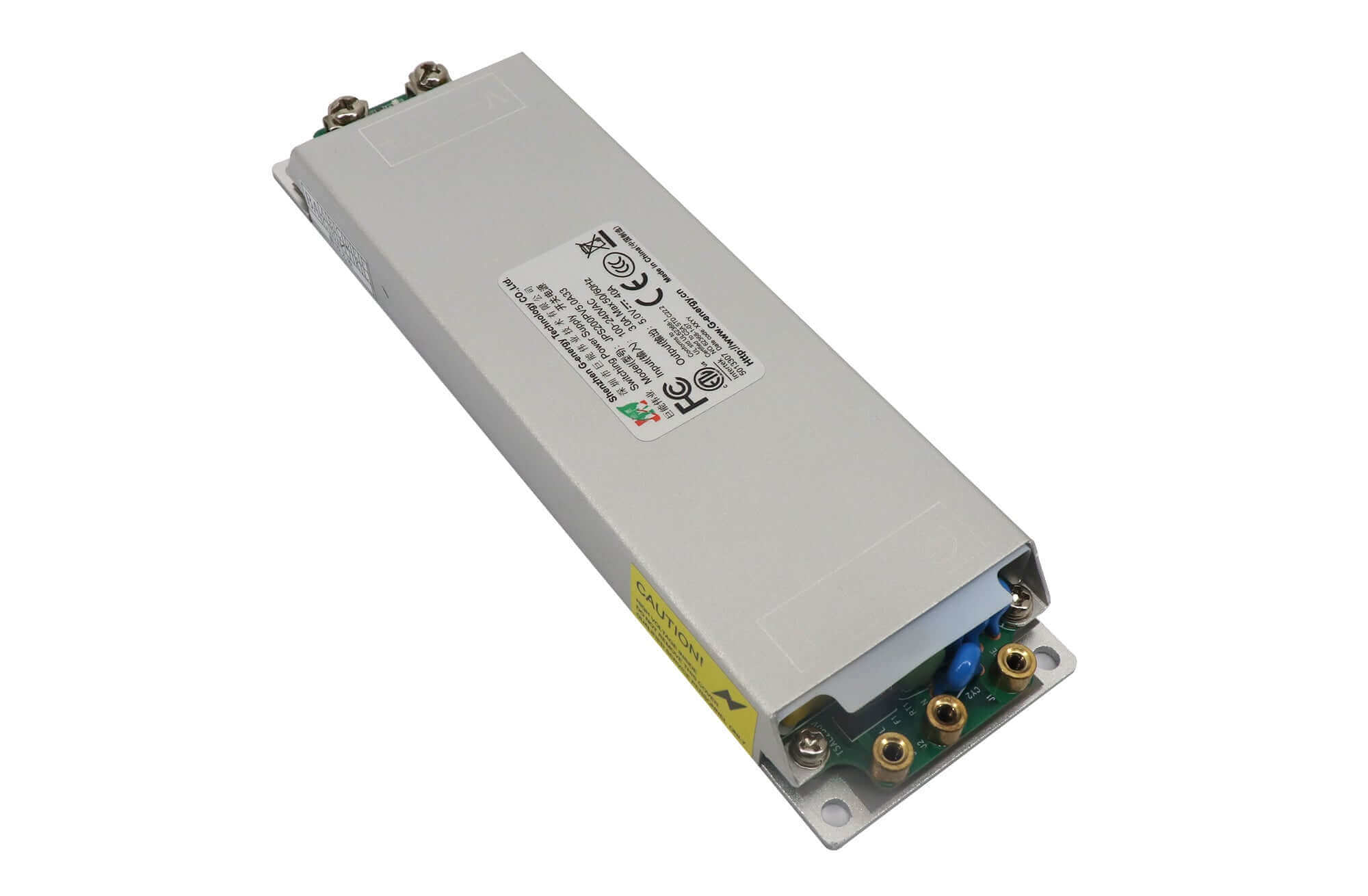

Product image
Specification download
G-Energy JPS200PV5.0A33 LED Display Power Supply Specification
Frequently asked questions
What output does the JPS200PV5.0A33 provide?
The linked specification lists +5.0Vdc, a 0–40A output current range and 200W output power.
What is the rated AC input range?
The JPS200PV5.0A33 V1.0 specification lists 60–264Vac. Confirm the unit revision and installation requirements before connection.
Is the JPS200PV5.0A33 the same model as N200V5-C?
No. They have different model designations and separate specifications. Use the exact JPS200PV5.0A33 document and unit label when matching a replacement.
What thermal requirement is stated in the PDF?
The listed working range is -30°C to +60°C. The specification says to increase the heat-dissipation area if the casing temperature exceeds 80°C.
Where can I download the JPS200PV5.0A33 specification?
Use the dedicated specification PDF link above; it identifies JPS200PV5.0A33 and includes the electrical ratings and installation information.
| Weight | 1 kg |
|---|
