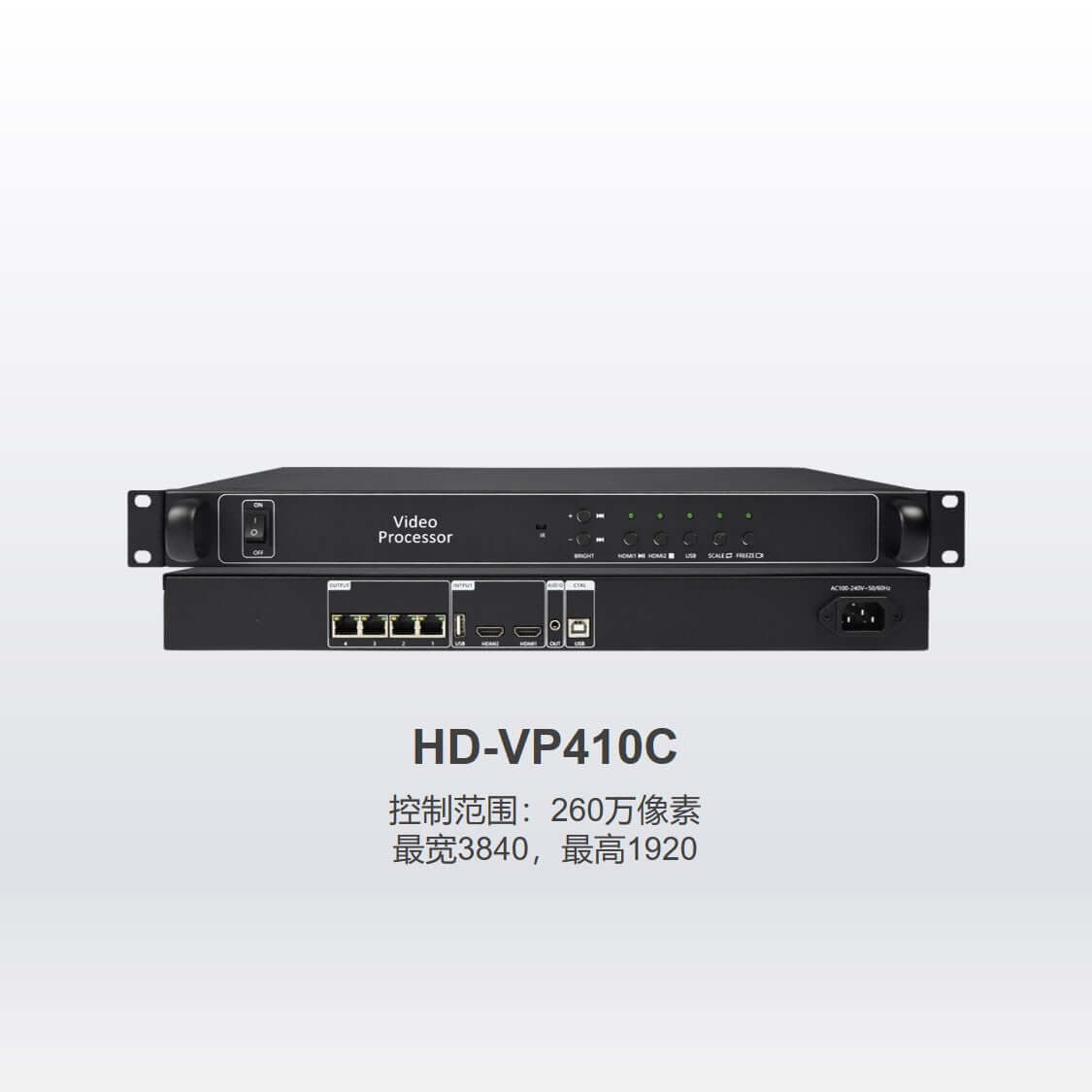

Huidu HD-VP410C LED Video Processor – HDMI & USB
Original price was: $ 165.00.$ 144.00Current price is: $ 144.00.
The Huidu HD-VP410C drives up to 2.6 million LED pixels through four Gigabit outputs. It combines dual HDMI inputs, USB video and image playback, HDSet configuration and a 3.5 mm audio output.
9998 in stock
HD-VP410C LED controller with HDMI and USB playback
The Huidu HD-VP410C combines video processing, LED sending and local USB playback. Its four Gigabit outputs connect to receiving cards for an LED screen of up to 2.6 million pixels. Switch between two HDMI sources or show compatible videos and pictures directly from a USB drive.
Playback and configuration
Front-panel controls provide source selection, brightness adjustment, partial/full-screen switching and screen freeze. A key lock helps prevent unintended changes during use. For setup, connect the USB-B port to a computer and use HDSet to configure receiving cards, screen layout and processor settings.
The HDMI inputs accept up to 1080p at 60 Hz. USB playback supports up to 1080p, but the linked specification does not state its frame-rate limit. Select HDMI audio from either input and route it through the 3.5 mm output to an external amplifier.
HD-VP410C specifications
| LED output / total loading | 4 Gigabit Ethernet ports; up to 2.6 million pixels |
|---|---|
| Maximum screen dimensions | 3840 pixels wide or 1920 pixels high; independent limits within total loading capacity |
| Live video inputs | 2 × HDMI-A; HDMI 1.3 backward compatible; up to 1920 × 1080p at 60 Hz |
| USB media input | 1 × USB 2.0; direct video and image playback from the drive root directory; video up to 1080p |
| Video file formats | mp4, avi, mpg, mkv, mov, vob and rmvb; supported encoding must also match |
| Listed video encoding | MPEG4 (MP4), MPEG_SD/HD, H.264 (AVI, MKV), FLV |
| Image formats | jpg, jpeg, png and bmp |
| Audio | HDMI audio from one selected input; 1 × TRS 3.5 mm two-channel audio output |
| Configuration | USB-B connection to a computer; HDSet software |
| Display controls | Source selection, scaling, cropping, black screen, freeze, brightness and volume settings |
| Infrared control | Remote operation supported; identified as optional in the specification’s front-panel notes |
| Power supply documentation | Specification table: AC 100–240 V. Rear-panel descriptions: 110–240 V; the manual lists 50/60 Hz. Confirm the unit label before installation. |
| Operating temperature / humidity | −20 to 60°C; 20–90% RH |
The Chinese V1.0 specification and linked user manual give different minimum AC input voltages. Check the actual unit label rather than treating these document values as interchangeable. The manual’s USB playback section also contains a VP210C model-name reference; this page uses the VP410C-specific specification for product limits.
Frequently asked questions
How many pixels can the HD-VP410C control?
The specification lists 2.6 million pixels across four Gigabit outputs. Maximum width is 3840 pixels and maximum height is 1920 pixels, but these are separate limits rather than a supported 3840 × 1920 canvas.
Can it play USB video without a live HDMI source?
Yes. Place compatible videos or images in the USB drive’s root directory and select USB playback. The specification lists up to 1080p video playback. It does not state a USB frame-rate limit, so the HDMI 60 Hz figure should not be applied to USB playback.
Which software is used to configure the receiving cards?
The user manual describes HDSet. Connect the processor to a computer using USB-B, select the device and open Screen Configuration to configure the receiving cards. The same software provides processor settings such as source selection, scale and brightness.
Does the VP410C support HDMI audio and infrared control?
It selects audio from one of its two HDMI inputs and provides a 3.5 mm two-channel output for an amplifier. Infrared control is supported, but the specification marks the infrared option as optional; confirm the supplied configuration.
Downloads
| Weight | 6 kg |
|---|
