Huidu HD-VP410S LED Controller – 4 Ports & USB Playback
$ 112.00
HD-VP410S three-in-one LED controller with four Gigabit outputs and up to 2.6 million pixels. Two HDMI inputs support 1080p at 60 Hz; USB video playback supports 1080p at 30 Hz. Includes stereo audio output and optional IR remote control.
999 in stock
HD-VP410S three-in-one LED controller
The Huidu HD-VP410S combines video processing, LED sending and USB playback in a 1U unit. Four Gigabit Ethernet outputs connect to receiving cards for up to 2.6 million LED pixels. Choose between two HDMI sources or play compatible files directly from a USB drive.
Live HDMI and local media playback
HDMI accepts up to 1080p at 60 Hz, while USB supports video up to 1080p at 30 Hz. Place USB media in the drive’s root directory and use the front-panel playback controls to select files. The USB-B port has a separate role: connecting a computer for device configuration.
Source switching, cropping, scaling, brightness adjustment, screen freeze and key lock support daily operation. HDMI audio can be selected from either input and sent through the 3.5 mm stereo output. Infrared remote control is optional.
HD-VP410S technical specifications
| Integrated functions | Video processing, LED sending and USB media playback |
|---|---|
| LED outputs / loading | 4 Gigabit outputs; 2.6 million pixels total; 655,360 pixels per port in the interface table |
| Canvas limits | Maximum width 3,840 pixels or height 2,500 pixels, within total loading capacity |
| HDMI inputs | 2 HDMI 1.4 inputs; up to 1920 × 1080p at 60 Hz, with selectable audio |
| USB playback | 1 USB 2.0 input, compatible with USB 3.0 devices; video up to 1920 × 1080 at 30 Hz |
| Listed video containers | mp4, avi, mpg, mkv, mov, vob, rmvb; codec compatibility also applies |
| Listed image formats | jpg, jpeg, png, bmp |
| Audio output | 1 TRS 3.5 mm stereo output |
| PC configuration | USB-B connection |
| Infrared remote | Optional |
| Supply / consumption | AC 100–240 V, 50/60 Hz; 14 W |
| Chassis / dimensions | 1U; 482 × 44 × 240 mm (W × H × D) |
| Net weight | 2.4 kg |
| Working temperature / humidity | −20°C to +55°C; 20–90% RH, non-condensing |
Specifications follow the linked V1.0 document. Keep the full screen within the total loading limit even where a per-port or dimension limit is higher.

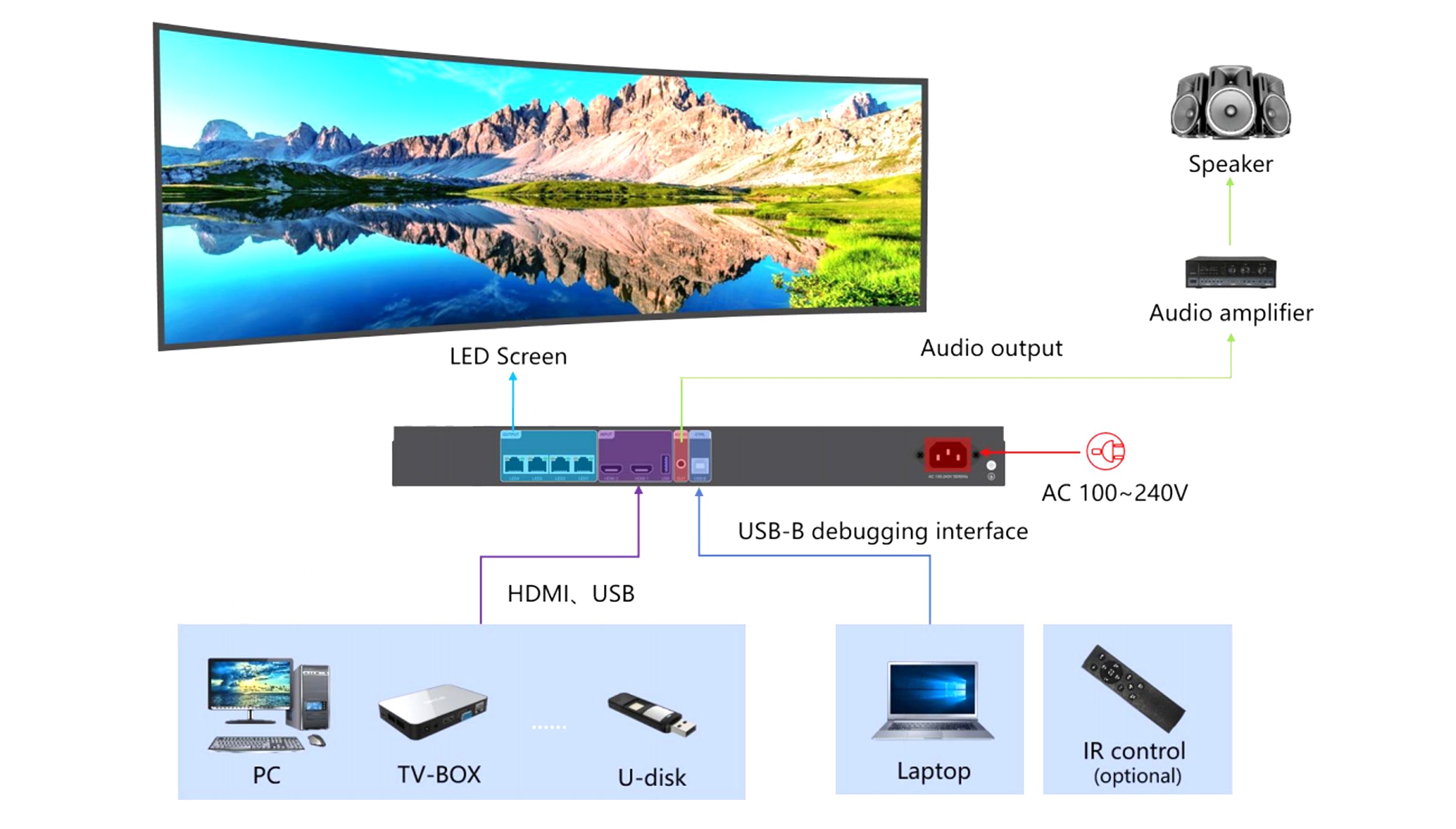

Product image
Frequently asked questions
Can the VP410S play content directly from a USB drive?
Yes. Place compatible videos or images in the USB drive’s root directory and select USB playback. The specified maximum video format is 1920 × 1080 at 30 Hz.
Does HDMI support a higher frame rate than USB?
Yes. HDMI input is listed up to 1920 × 1080 at 60 Hz, while USB video playback is limited to 1920 × 1080 at 30 Hz. These limits apply to different input paths.
Which video files are supported?
The PDF lists MP4, AVI, MPG, MKV, MOV, VOB and RMVB containers, with separate encoding requirements including MPEG4 and H.264 entries. A matching extension alone does not establish codec compatibility; test the actual file before deployment.
Does the four-port output drive a full 3840 × 2500 screen?
No. Maximum width and height are separate limits. The total listed load is 2.6 million pixels, and the receiving-card mapping must also stay within per-port limits.
Is the infrared remote included?
The specification identifies the remote as optional. Confirm it as part of the supplied configuration if you need remote source selection or playback control.
Specification download
Huidu HD-VP410S Three-in-One Video Processor Specification (PDF)
