KYStar KP2H HDMI LED Media Player – 1.3 Million Pixels
$ 175.00
Kystar Pandora KP2H multimedia player and LED sending card. V1.0 specifies 1.3 million pixels, 2 main plus 2 backup Gigabit outputs, HDMI input/loop output and Wi-Fi. Confirm optional 4G/GPS and the supplied version.
10000 in stock

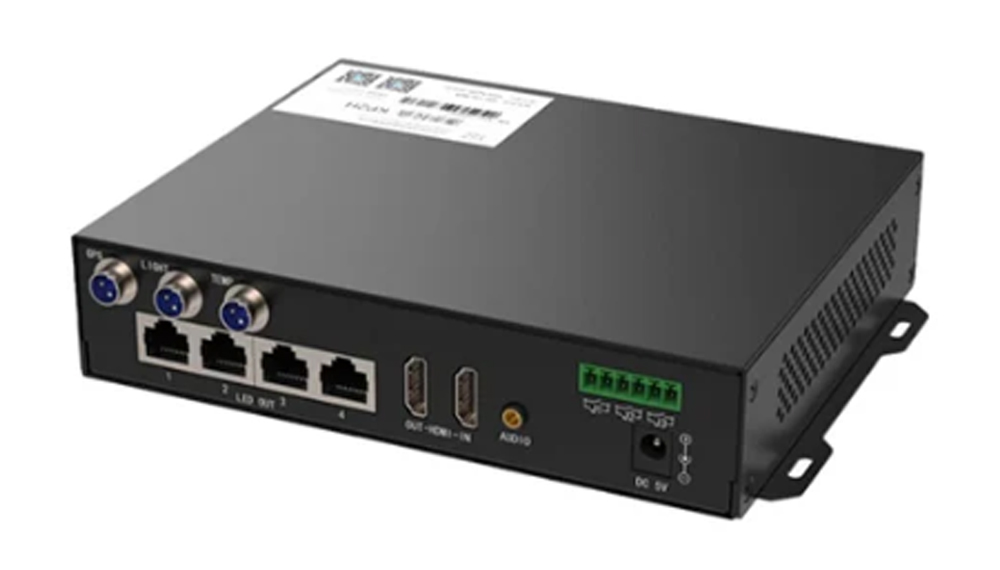

Kystar KP2H multimedia player with integrated LED sending
The Kystar KP2H, also called Pandora KP2H, combines a multimedia playback terminal and an LED sending card. It supports stored-content playback and an external HDMI source, making it suitable for advertising displays such as mirror screens, light-pole screens and full-color entrance signs.
This reference follows Pandora KP2H Product Specification V1.0, released October 25, 2021. That document specifies a total load of 1.3 million pixels, with two main Gigabit outputs and two backup outputs. Confirm the supplied hardware and firmware version when planning the screen.
KP2H loading capacity and signal connections
| Total LED loading | 1,300,000 pixels |
|---|---|
| Single main output loading | 650,000 pixels |
| LED network outputs | 4 Gigabit ports: 2 main and 2 backup |
| Separate dimension limits | Maximum width 3840 pixels; maximum height 2000 pixels, within total loading |
| Receiving-card system | KYSTAR receiving cards, as listed in V1.0 |
| HDMI input / output | HDMI 1.3 external input and loop output |
| Management LAN | Separate 100 Mbps network input for local networking and cluster control |
The two backup outputs provide redundancy rather than another two independent main loads. Check the total screen pixels, allocation to each main output and cable arrangement together. A 3840 × 2000 screen contains 7,680,000 pixels, so the separate width and height limits do not establish that full-area loading capacity.
Stored media and HDMI playback modes
The HDMI–Media button selects synchronous HDMI mode or asynchronous media mode. Stored programs reduce the need for a computer to remain connected as the playback source. HDMI input serves an external signal, while HDMI output is described as a loop output in the manual.
Kystar PE provides drag-and-drop program editing, and the mobile app supports screen adjustment, editing and management. Multi-window layouts can combine video, images and text. V1.0 lists common formats including MP4, AVI, WMV, BMP, JPG and PNG, plus scrolling text and clocks. Prepare and test the actual files and layout before deployment.
The hardware supports 1080P at 60 fps decoding. This describes media processing; it does not replace the separate 1.3-million-pixel LED loading limit.
Networking, storage and power
| Wi-Fi | STA and AP modes for router or hotspot connections |
|---|---|
| Internal storage | 8 GB built in, with 5 GB available to users |
| USB | 2 × USB 2.0; program updates and storage expansion |
| Audio output | 3.5 mm TRS |
| Optional functions | 4G WAN access; GPS positioning, timing and multi-screen synchronization |
| External interfaces | Brightness sensor, temperature/humidity sensor and relay control |
| Power input / rated power | DC 5 V / 4 A supply; rated power 18 W |
| Operating conditions | −20°C to +70°C; 5–95% working humidity |
Confirm the required sensors, antennas, 4G and GPS configuration for the order. The manual’s dimension table and installation drawing give inconsistent sizes; verify the supplied unit’s measurements and mounting-hole positions before fabricating a bracket or enclosure.
Frequently asked questions
Is the KP2H rated for 2.35 million pixels?
The V1.0 reference linked here specifies 1.3 million pixels. Use that documented limit unless the supplied version has a separately verified specification.
Do all four Ethernet outputs add loading capacity?
No. V1.0 assigns two ports as main outputs and two as backups, with 650,000 pixels per main output and 1.3 million pixels overall.
Are 4G and GPS standard equipment?
The specification marks both as optional. Confirm the required hardware and accessories before ordering.
Can the KP2H use any receiving card?
The manual lists KYSTAR receiving cards. Confirm the exact receiver model, module driver IC, scan mode and firmware compatibility for the screen.
Contact EagerLED with the screen resolution, receiving-card model, cable layout, playback source and networking requirements for a selection check. Browse the LED media player category to compare other configurations.
Technical reference: Pandora KP2H specification PDF, V1.0, including panel functions, loading and installation drawings.
